Solar Panel for Solar Generators Foldable Portable Solar Power Supply

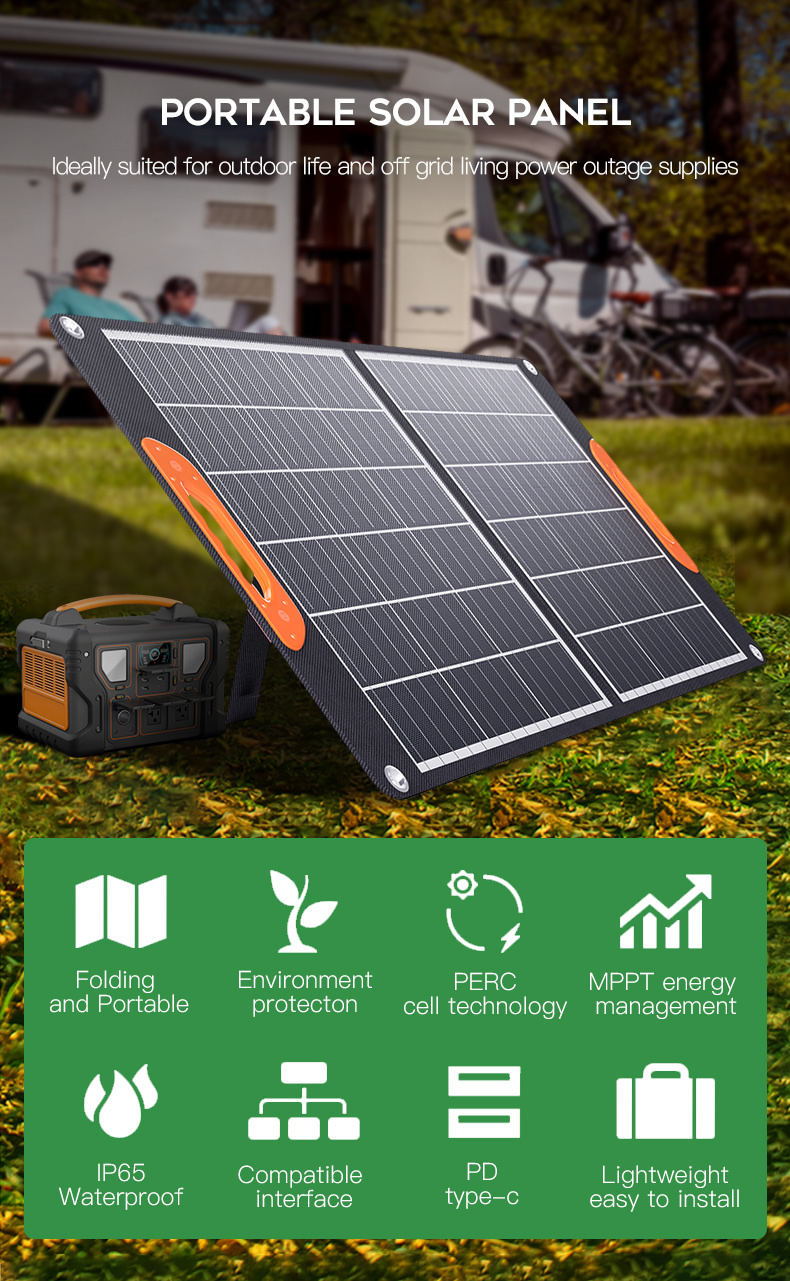

60W Solar Panel for Solar Generators Foldable Portable Solar Power Supply with Adjustable Kickstand Off Grid System for Outdoor Adventure Road Trip Emergency

Send Inquiry service@iacetop.com
Solar Panel Description

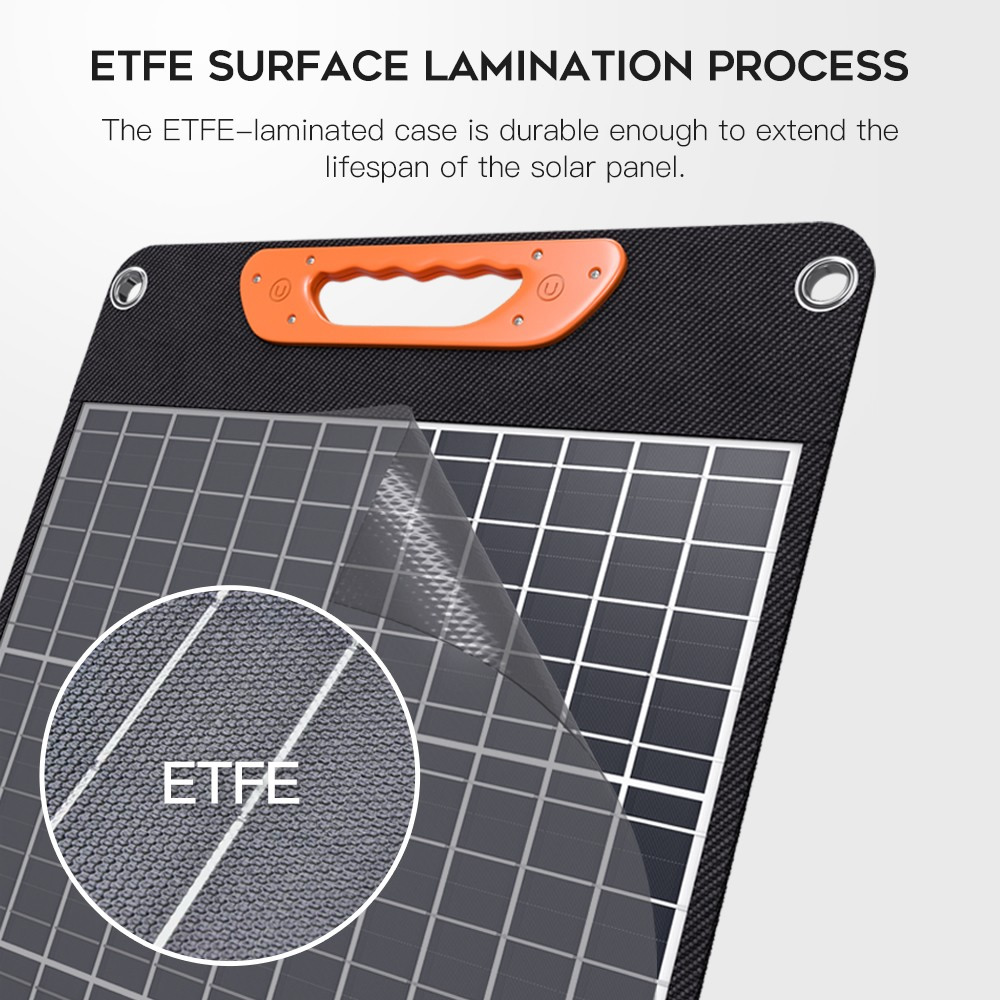

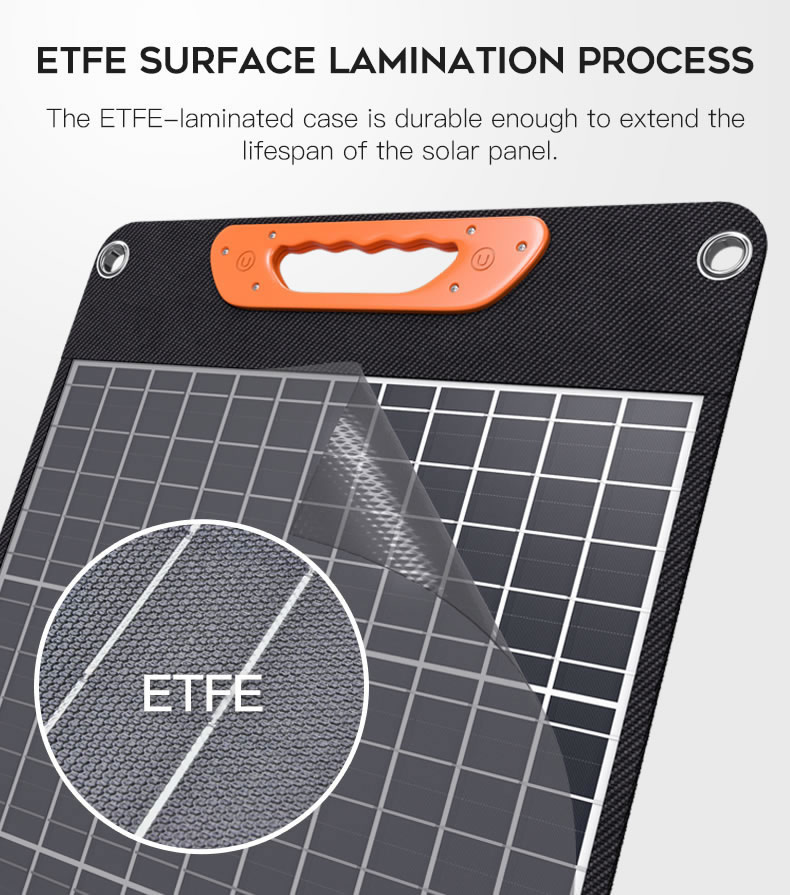

【High Solar Conversion】: It is monocrystalline portable solar panel with high conversion rate of 23% and scratch-resistant ETFE coating. It has high visible light transmittance, charge your power station even in less than ideal weather conditions.
【DURABLE & WATERPROOF】: IP65 waterproof rating protects the solar panel from splashing water, and the zipper pocket on the back can cover the power port, so you don't have to worry even if it rains suddenly. (Do not expose it to rain or soak it in water.)

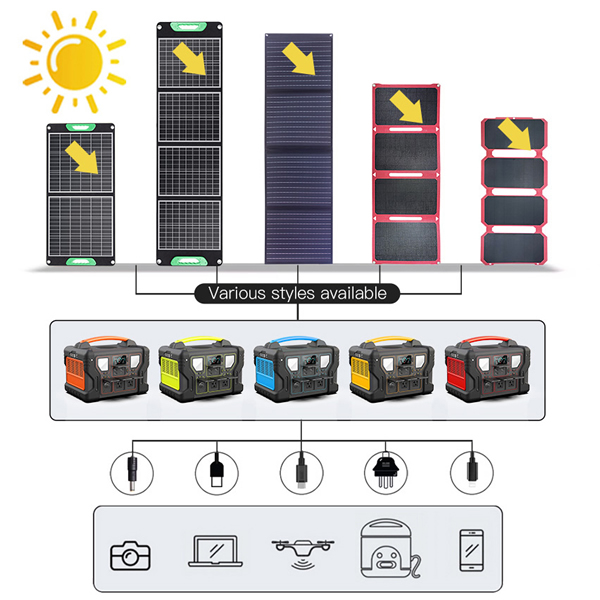

【HIGH COMPATIBILITY】: In addition to charging the power station series portable power stations (sold separately), the solar panel has 5 different sizes of DC connectors compatible with most popular solar generators on the market, including 8mm connector for USB2.0, QC3.0 , XT60 connector, etc.

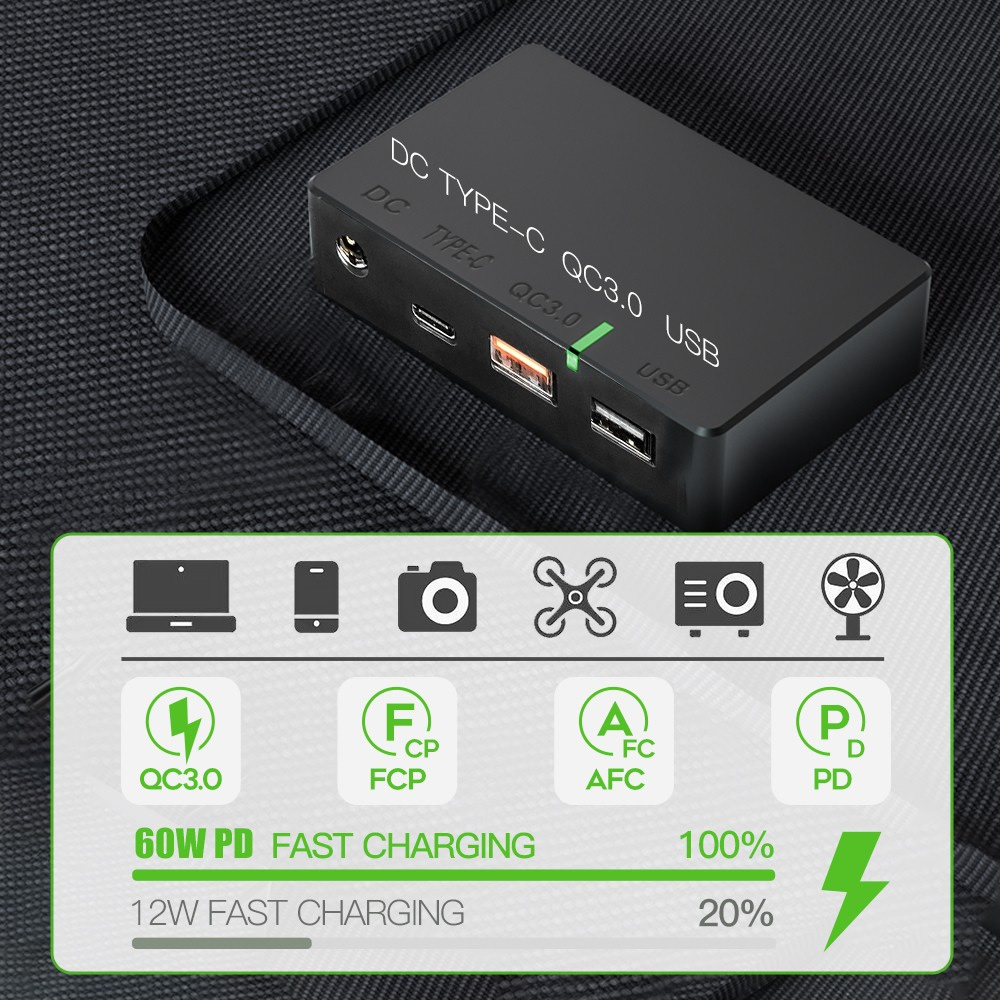

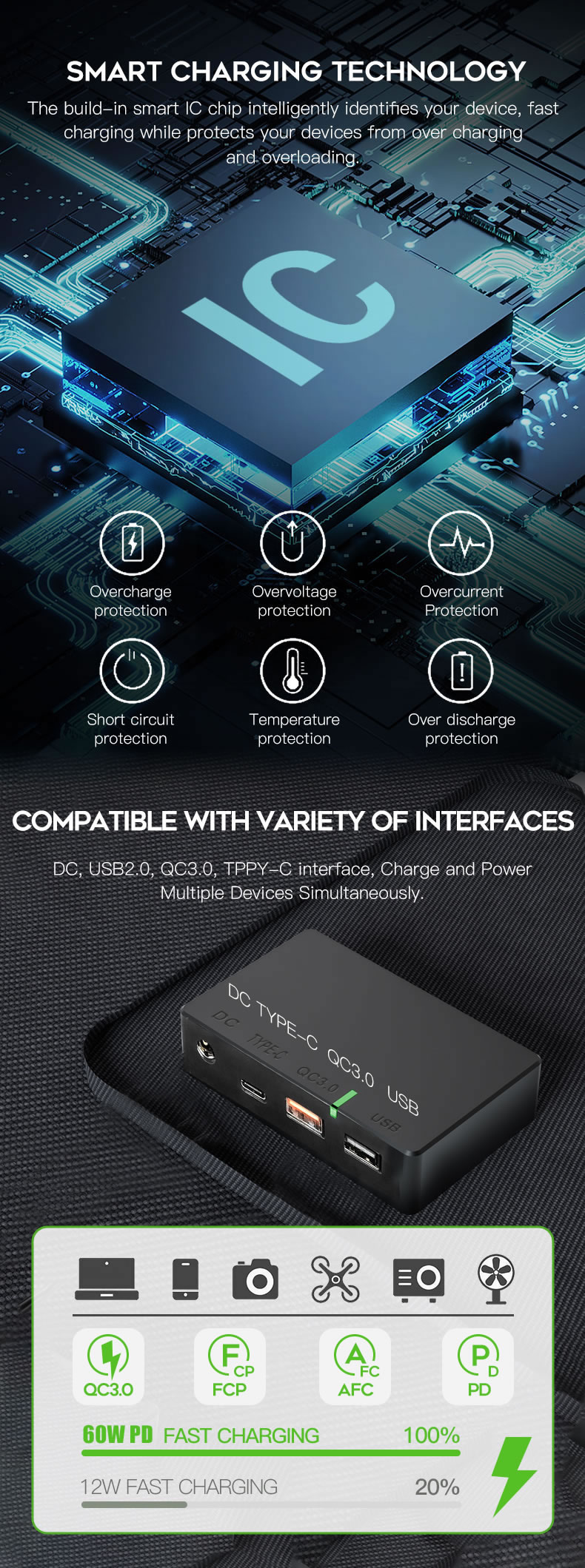

【ADDITIONAL USB OUTPUT】: This foldable solar panel is equipped with one 24W USB-A QC3.0 port and one USB-C PD 45W output port, quickly charging your phone or tablet in a pinch. Built-in smart IC chip intelligently recognizes your device and maximizes its charging speed, while protecting your device from overcharge, over-current, overload or short circuit.

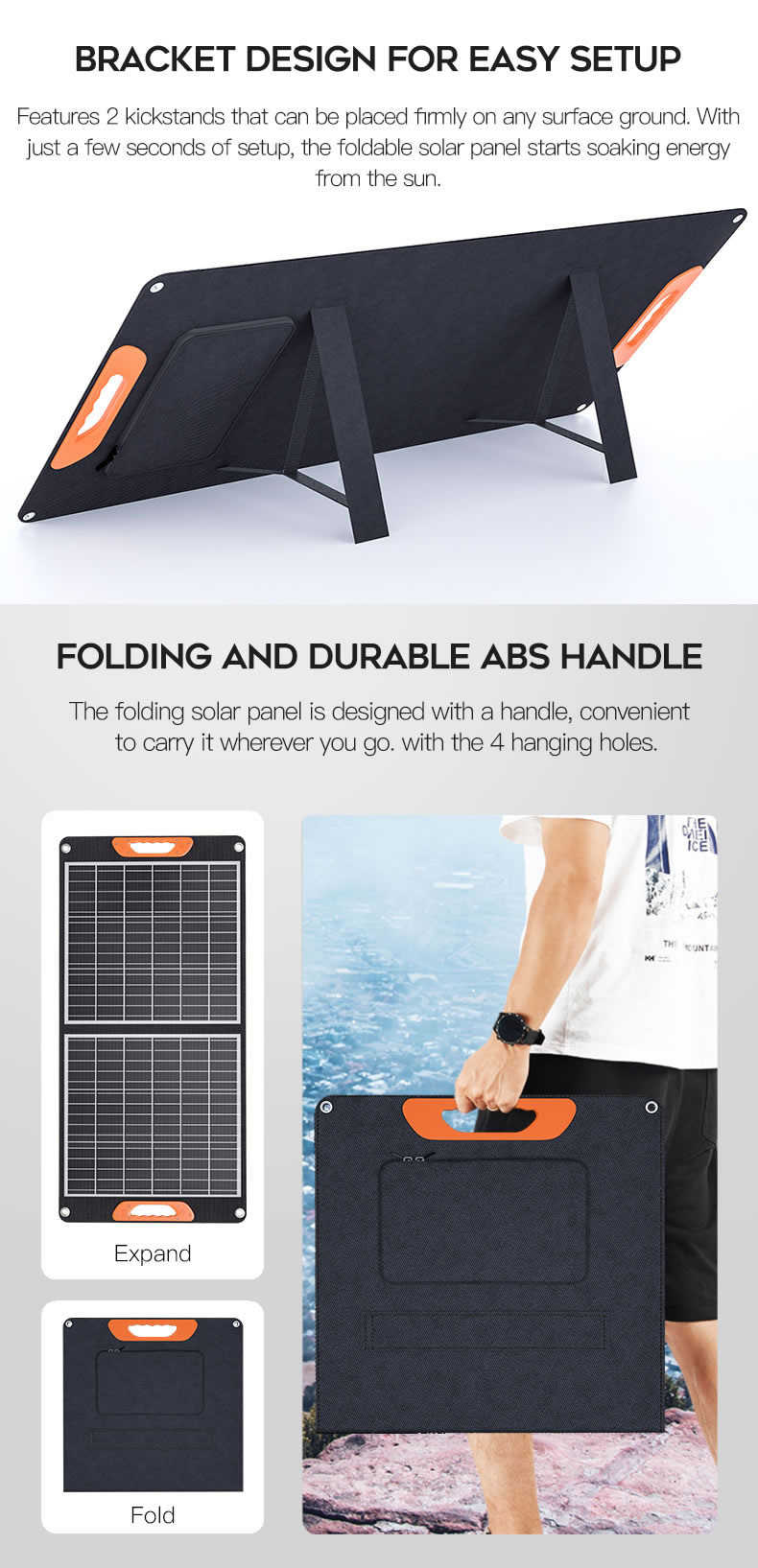

【EASY TO CARRY AROUND】: The folding solar panel has a folded size , it is easy to carry and does not take up much space. Great for RV travelling, camping, hiking, etc. With two adjustable kickstands, it can be firmly placed on any ground. Anchor hole design allows you strap it to your RV roof.

Performance Advantages





Technical Parameter

Maximum power at STC(Pmax) 60W 100W 150W 200W
Optimum Operating Voltage(Vmp) 18V 18V 18V 18V
Open-Circuit Voltage(Voc) 21V 21.2V 20V 20V
Optimum Operating Current(Imp) 3.3A 5.55A 8.3A 11A
Short-Circuit Current(Isc) 3.6A 6A 9A 12A
Power Tolerance ±3% ±3% ±2.8% ±2.5%
Cell Efficiency rate 22% 22% 22% 22%

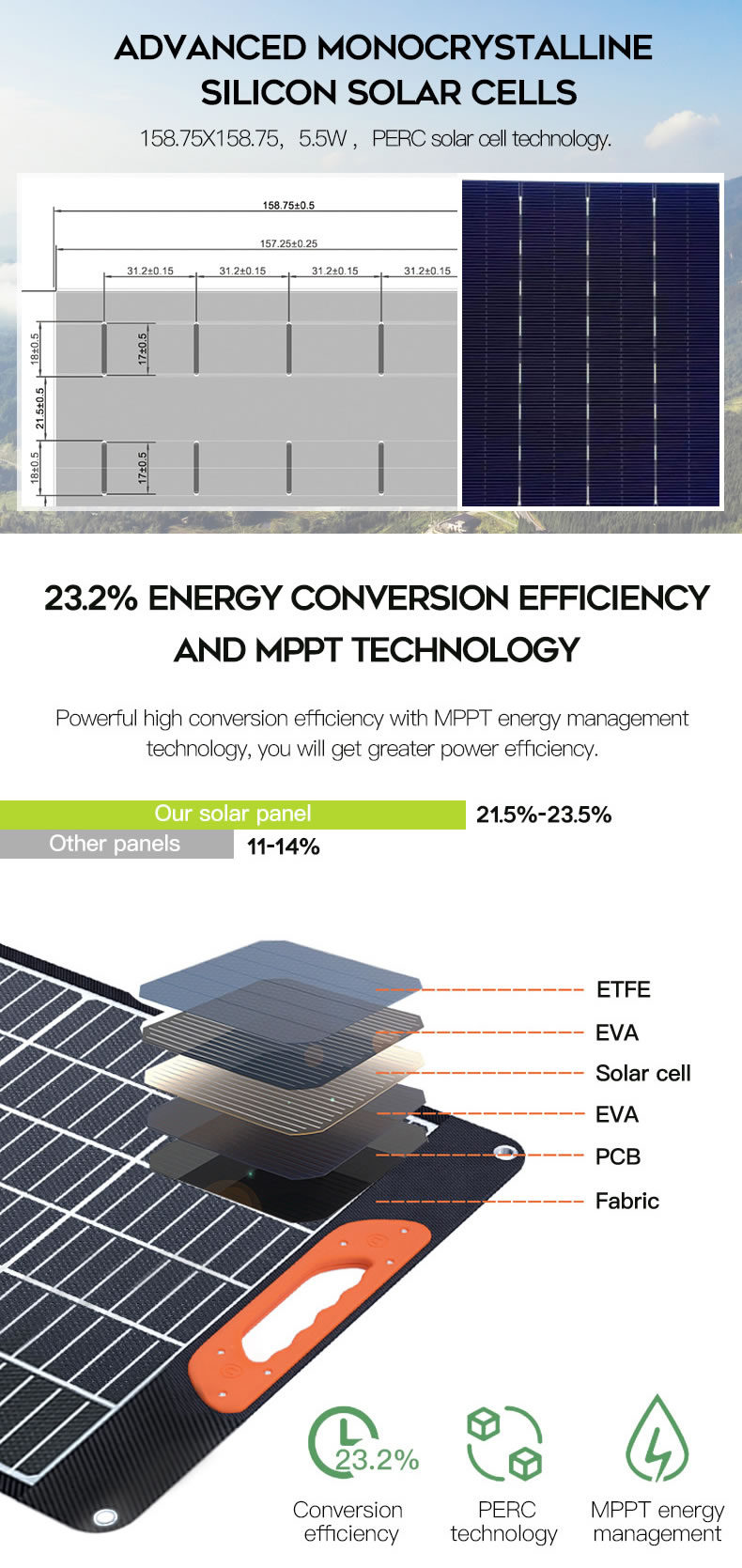

Solar cell Type Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W
0utput Interface USB2.0 (5V 3A )
QC3.0 (5V3.4A / 9V2.5A / 12V2A )
PD( 5V/ 9V/ 12V/ 15V ,3A )
DC 18V/3A Max
USB2.0 (5V 3A )
QC3.0 (5V3.4A / 9V2.5A / 12V2A )
PD( 5V/ 9V/ 12V/ 15V ,3A )
DC 18V/5A Max
USB2.0 (5V 3A )
QC3.0 (5V3.4A / 9V2.5A / 12V2A )
PD( 5V/ 9V/ 12V/ 15V ,3A )
DC 18V/8A Max
USB2.0 (5V 3A )
QC3.0 (5V3.4A / 9V2.5A / 12V2A )
PD( 5V/ 9V/ 12V/ 15V ,3A )
DC 18V/11A Max
Protection System Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity
Sealing process ETFE ETFE ETFE ETFE
Operating Temperature -40℃ to +85 ℃ -40℃ to +85 ℃ -40℃ to +85 ℃ -40℃ to +85 ℃
Bag material 600D Oxford cloth , ABS 600D Oxford cloth , ABS 600D Oxford cloth , ABS 600D Oxford cloth , ABS
Junction Box Ip65 Waterproof Ip65 Waterproof Ip65 Waterproof Ip65 Waterproof
Open size 830x520x16mm 1177*520*16MM 1955*508*16MM 2300*530*16mm
Folding size 520x415x30mm 590*520*30MM 540*508*50MM 630*530*50mm
Net weight 2.7KG 3.7KG 6.1KG 6.5KG
OEM service Can be customized Fabric color, Handle color, Power, Voltage, Size, Junction box, Connector, Packing box

OEM Service Advantages


※ Professional manufacturer of energy field of solar panel and power station.

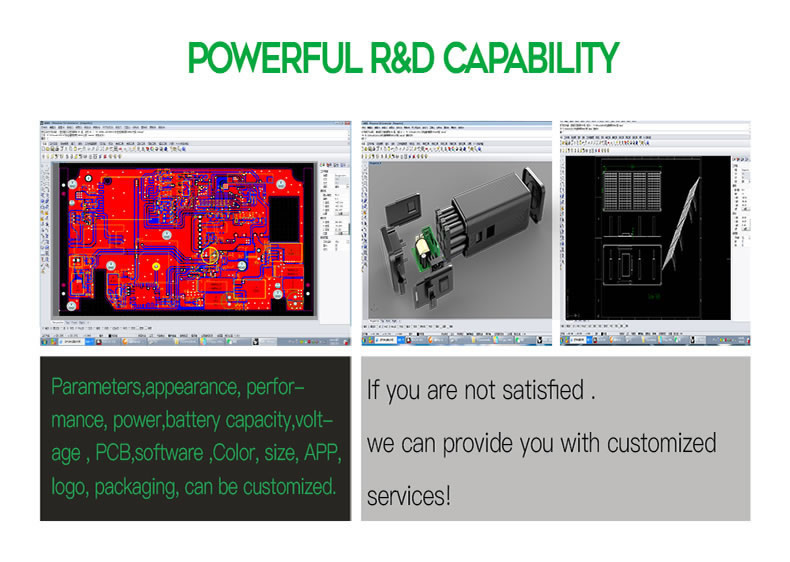

※ Parameters,appearance, performance, power,battery capacity,voltage , PCB,software ,Color, size, APP, logo, packaging, can be customized.


1.Our clients benefit from lower manufacturing costs and time-to-market volume production through over 120 highly qualified staffs and the 7500 square meters workshop, including a mold development center, a metal and plastic injection center,a hardware processing center,5 product assembling centers , Printing workshop.

2. Thanks to more than 15 dedicated engineers with strong engineering capability and extensive experience in system R & D, we keep developing new products every year to keep up to date with the market. we pride ourselves on our ability to meet our customers' needs. If one of our standard products doesn't meet your requirements, we can custom-design a product for you.

3.We have a complete process chain in the industry, so we can provide you with better customized services.

4.Normally MOQ 100pcs, but we also accept small sample order for quality clients.

FAQ

After-sales policy worry-free purchasement and service

1. Provide you with OEM and odm services, enhance your core competitiveness in the market .
2. 1.5-year warranty, and we are glad to help you solve quality problems .
3. We provide manuals and posters of products for you .
4. We focus on the continuous upgrade of products and technologies ,to give customers the better shopping experience.
