150W Solar Panel for Portable Power Stations with Adjustable Kickstand Foldable Solar Power Backup Off Grid Supplies

150W Solar Panel for Portable Power Stations with Adjustable Kickstand Foldable Solar Power Backup for Outdoor Camping Off Grid System.

Send Inquiry service@iacetop.com
Power Station Description



Performance ACE2000 ACE1000 Pro ACE1000 ACE700 ACE500 pro ACE500 ACE300
Rated AC Output 2000W 1000W 700W 500W 500W 300W
Rated Capacity 2016Wh 999Wh 699.3Wh 499.5Wh 444Wh 266.4Wh
Standard Capacity 48V
42Ah
22.2V
45Ah
22.2V
31.5Ah
22.2V
22.5Ah
22.2V
20Ah
22.2V
12Ah
Bettery Type LiFePO4 Li-ion
LCD Display Battery remaining capacity, Battery fault,
total output power,Over temperature,input power
Housing Material ABS+PC ( fireproofing V0)
Charging Temperature Range 0℃~40℃
Charge
Way
AC Input 1200W 700W NO
DC Input NO NO 24V/6.25A 24V/5A 25V/4A 25V/4A 15V/4A
Car Charge 12V
Solar Charge 800W 400W 18-23V/8A 18-23V/8A 18-23V/5A 18-23V/5A 18-23V/3A
Charge
Time
Wall charge 1.5-2.5H 1.5~2.5H NO
DC Input NO NO About 6~8H
Car Charge 10~15H 9~13H About 7~9H
Solar Charge About 3H About 3H About 6~9H
USB Output USB-Type-C PD 100W*2 PD 60W
USB-3.0 QC3.0*4(72W max) QC3.0*3(54W max)
DC port Output 12V/5A*2(120W) 12V/5A*2(120W)
Cigarret Lighter Output 12V/10A(120W) 12V/10A(120W)
Wireless Charge Output 15W 10W
LED Light SOS,Flshlingt(8W) SOS,Flshlingt(5W*2)
AC
Output
Output waveform Pure Sine Wave
Output voltage 110V*4(US/JP) or 220V*4(EU/UK/AU/CN) 110V*2(US/JP) or 220V*2(EU/UK/AU/CN)
Frequency 50/60Hz
AC continuous output 2000W 1000W 700W 500W 500W 300W
Peak AC output 4000W 2000W 1400W 1000W 1000W 600W
Discharging Temperature Range -15~45℃
Authentication UL,FCC,CE,ROSH,PSE,UN38.3
Product Size 410*290*290mm 328*221*263mm 273*181*244mm
Weight 22kg 9.8Kg 8.9Kg 7.4Kg 6.3Kg 5.5Kg 3.95Kg
Warrantly 18 months
Color Oranger+gray,Blue+gray,Red+gray,Green+gray

Solar Panel Description


Maximum power at STC(Pmax) 60W 100W 150W 200W
Optimum Operating Voltage(Vmp) 18V 18V 18V 18V
Open-Circuit Voltage(Voc) 21V 21.2V 20V 20V
Optimum Operating Current(Imp) 3.3A 5.55A 8.3A 11A
Short-Circuit Current(Isc) 3.6A 6A 9A 12A
Power Tolerance ±3% ±3% ±2.8% ±2.5%

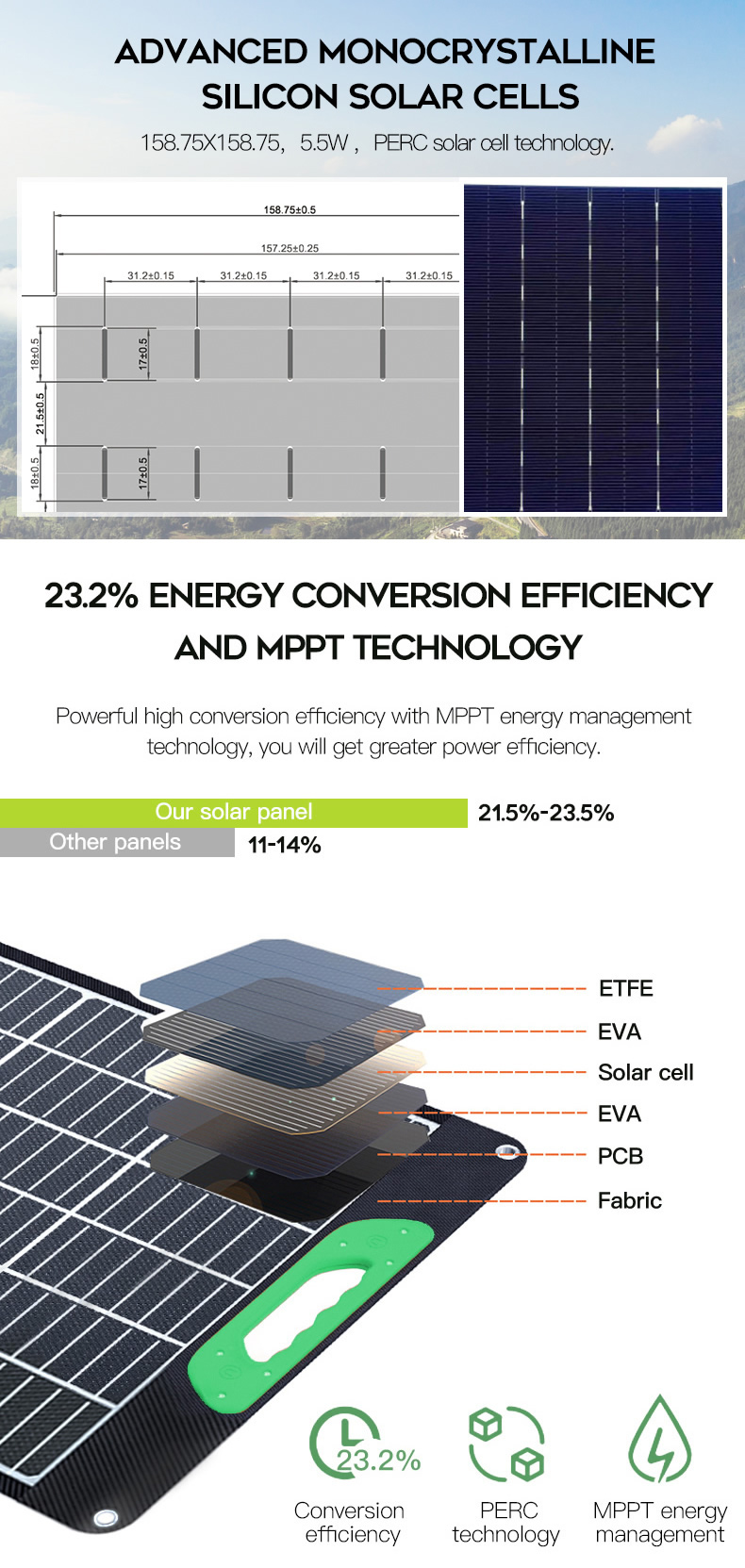

Cell Efficiency rate 23.2% 23.2% 23.2% 23.2%

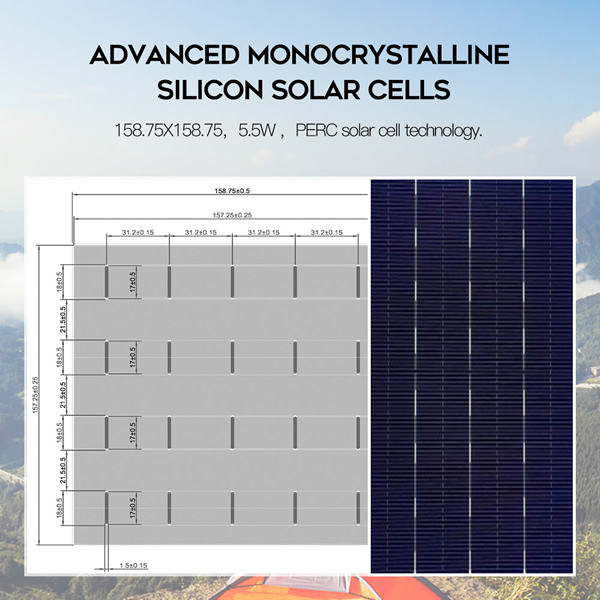

Solar cell Type Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W

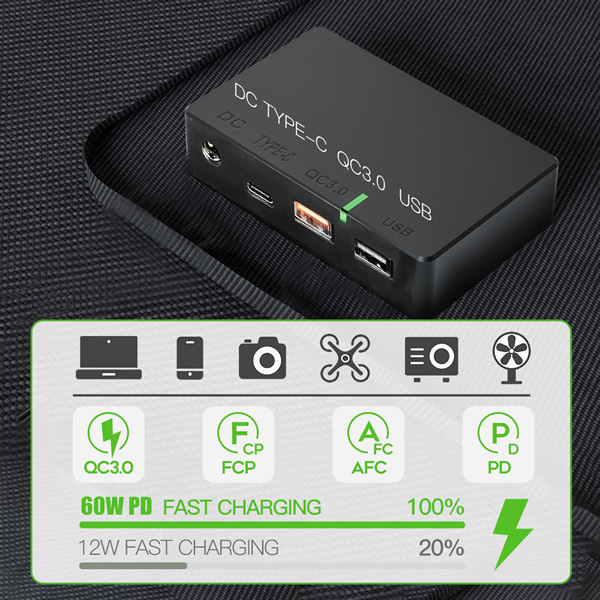

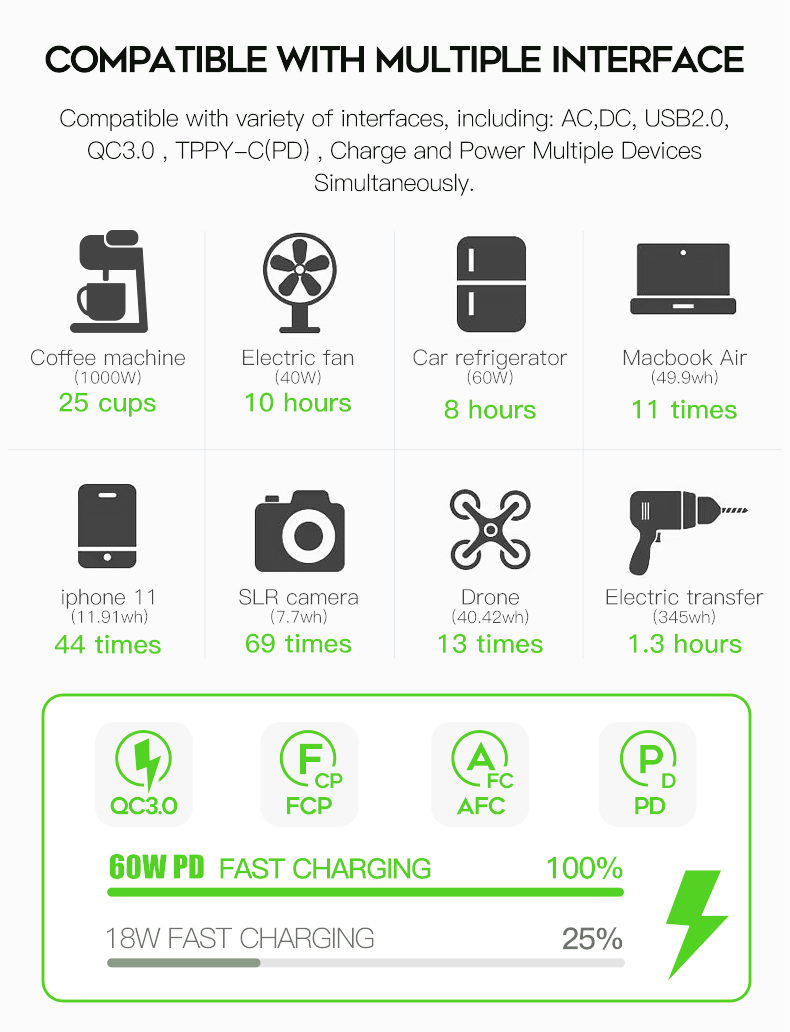

0utput Interface USB2.0 (5V 3A )
QC3.0 (5V3.4A / 9V2.5A / 12V2A )
PD( 5V/ 9V/ 12V/ 15V ,3A )
DC 18V/3A Max
USB2.0 (5V 3A )
QC3.0 (5V3.4A / 9V2.5A / 12V2A )
PD( 5V/ 9V/ 12V/ 15V ,3A )
DC 18V/5A Max
USB2.0 (5V 3A )
QC3.0 (5V3.4A / 9V2.5A / 12V2A )
PD( 5V/ 9V/ 12V/ 15V ,3A )
DC 18V/8A Max
USB2.0 (5V 3A )
QC3.0 (5V3.4A / 9V2.5A / 12V2A )
PD( 5V/ 9V/ 12V/ 15V ,3A )
DC 18V/11A Max
Protection System Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity

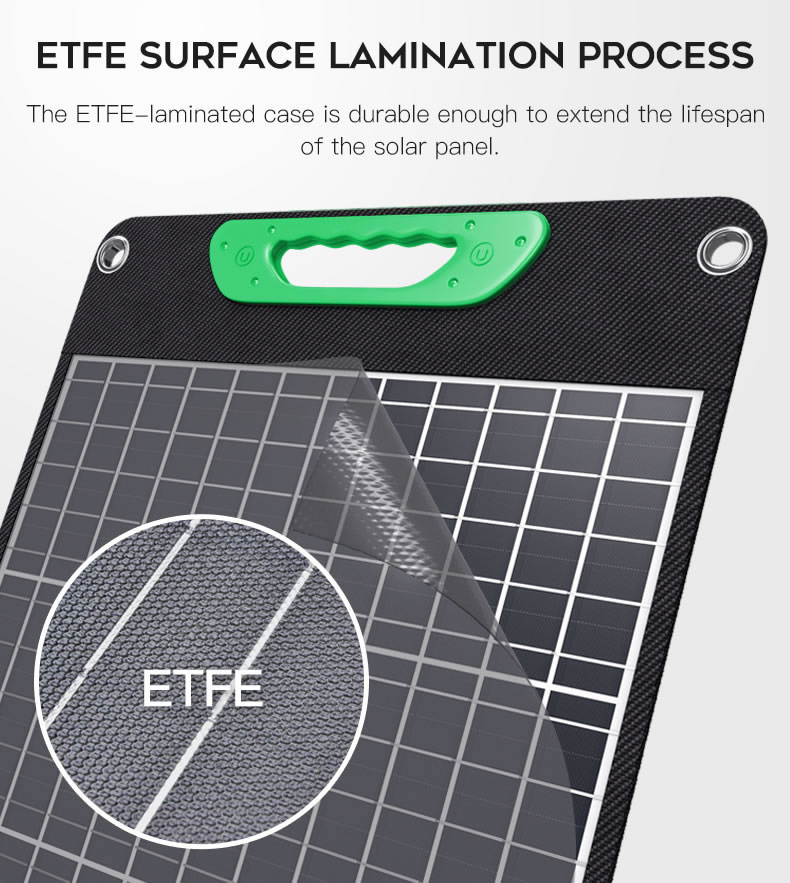

Sealing process ETFE ETFE ETFE ETFE
Operating Temperature -40℃ to +85 ℃ -40℃ to +85 ℃ -40℃ to +85 ℃ -40℃ to +85 ℃
Bag material 600D Oxford cloth , ABS 600D Oxford cloth , ABS 600D Oxford cloth , ABS 600D Oxford cloth , ABS
Junction Box Ip65 Waterproof Ip65 Waterproof Ip65 Waterproof Ip65 Waterproof
Open size 830x520x16mm 1177*520*16MM 1955*508*16MM 2300*530*16mm
Folding size 520x415x30mm 590*520*30MM 540*508*50MM 630*530*50mm
Net weight 2.7KG 3.7KG 6.1KG 6.5KG
OEM service Can be customized Fabric color, Handle color, Power, Voltage, Size, Junction box, Connector, Packing box

OEM Service Advantages

ACETOP is committed to the development frontier of new energy technology in the industry, specialized in solar photovoltaic panel, power station system , the main products: Solar Power Station, Solar Power bank ,Solar panel,portable Solar panel, on-grid and off grid solar power system, and other products that applies solar photovoltaic technology ,related accessories,OEM ODM power station service. Adhering to a sustainable development concept of green energy, and taking the bringing sustainable clean energy to human beings as its mission, we continuously gather strength to promote technical innovation for opening a new era for future energy. Adhering to the management philosophy of People Orientation, Quality First and Technology Innovation, We value employees′ training and cultivation, taking employees as the greatest wealth of the company, and making their value be rewarded itself. ACETOP will be consistently committed to technology innovation in renewable energies, offering tailor-made design and engineering solutions by complying with local building codes for bankable quality with lower affordable cost to installers, distributors and developers, and to providing better products and services for our customers.

FAQ

1. Q: Can you accept OEM and ODM customized services? A: Yes, we provide OEM and ODM services according to customer requirements. 2. Q: Can we take samples for testing? A: Yes, we provide samples. 3. Q: What is your payment method? A: T/T, Moneygram, West Union, Paypal, etc. 4. Q: What is the warranty period of the product? A: The warranty is one year, if there is any problem with the quality, we will send you a new one. 5. Q: How long is the delivery time? A: The delivery time is determined according to the quantity. Usually delivered within 5-10 days, but may vary based on quantity or other factors. 6. Q: How do you control the product quality. A: The power station is rigorously tested in all production processes.
