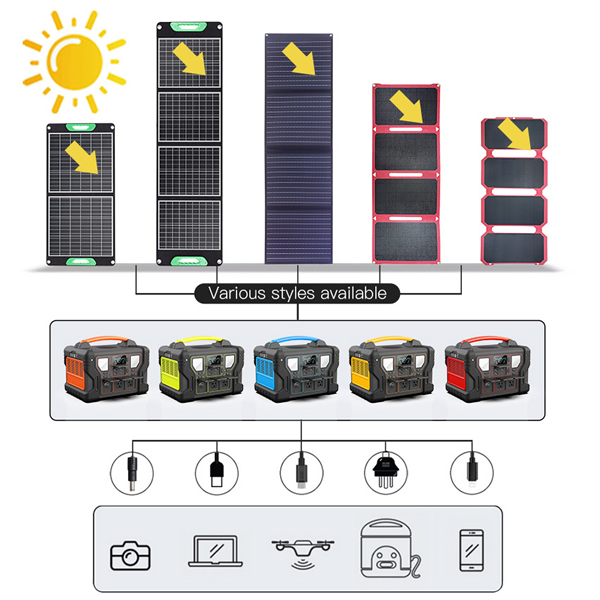

Solar Panel Charger with USB QC 3 Typc C DC Outputs for Power Stations
High Efficiency Waterproof Solar Panel Charger with USB QC 3 Typc C DC Outputs for Power Stations
Send Inquiry service@iacetop.comSolar Panel Description

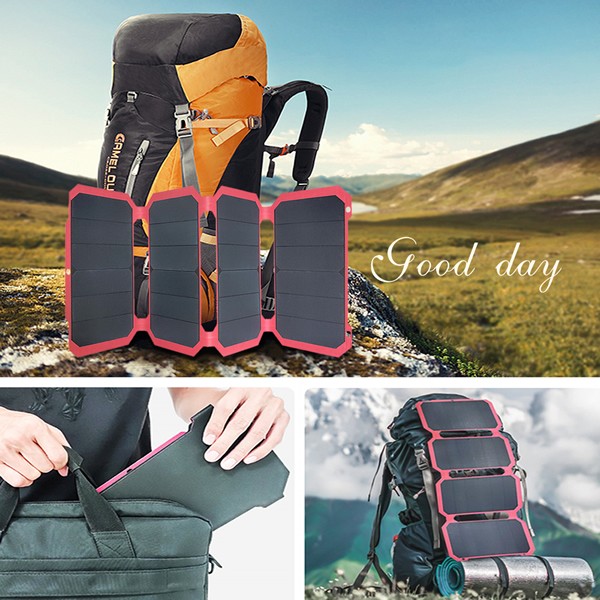

【PORTABLE & FOLDABLE】With a small size and a lightweight design that can be easily squeezed into your backpack, offering portability and simplicity, the hiking buckle makes it ideal for attaching to your backpack while hiking or walking around town. Eco-friendly and self-cleaning material E film provides lasting durability to protect against unpredictable weather conditions, and can easily withstand high temperatures.

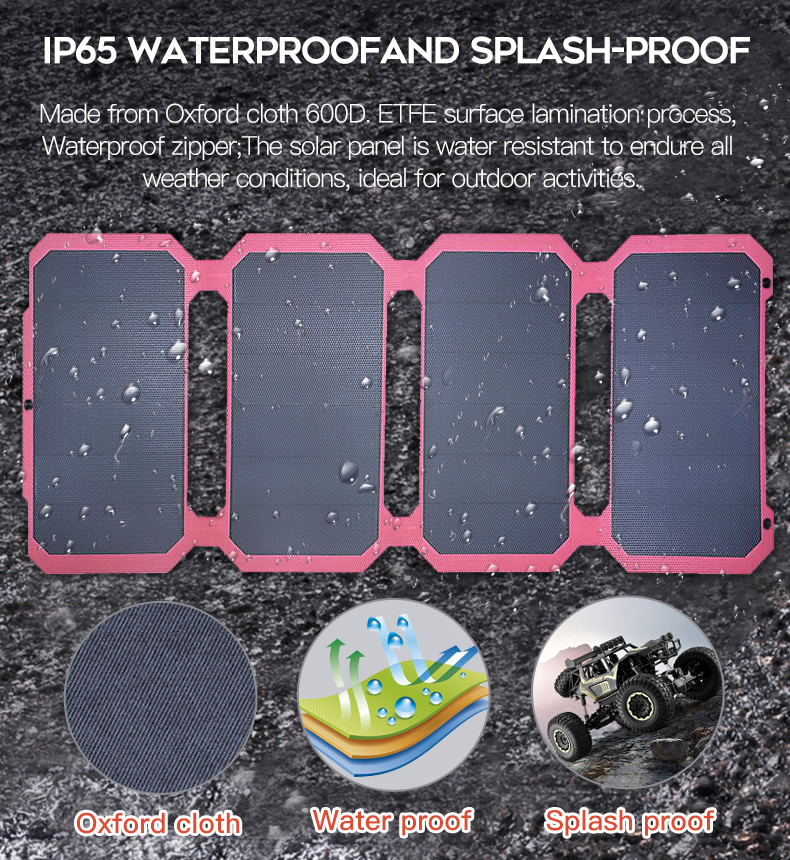

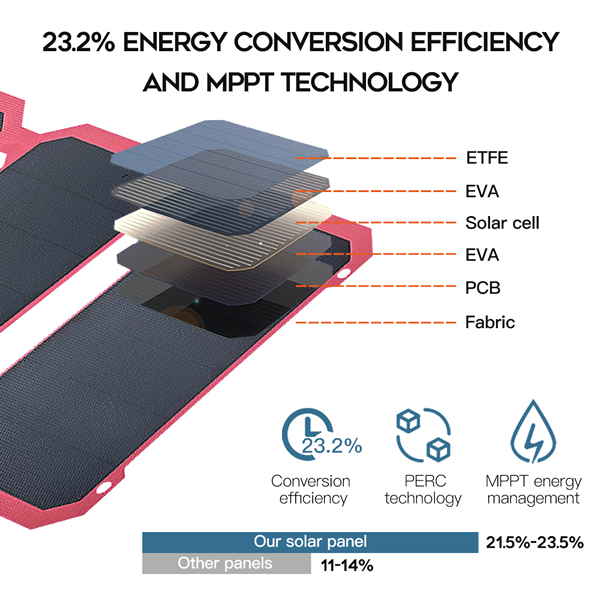

【HIGH SOLAR CONVERSION & IP67 WATERPROOF】 Highly efficient solar panel convert up to 24% of solar power into free energy in enough sunlight, which is the most durable panels at present, standing up to elements and wear and tear better than conventional panels. This special ETFE polymer surface protects solar panel from occasional rain or wet fog and three ports are covered with rubber cover to protect them from dust or water damage.
【SMART IC CHIP TECHNOLOGY & SAFETY FEATURE】Built with voltage stabilization and an innovative chip that detects the best or maximum charging requirement of your device so your devices can be charged safely and fast.

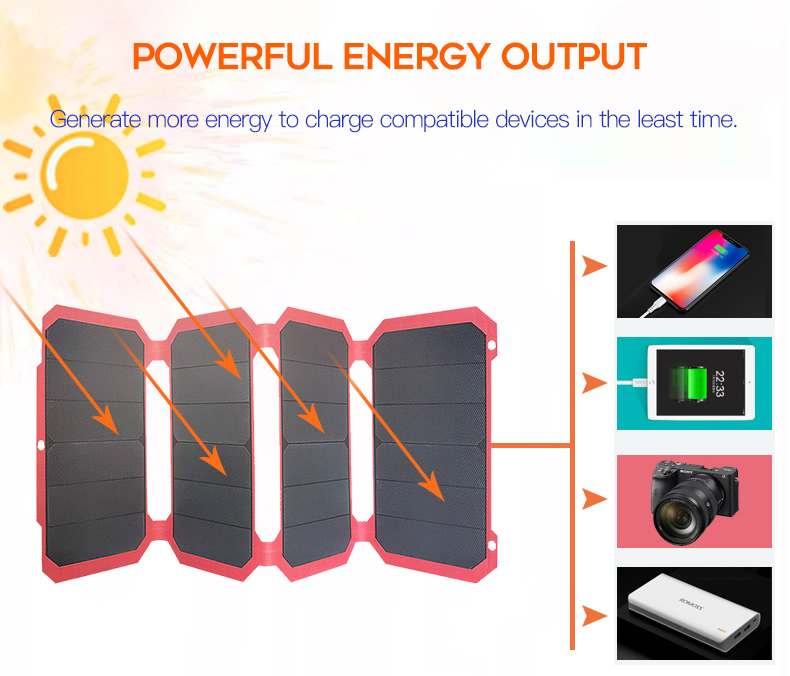

【WIDE COMPATIBILITY】Attached a USB cable for almost all 5V Android devices and Apple devices. Our solar phone charger can't store the electricity, please unfold all solar panel in outdoor direct sunlight, then connect your device to USB output port.
Performance Advantages
Technical Parameter
| Maximum Power at STC(Pmax) | 10W | 16W | 28W | 28W |
| Optimum Operating Voltage(Vmp) | 5.5V | 6V | 6V | 6.6V |
| Open-Circuit Voltage(Voc) | 6V | 6.6V | 6.6V | 7.2V |
| Optimum Operating Current(Imp) | 1.8A | 2.6A | 4.6A | 4.24A |
| Short-Circuit Current(Isc) | 2A | 3A | 4.8A | 4.6A |
| Power Tolerance | ±3% | ±3% | ±2.8% | ±2.5% |
| Cell Efficiency rate | 23.2% | 23.2% | 23.2% | 23.2% |

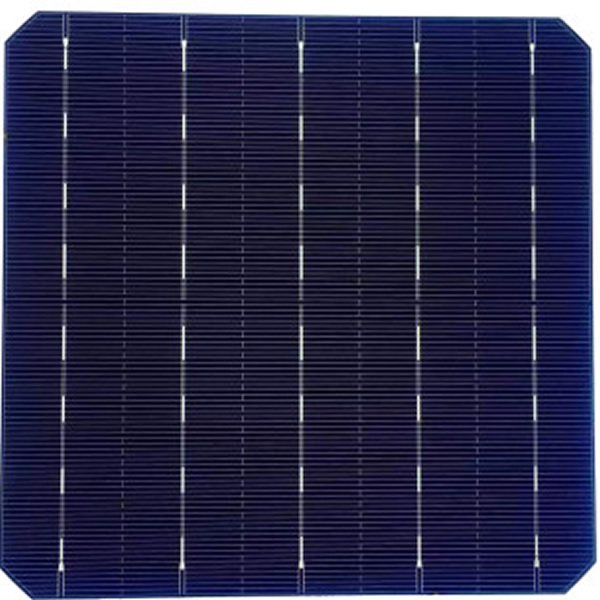

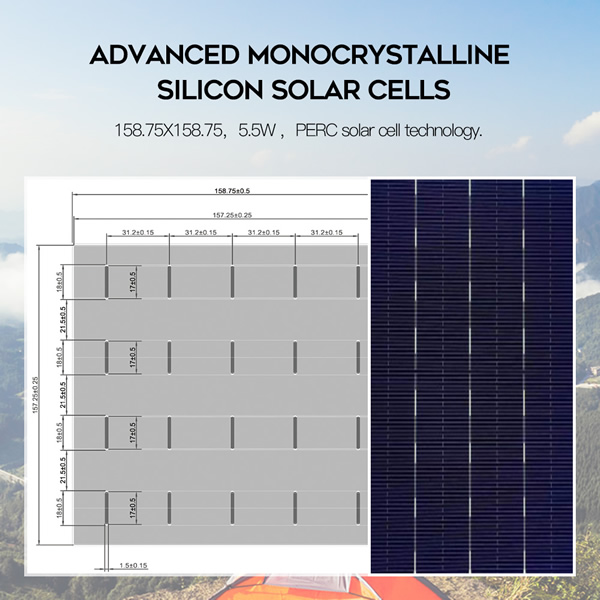

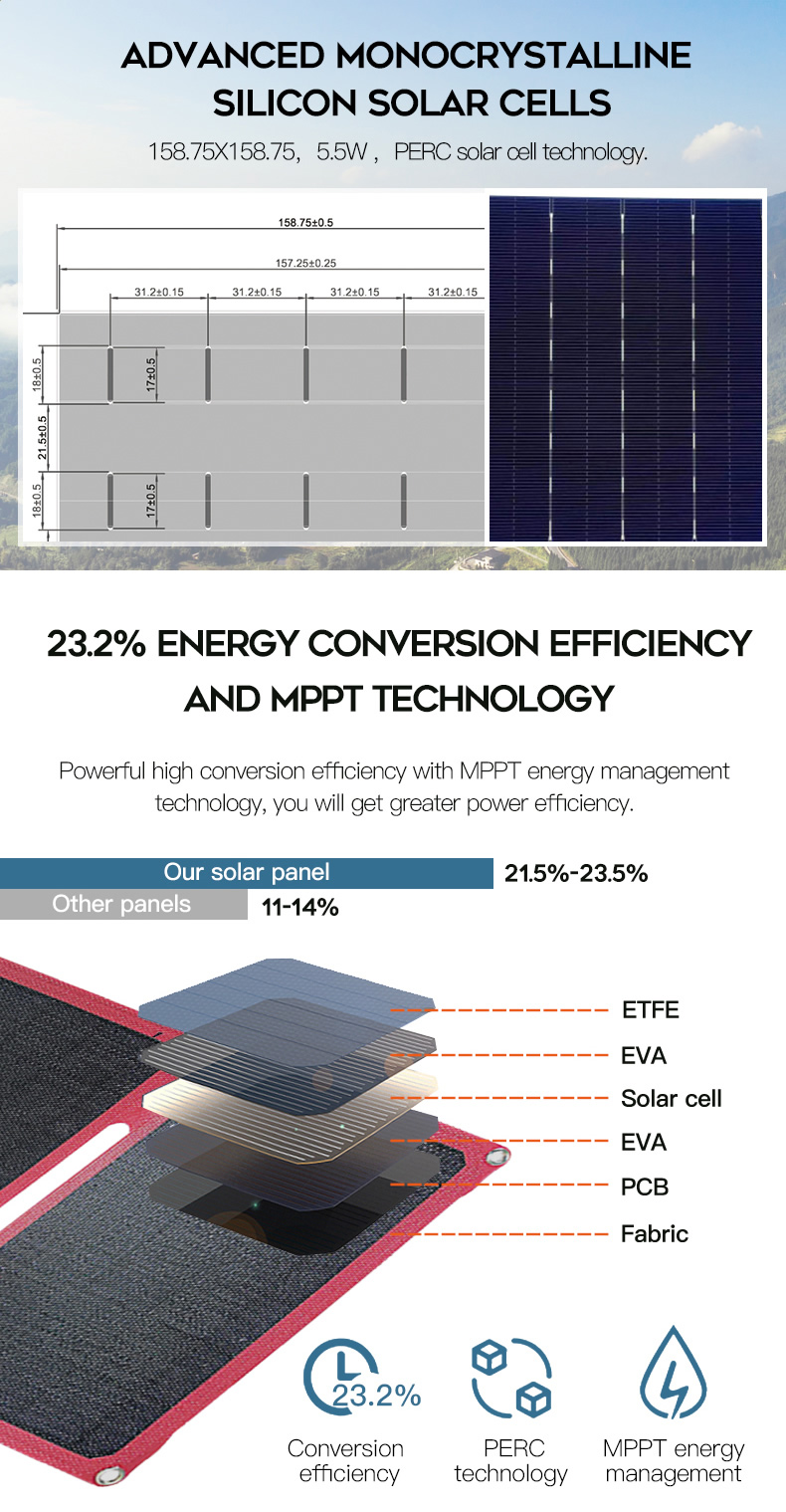

| Solar cell Type | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Sunpower,Mono 158.75*158.75mm , 5.5W |
| System Protection | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity |
| 0utput Interface | USB2.0 QC3.0 PD DC | USB2.0 QC3.0 PD DC | USB2.0 QC3.0 PD DC | USB2.0 QC3.0 PD DC |
| Sealing Process | ETFE | ETFE | ETFE | ETFE |
| Operating Temperature | -40℃ to +85 ℃ | -40℃ to +85 ℃ | -40℃ to +85 ℃ | -40℃ to +85 ℃ |
| Bag Material | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS |
| Junction Box | Ip65 Waterproof | Ip65 Waterproof | Ip65 Waterproof | Ip65 Waterproof |
| Open Size | 730*160*27mm | 392*290*27mm | 591*290*20MM | 591*290*20MM |
| Folding Size | 120*160*27mm | 200*290*27mm | 290*200*15MM | 290*200*15MM |
| Net Weight | 0.6KG | 0.7KG | 0.8KG | 0.8KG |
| OEM Service | Color, size, appearance, performance, power, voltage can be customized | |||

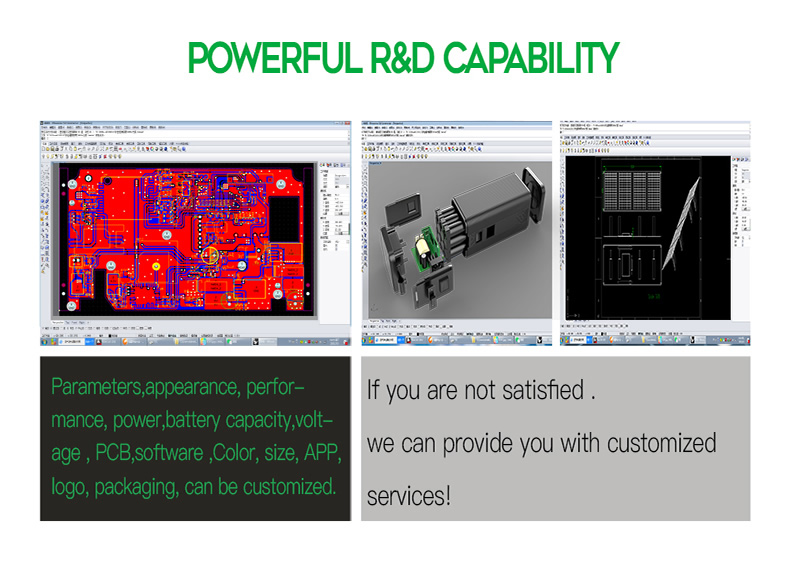

OEM Service Advantages
FAQ
Q: Are you a factory?
A: Yes. We are a manufacturer of Solar panels.
Q: What is the warranty of products?
A: If quality problems, the warranty is 5-25 years.
Q: How about the shipping time?
A: It is about 30 days by sea, it is suitable for mass goods.
Q: Can I customized the watt?
A:Sure. Please tell us the output power you need.
Q:Can I put my logo on the product?
A:Yes. We accept embroidery LOGO or silkscreen printing LOGO on the products, please just send us the design.
Q: Where can I get the price?
A: We will offer the quotation to you in 24 hours when we get the specifications, such as voltage, capacity, application etc.
Q: How do you assure good quality products?
A: Quality is priority 100% 24 hours aging quality test before packing to assure reliable quality.
