Solar Panel 18V Portable Solar Panel Charger Foldable Solar Panel Kit Power Station
Solar Panel 18V Portable Solar Panel Charger Foldable Solar Panel Kit Power Station with USB DC PD Port for Cars Yacht Phone Tablet Laptop Camera Cell
Send Inquiry service@iacetop.comTechnical Parameter
| Maximum power at STC(Pmax) | 60W | 100W | 150W | 200W |
| Optimum Operating Voltage(Vmp) | 18V | 18V | 18V | 18V |
| Open-Circuit Voltage(Voc) | 21V | 21.2V | 20V | 20V |
| Optimum Operating Current(Imp) | 3.3A | 5.55A | 8.3A | 11A |
| Short-Circuit Current(Isc) | 3.6A | 6A | 9A | 12A |
| Power Tolerance | ±3% | ±3% | ±2.8% | ±2.5% |
| Cell Efficiency rate | 23.2% | 23.2% | 23.2% | 23.2% |

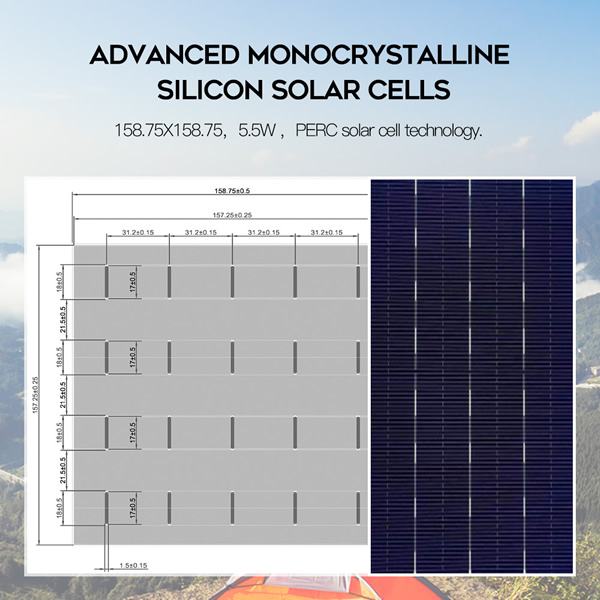

| Solar cell Type | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W |

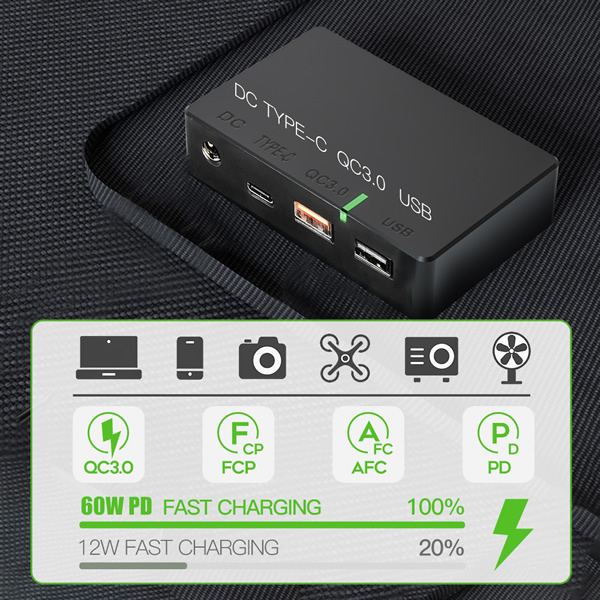

| 0utput Interface |
USB2.0
(5V 3A ) QC3.0 (5V3.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V ,3A ) DC 18V/3A Max |
USB2.0
(5V 3A ) QC3.0 (5V3.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V ,3A ) DC 18V/5A Max |
USB2.0
(5V 3A ) QC3.0 (5V3.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V ,3A ) DC 18V/8A Max |
USB2.0
(5V 3A ) QC3.0 (5V3.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V ,3A ) DC 18V/11A Max |
| Protection System | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity |
| Sealing process | ETFE | ETFE | ETFE | ETFE |
| Operating Temperature | -40℃ to +85 ℃ | -40℃ to +85 ℃ | -40℃ to +85 ℃ | -40℃ to +85 ℃ |
| Bag material | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS |

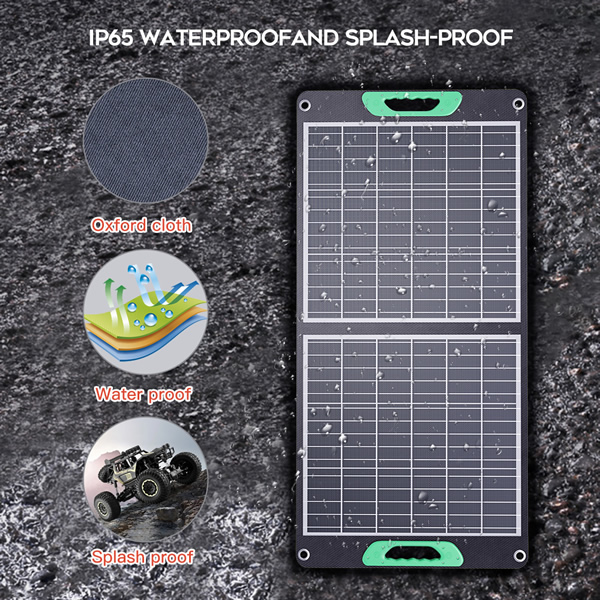

| Junction Box | Ip65 Waterproof | Ip65 Waterproof | Ip65 Waterproof | Ip65 Waterproof |
| Open size | 830x520x16mm | 1177*520*16MM | 1955*508*16MM | 2300*530*16mm |
| Folding size | 520x415x30mm | 590*520*30MM | 540*508*50MM | 630*530*50mm |
| Net weight | 2.7KG | 3.7KG | 6.1KG | 6.5KG |
| OEM service | Can be customized Fabric color, Handle color, Power, Voltage, Size, Junction box, Connector, Packing box | |||
