Solar Panel 18V Monocrystalline Portable Solar Panel High Efficiency
Solar Panel 18V Monocrystalline Portable Solar Panel High Efficiency Waterproof Solar Panel Charger with USB DC Outputs for Power Stations Outdoor Camping，solar panels 100W 200W 300W optional ，can be customized according to your needs
Send Inquiry service@iacetop.comSolar Panel Description

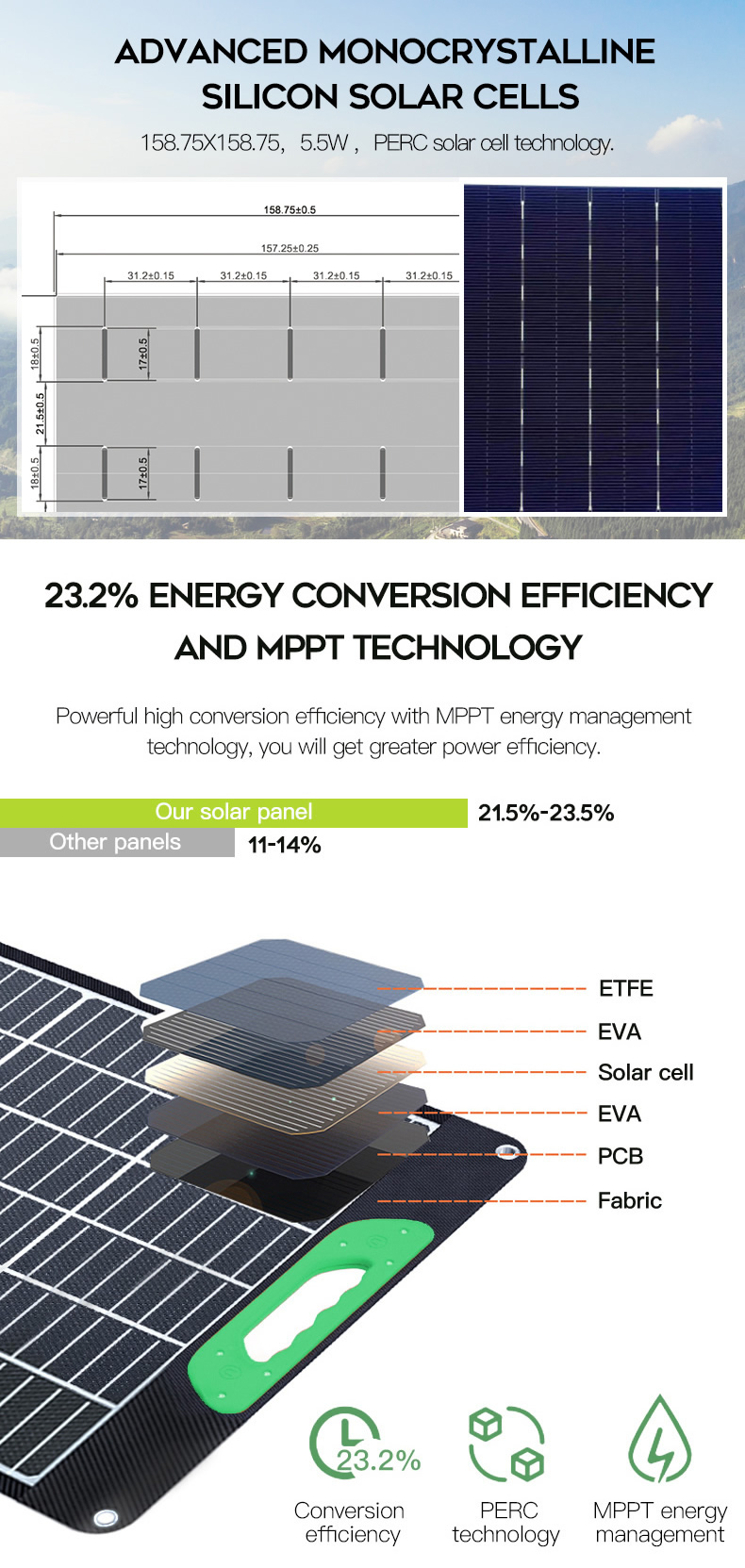

[High Conversion Efficiency]: It is a monocrystalline solar panel with high conversion efficiency,up to 25%, which is much higher than the typical solar panel generator/charger. With excellent 95% transparency, the performs better than similarly-rated polycrystalline solar panels in low-light conditions,and much higher than the market's average.
[Compatible with Most Solar Generators]: foldable solar panel uses standard connector & is designed to be used with most solar generators on the market,including any of the solar generators .

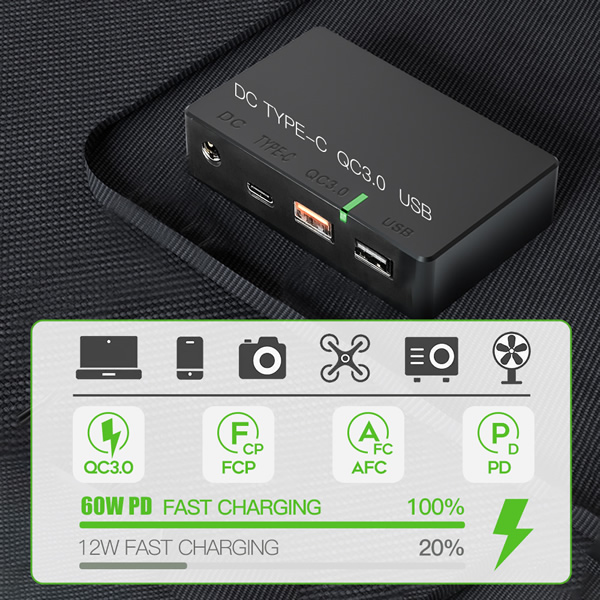

[ADDITIONAL USB OUTPUT]: This foldable solar panel is equipped with one 24W USB-A QC3.0 port and one USB-C PD 45W output port, quickly charging your phone or tablet in a pinch. Built-in smart IC chip intelligently recognizes your device and maximizes its charging speed, while protecting your device from overcharge, over-current, overload or short circuit.
[Durable and Splash-proof]:Made with advanced laminated technology and long-lasting pet material on the surface, making it more durable and scratch-resistant. It is IP65 water-resistant that will protect from water splashing (But Please Do not place it under the rain, or to soak in water).

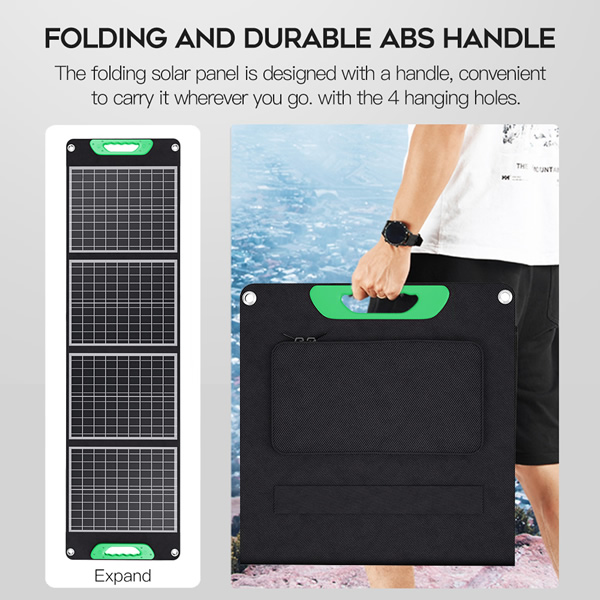

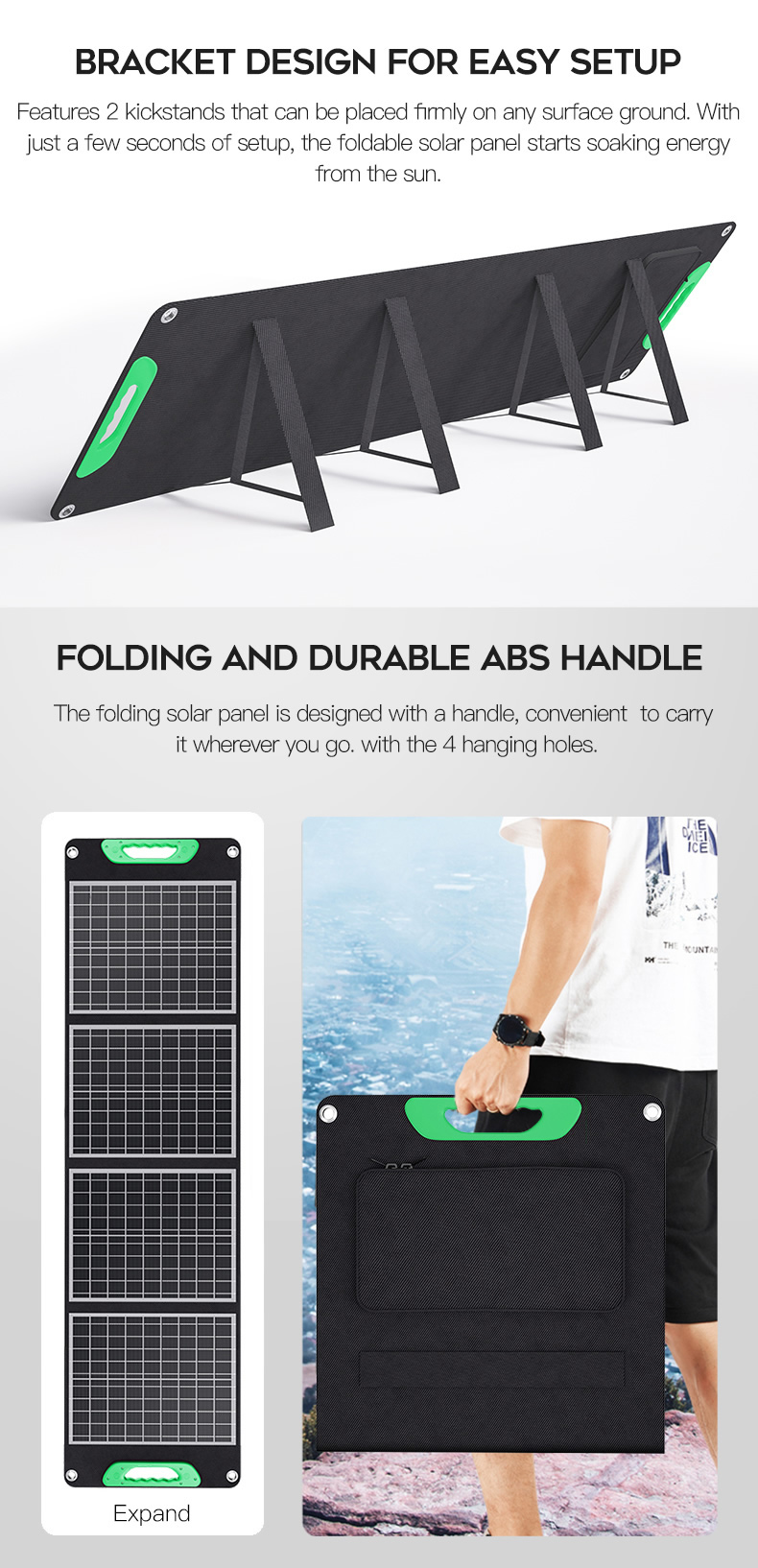

[FOLDABLE & PORTABLE]: The solar panel is easy to transport and install for anyone.
Performance Advantages
Technical Parameter
| Maximum power at STC(Pmax) | 60W | 100W | 150W | 200W |
| Optimum Operating Voltage(Vmp) | 18V | 18V | 18V | 18V |
| Open-Circuit Voltage(Voc) | 21V | 21.2V | 20V | 20V |
| Optimum Operating Current(Imp) | 3.3A | 5.55A | 8.3A | 11A |
| Short-Circuit Current(Isc) | 3.6A | 6A | 9A | 12A |
| Power Tolerance | ±3% | ±3% | ±2.8% | ±2.5% |
| Cell Efficiency rate | 23.2% | 23.2% | 23.2% | 23.2% |

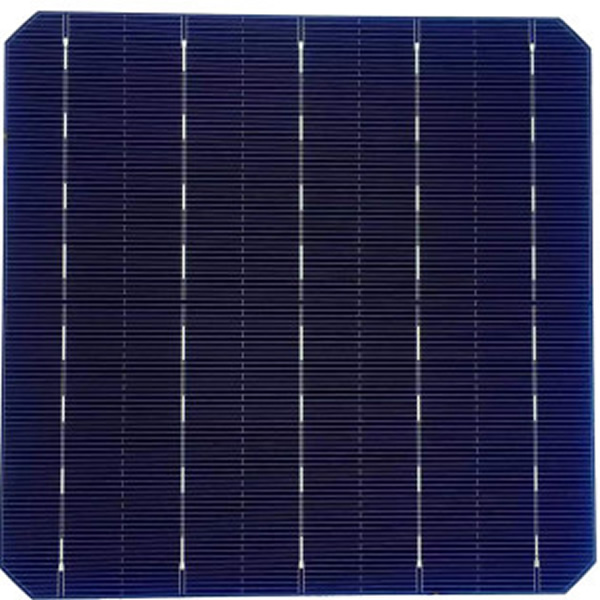

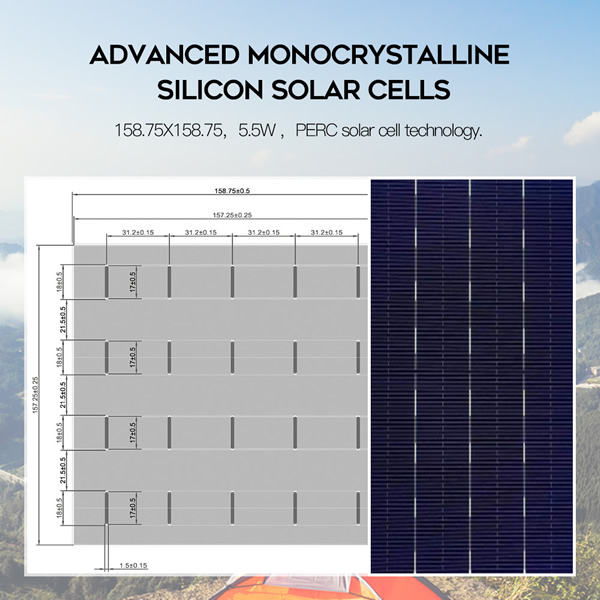

| Solar cell Type | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W |
| 0utput Interface |
USB2.0
(5V 3A ) QC3.0 (5V3.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V ,3A ) DC 18V/3A Max |
USB2.0
(5V 3A ) QC3.0 (5V3.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V ,3A ) DC 18V/5A Max |
USB2.0
(5V 3A ) QC3.0 (5V3.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V ,3A ) DC 18V/8A Max |
USB2.0
(5V 3A ) QC3.0 (5V3.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V ,3A ) DC 18V/11A Max |
| Protection System | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity |

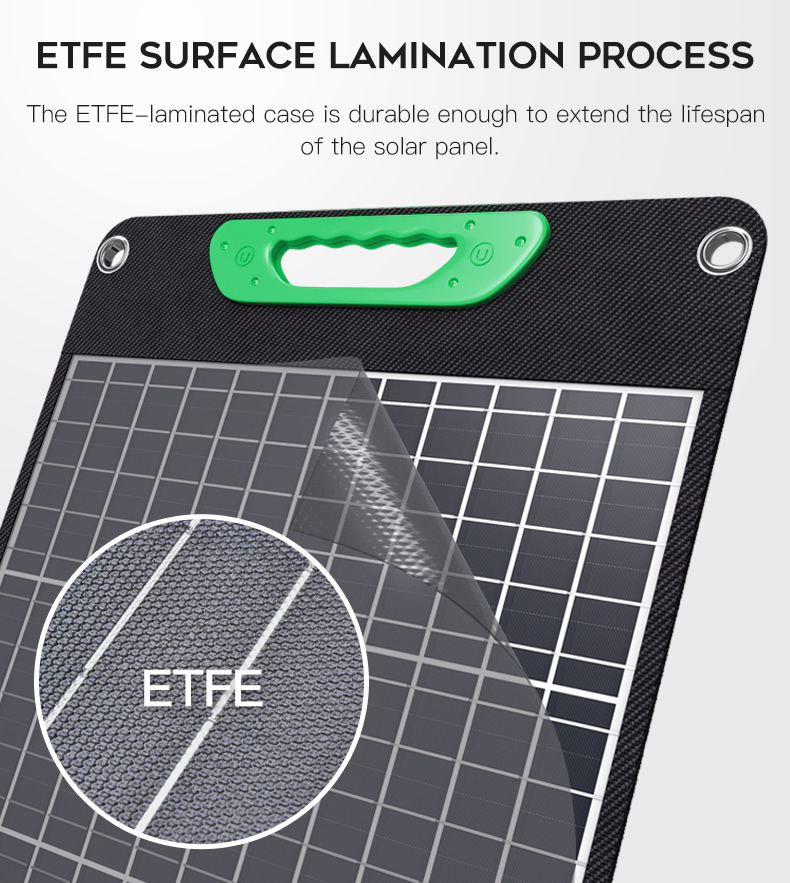

| Sealing process | ETFE | ETFE | ETFE | ETFE |
| Operating Temperature | -40℃ to +85 ℃ | -40℃ to +85 ℃ | -40℃ to +85 ℃ | -40℃ to +85 ℃ |
| Bag material | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS |
| Junction Box | Ip65 Waterproof | Ip65 Waterproof | Ip65 Waterproof | Ip65 Waterproof |
| Open size | 830x520x16mm | 1177*520*16MM | 1955*508*16MM | 2300*530*16mm |
| Folding size | 520x415x30mm | 590*520*30MM | 540*508*50MM | 630*530*50mm |
| Net weight | 2.7KG | 3.7KG | 6.1KG | 6.5KG |
| OEM service | Can be customized Fabric color, Handle color, Power, Voltage, Size, Junction box, Connector, Packing box | |||
OEM Service Advantages
※What make our product difference from other factory?
1.Our clients benefit from lower manufacturing costs and time-to-market volume production through over 120 highly qualified staffs and the 7500 square meters workshop, including a mold development center, a metal and plastic injection center,a hardware processing center,5 product assembling centers , Printing workshop.
2. We have a highly experienced and efficient R&D, Design, Sales and Management team with top educational background. We provide full after sales and technical support. With our passionate and professional support team, ACETOP looks forward to being your supplier.
You can be assured your products receive priority treatment. We strive to have our customers regard us as strategic manufacturing partners, an integral part of their operations. Our headquarter center are located in Shanghai, China. Contact us at once to make us your long term partner!
3.We have a complete process chain in the industry, so we can provide you with better customized services.
4.Normally MOQ 500pcs, but we also accept small sample order for quality clients.
