Solar Charger with USB Port Portable and Foldable Solar Panel
Solar Charger 5V 3A Max with 2 USB Port Waterproof Portable and FoldableCamping Gear USB Solar Panel Compatible with smart phone
Send Inquiry service@iacetop.comSolar Panel Description
▶【Made for Solar Generator】: The 100W foldable solar panel is compatible with most solar generator/portable power station on the market. The portable solar panel kit Includes different sizes of connectors for portable generator( MC-4 to Anderson / MC-4 to DC ).

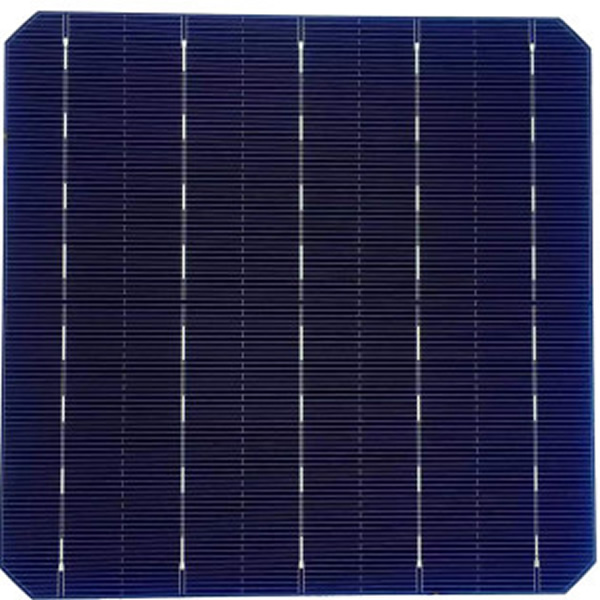

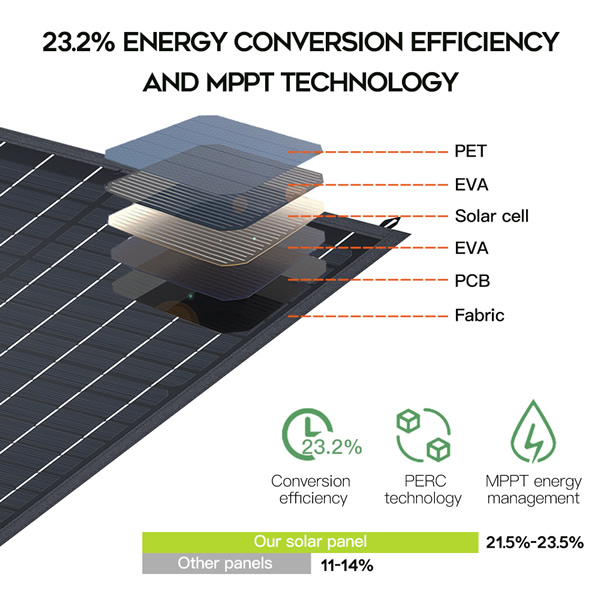

▶【High Efficiency】: The 100W solar panel is made of monocrystalline silicon solar cells,and provide high conversion efficiency up to 23.5%, 1/3 lighter than the same power of solar silicon. The total power increased by 1/3 in comparison with the same portable solar panel kit size.

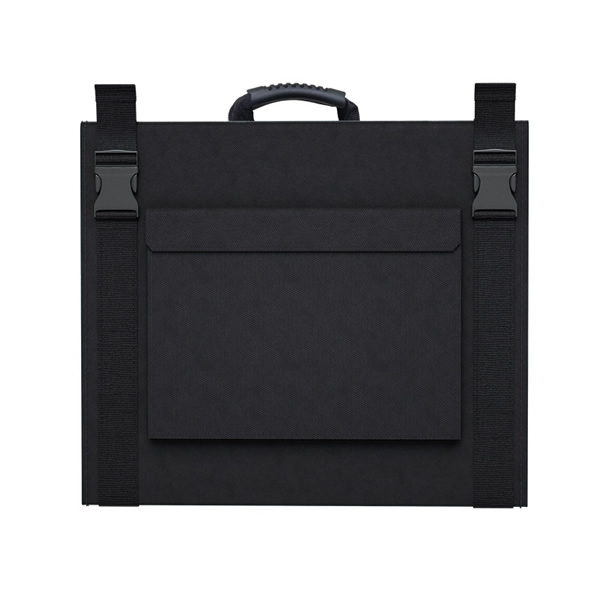

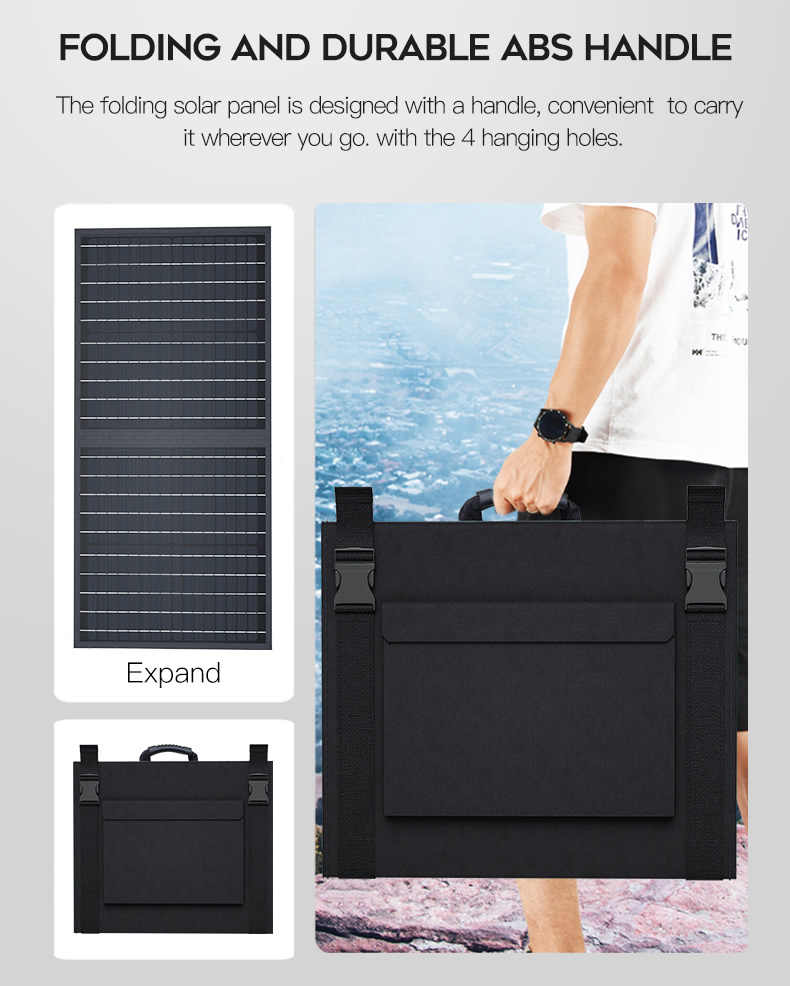

▶【Foldable & Portable】: Folded size only 365*355*12mm ,3KG, portable solar panel 100W is great for traveling off the beaten path without access to electricity and won't take up much room in your bag. t foldable solar charger features 1*MC-4 output(25A max), providing endless power for laptop, power station in camping, outdoor, garden, motorhome, and caravan under the sun.

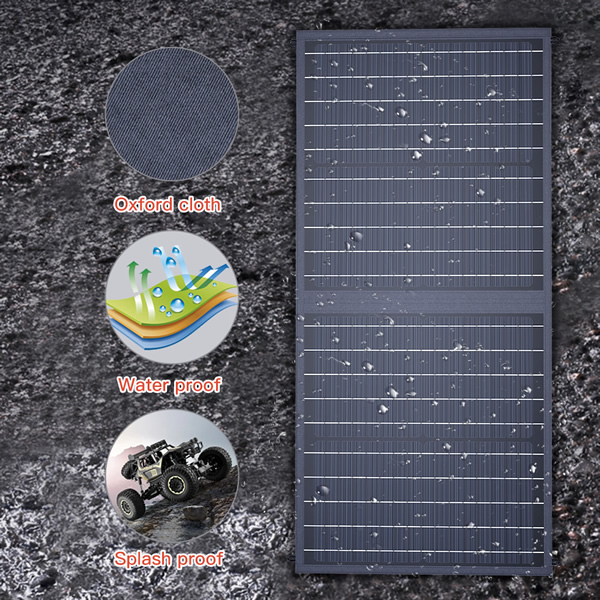

▶【Waterproof & Durable】: The foldable solar panel 100W constructed with durable and waterproof nylon and adjustable bracket to receive the most effective sunlight. The outdoor foldable solar charger is FCC, RoHS, CE certified. Short circuit and surge protection technology keep you and your devices safe.
Performance Advantages
Technical Parameter
| Maximum Power at STC(Pmax) | Your choice | Other choice | |||
| 100W | 60W | 120W | 150W | 200W | |
| Optimum Operating Voltage(Vmp) | 18V | 18V | 18V | 18V | 18V |
| Open-Circuit Voltage(Voc) | 21.2V | 21V | 20V | 20V | 20V |
| Optimum Operating Current(Imp) | 5.55A | 3.3A | 8.8A | 8.3A | 11A |
| Short-Circuit Current(Isc) | 6A | 3.6A | 9A | 9A | 12A |
| Power Tolerance | ±3% | ±3% | ±2.8% | ±2.5% | ±2.5% |
| Cell Efficiency rate | 23.2% | 23.2% | 23.2% | 23.2% | 23.2% |

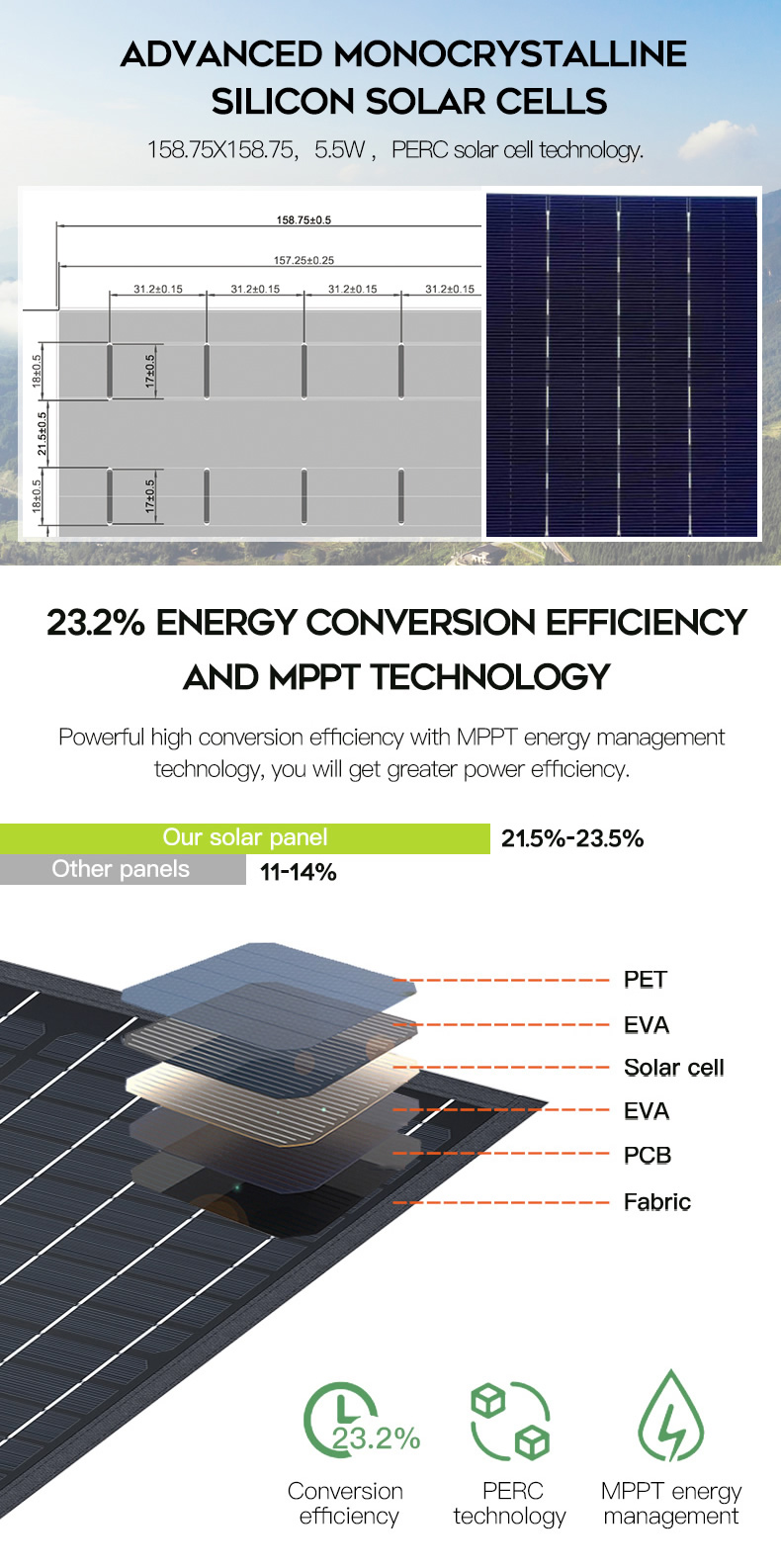

| Solar cell Type | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W |
| System Protection |

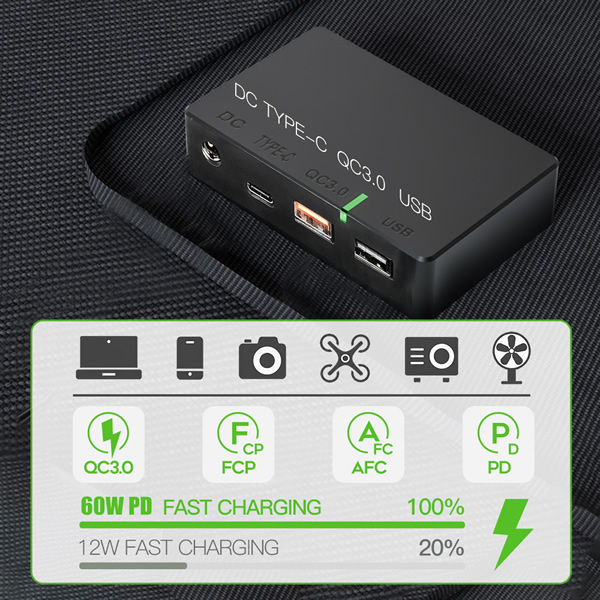

USB2.0
(5V 3A ) QC3.0 (5V2.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V,3A ) DC 18V/5A Max |
USB2.0
(5V 3A ) QC3.0 (5V2.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V,3A ) DC 18V/3A Max |
USB2.0
(5V 3A ) QC3.0 (5V2.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V,3A ) DC 18V/8A Max |
USB2.0
(5V 3A ) QC3.0 (5V2.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V,3A ) DC 36V/7.5 A Max |
USB2.0
(5V 3A ) QC3.0 (5V2.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V,3A ) DC 18V/11A Max |
| 0utput Interface | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity |

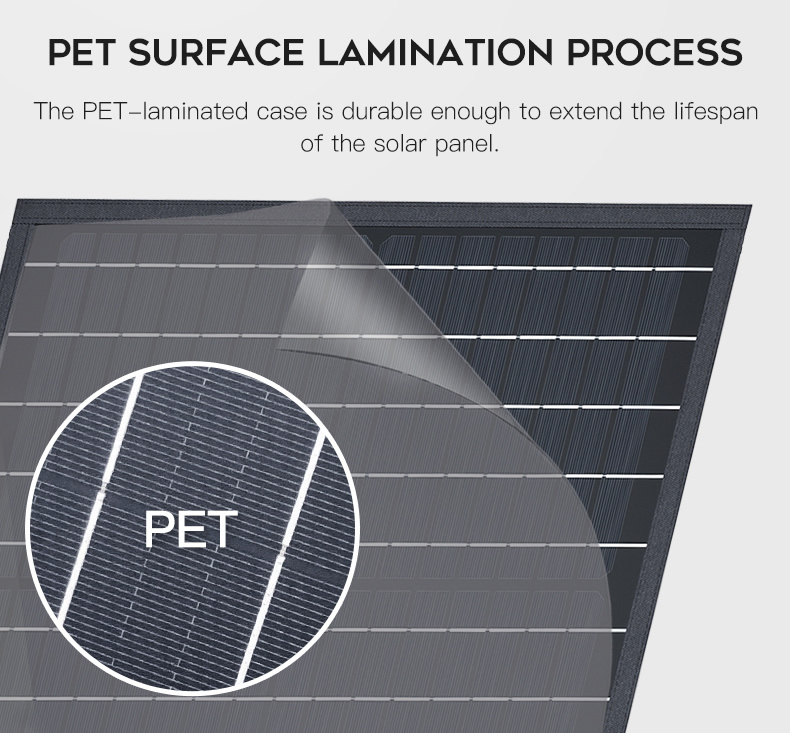

| Sealing Process | PET | PET | PET | PET | PET |
| Operating Temperature | -40℃ to +85 ℃ | -40℃ to +85 ℃ | -40℃ to +85 ℃ | -40℃ to +85 ℃ | -40℃ to +85 ℃ |
| Bag Material | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS |
| Cell Efficiency rate | 23.2% | 23.2% | 23.2% | 23.2% | 23.2% |
| Junction Box | Ip65 Waterproof | Ip65 Waterproof | Ip65 Waterproof | Ip65 Waterproof | Ip65 Waterproof |
| Open Size | 1110*360*4mm | 730*365*4mm | 1955*508*16MM | 480*2140*4mm | 568*2170*4mm |
| Folding Size | 365*355*12mm | 365*355*8mm | 488*525*16mm | 480*520*16mm | 568*525*16mm |
| Net Weight | 3KG | 1.9KG | 6.1KG | 5.7KG | 6.2KG |
| OEM Service | Color, size, appearance, performance, power, voltage can be customized | ||||
| Open Size:1110*360*4mm, Folding Size:365*355*12mm;Net Weight:3KG. | |||||
OEM Service Advantages
※We are professional manufacturer of energy field of solar panel and power station.
※Parameters,appearance, performance, power,battery capacity,voltage , PCB,software ,Color, size, APP, logo, packaging, can be customized.
1.Our clients benefit from lower manufacturing costs and time-to-market volume production through over 120 highly qualified staffs and the 7500 square meters workshop, including a mold development center, a metal and plastic injection center,a hardware processing center,5 product assembling centers , Printing workshop.
2. Thanks to more than 15 dedicated engineers with strong engineering capability and extensive experience in system R & D, we keep developing new products every year to keep up to date with the market. we pride ourselves on our ability to meet our customers' needs. If one of our standard products doesn't meet your requirements, we can custom-design a product for you.
3.We have a complete process chain in the industry, so we can provide you with better customized services.
4.Normally MOQ 100pcs, but we also accept small sample order for quality clients.
