Solar Charger Portable Solar Panels High Capacity Solar Power Bank power station External Battery Pack for Tablets and Hiking Camping
Send Inquiry service@iacetop.com
Maximum power at STC(Pmax) | 60W | 100W | 150W | 200W |
Optimum Operating Voltage(Vmp) | 18V | 18V | 18V | 18V |
Open-Circuit Voltage(Voc) | 21V | 21.2V | 20V | 20V |
Optimum Operating Current(Imp) | 3.3A | 5.55A | 8.3A | 11A |
Short-Circuit Current(Isc) | 3.6A | 6A | 9A | 12A |
Power Tolerance | ±3% | ±3% | ±2.8% | ±2.5% |
Cell Efficiency rate | 22% | 22% | 22% | 22% |

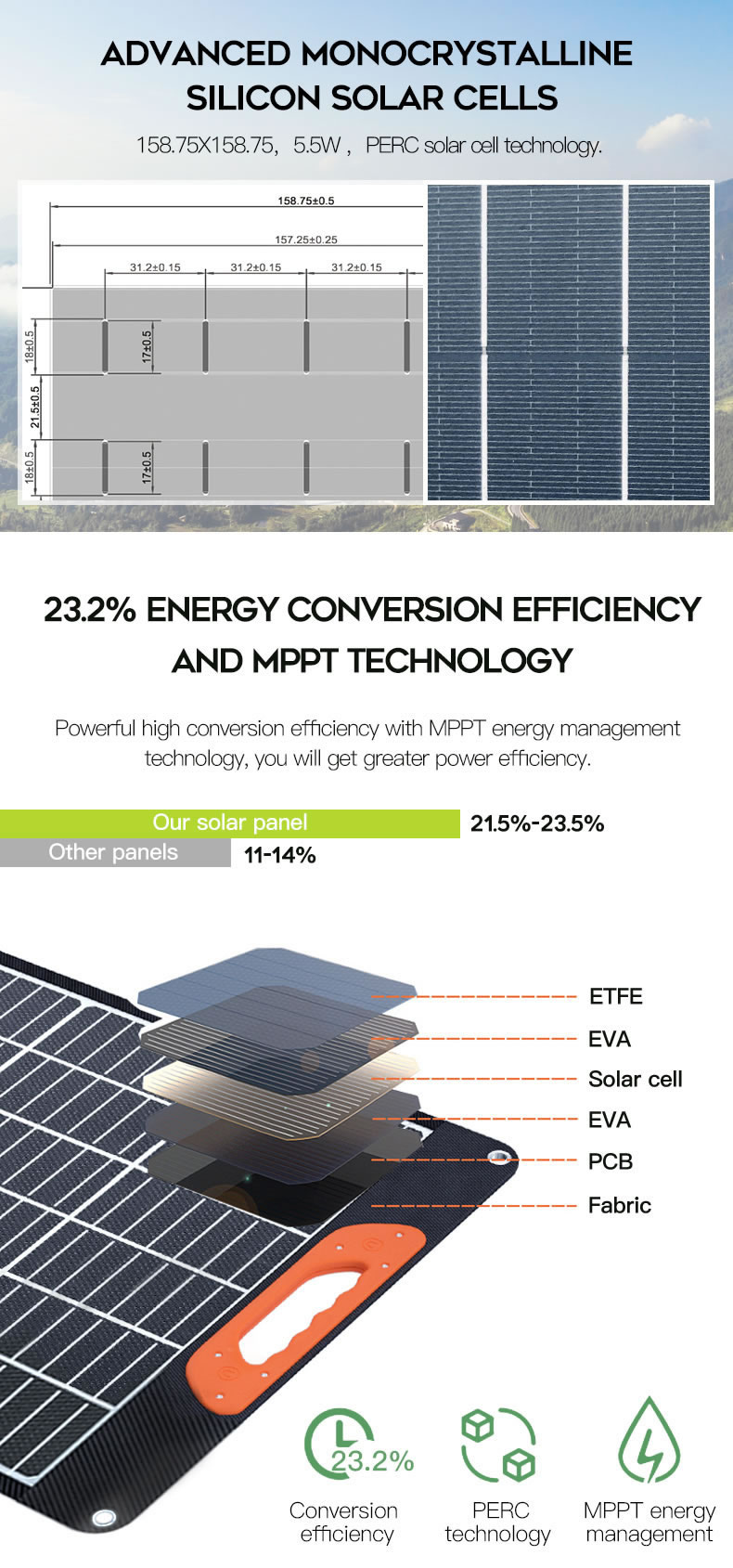

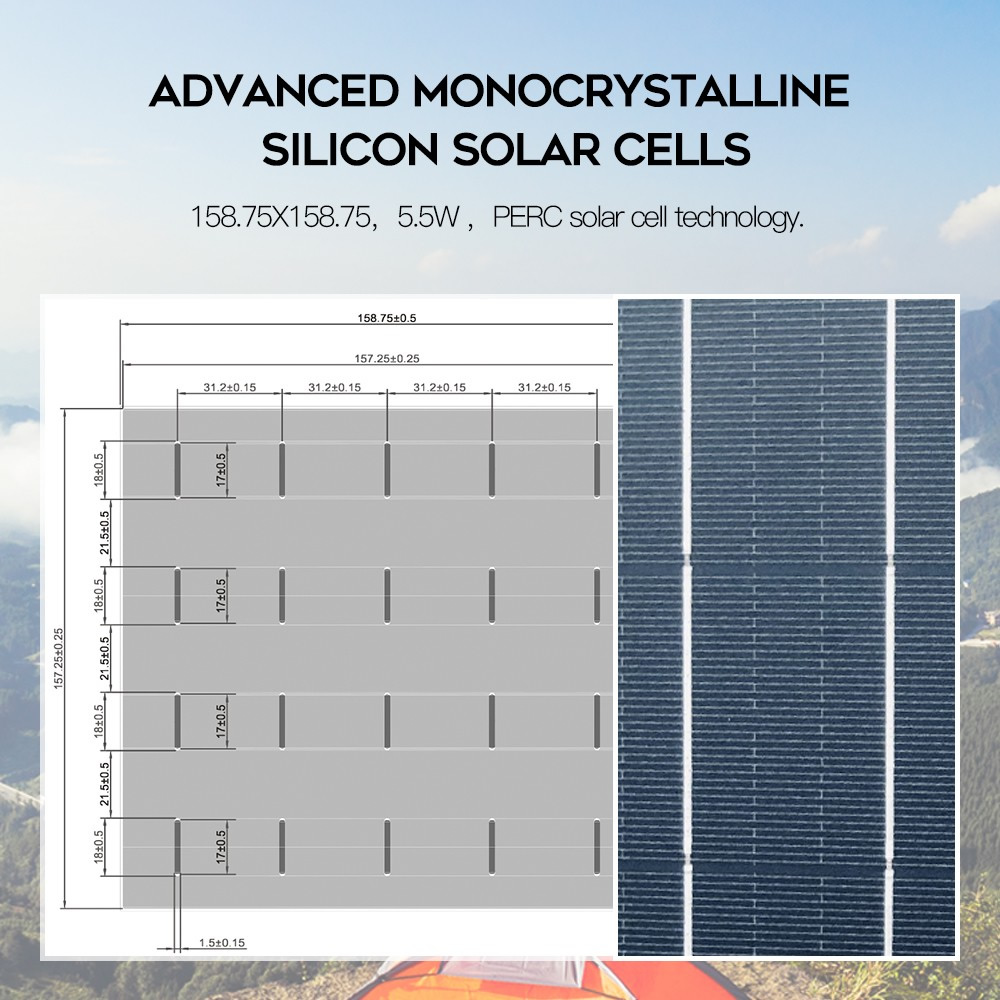

Solar cell Type | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W |
0utput Interface |
USB2.0
(5V 3A ) QC3.0 (5V3.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V ,3A ) DC 18V/3A Max |
USB2.0
(5V 3A ) QC3.0 (5V3.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V ,3A ) DC 18V/5A Max |
USB2.0
(5V 3A ) QC3.0 (5V3.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V ,3A ) DC 18V/8A Max |
USB2.0
(5V 3A ) QC3.0 (5V3.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V ,3A ) DC 18V/11A Max |
Protection System | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity |

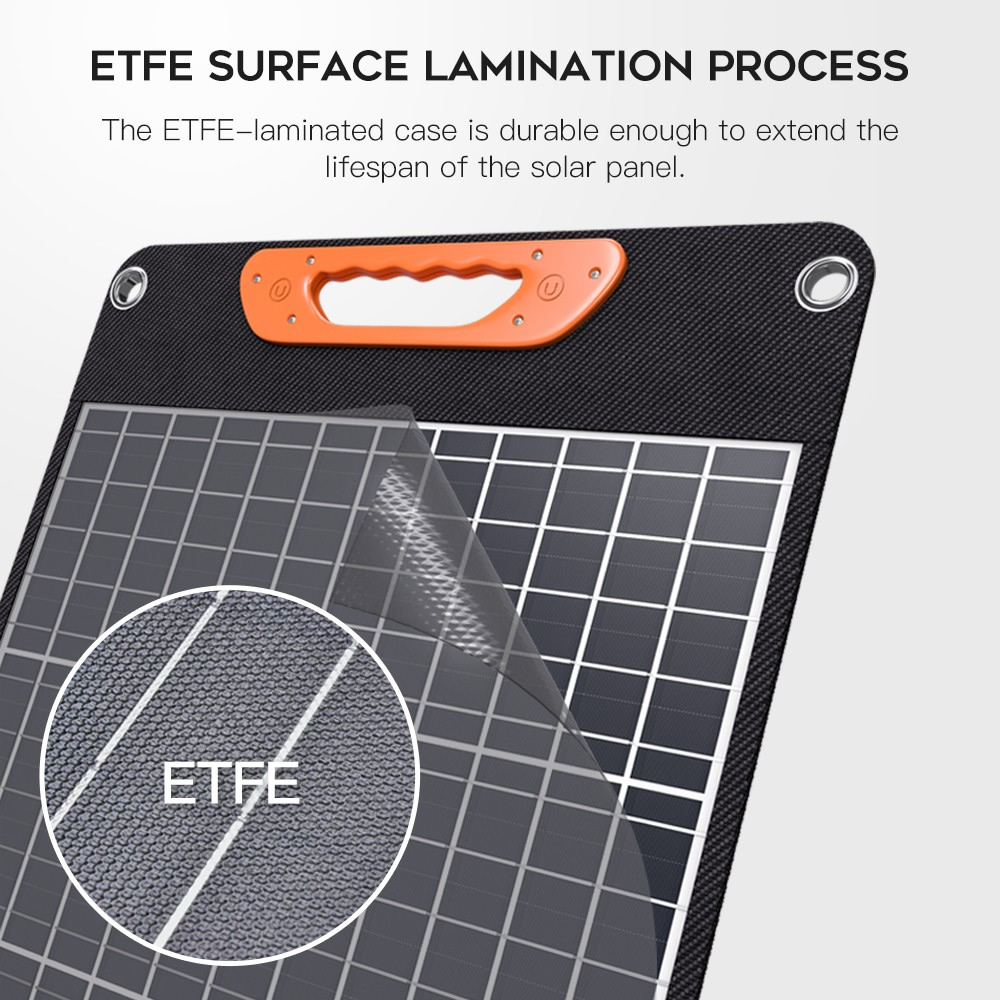

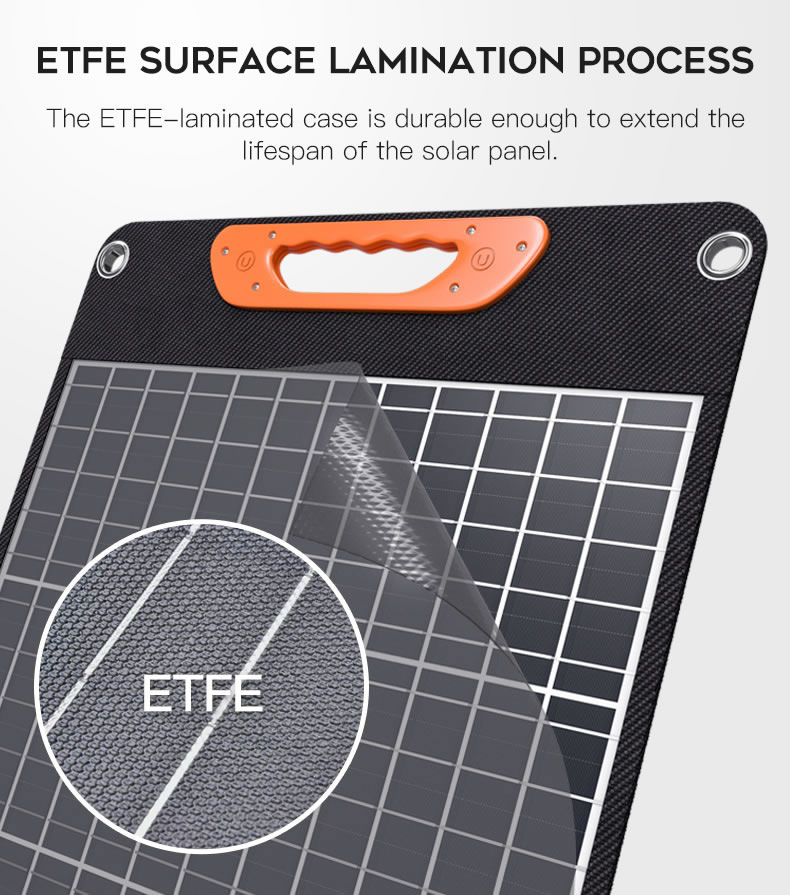

Sealing process | ETFE | ETFE | ETFE | ETFE |
Operating Temperature | -40℃ to +85 ℃ | -40℃ to +85 ℃ | -40℃ to +85 ℃ | -40℃ to +85 ℃ |
Bag material | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS |
Junction Box | Ip65 Waterproof | Ip65 Waterproof | Ip65 Waterproof | Ip65 Waterproof |
Open size | 830x520x16mm | 1177*520*16MM | 1955*508*16MM | 2300*530*16mm |
Folding size | 520x415x30mm | 590*520*30MM | 540*508*50MM | 630*530*50mm |
Net weight | 2.7KG | 3.7KG | 6.1KG | 6.5KG |
OEM service | Can be customized Fabric color, Handle color, Power, Voltage, Size, Junction box, Connector, Packing box |
※We are professional manufacturer of energy field of solar panel and power station.
※Parameters,appearance, performance, power,battery capacity,voltage , PCB,software ,Color, size, APP, logo, packaging, can be customized.
1.Our clients benefit from lower manufacturing costs and time-to-market volume production through over 120 highly qualified staffs and the 7500 square meters workshop, including a mold development center, a metal and plastic injection center,a hardware processing center,5 product assembling centers , Printing workshop.
2. Thanks to more than 15 dedicated engineers with strong engineering capability and extensive experience in system R & D, we keep developing new products every year to keep up to date with the market. we pride ourselves on our ability to meet our customers' needs. If one of our standard products doesn't meet your requirements, we can custom-design a product for you.
3.We have a complete process chain in the industry, so we can provide you with better customized services.
4.Normally MOQ 100pcs, but we also accept small sample order for quality clients.
※What
make our product difference from other factory?
1.Our
clients benefit from lower manufacturing costs and time-to-market volume
production through over 180 highly qualified staffs and the 7500 square meters
workshop, including a mold development center, a metal and plastic injection
center,a hardware processing center,5 product assembling centers , Printing
workshop.
2. We have a highly experienced and efficient
R&D, Design, Sales and Management team with top educational background. We
provide full after sales and technical support. With our passionate and
professional support team, ACETOP looks forward to being your supplier.
You
can be assured your products receive priority treatment. We strive to have our
customers regard us as strategic manufacturing partners, an integral part of
their operations. Our headquarter center are located in Shanghai, China.
Contact us at once to make us your long term partner!
3.We
have a complete process chain in the industry, so we can provide you with
better customized services.
4.Normally
MOQ 500pcs, but we also accept small sample order for quality clients.
※How
do we ensure our quality ?
1.
In the field , well-known brands are our cooperative customers. We have
provided them with oem services for 10 years. With their help, we have
continuously optimized our quality control system.
2.
We are confident to provide customers with top quality products as we have
solid flow of Production Material Control(PMC),In-Process
Quality Control (IPQC), Finished Product Quality Control (QC) and Delivery
Quality Assurance (QA). To provide you with an extra level of protection, we
check our items piece by piece prior to shipment.
3.
Our products have passed ISO 9001,CE,ROSH, CCC and other certification .
