Solar Charger Portable Mono Solar Panel for Camping
PD DC QC3.0 USB Ports 100W 200W 300W Solar Charger Portable Mono Solar Panel for Camping IP65 Waterproof Compatible
Send Inquiry service@iacetop.comSolar Panel Description
MADE FOR SOLAR GENERATORS - With included 10 different size of connectors, the folding solar panels are compatible with most solar generators on the market.

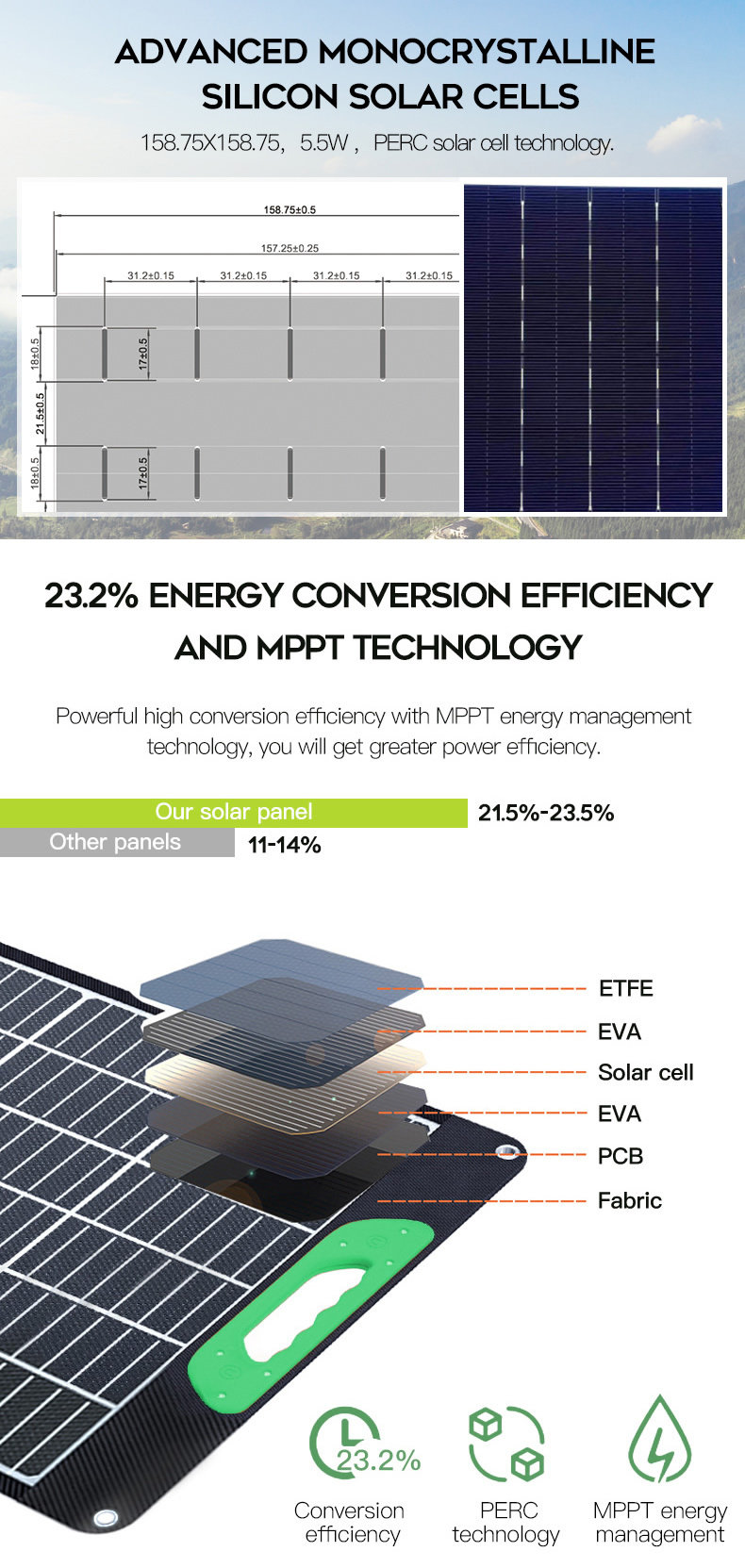

HIGH CONVERSION EFFICIENCY - The monocrystalline silicon solar cells provide high conversion efficiency up to 23.5%, generate more energy and perform better than conventional panels in strong sunlight, designed to produce maximum power to charge compatible devices in the least time.

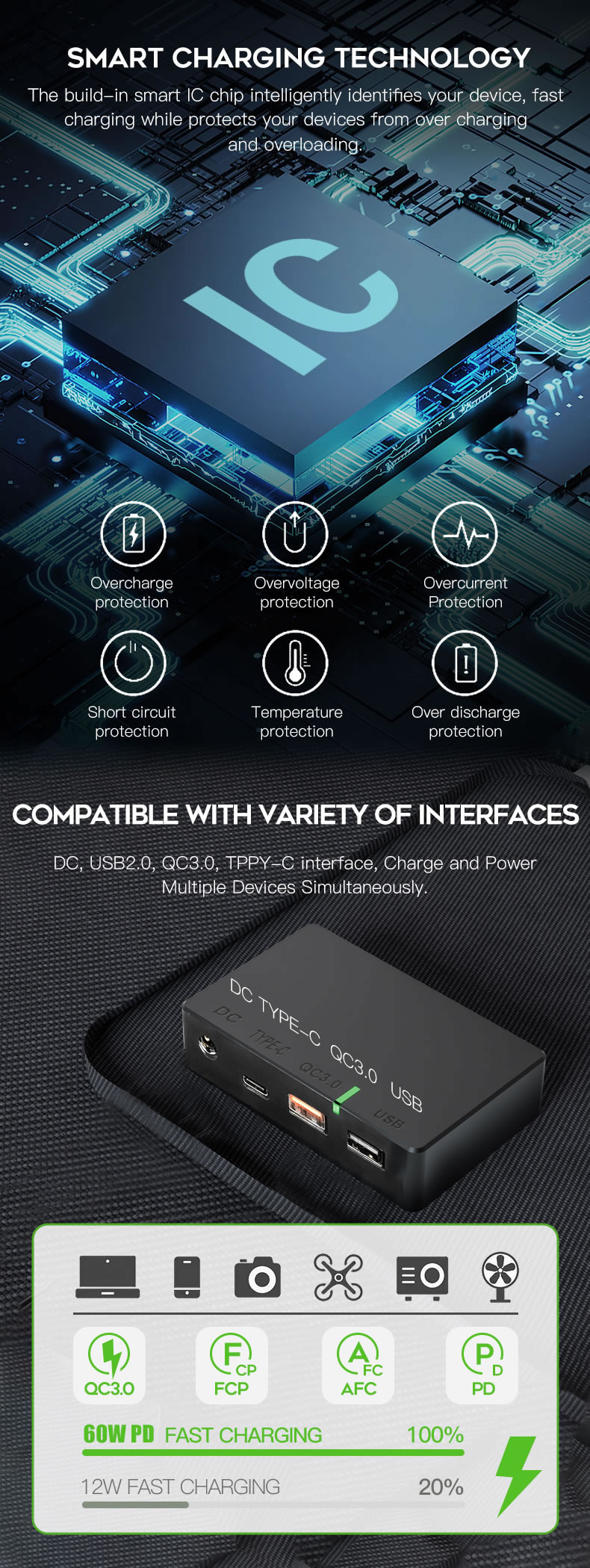

SMART CHARGING TECHNOLOGY - The build-in smart IC chip intelligently identifies your device, and maximizes its charging speed while protects your devices from over charging and overloading. Equipped with 18W USB QC 3.0 and 18W Type C output, provides 4 times faster charging speed for your smartphones, tablets, DV, etc. Professional parallel connector is safer and faster to recharge solar powered devices in RV. You can also parallel solar panels to get more output to recharge high capacity power station.

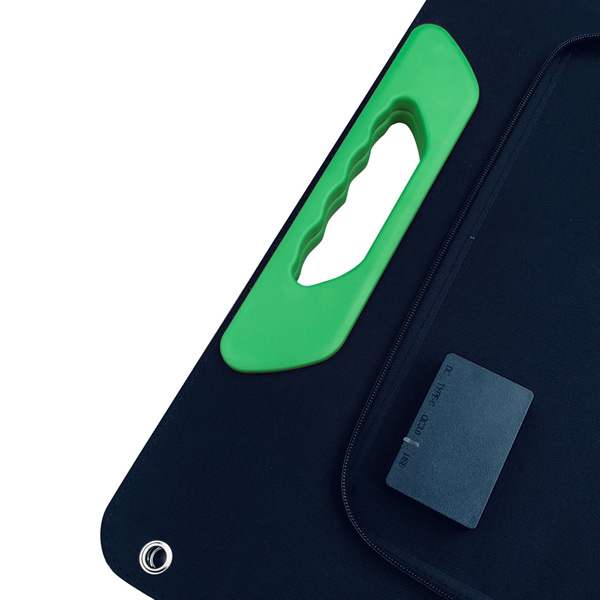

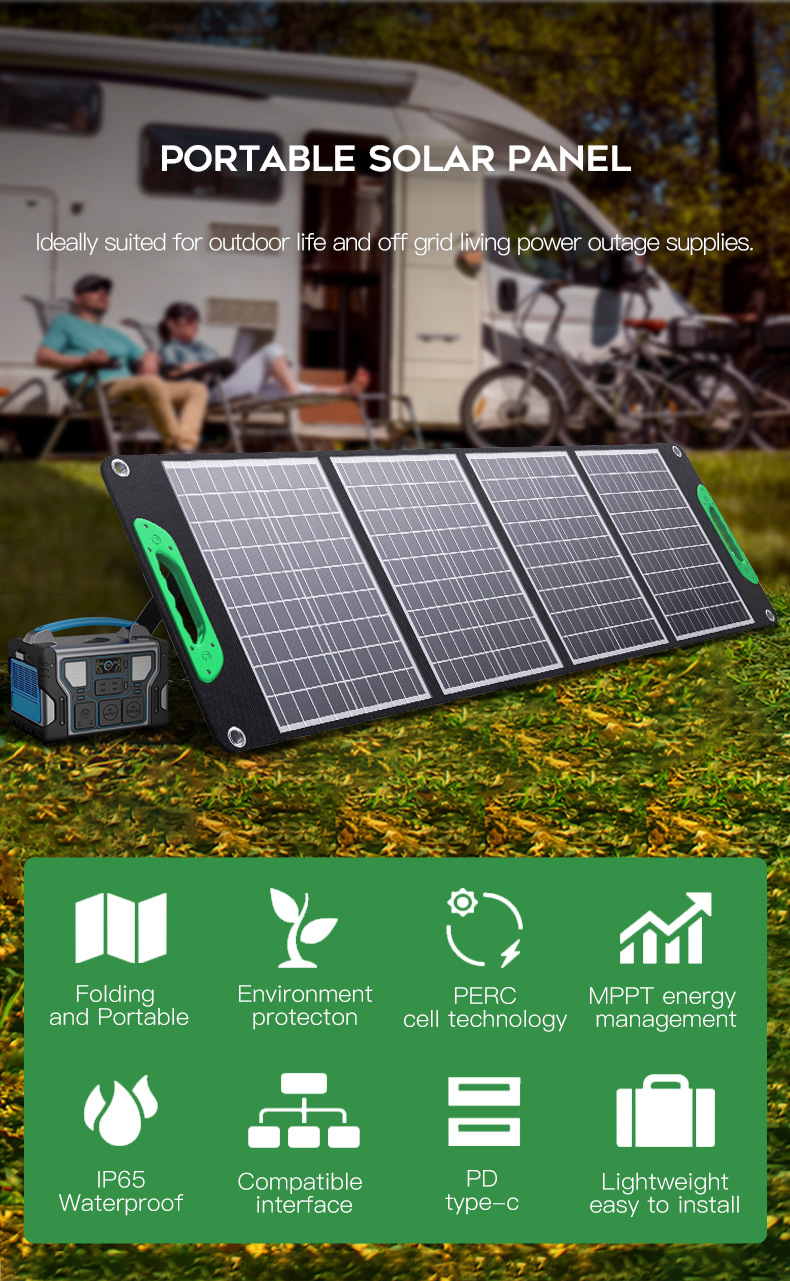

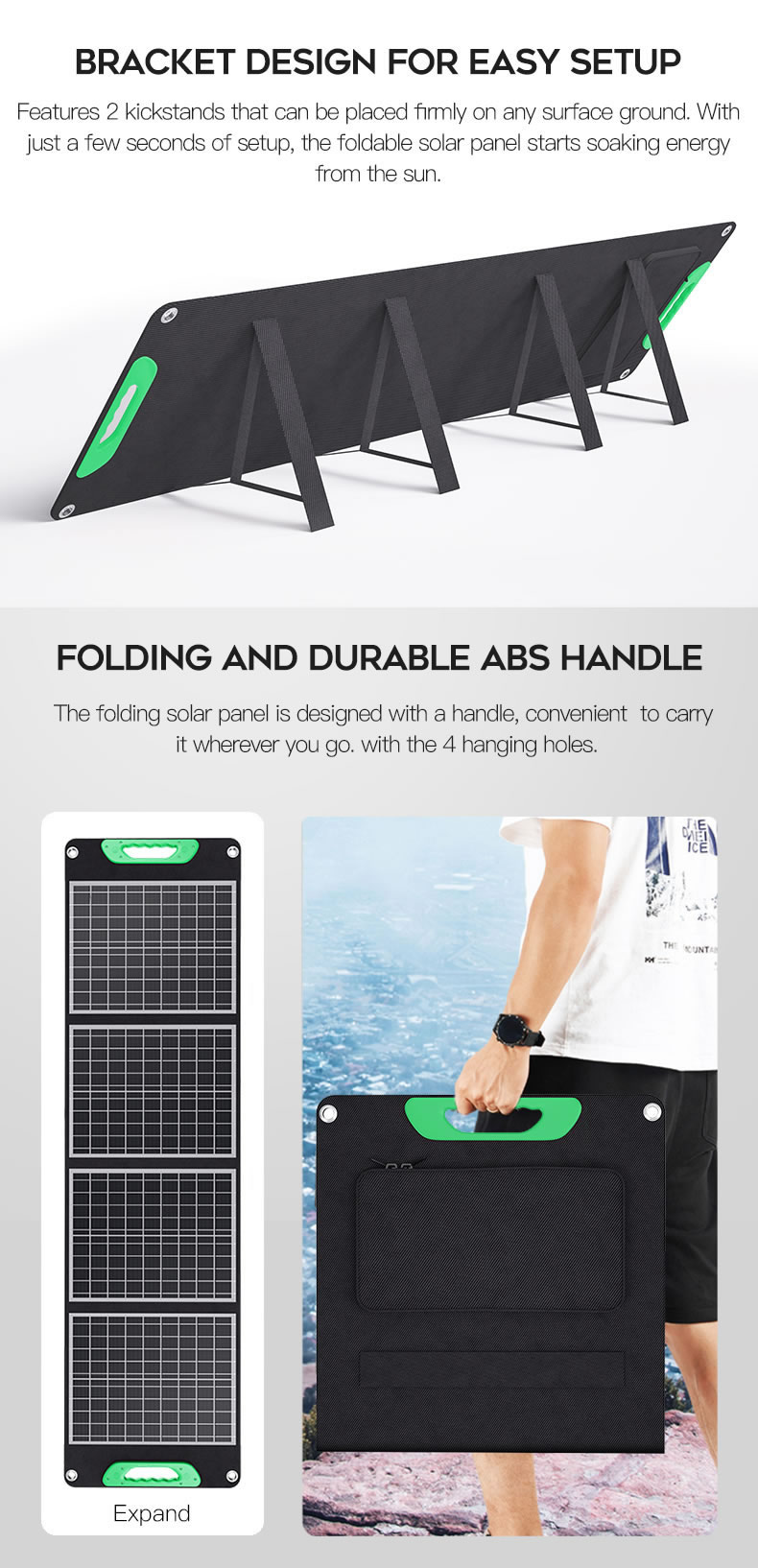

FOLDABLE & PORTABLE - The folding solar panel is designed with a handle, convenient to carry it wherever you go. Tie it to a car roof or a tree with the 4 hanging holes, charge devices freely when you are driving, fishing, climbing, hiking and anywhere you on the go.
WATER-RESISTANT & DURABLE& Splash-proof - Made from durable Oxford cloth. The solar panel is water resistant to endure all weather conditions, ideal for outdoor activities. Please NOTE: The junction box is not waterproof and please keep it dry.
Performance Advantages
Technical Parameter
| Maximum power at STC(Pmax) | 60W | 100W | 150W | 200W |
| Optimum Operating Voltage(Vmp) | 18V | 18V | 18V | 18V |
| Open-Circuit Voltage(Voc) | 21V | 21.2V | 20V | 20V |
| Optimum Operating Current(Imp) | 3.3A | 5.55A | 8.3A | 11A |
| Short-Circuit Current(Isc) | 3.6A | 6A | 9A | 12A |
| Power Tolerance | ±3% | ±3% | ±2.8% | ±2.5% |
| Cell Efficiency rate | 22% | 22% | 22% | 22% |

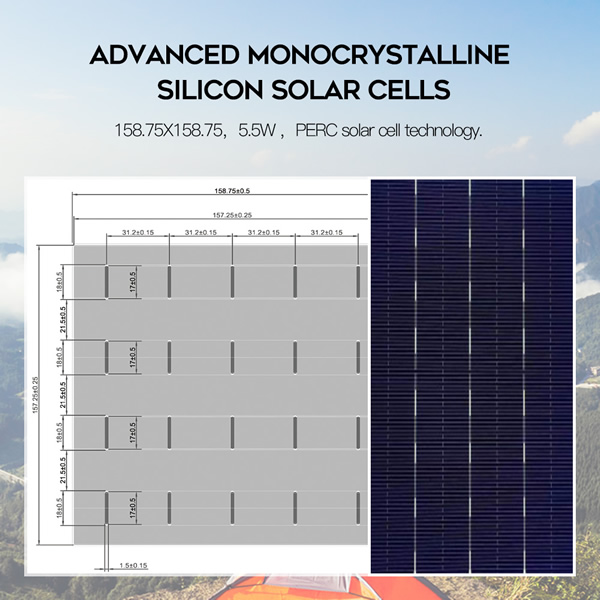

| Solar cell Type | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W |
| 0utput Interface |
USB2.0
(5V 3A ) QC3.0 (5V3.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V ,3A ) DC 18V/3A Max |
USB2.0
(5V 3A ) QC3.0 (5V3.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V ,3A ) DC 18V/5A Max |
USB2.0
(5V 3A ) QC3.0 (5V3.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V ,3A ) DC 18V/8A Max |
USB2.0
(5V 3A ) QC3.0 (5V3.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V ,3A ) DC 18V/11A Max |
| Protection System | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity |

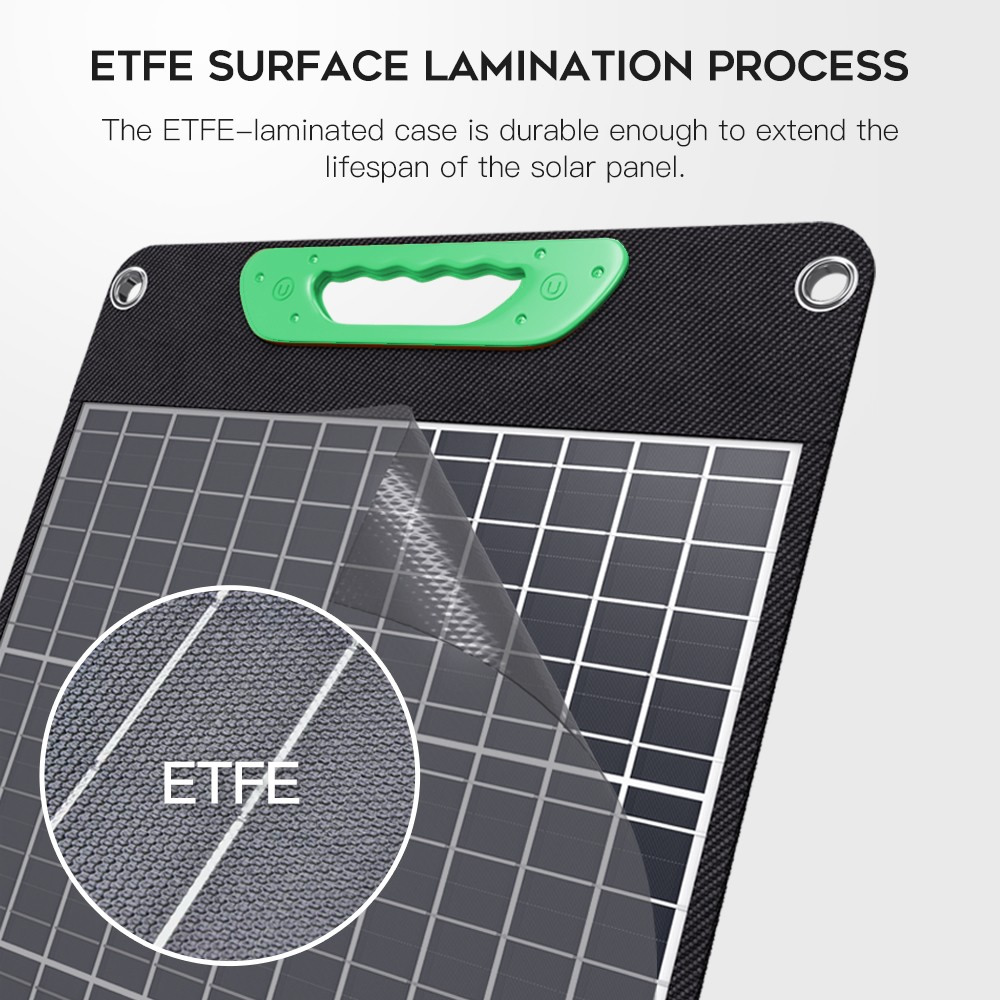

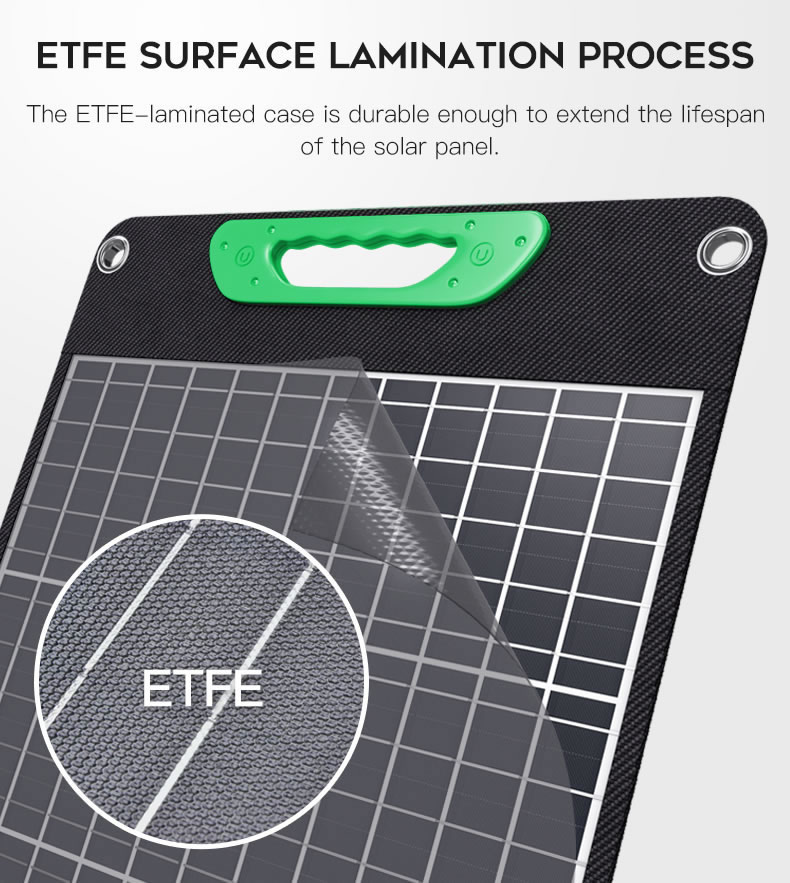

| Sealing process | ETFE | ETFE | ETFE | ETFE |
| Operating Temperature | -40℃ to +85 ℃ | -40℃ to +85 ℃ | -40℃ to +85 ℃ | -40℃ to +85 ℃ |
| Bag material | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS |
| Junction Box | Ip65 Waterproof | Ip65 Waterproof | Ip65 Waterproof | Ip65 Waterproof |
| Open size | 830x520x16mm | 1177*520*16MM | 1955*508*16MM | 2300*530*16mm |
| Folding size | 520x415x30mm | 590*520*30MM | 540*508*50MM | 630*530*50mm |
| Net weight | 2.7KG | 3.7KG | 6.1KG | 6.5KG |
| OEM service | Can be customized Fabric color, Handle color, Power, Voltage, Size, Junction box, Connector, Packing box | |||
OEM Service Advantages
FAQ
1. We offer 1
year warranty to solar panel and power station.
2. Our solar
panel and power station are produced in a strict quality control system
and the defective rate will be less than 0.2%.Secondly, during the guarantee
period, we will send new one with a new order for a small quantity.For
defective batch products, we will repair them and resend them to you or we can
discuss the solution Including re-call according to real situation.
3. For sample order, 3-5 days. For bulk order, 15-35 days.
4. Normally MOQ 100pcs, but we also accept small sample order for quality
clients.
5. Continuous improvement and support of technology, R&D, production,
process.
6. Give you market research, expansion, new product development and product
selection references and suggestions.
