Portable Solar Panels for Power Station
Portable Solar Panels for Power Station 200 Watt Foldable Solar Panel Kit with MC 4 to T60 for Power Bank Charging IP65 Waterproof Camping Accessories Solar Generator RV Accessories
Send Inquiry service@iacetop.comSolar Panel Description

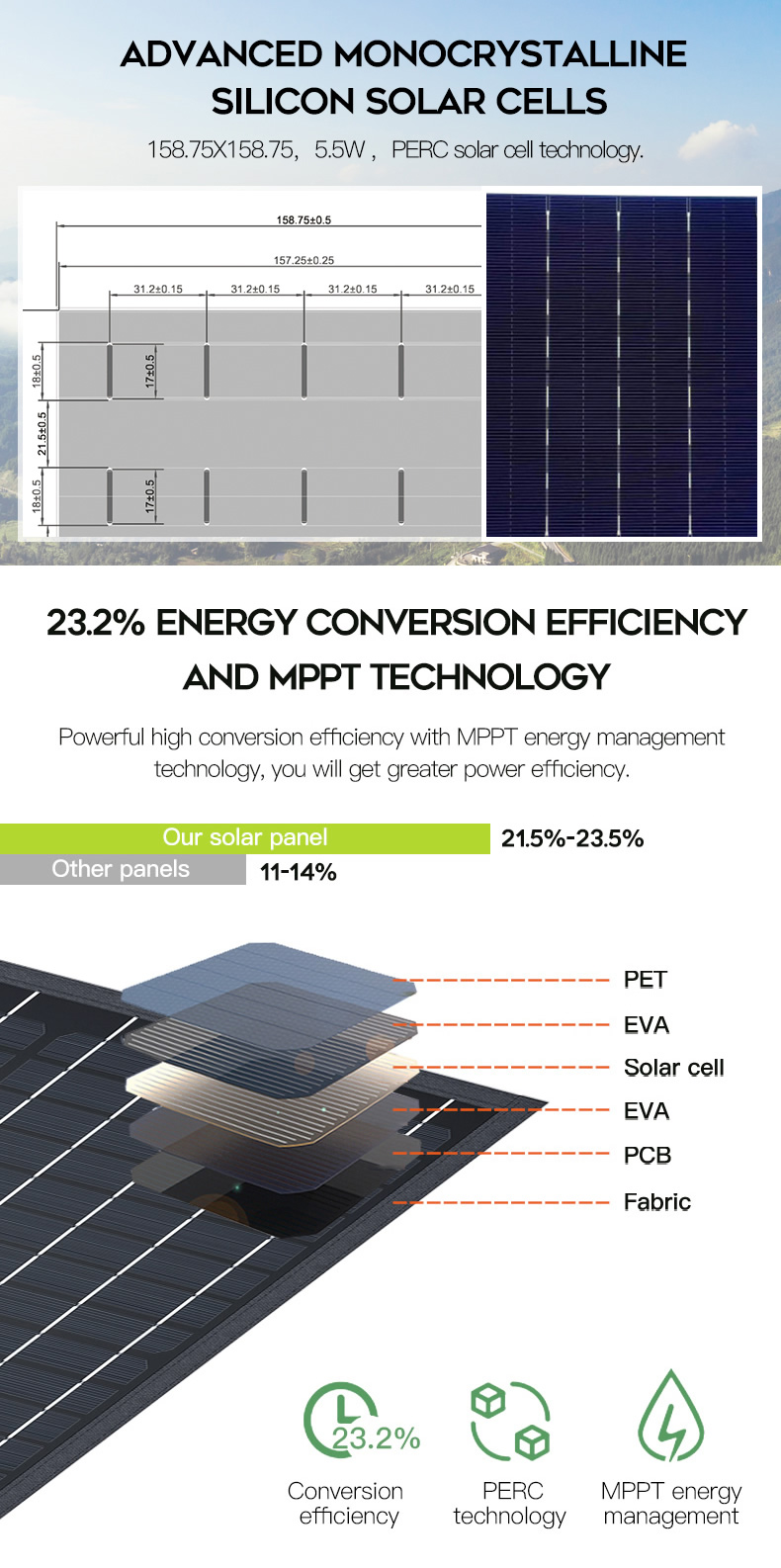

[High Conversion Efficiency]: It is a 200-watt monocrystalline solar panel with high conversion efficiency,up to 25%, which is much higher than the typical solar panel generator/charger. With excellent 95% transparency, the performs better than similarly-rated polycrystalline solar panels in low-light conditions,and much higher than the market's average.

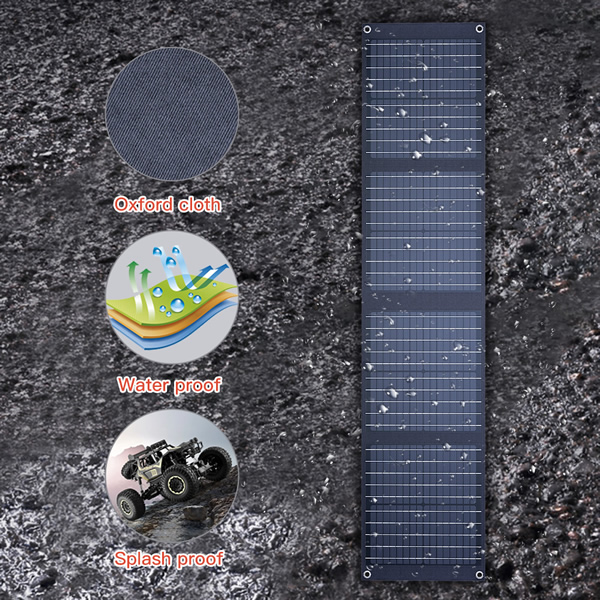

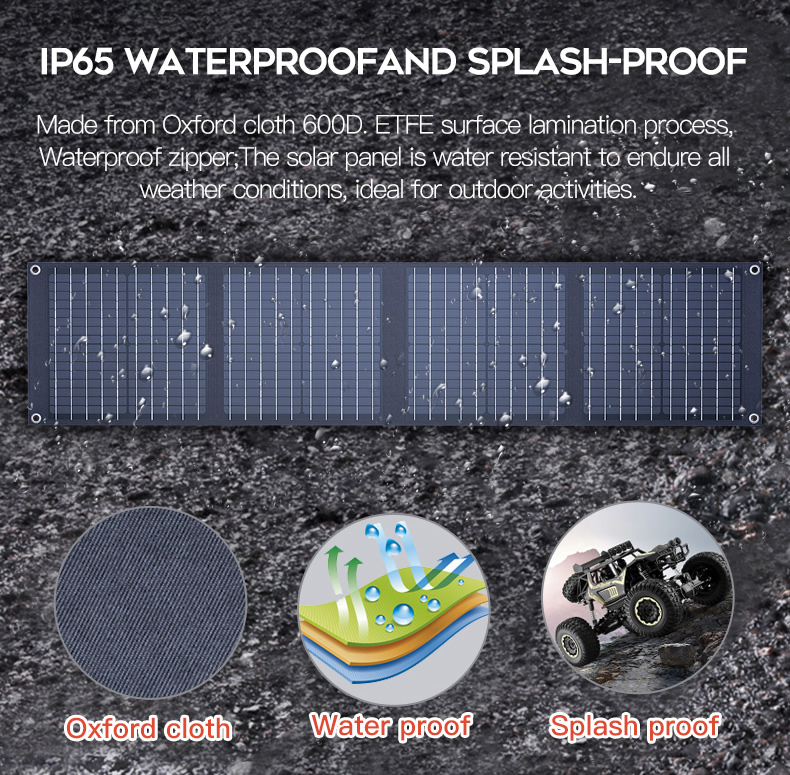

[Durable and Splash-proof]:Made with advanced laminated technology and long-lasting pet material on the surface, making it more durable and scratch-resistant. It is IP65 water-resistant that will protect from water splashing (But Please Do not place it under the rain, or to soak in water).
[Compatible with Most Solar Generators]: foldable solar panel uses standard connector & is designed to be used with most solar generators on the market,including any of the solar generators

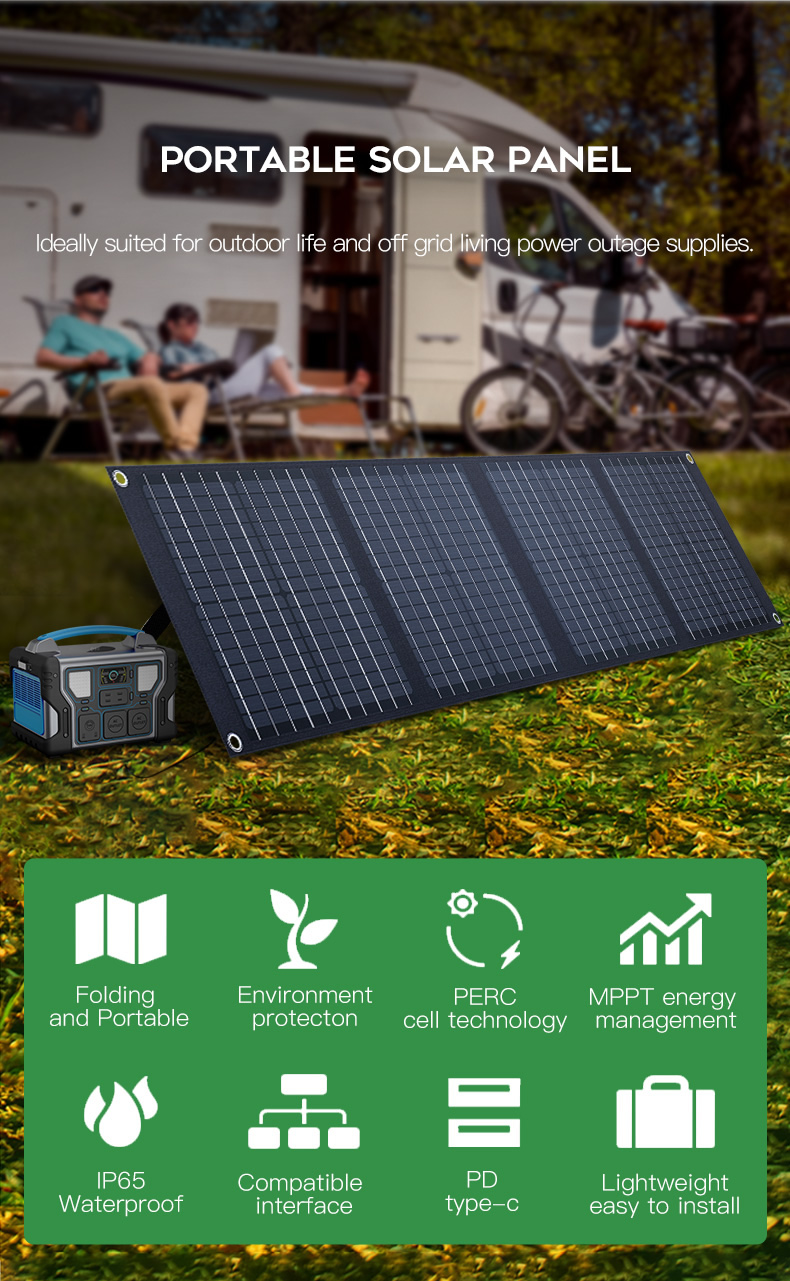

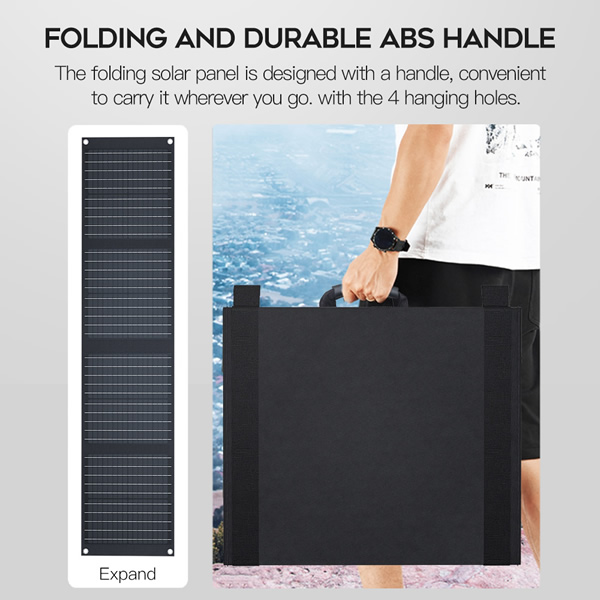

[FOLDABLE & PORTABLE]: The solar panel is easy to transport and install for anyone.
[WHAT'S INCLUDED]:1* 200W solar panel, 1*User Manual.
Performance Advantages
Technical Parameter
| Maximum Power at STC(Pmax) | Your choice | Other choice | |||
| 200W | 60W | 100W | 120W | 150W | |
| Optimum Operating Voltage(Vmp) | 18V | 18V | 18V | 18V | 18V |
| Open-Circuit Voltage(Voc) | 20V | 21V | 21.2V | 20V | 20V |
| Optimum Operating Current(Imp) | 11A | 3.3A | 5.55A | 8.8A | 8.3A |
| Short-Circuit Current(Isc) | 12A | 3.6A | 6A | 9A | 9A |
| Power Tolerance | ±2.5% | ±3% | ±3% | ±2.8% | ±2.5% |
| Cell Efficiency rate | 23.2% | 23.2% | 23.2% | 23.2% | 23.2% |

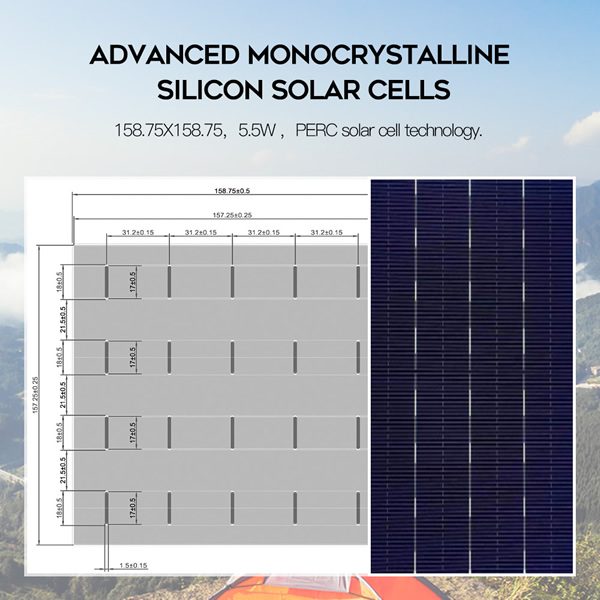

| Solar cell Type | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W |

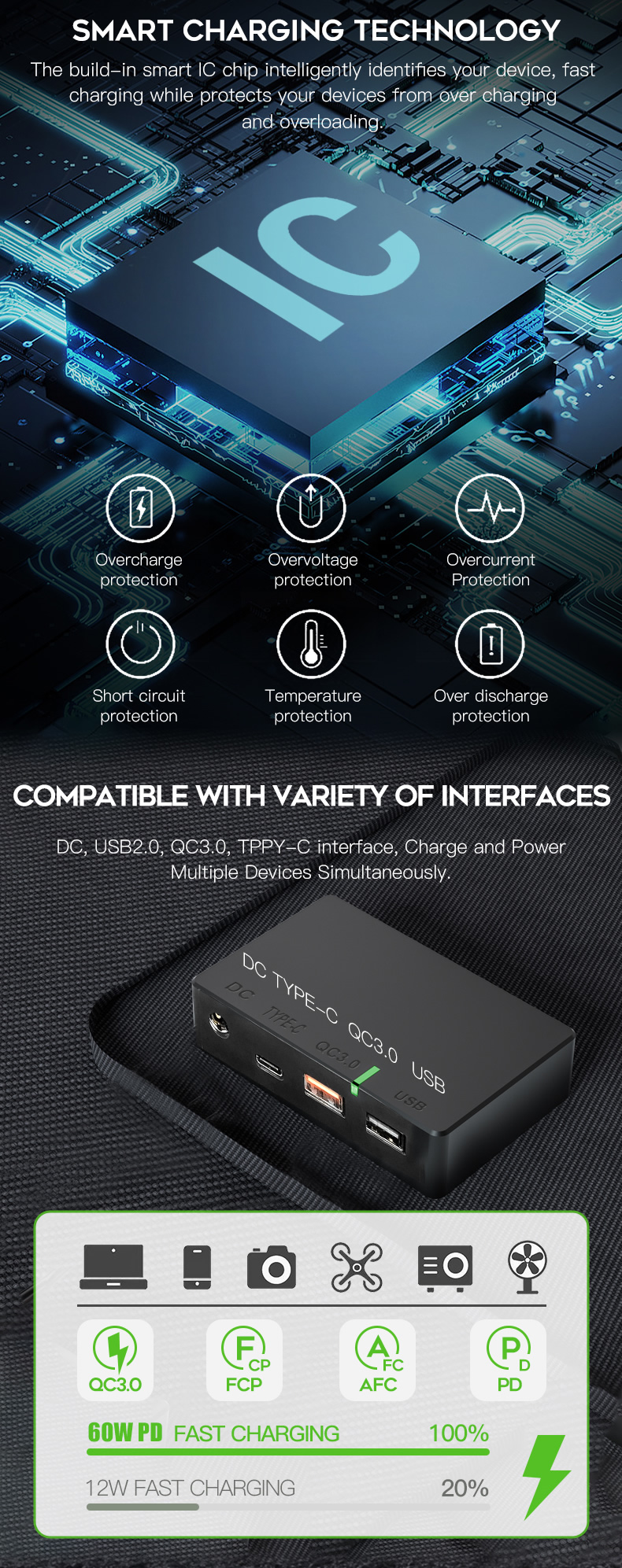

| System Protection |

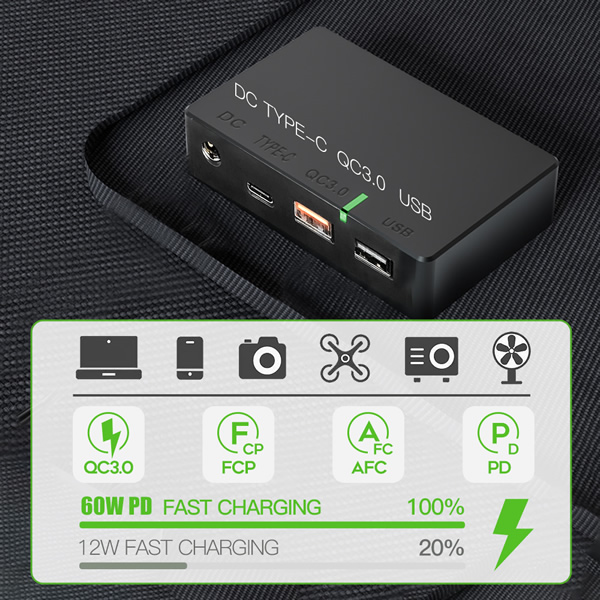

USB2.0
(5V 3A ) QC3.0 (5V2.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V,3A ) DC 18V/11A Max |
USB2.0
(5V 3A ) QC3.0 (5V2.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V,3A ) DC 18V/3A Max |
USB2.0
(5V 3A ) QC3.0 (5V2.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V,3A ) DC 18V/5A Max |
USB2.0
(5V 3A ) QC3.0 (5V2.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V,3A ) DC 18V/8A Max |
USB2.0
(5V 3A ) QC3.0 (5V2.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V,3A ) DC 36V/7.5 A Max |
| 0utput Interface | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity |
| Sealing Process | PET | PET | PET | PET | PET |
| Operating Temperature | -40℃ to +85 ℃ | -40℃ to +85 ℃ | -40℃ to +85 ℃ | -40℃ to +85 ℃ | -40℃ to +85 ℃ |

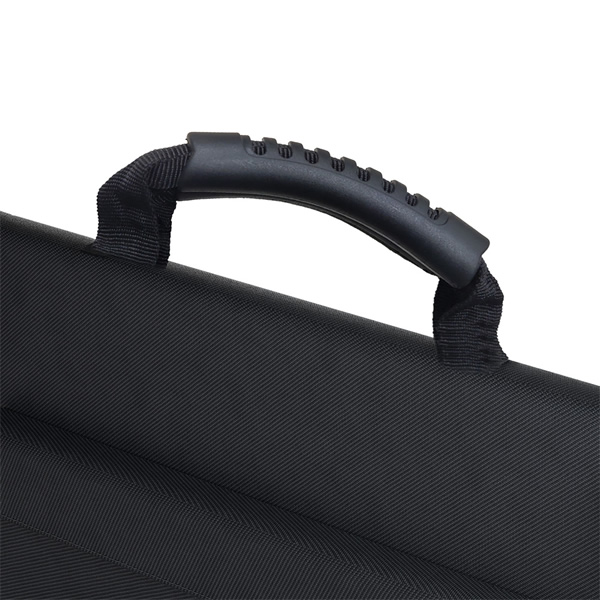

| Bag Material | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS |
| Cell Efficiency rate | 23.2% | 23.2% | 23.2% | 23.2% | 23.2% |
| Junction Box | Ip65 Waterproof | Ip65 Waterproof | Ip65 Waterproof | Ip65 Waterproof | Ip65 Waterproof |
| Open Size | 568*2170*4mm | 730*365*4mm | 1110*360*4mm | 1955*508*16MM | 480*2140*4mm |
| Folding Size | 568*525*16mm | 365*355*8mm | 365*355*12mm | 488*525*16mm | 480*520*16mm |
| Net Weight | 6.2KG | 1.9KG | 3KG | 6.1KG | 5.7KG |
| OEM Service | Color, size, appearance, performance, power, voltage can be customized | ||||
| Open Size:568*2170*4mm;Folding Size:568*525*16mm ;Net Weight:6.2KG. | |||||
FAQ
※What make our product difference from other factory?
1.Our clients benefit from lower manufacturing costs and time-to-market volume production through over 180 highly qualified staffs and the 7500 square meters workshop, including a mold development center, a metal and plastic injection center,a hardware processing center,5 product assembling centers , Printing workshop.
2. We have a highly experienced and efficient R&D, Design, Sales and Management team with top educational background. We provide full after sales and technical support. With our passionate and professional support team, ACETOP looks forward to being your supplier.
You can be assured your products receive priority treatment. We strive to have our customers regard us as strategic manufacturing partners, an integral part of their operations. Our headquarter center are located in Shanghai, China. Contact us at once to make us your long term partner!
3.We have a complete process chain in the industry, so we can provide you with better customized services.
4.Normally MOQ 500pcs, but we also accept small sample order for quality clients.
※How do we ensure our quality ?
1. In the field , well-known brands are our cooperative customers. We have provided them with oem services for 10 years. With their help, we have continuously optimized our quality control system.
2. We are confident to provide customers with top quality products as we have solid flow of Production Material Control(PMC),In-Process Quality Control (IPQC), Finished Product Quality Control (QC) and Delivery Quality Assurance (QA). To provide you with an extra level of protection, we check our items piece by piece prior to shipment.
3. Our products have passed ISO 9001,CE,ROSH, CCC and other certification .
