Portable Solar Panel Kit Power Station Foldable Solar Charger

200W Portable Solar Panel Kit Lightweight Foldable Solar Charger for RV Car Marine Battery for Portable Power Station Smart LCD Controller with USB QC3.0 DC Output

Send Inquiry service@iacetop.com
Power Station Description

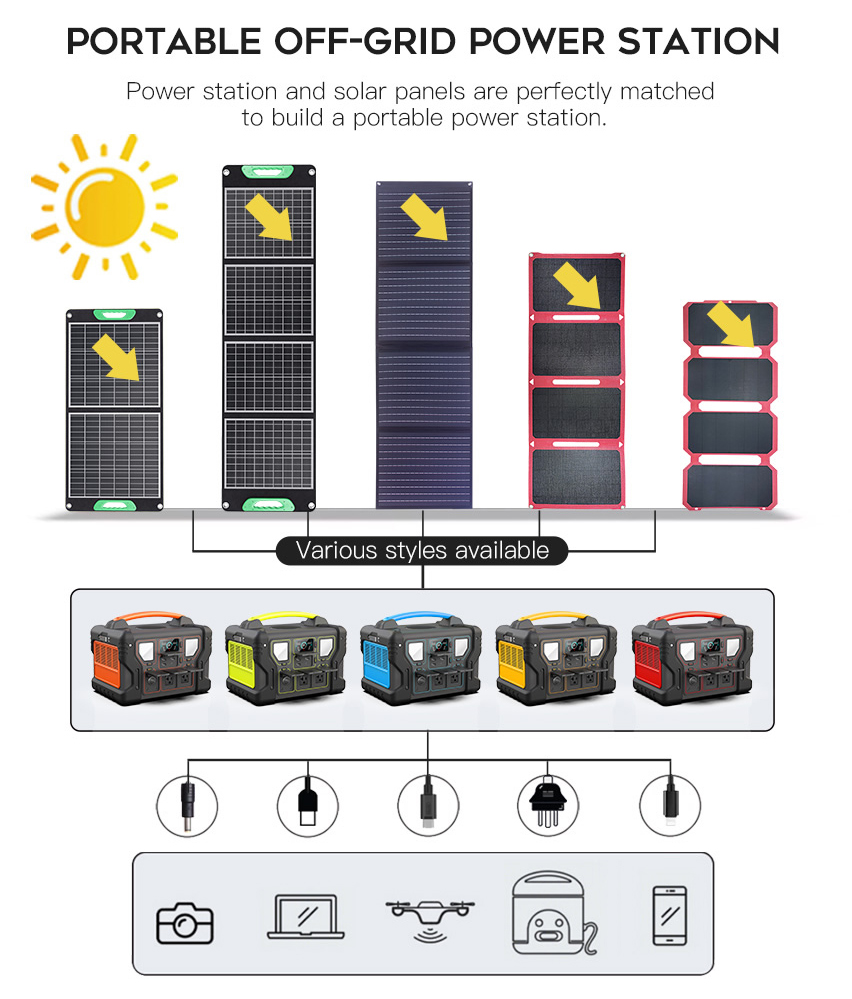

The Solar Generator with four solar panels gives you power on the go. This generator and the solar panels are perfect for powering tools and appliances when camping or on the road. The generator can charge up to seven devices at once and it can be recharged via a wall outlet, a car outlet or the solar panels.

Solar Generator Solar Generator panel power station is a perfect combination for customers; brings you clean, quiet, portable green power for daily life, fearless of power outages 500W continuous output: Solar Generator has high power and high capacity; ideal for home DIY can supply electricity for high-power devices like an electric hammer, air compressor, circular saw, angle grinder, electric wrench and more
Fast recharging with double AC adapter (total of 500W): the power can be fast recharged in three hours; with one AC adapter, it can be recharged in six hours

Mppt Technology: More user-friendly and higher efficient operating system - the MPPT Technology; adds 30% more solar recharging efficiency

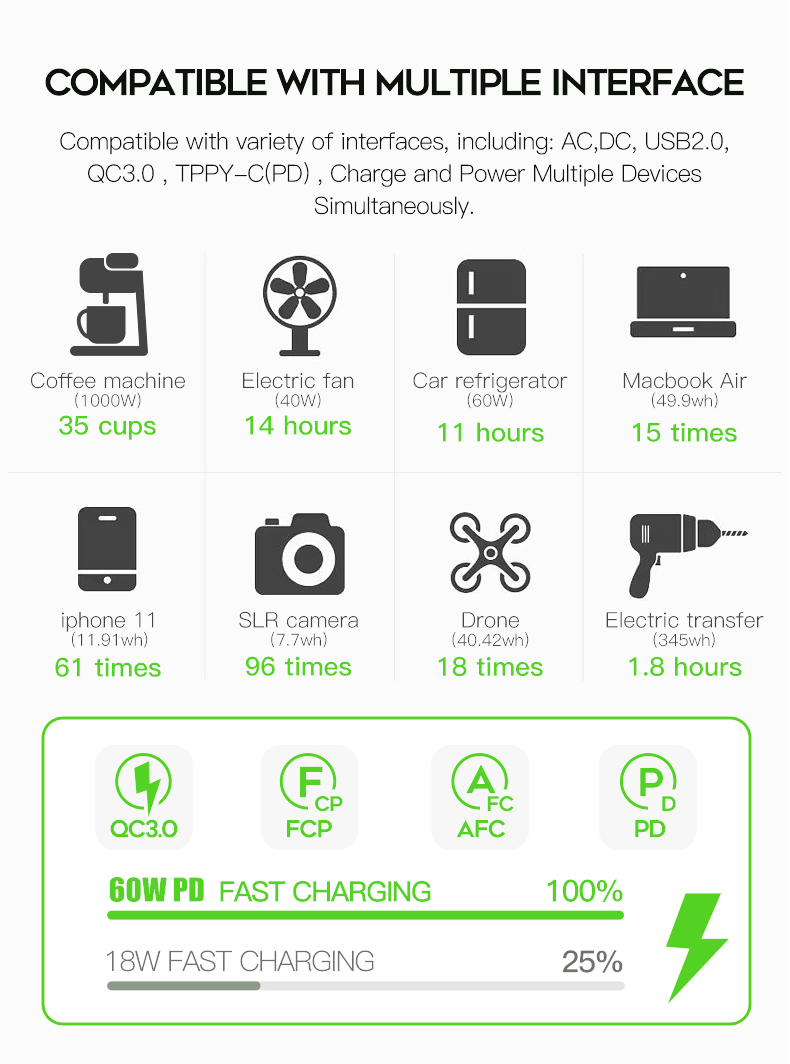

Charge: power station can power seven different devices simultaneously such as a TV, drone, laptop, iPad, hairdryer, camera, etc.
Three ways to recharge: solar panel (four panels need 4 H), AC outlet(one adapter needs 6 H, two adapters need 3 H), car outlet (15.5 H)
Two-year warranty: provides in-time services with 24-month warranty and lifetime technical support;
How to use: connect four solar panels and Explorer 1500 with two solar charge adapters.

Performance ACE2000 ACE1000 Pro ACE1000 ACE700 ACE500 pro ACE500 ACE300
Rated AC Output 2000W 1000W 700W 500W 500W 300W
Rated Capacity 2016Wh 999Wh 699.3Wh 499.5Wh 444Wh 266.4Wh
Standard Capacity 48V
42Ah
22.2V
45Ah
22.2V
31.5Ah
22.2V
22.5Ah
22.2V
20Ah
22.2V
12Ah

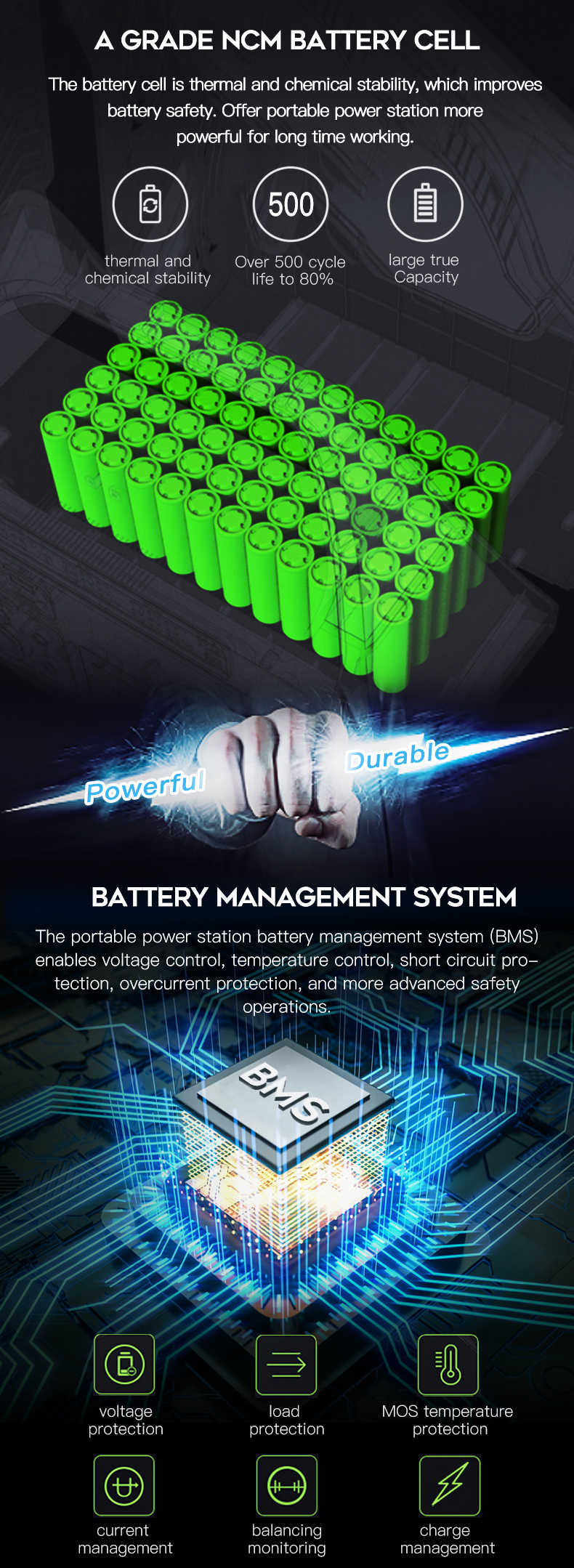

Bettery Type LiFePO4 Li-ion
LCD Display Battery remaining capacity, Battery fault,
total output power,Over temperature,input power
Housing Material ABS+PC ( fireproofing V0)
Charging Temperature Range 0℃~40℃
Charge
Way
AC Input 1200W 700W NO
DC Input NO NO 24V/6.25A 24V/5A 25V/4A 25V/4A 15V/4A
Car Charge 12V
Solar Charge 800W 400W 18-23V/8A 18-23V/8A 18-23V/5A 18-23V/5A 18-23V/3A
Charge
Time
Wall charge 1.5-2.5H 1.5~2.5H NO
DC Input NO NO About 6~8H
Car Charge 10~15H 9~13H About 7~9H
Solar Charge About 3H About 3H About 6~9H
USB Output USB-Type-C PD 100W*2 PD 60W
USB-3.0 QC3.0*4(72W max) QC3.0*3(54W max)
DC port Output 12V/5A*2(120W) 12V/5A*2(120W)
Cigarret Lighter Output 12V/10A(120W) 12V/10A(120W)
Wireless Charge Output 15W 10W
LED Light SOS,Flshlingt(8W) SOS,Flshlingt(5W*2)
AC
Output

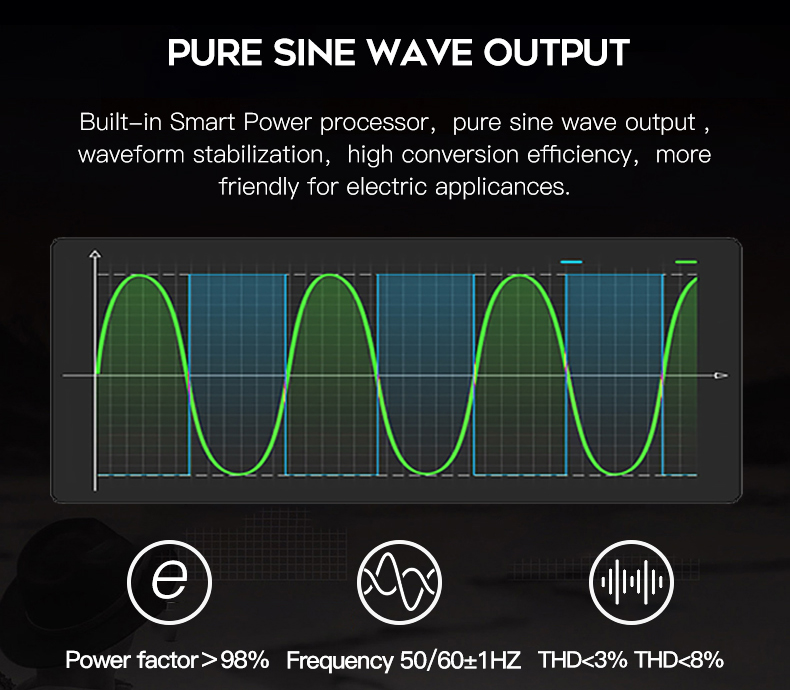

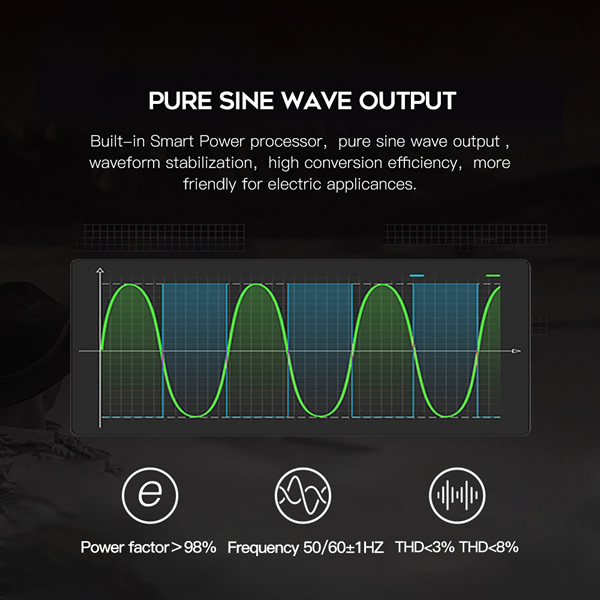

Output waveform Pure Sine Wave
Output voltage 110V*4(US/JP) or 220V*4(EU/UK/AU/CN) 110V*2(US/JP) or 220V*2(EU/UK/AU/CN)
Frequency 50/60Hz
AC continuous output 2000W 1000W 700W 500W 500W 300W
Peak AC output 4000W 2000W 1400W 1000W 1000W 600W
Discharging Temperature Range -15~45℃
Authentication UL,FCC,CE,ROSH,PSE,UN38.3
Product Size 410*290*290mm 328*221*263mm 273*181*244mm
Weight 22kg 9.8Kg 8.9Kg 7.4Kg 6.3Kg 5.5Kg 3.95Kg
Warrantly 18 months
Color Oranger+gray,Blue+gray,Red+gray,Green+gray

Solar Panel Description




Maximum power at STC(Pmax) 60W 100W 150W 200W
Optimum Operating Voltage(Vmp) 18V 18V 18V 18V
Open-Circuit Voltage(Voc) 21V 21.2V 20V 20V
Optimum Operating Current(Imp) 3.3A 5.55A 8.3A 11A
Short-Circuit Current(Isc) 3.6A 6A 9A 12A
Power Tolerance ±3% ±3% ±2.8% ±2.5%
Cell Efficiency rate 22% 22% 22% 22%

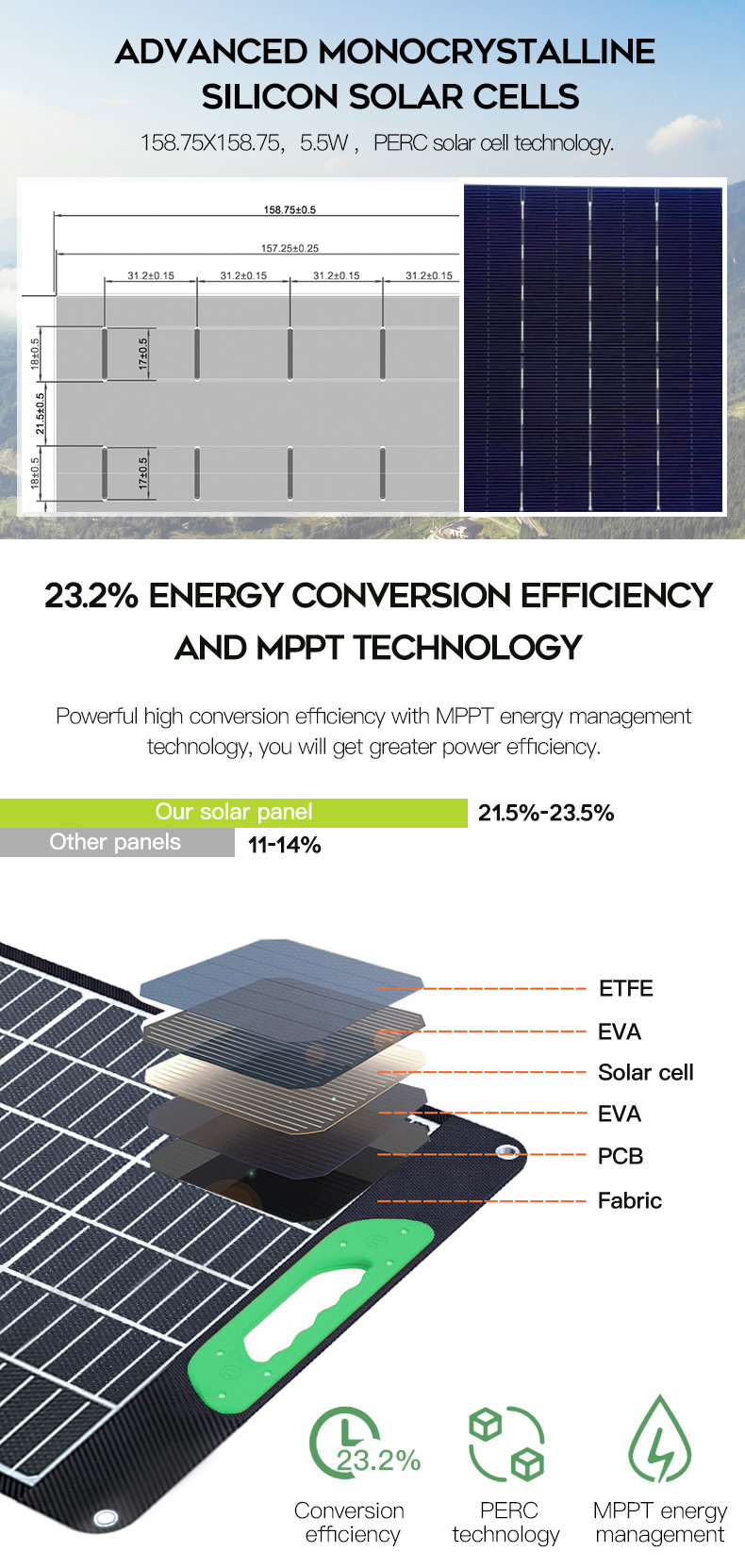

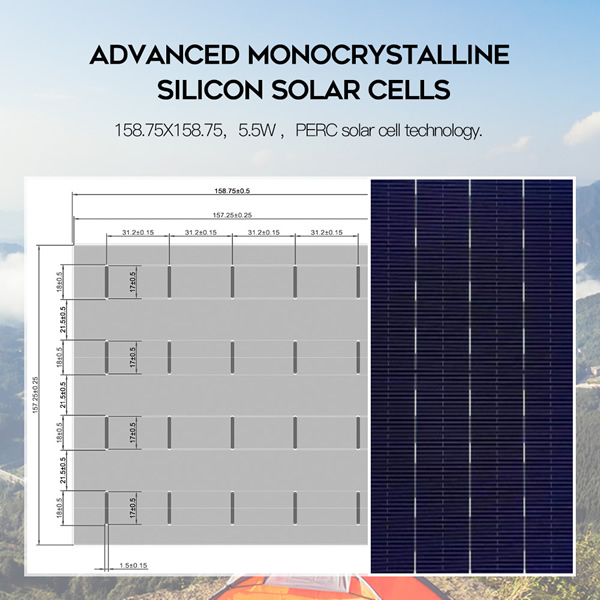

Solar cell Type Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W

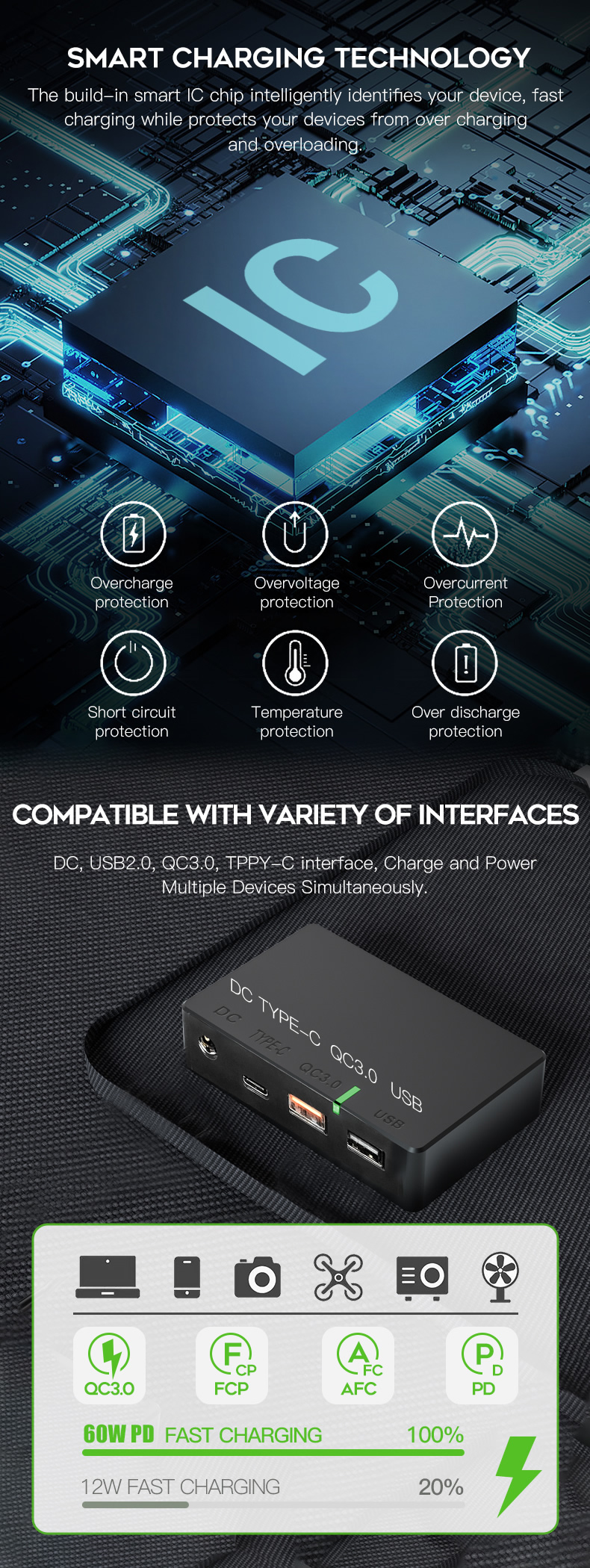

0utput Interface USB2.0 (5V 3A )
QC3.0 (5V3.4A / 9V2.5A / 12V2A )
PD( 5V/ 9V/ 12V/ 15V ,3A )
DC 18V/3A Max
USB2.0 (5V 3A )
QC3.0 (5V3.4A / 9V2.5A / 12V2A )
PD( 5V/ 9V/ 12V/ 15V ,3A )
DC 18V/5A Max
USB2.0 (5V 3A )
QC3.0 (5V3.4A / 9V2.5A / 12V2A )
PD( 5V/ 9V/ 12V/ 15V ,3A )
DC 18V/8A Max
USB2.0 (5V 3A )
QC3.0 (5V3.4A / 9V2.5A / 12V2A )
PD( 5V/ 9V/ 12V/ 15V ,3A )
DC 18V/11A Max

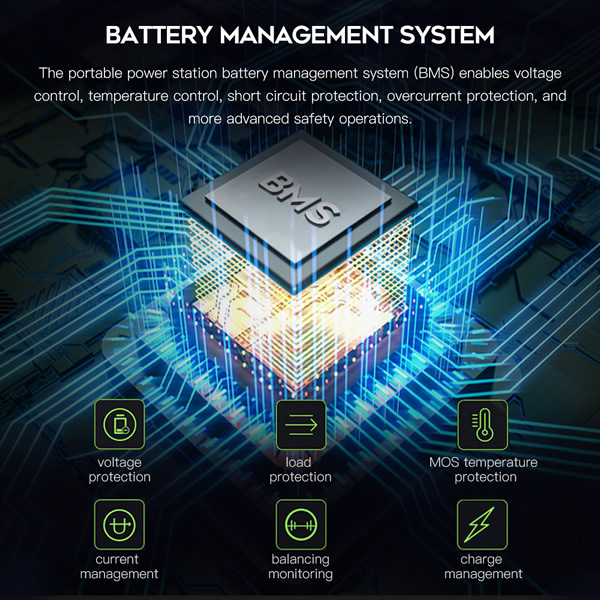

Protection System Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity

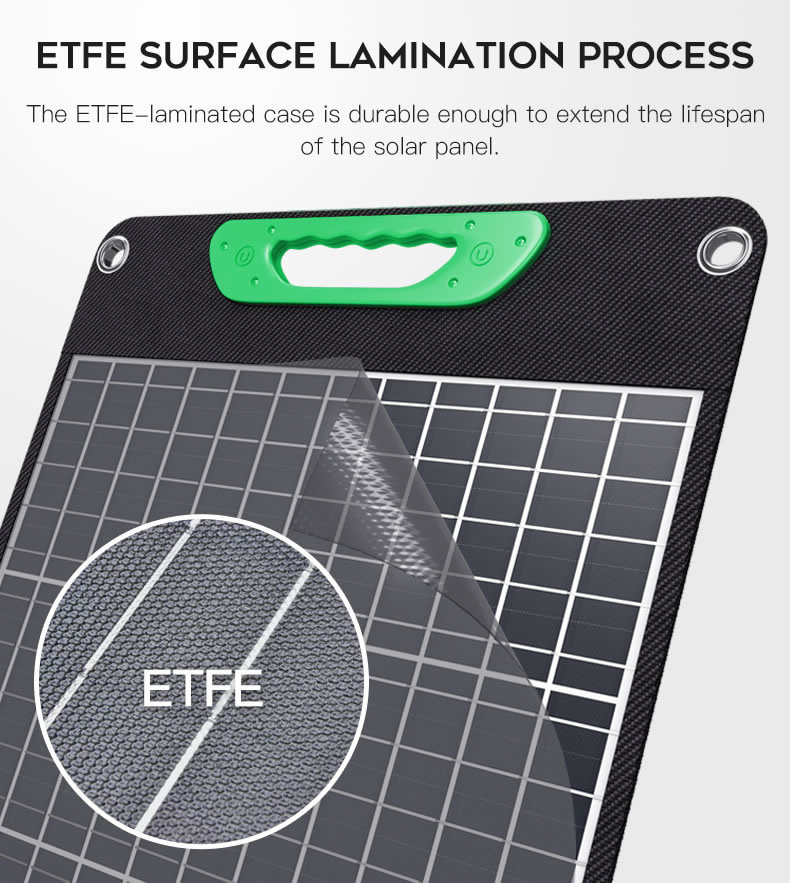

Sealing process ETFE ETFE ETFE ETFE
Operating Temperature -40℃ to +85 ℃ -40℃ to +85 ℃ -40℃ to +85 ℃ -40℃ to +85 ℃
Bag material 600D Oxford cloth , ABS 600D Oxford cloth , ABS 600D Oxford cloth , ABS 600D Oxford cloth , ABS
Junction Box Ip65 Waterproof Ip65 Waterproof Ip65 Waterproof Ip65 Waterproof
Open size 830x520x16mm 1177*520*16MM 1955*508*16MM 2300*530*16mm
Folding size 520x415x30mm 590*520*30MM 540*508*50MM 630*530*50mm
Net weight 2.7KG 3.7KG 6.1KG 6.5KG
OEM service Can be customized Fabric color, Handle color, Power, Voltage, Size, Junction box, Connector, Packing box

OEM Service Advantages


※ Professional manufacturer of energy field of solar panel and power station.

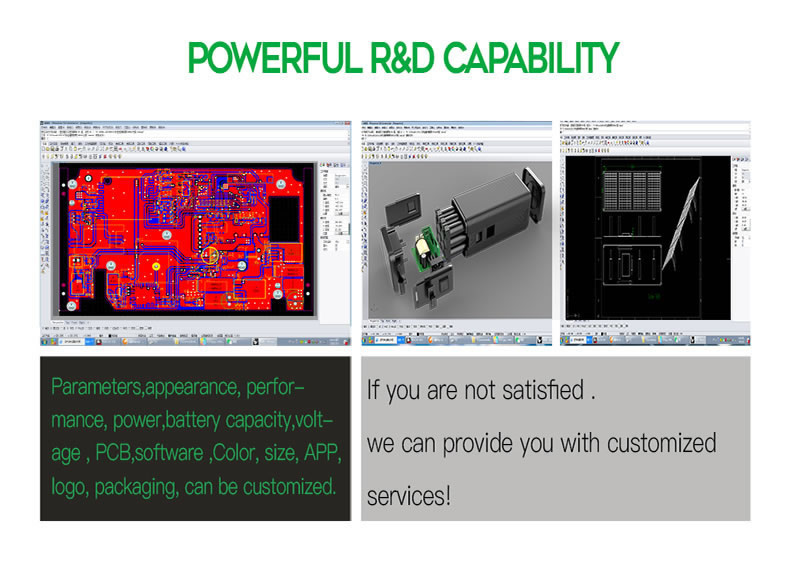

※ Parameters,appearance, performance, power,battery capacity,voltage , PCB,software ,Color, size, APP, logo, packaging, can be customized.

FAQ

1.Our clients benefit from lower manufacturing costs and time-to-market volume production through over 120 highly qualified staffs and the 7500 square meters workshop, including a mold development center, a metal and plastic injection center,a hardware processing center,5 product assembling centers , Printing workshop.

2. Thanks to more than 15 dedicated engineers with strong engineering capability and extensive experience in system R & D, we keep developing new products every year to keep up to date with the market. we pride ourselves on our ability to meet our customers' needs. If one of our standard products doesn't meet your requirements, we can custom-design a product for you.

3.We have a complete process chain in the industry, so we can provide you with better customized services.

4.Normally MOQ 100pcs, but we also accept small sample order for quality clients.

※What make our product difference from other factory?
1.Our clients benefit from lower manufacturing costs and time-to-market volume production through over 180 highly qualified staffs and the 7500 square meters workshop, including a mold development center, a metal and plastic injection center,a hardware processing center,5 product assembling centers , Printing workshop.

2. We have a highly experienced and efficient R&D, Design, Sales and Management team with top educational background. We provide full after sales and technical support. With our passionate and professional support team, ACETOP looks forward to being your supplier.
You can be assured your products receive priority treatment. We strive to have our customers regard us as strategic manufacturing partners, an integral part of their operations. Our headquarter center are located in Shanghai, China. Contact us at once to make us your long term partner!

3.We have a complete process chain in the industry, so we can provide you with better customized services.

4.Normally MOQ 500pcs, but we also accept small sample order for quality clients.

※How do we ensure our quality ?
1. In the field , well-known brands are our cooperative customers. We have provided them with oem services for 10 years. With their help, we have continuously optimized our quality control system.
2. We are confident to provide customers with top quality products as we have solid flow of Production Material Control
(PMC),In-Process Quality Control (IPQC), Finished Product Quality Control (QC) and Delivery Quality Assurance (QA). To provide you with an extra level of protection, we check our items piece by piece prior to shipment.

3. Our products have passed ISO 9001,CE,ROSH, CCC and other certification .
