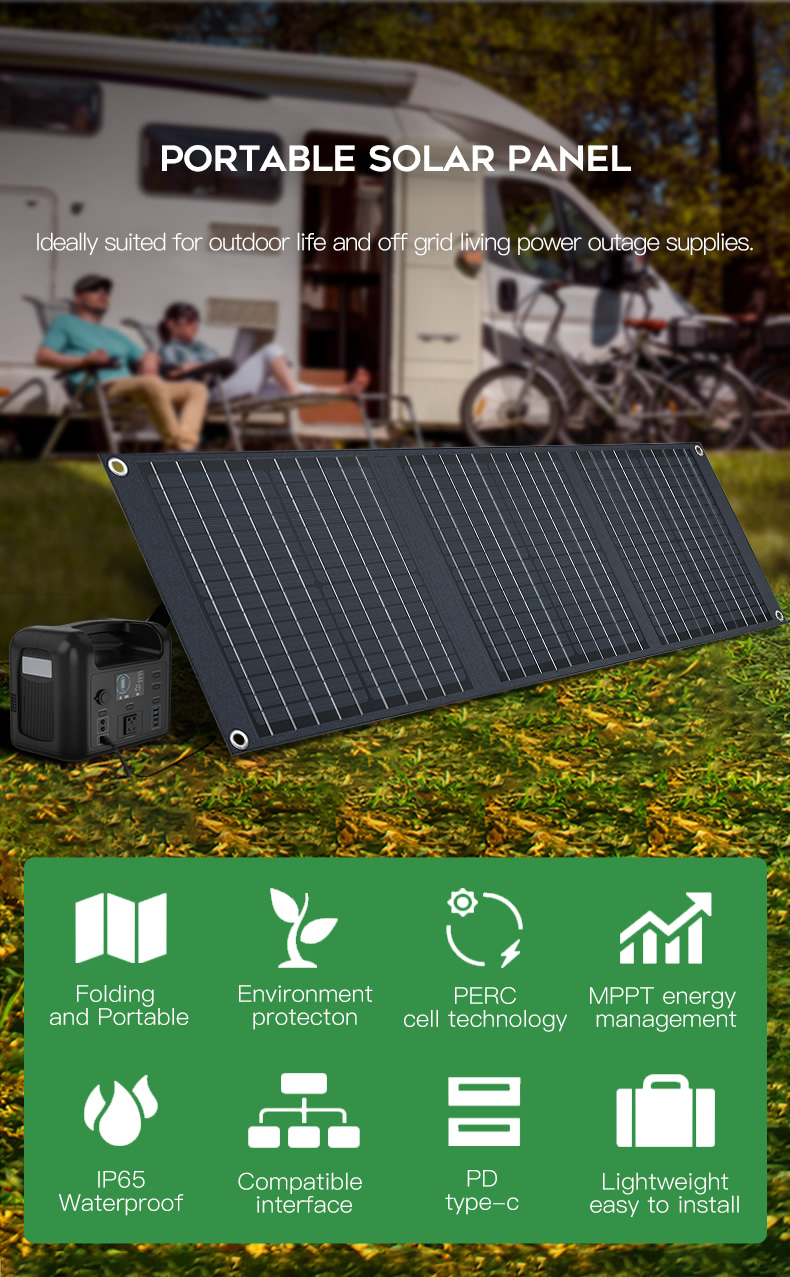

Portable Solar Panel Kit Folding Solar Charger with 2 USB DC Outputs
Portable Solar Panel Kit 9lb Folding Solar Charger with 2 USB DC Outputs for NCM Batteries Power Station RV Camping Trailer Car Marine
Send Inquiry service@iacetop.comSolar Panel Description
The solar panel is made of high-efficiency single crystal cells, ETFE and high-quality waterproof oxford 600D with long service life, beautiful and durable. Unique bag design , which is portable, foldable, light and durable, and can be used in outdoor camping, tourism and other activities;
Product size, power, voltage, etc. can be customized as required. main performance benefits:
【WIDE COMPATIBILITY】: With 5 different connector sizes (DC7909, XT60, Anderson, DC5525, DC5521), 120W solar panel can be compatible with other popular solar generators on the market. You can use it with any standard power station.

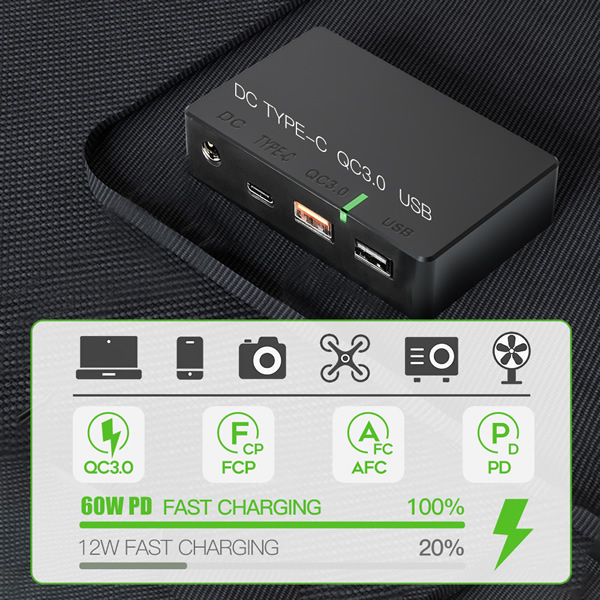

【BUILT-IN USB OUTPUT】: The portable solar panel has 24W USB-A QC3.0 output and 45W USB-C output to quickly charge your phone, tablet, power bank and other USB devices. So it is ideal for camping, travelling, power outages or emergencies.

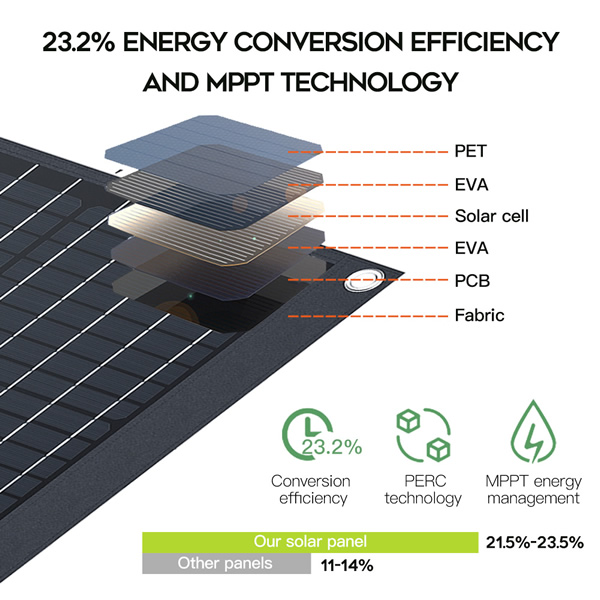

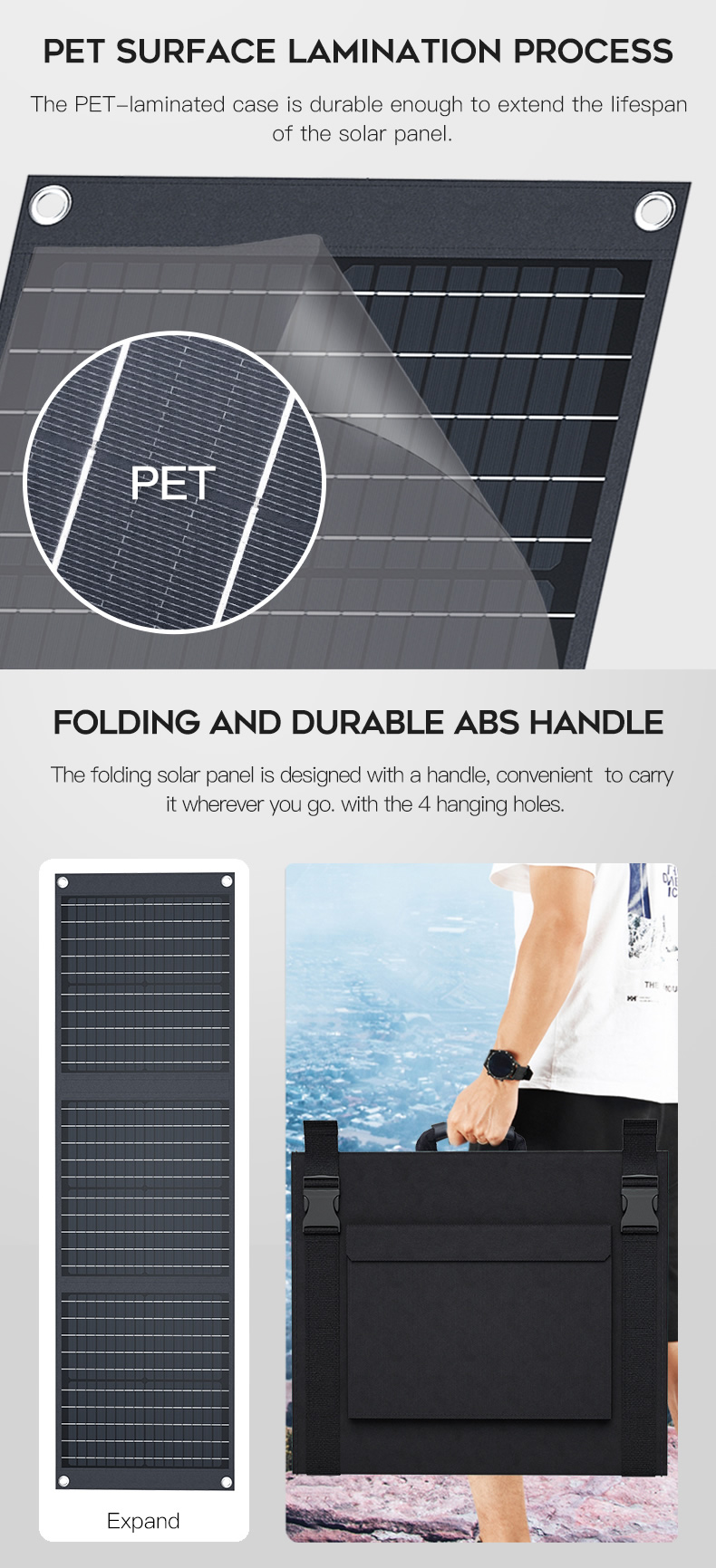

【UP TO 23.2% CONVERSION EFFICIENCY】: The foldable solar panel uses high-efficiency monocrystalline solar cells and its surface is made of durable pet material. it has higher light transmittance and conversion efficiency. (Note: If the maximum input power of your power station is 60W, you may only get 60W maximum from the 120W solar panel.)
【IP65 WATERPROOF】: The outer fabric of the solar panel is made of oxford cloth, which is waterproof and durable. The waterproof zip pocket on the back covers the connectors well to protect the solar panel against sudden rain. (Please note that the connectors themselves are not waterproof, so protect the connectors from water of any kind.)

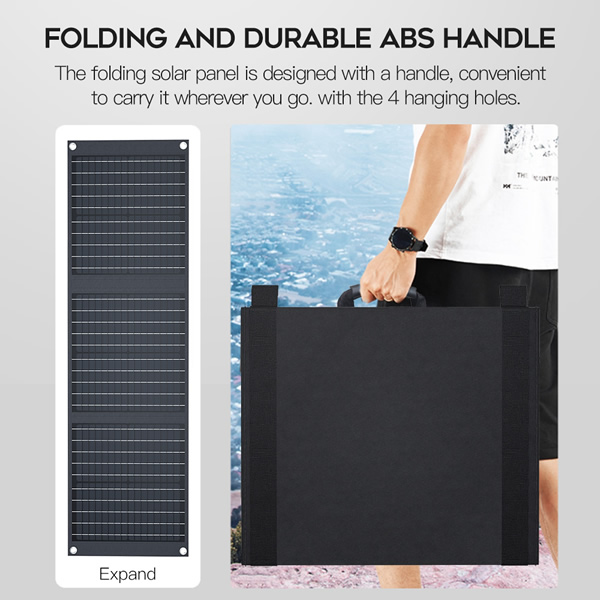

【FOLDABLE AND PORTABLE】: The folded size of the solar panel is 488*525*16mm and it weighs only 6.3 kg, which makes it very easy to carry. With two adjustable stands, it can be placed securely on any surface. The hanging holes on both ends allow you to attach it to your house's balcony or RV's roof for charging.
Performance Advantages
Technical Parameter
| Maximum Power at STC(Pmax) | Your choice | Other choice | |||
| 120W | 60W | 100W | 150W | 200W | |
| Optimum Operating Voltage(Vmp) | 18V | 18V | 18V | 18V | 18V |
| Open-Circuit Voltage(Voc) | 20V | 21V | 21.2V | 20V | 20V |
| Optimum Operating Current(Imp) | 8.8A | 3.3A | 5.55A | 8.3A | 11A |
| Short-Circuit Current(Isc) | 9A | 3.6A | 6A | 9A | 12A |
| Power Tolerance | ±2.8% | ±3% | ±3% | ±2.5% | ±2.5% |
| Cell Efficiency rate | 23.2% | 23.2% | 23.2% | 23.2% | 23.2% |

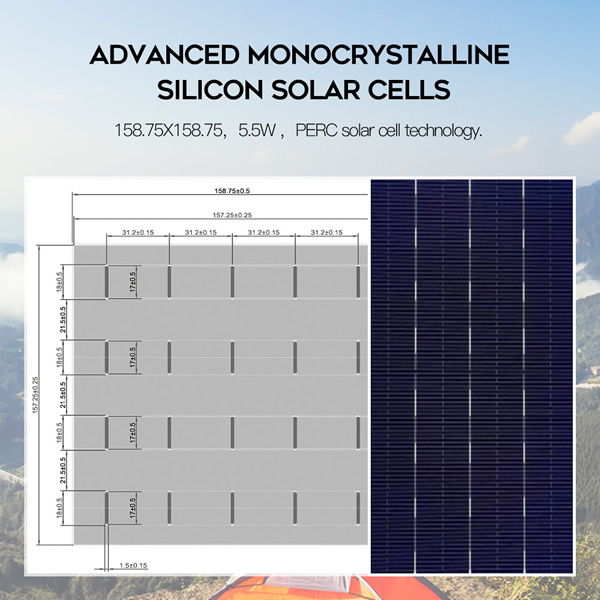

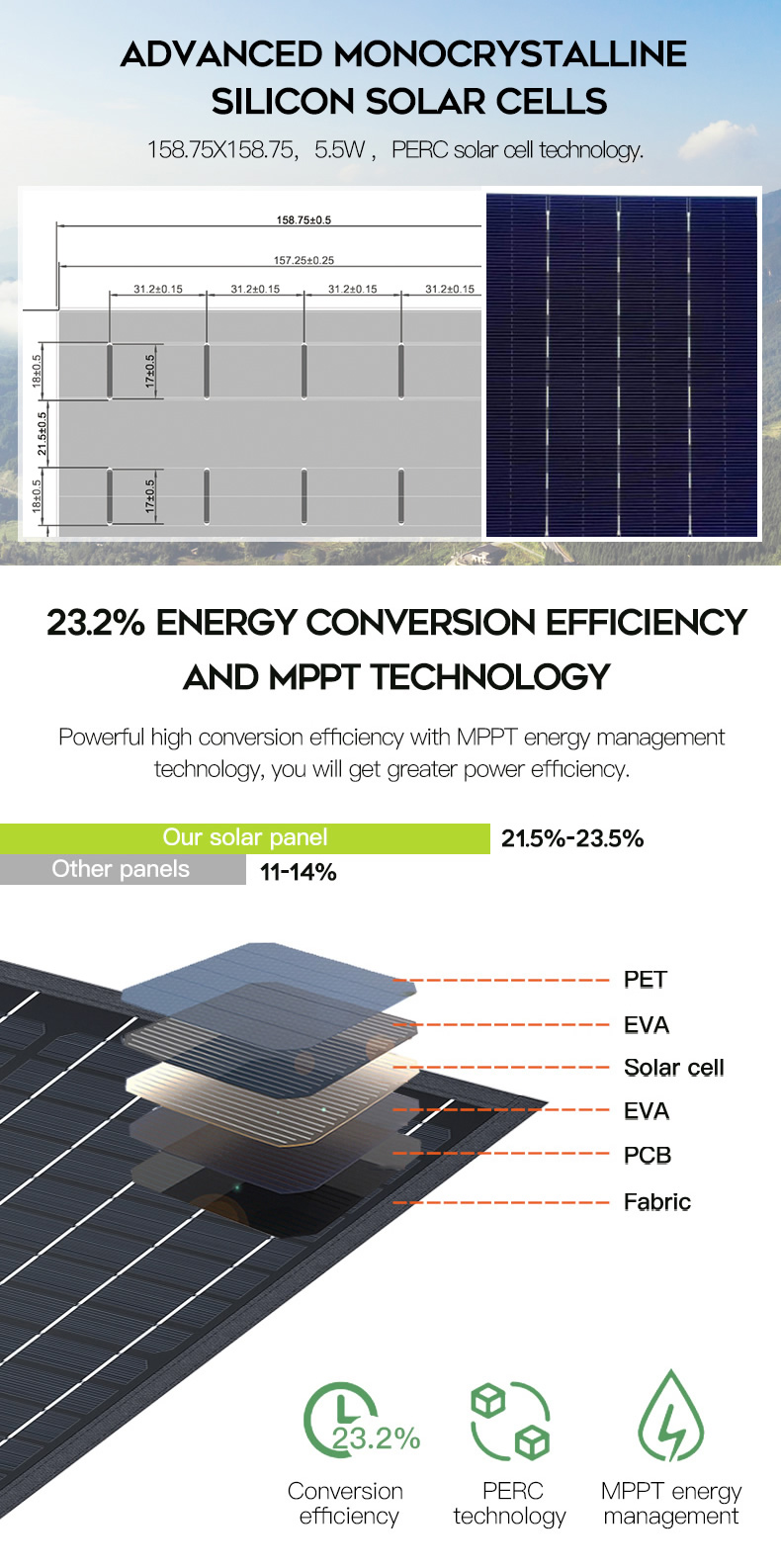

| Solar cell Type | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W |
| System Protection |
USB2.0
(5V 3A ) QC3.0 (5V2.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V,3A ) DC 18V/8A Max |
USB2.0
(5V 3A ) QC3.0 (5V2.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V,3A ) DC 18V/3A Max |
USB2.0
(5V 3A ) QC3.0 (5V2.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V,3A ) DC 18V/5A Max |
USB2.0
(5V 3A ) QC3.0 (5V2.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V,3A ) DC 36V/7.5 A Max |
USB2.0
(5V 3A ) QC3.0 (5V2.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V,3A ) DC 18V/11A Max |
| 0utput Interface | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity |
| Sealing Process | PET | PET | PET | PET | PET |
| Operating Temperature | -40℃ to +85 ℃ | -40℃ to +85 ℃ | -40℃ to +85 ℃ | -40℃ to +85 ℃ | -40℃ to +85 ℃ |
| Bag Material | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS |
| Cell Efficiency rate | 23.2% | 23.2% | 23.2% | 23.2% | 23.2% |
| Junction Box | Ip65 Waterproof | Ip65 Waterproof | Ip65 Waterproof | Ip65 Waterproof | Ip65 Waterproof |
| Open Size | 1955*508*16MM | 730*365*4mm | 1110*360*4mm | 480*2140*4mm | 568*2170*4mm |
| Folding Size | 488*525*16mm | 365*355*8mm | 365*355*12mm | 480*520*16mm | 568*525*16mm |
| Net Weight | 6.1KG | 1.9KG | 3KG | 5.7KG | 6.2KG |
| OEM Service | Color, size, appearance, performance, power, voltage can be customized | ||||
OEM Service Advantages
※We are professional manufacturer of energy field of solar panel and power station.
※Parameters,appearance, performance, power,battery capacity,voltage , PCB,software ,Color, size, APP, logo, packaging, can be customized.
1.Our clients benefit from lower manufacturing costs and time-to-market volume production through over 120 highly qualified staffs and the 7500 square meters workshop, including a mold development center, a metal and plastic injection center,a hardware processing center,5 product assembling centers , Printing workshop.
2. Thanks to more than 15 dedicated engineers with strong engineering capability and extensive experience in system R & D, we keep developing new products every year to keep up to date with the market. we pride ourselves on our ability to meet our customers' needs. If one of our standard products doesn't meet your requirements, we can custom-design a product for you.
3.We have a complete process chain in the industry, so we can provide you with better customized services.
4.Normally MOQ 100pcs, but we also accept small sample order for quality clients.
