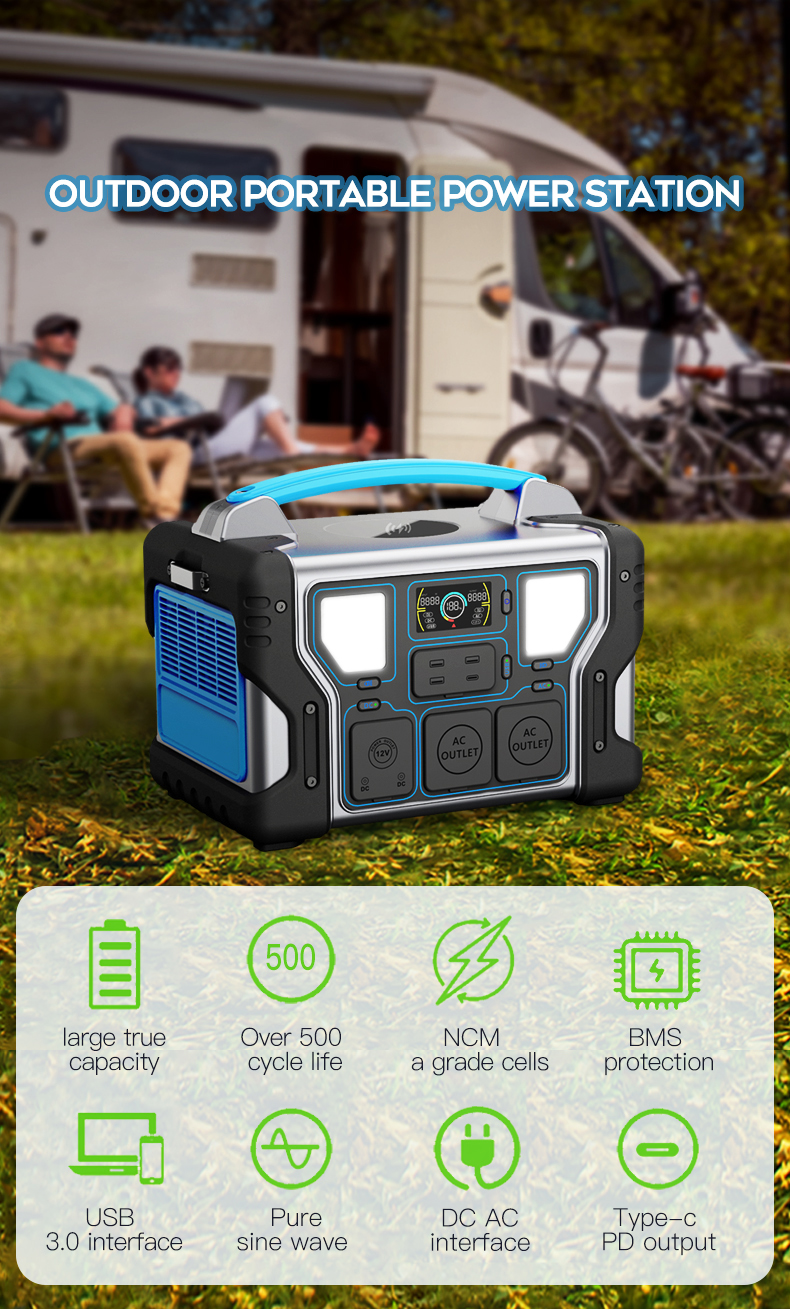

Portable Power Station bank Camping Generator Lithium Battery Power
Portable Power Station bank Camping Generator Lithium Battery Power 110V AC DC USB QC3.0 PD LED Flashlight for CPAP Home Camping Emergency Backup
Send Inquiry service@iacetop.comPower Station Description

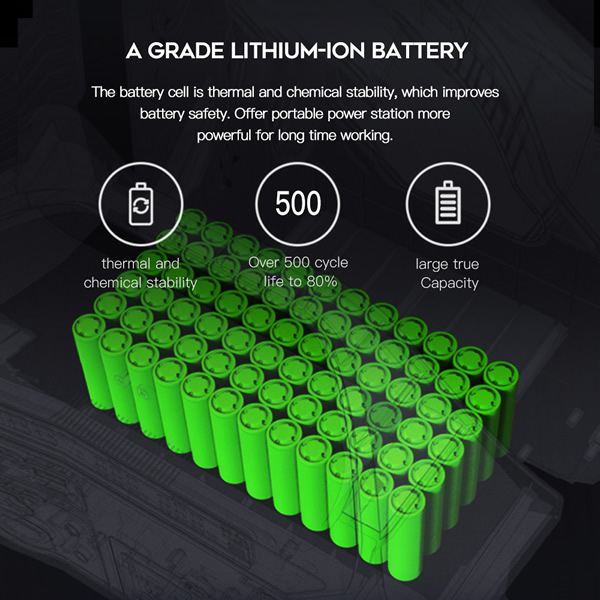

A GRADE BATTERY CELLS:A grade NCM battery cells. Over 500 cycle life to 80%,The battery cell is thermal and chemical stability, which improves battery safety. The solid handle makes it easy to carry around for outdoor adventures such as Tent Camping, Road Trip, Backyard Camping, etc.Offer portable power station more powerful for long time working.
BMS INTELLIGENT MANAGEMENT SYSTEM:The portable power station battery management system (BMS) enables voltage control, temperature control, short circuit protection, overcurrent protection, and more advanced safety operations.
VERSATILE POWER SOURCE:including: AC, DC, USB2.0, QC3.0, TPPY-C, Charge and Power Multiple Devices Simultaneously.pure Sine Wave AC to charge your road trip essentials such as smartphones, laptops, cameras, fans, lights and so on. Pass-through charging is supported.

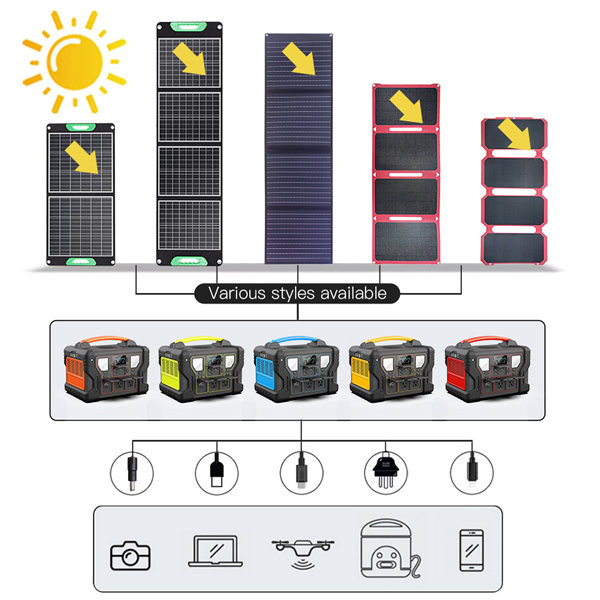

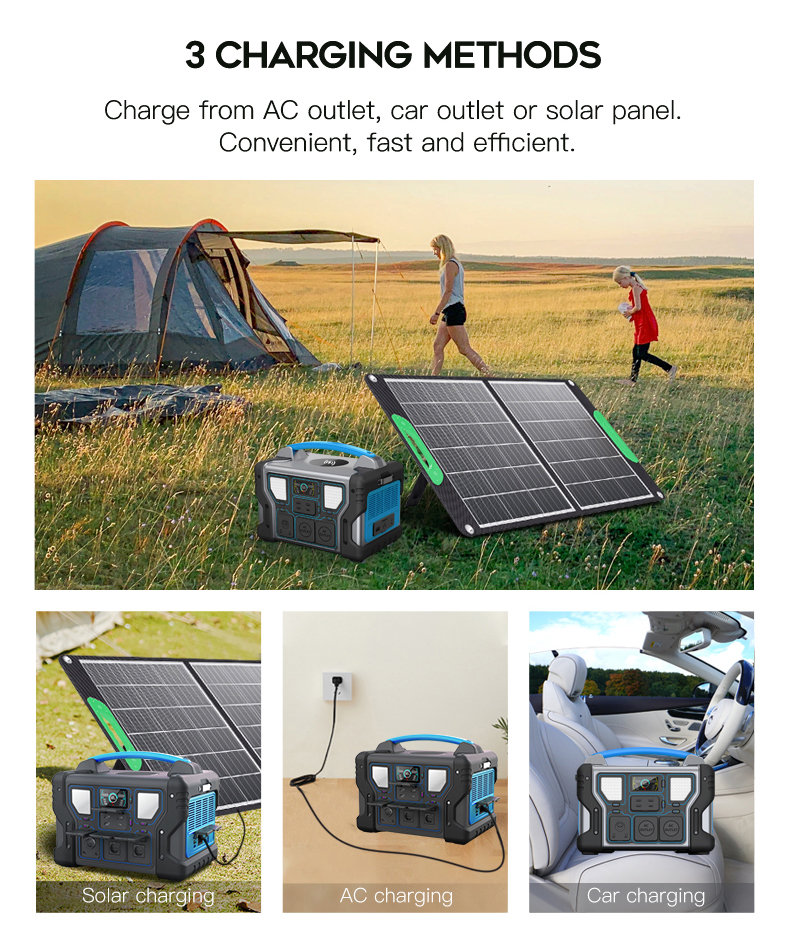

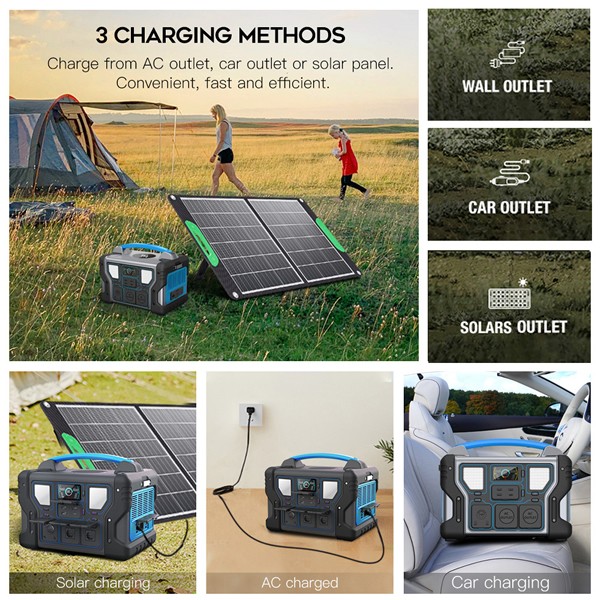

GREEN POWER SUPPLY: The power station can be recharged by the solar panel. Its built-in MPPT controller enables the solar panel to operate at its max power point for the power station to be recharged at its highest efficiency. TWO alternative ways to recharge: through the wall outlet or the car outlet.
Performance Advantages
Technical Parameter
| Cell Type | NCM CELL , A grade lithium-ion battery cell |
| Battery Pack Capacity | 45Ah / 22.2V ( or 3.7V/270000mAh) |
| Battery Pack Energy | 999Wh |
| Rating Output Power | 1000W |
| USB Interface |
Type-C
output:1PCS,PD 60W , (5V3A,9V3A,12V3A,15V3A,20V3A ) USB QC3.0 output:3PCS,total 54W, 18W (5V3A,9V2A,12V1.5A) |
|
DC Interface |
DC output:12V/5A/DC5521, 2PCS (total 120W ) |

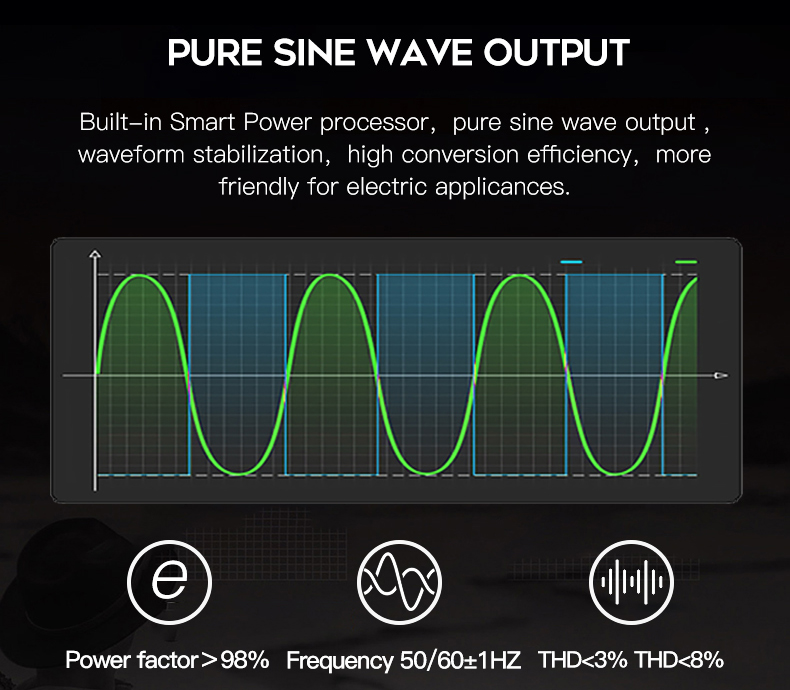

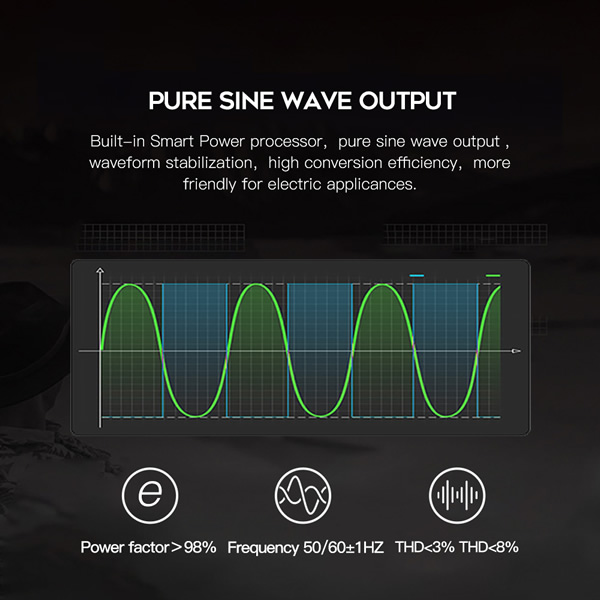

| AC Output Voltage Distortion Waveform (THD) | Output waveform:pure sinewave ,Sine wave < 3% (linear load),Sine wave < 8% (nonlinear load) |
| AC Interface |
AC
Input :100W , Power out :peak power:2000W, continuous output: 1000W 2PCS, Output voltage:110V(US/JP) or 220V(EU/UK/AU/CN) ,220V/240V 50±1Hz , 110V/120V 60±1Hz |
| Solar charging Interface | MPPT,Support any solar input from 18-23V 8A max (max 400W) |
| Cigarret Lighter Interface | 12V/10A(120W) |
| Wireless Charge | 10W |
|
Charge Time |
Wall
charge about 1.5~2.5H Car Charge Time ,about 9~12H Solar Charge Time , about 3H |
| BMS Protection system |
Intelligent
battery management system MOS Protection Double protections on both BMS and hardware over-charge protection,over-discharge protection, over-current protection, over-temperature protection,short-circuit protection, over-voltage protection. |
| LED light | 5W 2PCS (total 10W Max),SOS,flshlingt |
| Power Indicate | LCD Display,Battery remaining capacity, Battery fault, total output power,Over temperature,input power |
| Power Source | AC Adaptor, Car, Solar Panel |
| Full Load Output Power Factor | ＞0.98 |
| Life Cycle | 500 cycles to 80% capacity |
| Housing Material | ABS+PC ( fireproofing V0) |
| Operating temperature |
Charge
Temperature 0~40℃ Discharge Temperature -10~40℃ Storage Temperature -10~40℃ |
| Warrantly | 12 months |
| Package detail |
Product
size:328*221*263mm/about 9.9Kg Carton Siz:32.5*25*36.5CM/about 12.3Kg/1PCS |
|
Package Include |
1*portable power supply, 1*AC input power supply,1*User Manual, ,color box packaging,1*MC4 charging cable, 1*vehicle charging cable,1*straps |
| OEM service |
color
optional:Oranger+gray,Blue+gray,Red+gray,Green+gray Appearance, size, style, performance, packaging, can be customized |
