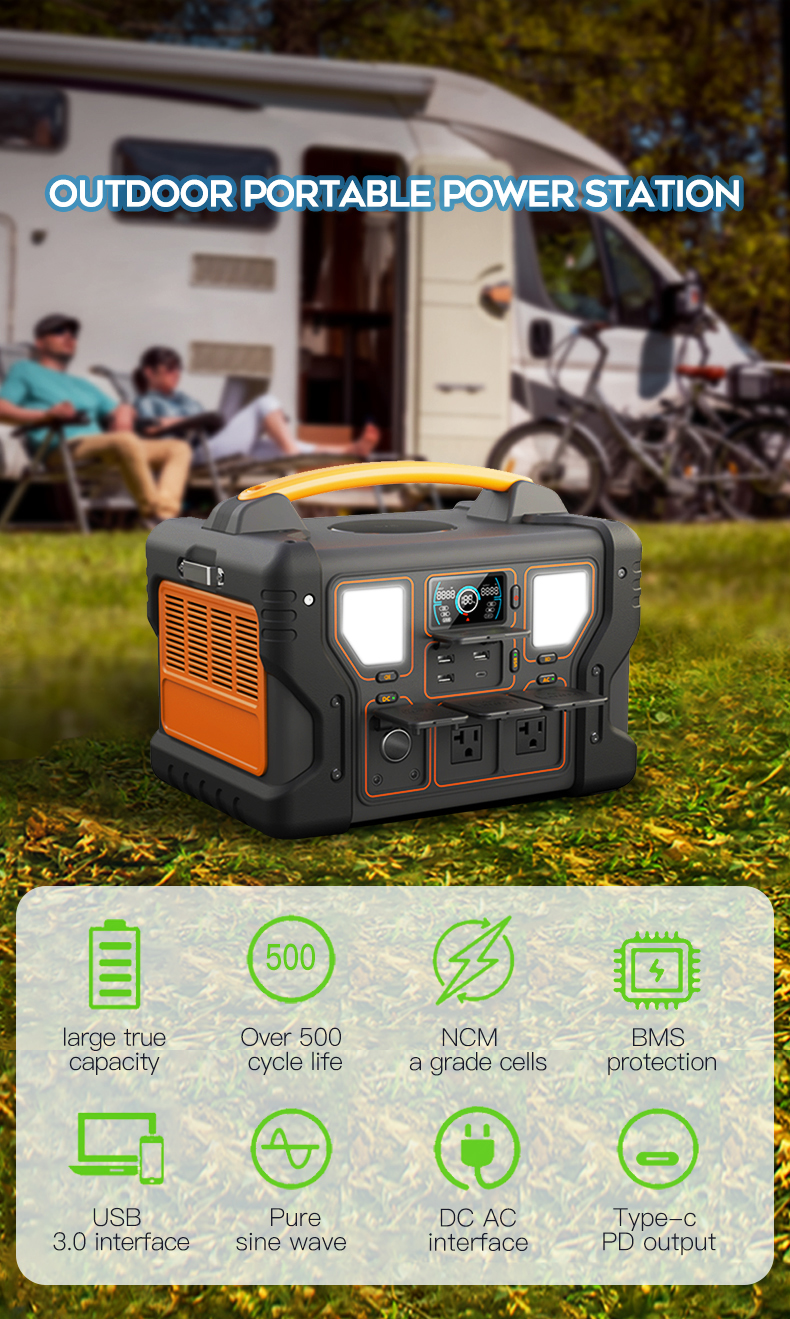

Portable Power Station Solar Generator with USB PD DC AC Outlets
Portable Power Station Solar Generator with USB PD DC AC Outlets Solar Mobile Lithium Battery Pack for Outdoor RV Van Camping Emergency,Wireless Charger PD Quick Charge AC Outlets Pure Sine Wave
Send Inquiry service@iacetop.comPower Station Description

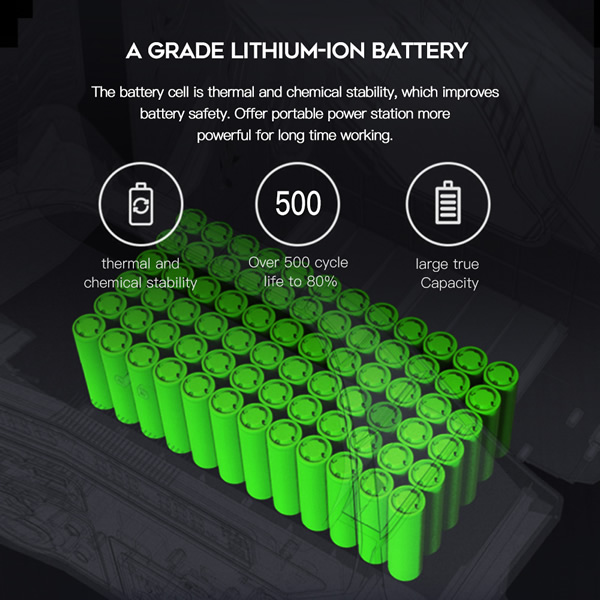

* UPGRADED LITHIUM ION BATTERY POWER SUPPLY: Building 444Wh battery is thermal and chemical stability, which improves battery safety. Offer portable power station more powerful for long time working.
* QUICK CHARGE & VERSATILE OUTPUTS: This power station features 1* AC outlet (220V 500W 1000W Peak), USB2.0 , QC3.0 , DC, car interface. With a 444Wh capacity, meet the different equipment needs: mini fridge, cooling fan, air pump, RV lightings, laptops and TV.
Provide a strong power supply for your family under special circumstances such as outdoors, camping, RV, home emergency backup etc.

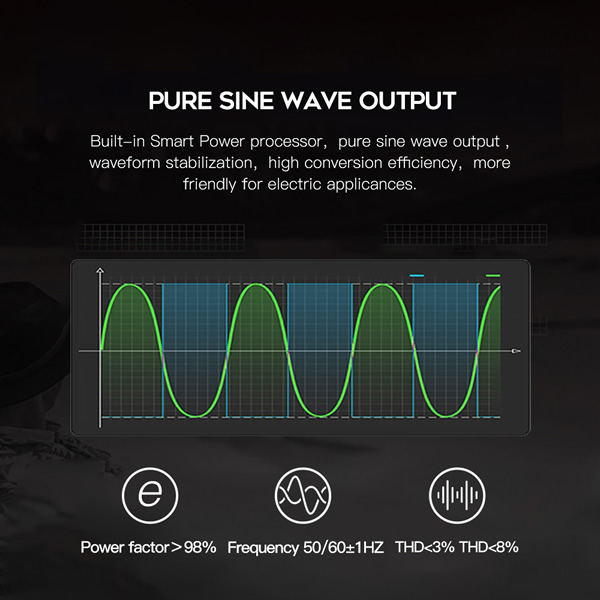

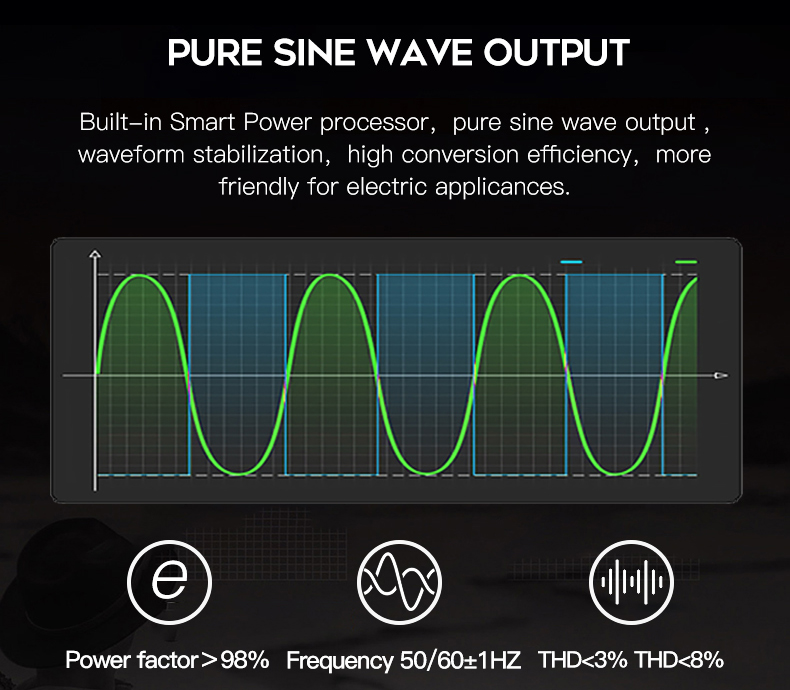

* PURE SINE WAVE AC OUTLET: All in one power solar generator protect charging devices by producing clean and stable electricity with the pure sine wave. Continuous 500W AC outlet and it can reach 1000W peak power to start more electrical devices.

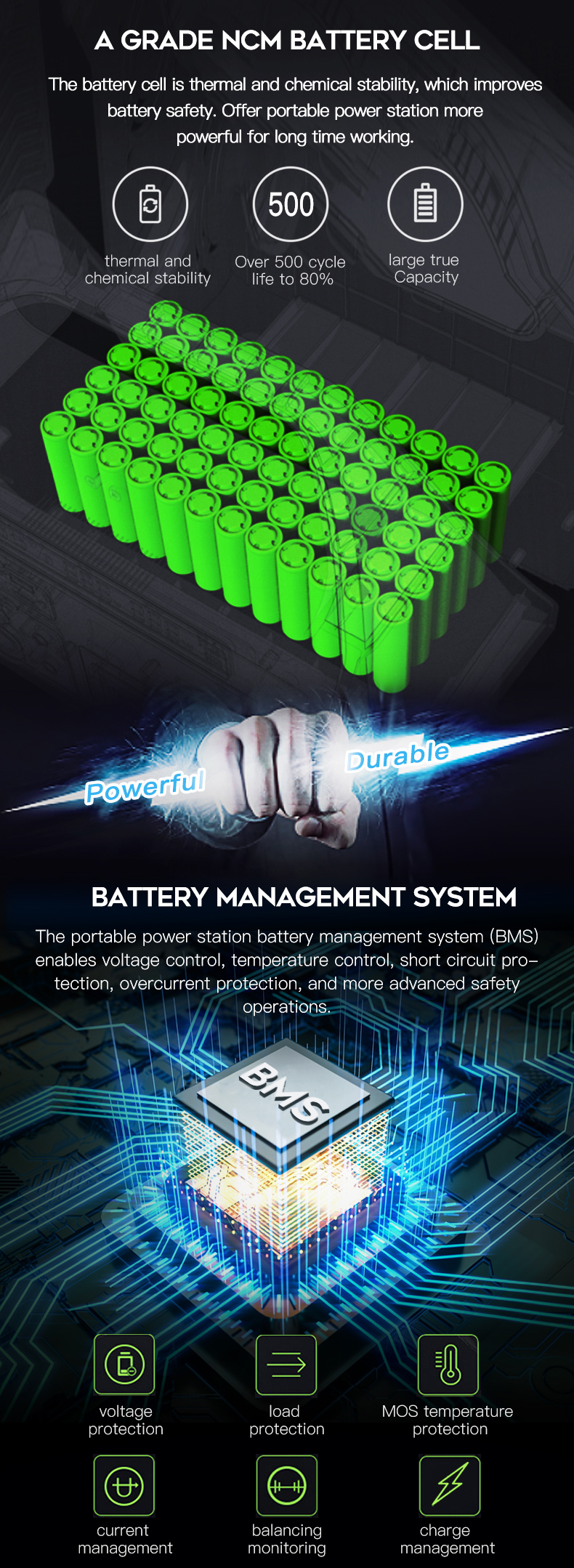

*BMS INTELLIGENT PROTECTION SYSTEM:The portable power station battery management system (BMS) enables voltage control, temperature control, short circuit protection, overcurrent protection, and more advanced safety operations.

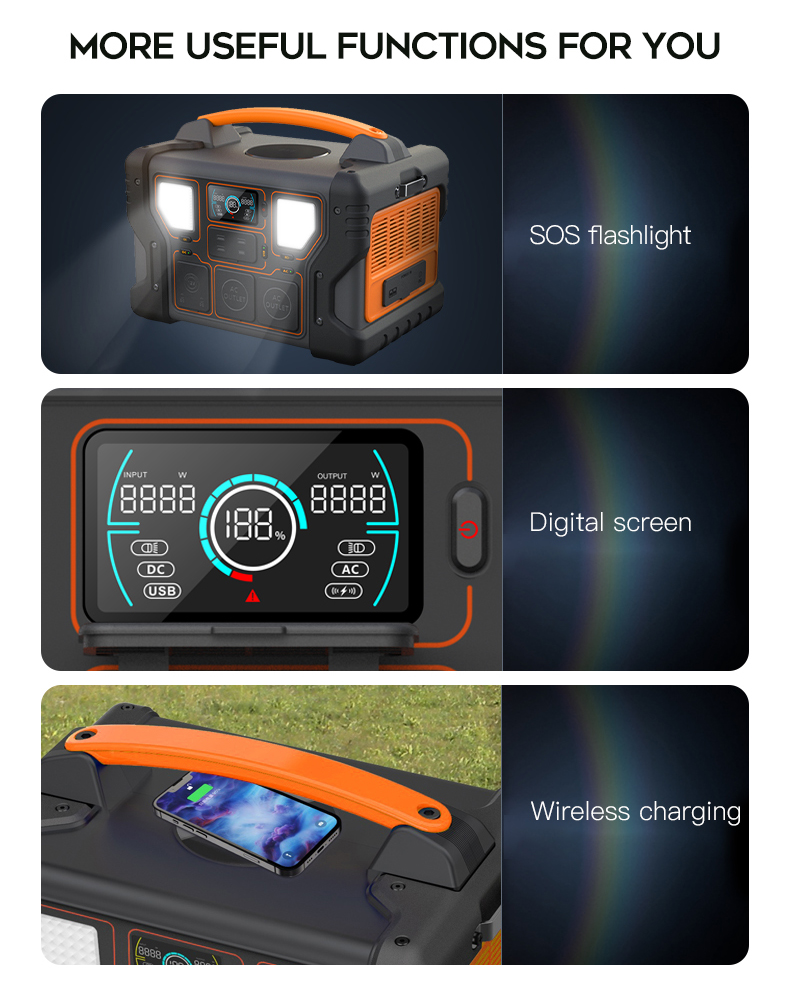

*LIGHTING FUNCTION:This solar powered generator be prepared for blackouts or other emergencies with the multi-mode LED flashlights on both sides of the carrying handle.
* ECO-FRIENDLY CLEAN OUTDOOR POWER: Solar power generator works without bothering noise, no fuel or gasoline, it can safeguard you and your devices by over-voltage protection, over-current and over-temperature protection.
* One year warranty. Any questions, please feel free to contact us.
Performance Advantages
Technical Parameter
| Cell Type | NCM CELL , A grade lithium-ion battery cell |
| Battery Pack Capacity | 20Ah 22.2V (or 3.7V/120000mAh) |
| Battery Pack Energy | 444Wh |
| Rating Output Power | 500W |
| USB Interface |
Type-C
output:PD 60W 1PCS, (5V3A,9V3A,12V3A,15V3A,20V3A ) USB QC3.0 output:3PCS,total 54W, (18W/5V3A,9V2A,12V1.5A) |
|
DC Interface |
DC
input:DC15V/4A(60W max,adapter with UL,CCC,CE,PSE,FCC) DC output:12V/5A/DC5521 , 2pcs (total 120W ) DC fully Charging Time:About 5~7H |
| AC Output Voltage Distortion Waveform (THD) | Output waveform:pure sinewave ,Sine wave < 3% (linear load),Sine wave < 8% (nonlinear load) |
| AC Interface |
2pcs,Output
voltage:110V(US/JP) or 220V(EU/UK/AU/CN) ,220V/240V 50±1Hz ,
110V/120V 60±1Hz Power out :peak power:1000W, continuous output: 500W |
| Solar charging Interface | MPPT,Support any solar input from 18-23V 3A max (up to 60W) |
| Cigarret Lighter Interface | 12V/10A(120W) |
| Wireless Charge | 10W |
| BMS Protection system |
Intelligent
battery management system MOS Protection Double protections on both BMS and hardware over-charge protection,over-discharge protection, over-current protection, over-temperature protection,short-circuit protection, over-voltage protection. |
| LED light | 5W 2PCS (total 10W Max),SOS,flshlingt |
| Power Indicate | LCD Display,Battery remaining capacity, Battery fault, total output power,Over temperature,input power |
| Charge Time |
NO

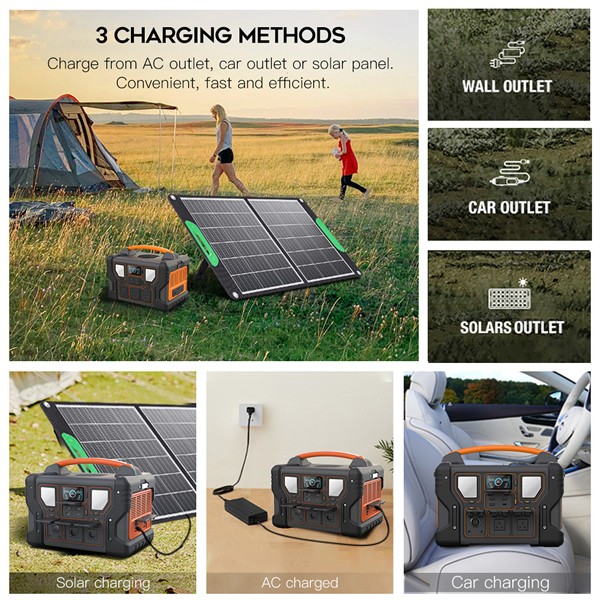

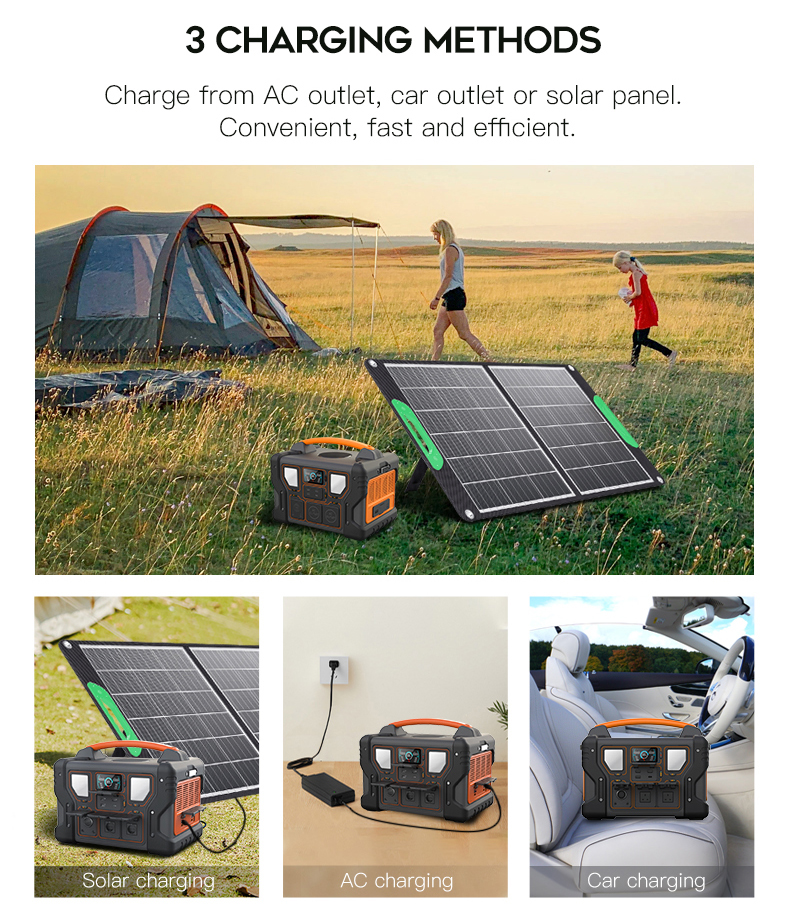

Wall charge DC Input Time , about 6~8H Car Charge Time , about 7~9H Solar Charge Time , about 6~9H |
| Full Load Output Power Factor | ＞0.98 |
| Life Cycle | 500 cycles to 80% capacity |
| Housing Material | ABS+PC ( fireproofing V0) |
| Operating temperature |
Charge
Temperature 0~40℃ Discharge Temperature -10~40℃ Storage Temperature -10~40℃ |
| Warrantly | 12 months |
| Package detail | Product size:273*181*244mm/about 5.5kg Carton Siz:59*30*32CM/about 17Kg/3PCS |
|
Package Include |
1*portable power supply, 1*AC input power supply,1*User Manual, ,color box packaging,1*MC4 charging cable, 1*vehicle charging cable,1*straps |
| OEM service |
color
optional:Oranger+gray,Blue+gray,Red+gray,Green+gray Appearance, size, style, performance, packaging, can be customized |
