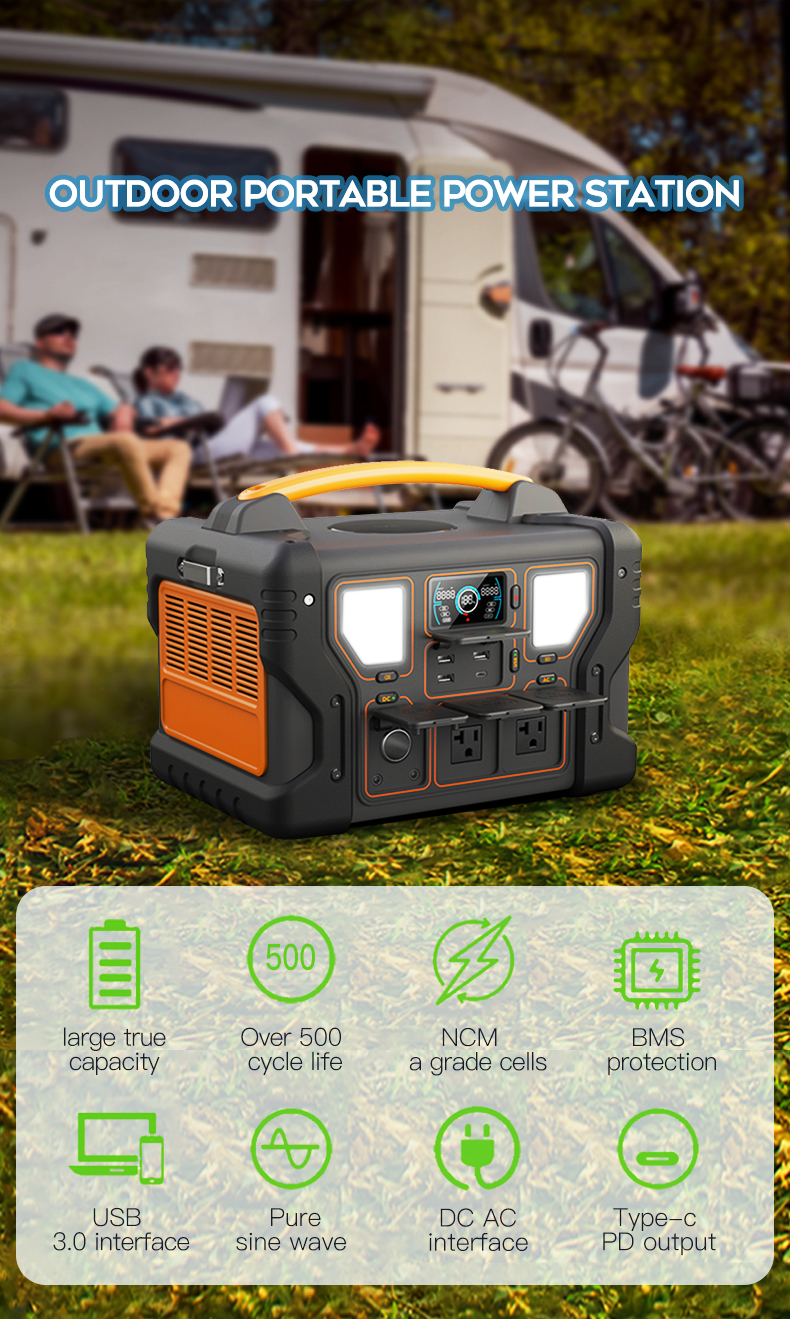

Portable Power Station Solar Generator Backup Battery Pack
Portable Power Station Solar Generator Backup Battery Pack with AC Outlet Pure Sine Wave Portable Power Bank Outdoor Generators for Home Use Emergency Outage Camping Travel RV Trip
Send Inquiry service@iacetop.comPower Station Description

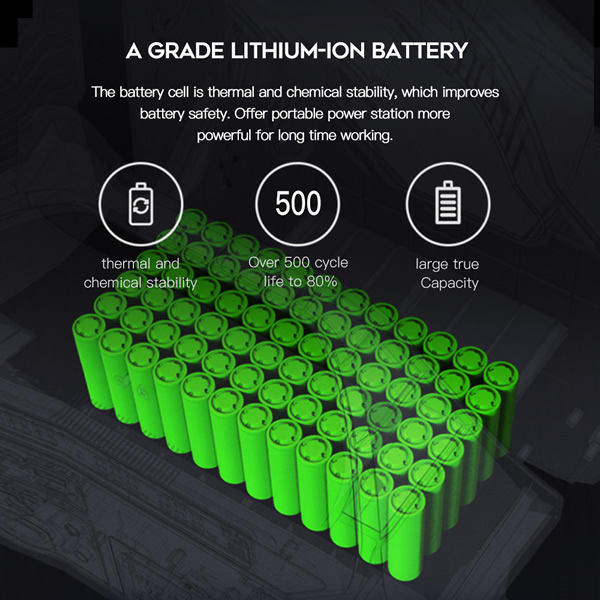

A grade battery cells:A grade NCM battery cells. Over 500 cycle life to 80%,The battery cell is thermal and chemical stability, which improves battery safety. Offer portable power station more powerful for long time working.
BMS intelligent management system:The portable power station battery management system (BMS) enables voltage control, temperature control, short circuit protection, overcurrent protection, and more advanced safety operations.

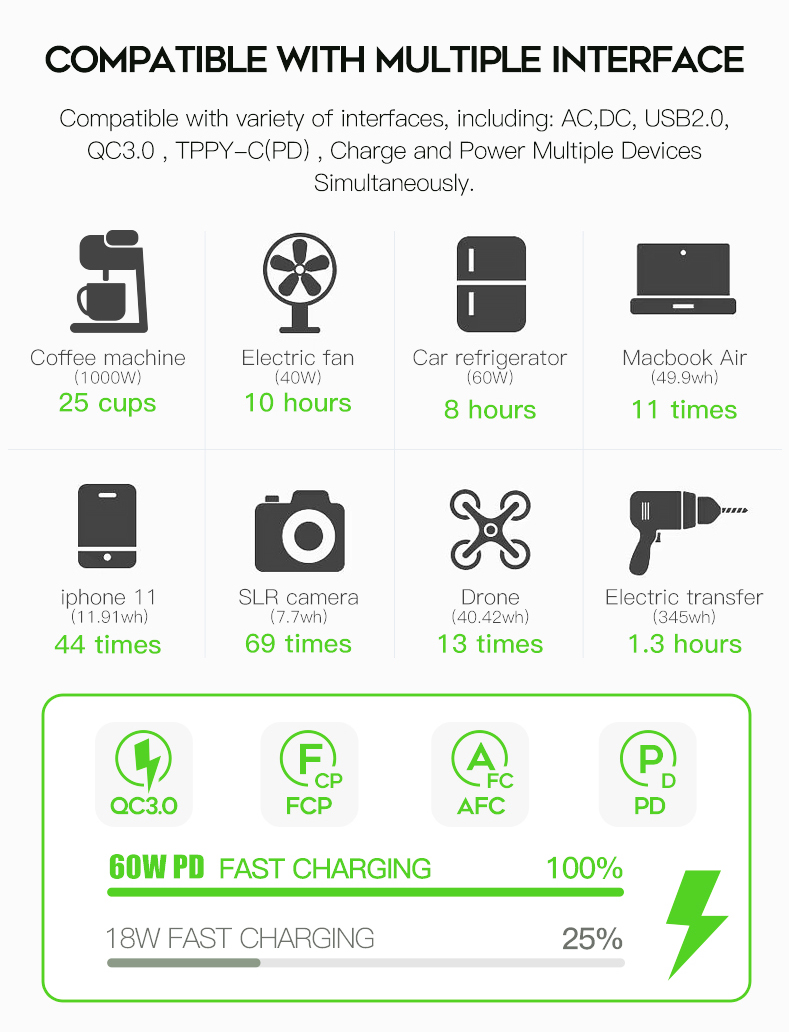

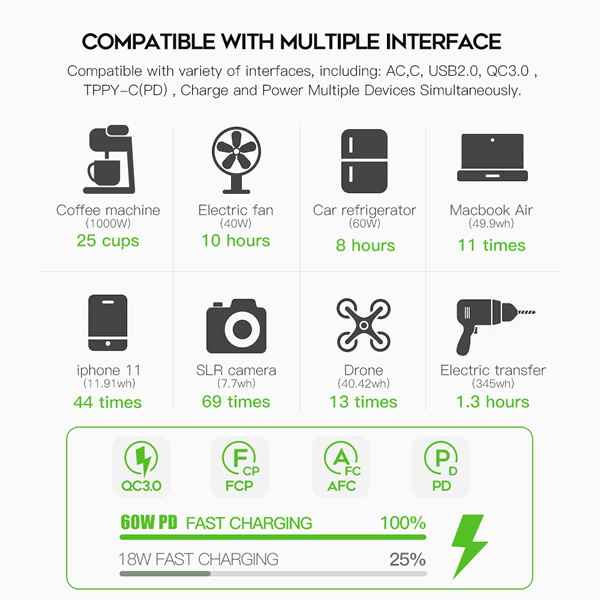

Compatible with variety of interface:including: AC, DC, USB2.0, QC3.0, TPPY-C, Charge and Power Multiple Devices Simultaneously.

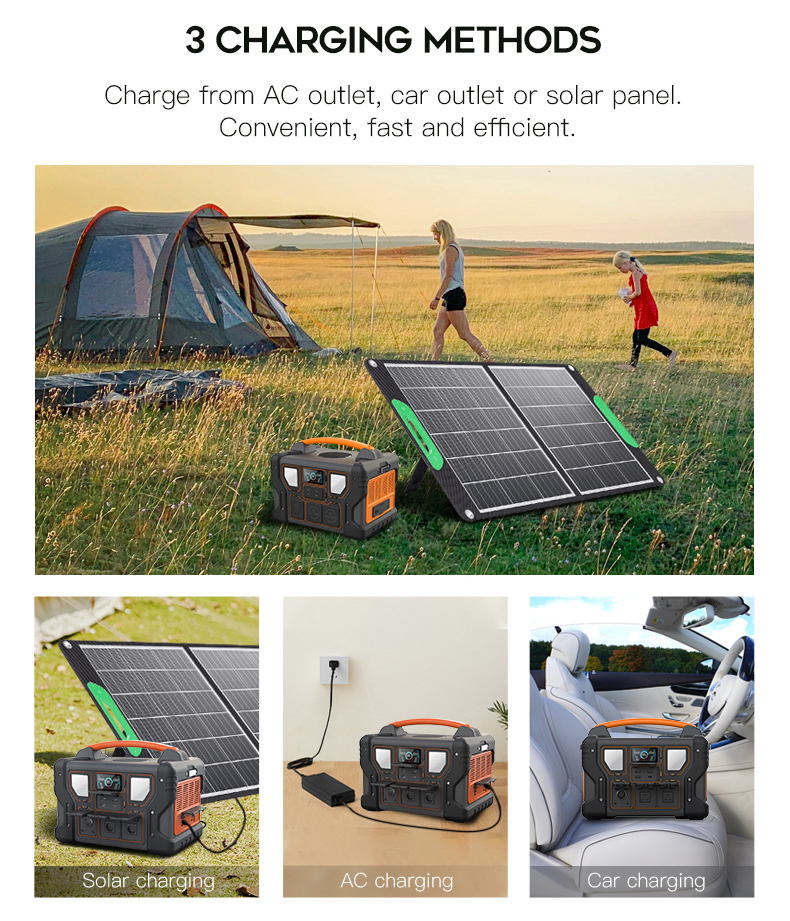

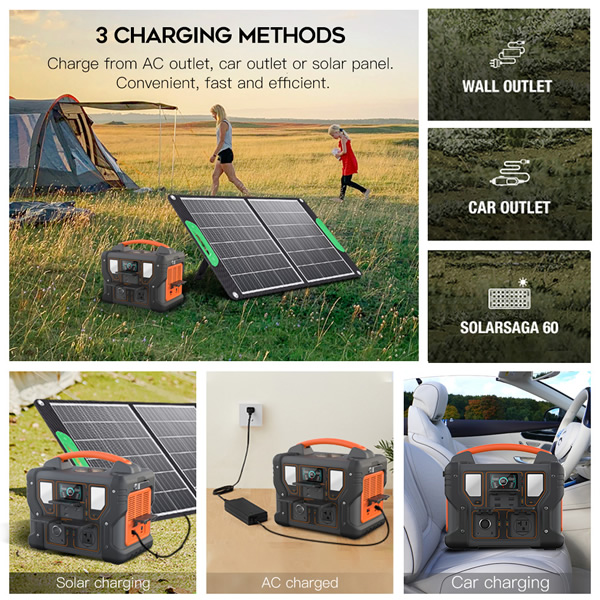

Three charging methods:The outdoor power station charges through AC outlet, car socket, or solar panel. Convenient, fast and efficient.

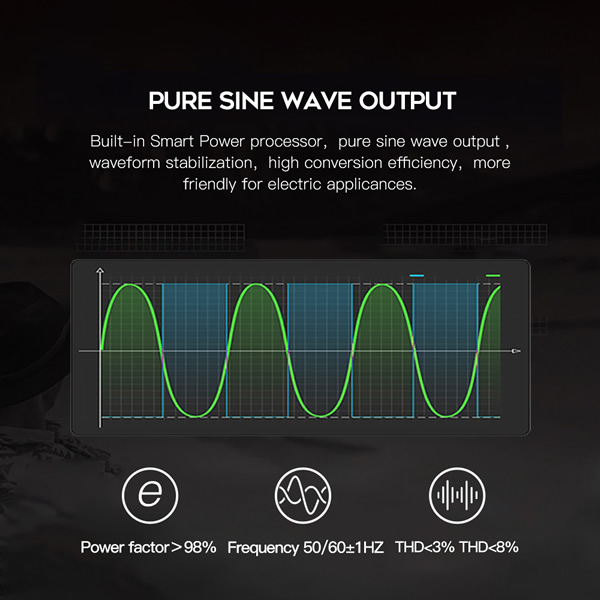

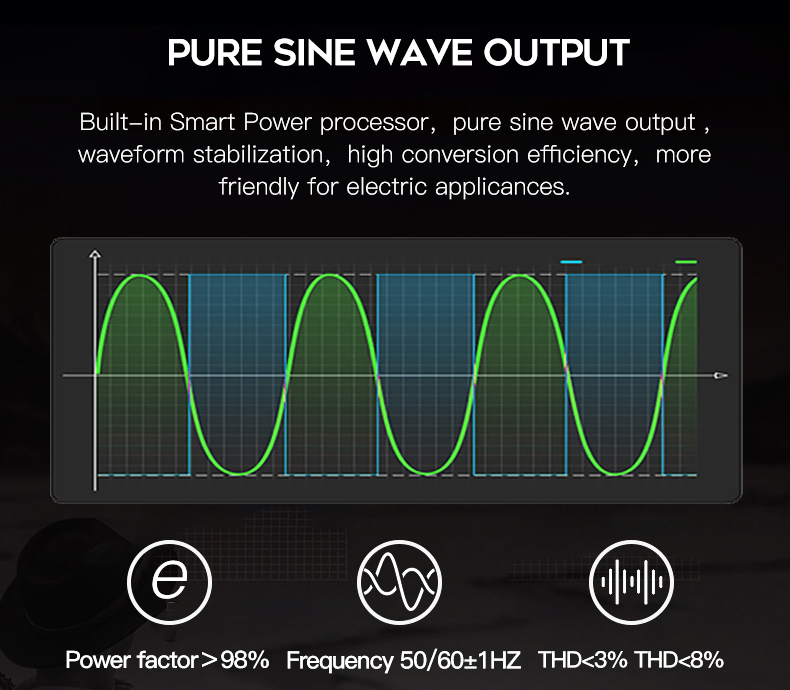

Pure Sine Wave output:Built-in Smart Power processor,pure Sine Wave output , Waveform stabilization,low THD ,high conversion efficiency, more friendly for electric applicances .
Ergonomic design :Plenty of surveys have been conducted and the result shows that people prefer soft lines and better tactile impression of the handle. Thus, we adopt the surface felt like baby skin, which enables the outdoor gear to not only face strikes toughly, but also offer electricity with gentle tactile impression.
Bionics design :Cambered design with biomimetic technology PC+ABS fireproofing shell which is anti-knock, corrosion resistant and high temperature resistant. It has excellent insulating property to avoid electric leakage.
Performance Advantages
Technical Parameter
| Cell Type | NCM CELL , A grade lithium-ion battery cell |
| Battery Pack Capacity | 31.5Ah / 22.2V ( or 3.7V/189000mAh) |
| Battery Pack Energy | 699.3Wh |
| Rating Output Power | 700W |
| USB Interface |
Type-C
output:1PCS,PD 60W , (5V3A,9V3A,12V3A,15V3A,20V3A ) USB QC3.0 output:3PCS,total 54W, 18W (5V3A,9V2A,12V1.5A) |
|
DC Interface |
DC
input:DC25V/4A(100W max,adapter with UL,CCC,CE,PSE,FCC) DC output:12V/5A/DC5521, 2PCS (total 120W ) DC fully Charging Time:About 5~7H |
| AC Output Voltage Distortion Waveform (THD) | Output waveform:pure sinewave ,Sine wave < 3% (linear load),Sine wave < 8% (nonlinear load) |
| AC Interface |
2PCS,
Output voltage:110V(US/JP) or 220V(EU/UK/AU/CN) ,220V/240V 50±1Hz ,
110V/120V 60±1Hz Power out :peak power:1400W, continuous output: 700W |
| Solar charging Interface | MPPT,Support any solar input from 18-23V 8A max (up to 150W) |
| Cigarret Lighter Interface | 12V/10A(120W) |
| Wireless Charge | 10W |
|
Charge Time |
NO
Wall charge DC Input Time , about 6~8H Car Charge Time , about 7~9H Solar Charge Time , about 6~9H |
| BMS Protection system |
Intelligent
battery management system MOS Protection Double protections on both BMS and hardware over-charge protection,over-discharge protection, over-current protection, over-temperature protection,short-circuit protection, over-voltage protection. |
| LED light | 5W 2PCS (total 10W Max),SOS,flshlingt |
| Power Indicate | LCD Display,Battery remaining capacity, Battery fault, total output power,Over temperature,input power |
| Full Load Output Power Factor | ＞0.98 |
| Life Cycle | 500 cycles to 80% capacity |
| Housing Material | ABS+PC ( fireproofing V0) |
| Operating temperature |
Charge
Temperature 0~40℃ Discharge Temperature -10~40℃ Storage Temperature -10~40℃ |
| Warrantly | 12 months |
| Package detail |
Product
size:32.8*22.1*26.3CM, about 7.4kg Carton Siz:32.5*25*36.5CM/about 9.5Kg/1PCS |
| OEM service |
color
optional:Oranger+gray,Blue+gray,Red+gray,Green+gray Appearance, size, style, performance, packaging, can be customized |
|
Package Include |
1*portable power supply, 1*AC input power supply,1*User Manual, ,color box packaging,1*MC4 charging cable, 1*vehicle charging cable,1*straps |
OEM Service Advantages
FAQ
※How do we ensure our quality ?
1. In the field, well-known brands are our cooperative
customers. We have provided them with oem services for 15 years. With their
help, we have continuously optimized our quality control system.
2. ACETOP is confident to provide customers with
top quality products as we have solid flow of Production Material Control
(PMC),In-Process Quality Control (IPQC), Finished Product Quality Control (QC)
and Delivery Quality Assurance (QA). To provide you with an extra level of
protection, we check our items piece by piece prior to shipment.
3. Our products have passed ISO 9001,CE,ROSH,
CCC, and other certification .
