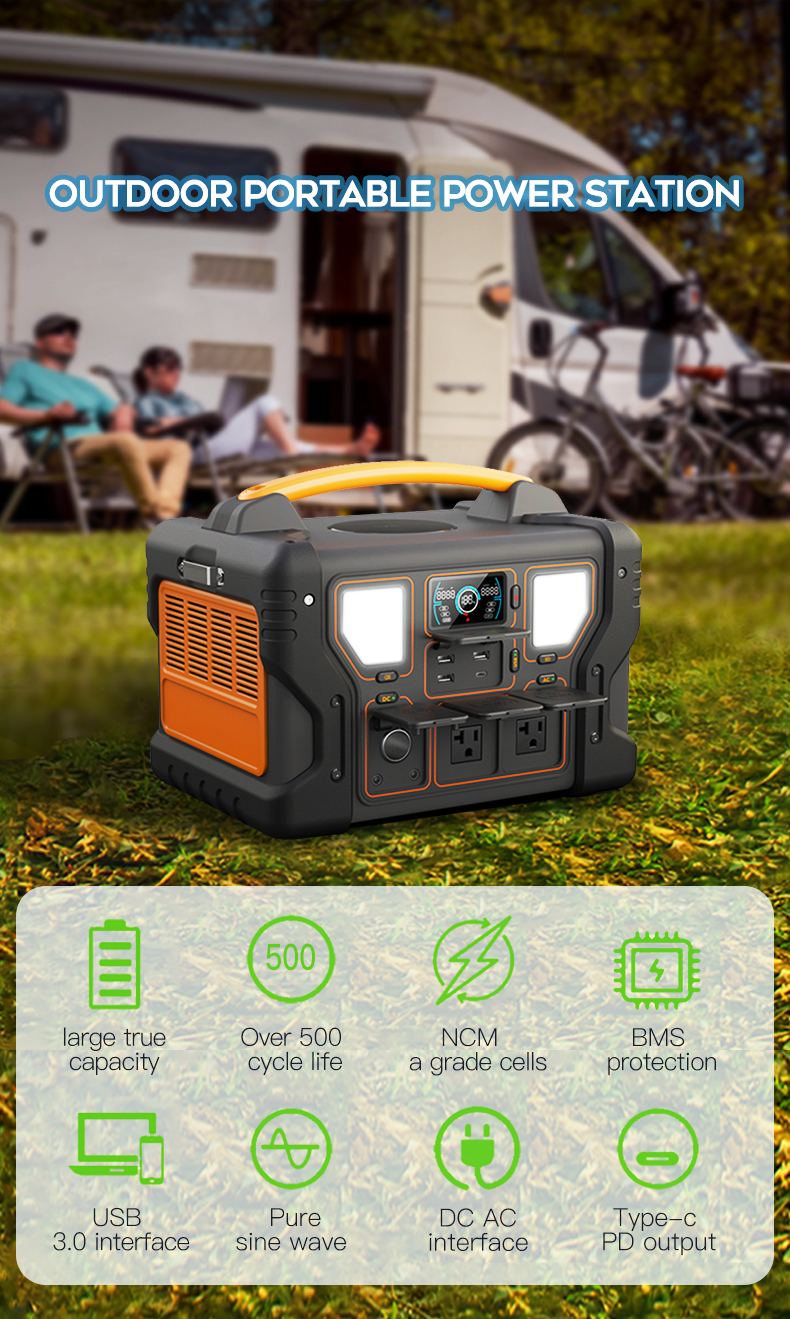

Portable Power Station Outdoor Solar Generator Mobile Lithium Battery Pack
Portable Power Station Outdoor Solar Generator Mobile Lithium Battery Pack with 110V 500W AC Outlet for Road Trip Camping Outdoor Adventure，Wireless Charger PD Quick Charge AC Outlets Pure Sine Wave DC USB QC3.0 TYPEC interface
Send Inquiry service@iacetop.comPower Station Description
• POWER YOUR PASSION: This power station’s 500 Watt-Hours pack a punch. Complete your overlanding rig or prep for extended camping trips. This station will power everything from portable fridges to phones.
• MAKE MEMORIES: Live in the moment with long-lasting power. Stay connected, charge your fridge, and keep your tablet charged with Goal Zero. The electric generator and 444-watt-hour (22.2 V, 20 Ah) battery capacity will keep your small devices running.
• EASY TO USE: Power a wide range of devices. power station is equipped with four different port options—including AC, 12V, and 60W USB-C PD—to power everything from phones to portable fridges.
• THREE WAYS TO CHARGE: Plug into a 180-watt wall outlet to charge in three hours, 60-watt outlet in 10 hours, or 120-watt outlet in 4.5 hours. Recharge from your car with the 12-volt adapter in 4.5 hours, or add a Goal Zero solar panel (sold separately) for faster charging.
• THIS IS GOAL ZERO: We promote a bright, safe, connected, and sustainable future by delivering portable power solutions designed for everyone, everywhere. We offset 100% of carbon emissions from our shipping, and we use 100% renewable energy at our corporate headquarters and warehouse.
Performance Advantages
Technical Parameter

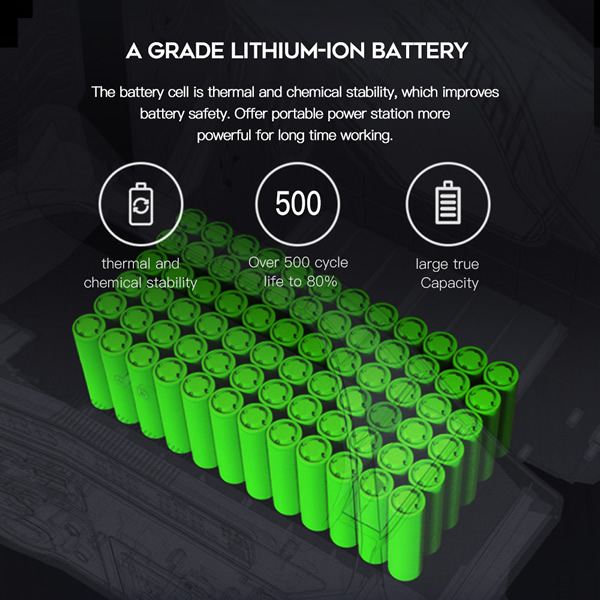

| Cell Type | NCM CELL , A grade lithium-ion battery cell |
| Battery Pack Capacity | 20Ah 22.2V (or 3.7V/120000mAh) |
| Battery Pack Energy | 444Wh |
| Rating Output Power | 500W |
| USB Interface |
Type-C
output:PD 60W 1PCS, (5V3A,9V3A,12V3A,15V3A,20V3A ) USB QC3.0 output:3PCS,total 54W, (18W/5V3A,9V2A,12V1.5A) |
|
DC Interface |
DC
input:DC15V/4A(60W max,adapter with UL,CCC,CE,PSE,FCC) DC output:12V/5A/DC5521 , 2pcs (total 120W ) DC fully Charging Time:About 5~7H |

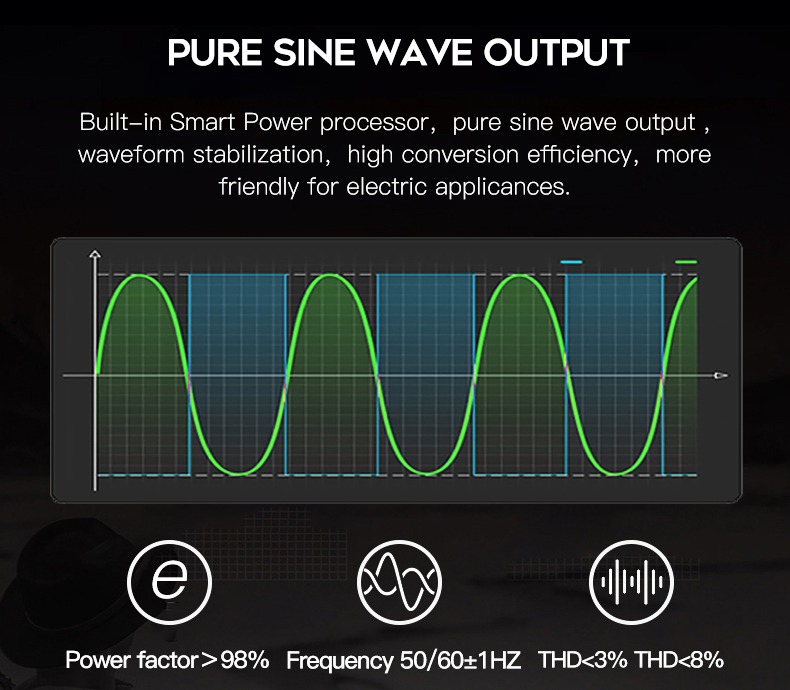

| AC Output Voltage Distortion Waveform (THD) | Output waveform:pure sinewave ,Sine wave < 3% (linear load),Sine wave < 8% (nonlinear load) |
| AC Interface |
2pcs,Output
voltage:110V(US/JP) or 220V(EU/UK/AU/CN) ,220V/240V 50±1Hz ,
110V/120V 60±1Hz Power out :peak power:1000W, continuous output: 500W |
| Solar charging Interface | MPPT,Support any solar input from 18-23V 3A max (up to 60W) |
| Cigarret Lighter Interface | 12V/10A(120W) |
| Wireless Charge | 10W |
| BMS Protection system |
Intelligent
battery management system MOS Protection Double protections on both BMS and hardware over-charge protection,over-discharge protection, over-current protection, over-temperature protection,short-circuit protection, over-voltage protection. |

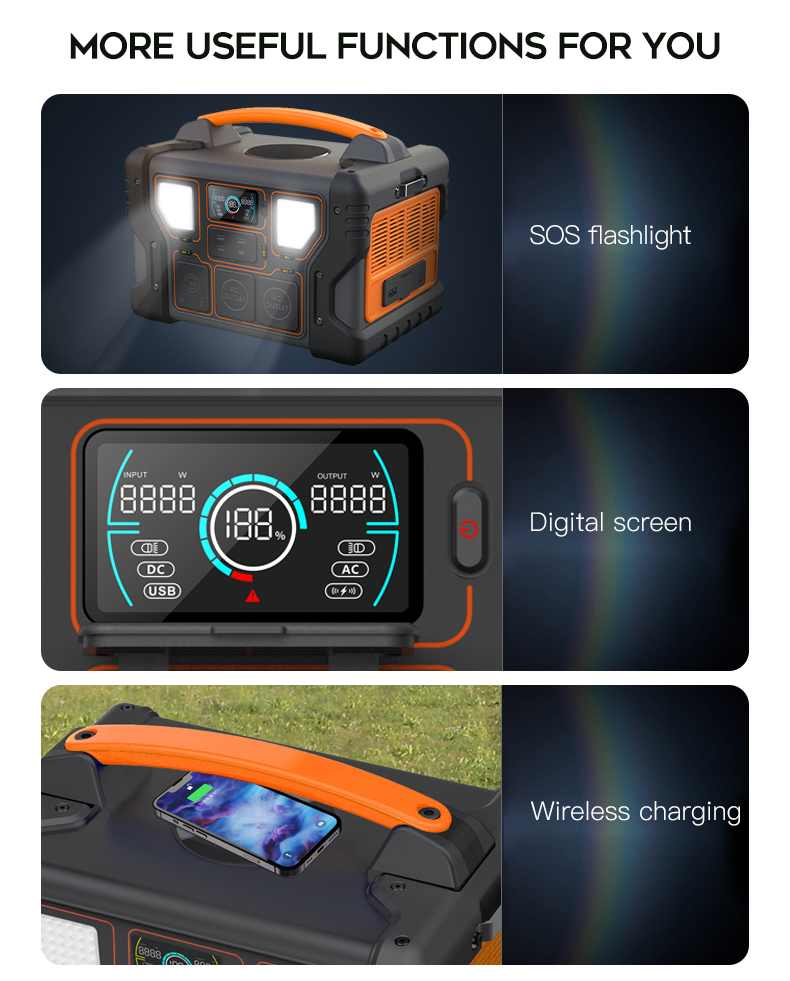

| LED light | 5W 2PCS (total 10W Max),SOS,flshlingt |
| Power Indicate | LCD Display,Battery remaining capacity, Battery fault, total output power,Over temperature,input power |
| Charge Time |
NO
Wall charge DC Input Time , about 6~8H Car Charge Time , about 7~9H Solar Charge Time , about 6~9H |
| Full Load Output Power Factor | ＞0.98 |
| Life Cycle | 500 cycles to 80% capacity |
| Housing Material | ABS+PC ( fireproofing V0) |
| Operating temperature |
Charge
Temperature 0~40℃ Discharge Temperature -10~40℃ Storage Temperature -10~40℃ |
| Warrantly | 12 months |
| Package detail | Product size:273*181*244mm/about 5.5kg Carton Siz:59*30*32CM/about 17Kg/3PCS |
|
Package Include |
1*portable power supply, 1*AC input power supply,1*User Manual, ,color box packaging,1*MC4 charging cable, 1*vehicle charging cable,1*straps |
| OEM service |
color
optional:Oranger+gray,Blue+gray,Red+gray,Green+gray Appearance, size, style, performance, packaging, can be customized |
OEM Service Advantages
ACETOP
is in the line of R&D, manufacturing and sales of lithium batteries, Solar
Power Station and Solar panel ,Lithium-ion battery packs, accesories.in this
field, we have provided products and services to many repuated clients.
The
main products: Solar Power Station, Solar Power bank ,Solar panel,portable Solar
panel, on-grid and off grid solar power system, and other products that applies
solar photovoltaic technology ,related accessories,OEM
ODM power station service.
ACETOP
focus on the easy acquiring energy. we
have a range of advanced new energy environmental products. With strong R&
D capability, more and more new products launched and new technology use
widely.
To be
able to face the ever-changing demands of the market, we have obtained vast
experience in dealing with ODM and OEM projects,We continue to develop new products and
upgrade technology. we are committed to
providing excellent quality and continuous innovation.
Our
engineer team have rich experience in designing the battery solution for
different applications, and who are familiar with the different application
industry, we always provide products solution and production plan of the best
value for money.
We always put customer first.We has exported
products to Europe, America, Oceania, Africa, Southeast Asia and so on,
providing professional, convenient products and technical supports for the
customers.
As
professional manufacturer, we are welcome OEM cooperation. You may find the
most professional customize solution here. Looking forward to the cooperation.

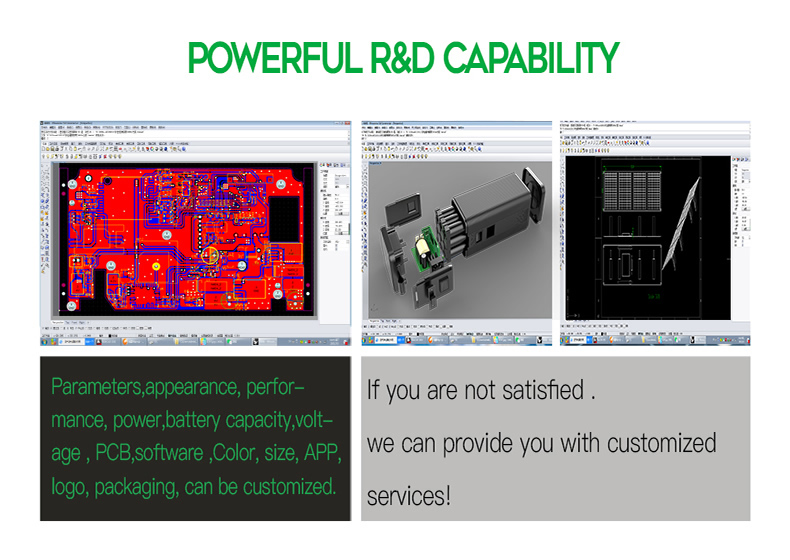

Parameters,
appearance, performance, power, battery capacity, voltage , PCB, software
,Color, size, APP, logo, packaging, can be customized.
