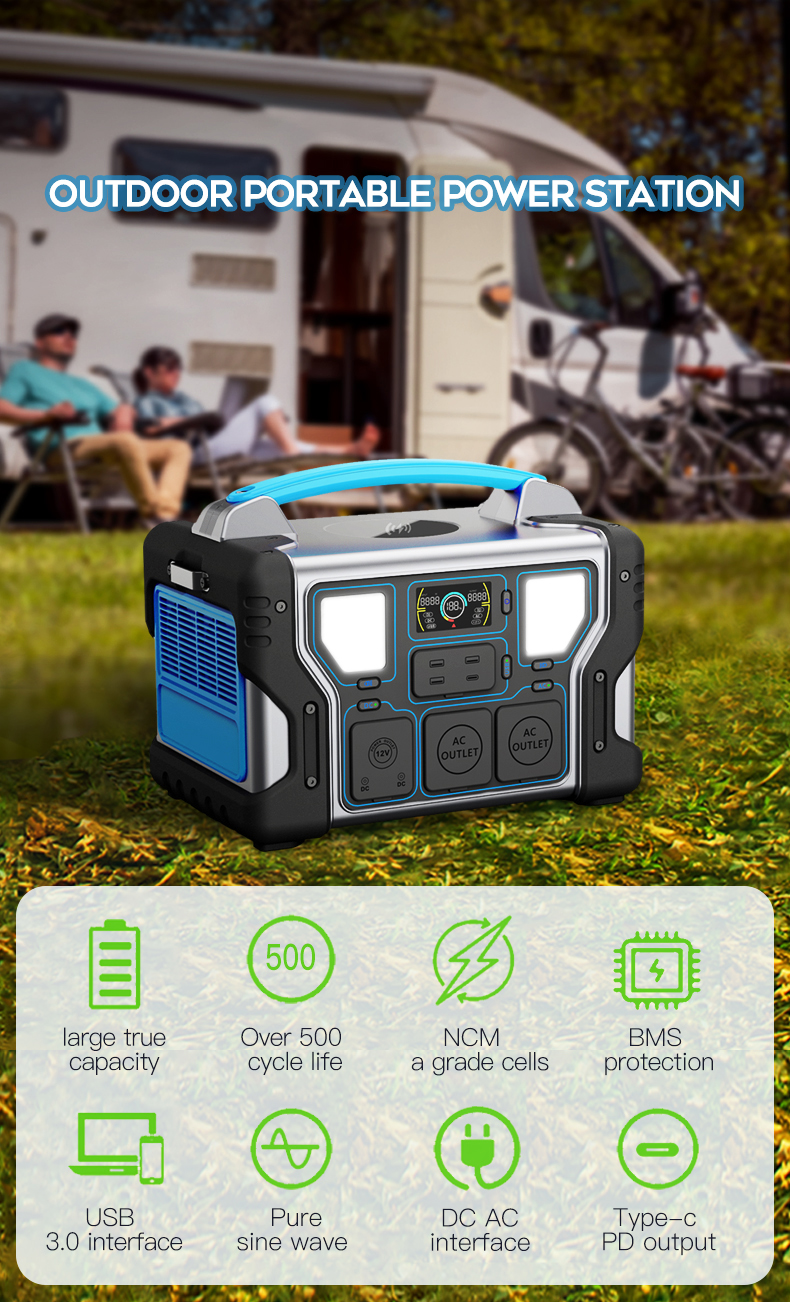

Portable Power Station Lithium Battery Solar Generator Backup Power Supply
Portable Power Station Lithium Battery Solar Generator Backup Power Supply with 110V 100W AC Outlet for Outdoors Camping Fishing Emergency,Wireless Charger PD Quick Charge AC Outlets Pure Sine Wave DC USB QC3.0 TYPEC interface
Send Inquiry service@iacetop.comPower Station Description
This portable power station is equipped with multiple output ports to power mainstream essential gadgets and small appliances 。

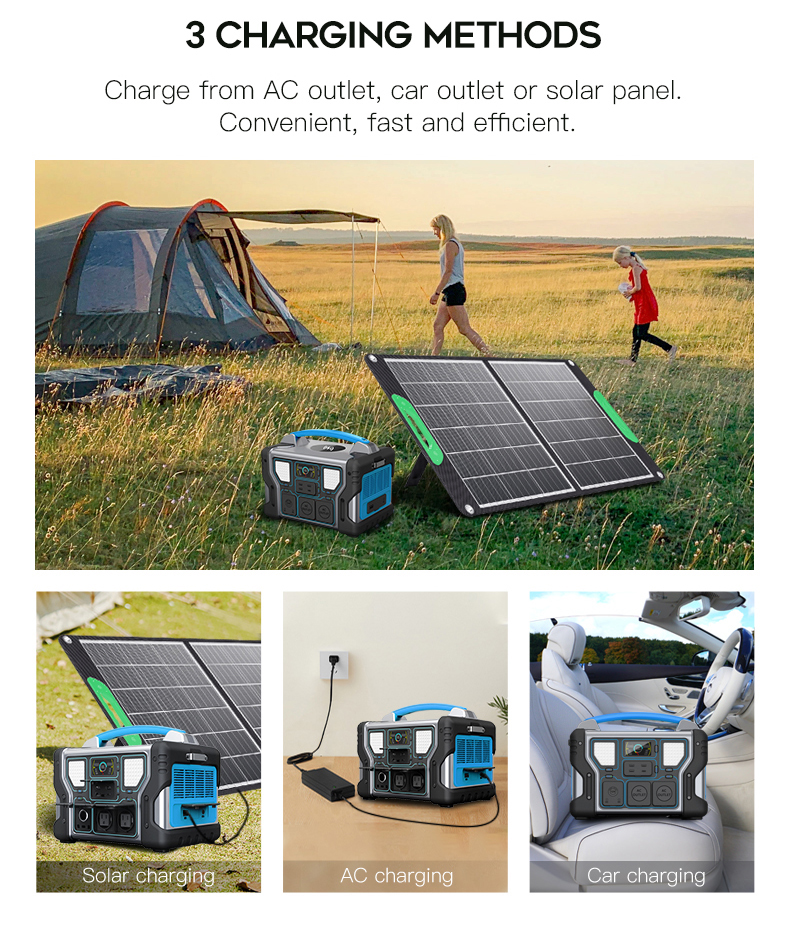

The outdoor power station conveniently charges through AC outlet, car socket, or solar panel.
The portable power station battery management system (BMS) enables voltage control, temperature control, short circuit protection, overcurrent protection, and more advanced safety operations.

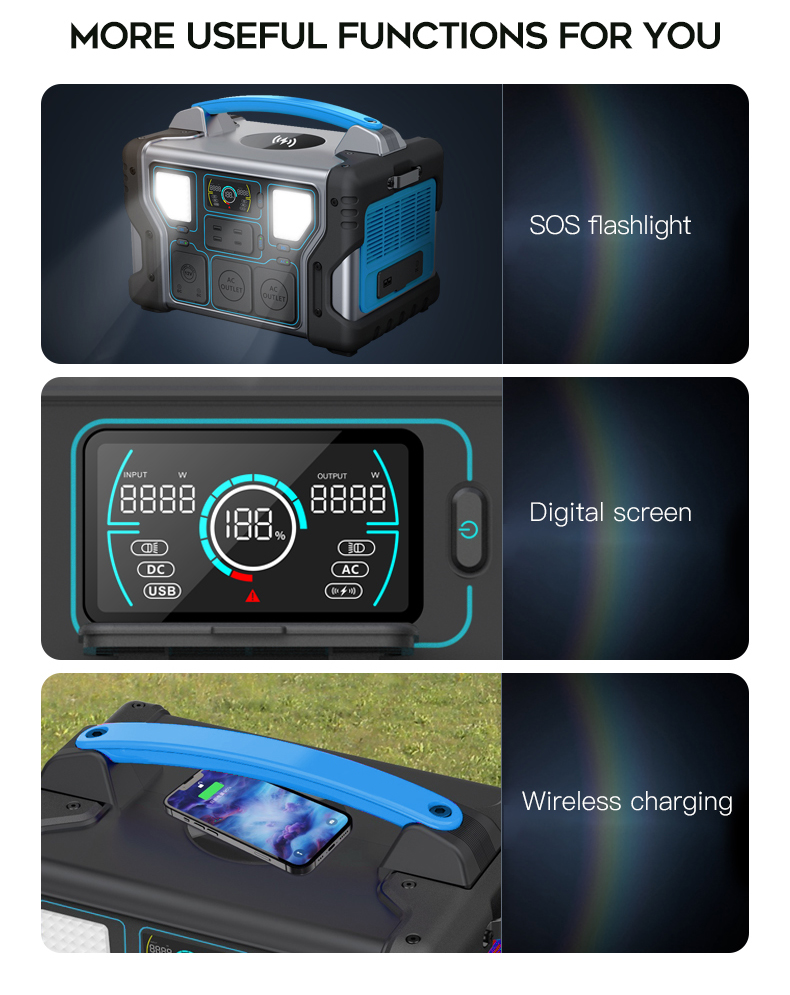

This solar powered generator be prepared for blackouts or other emergencies with the multi-mode LED flashlights on both sides of the carrying handle.
Performance Advantages
Technical Parameter

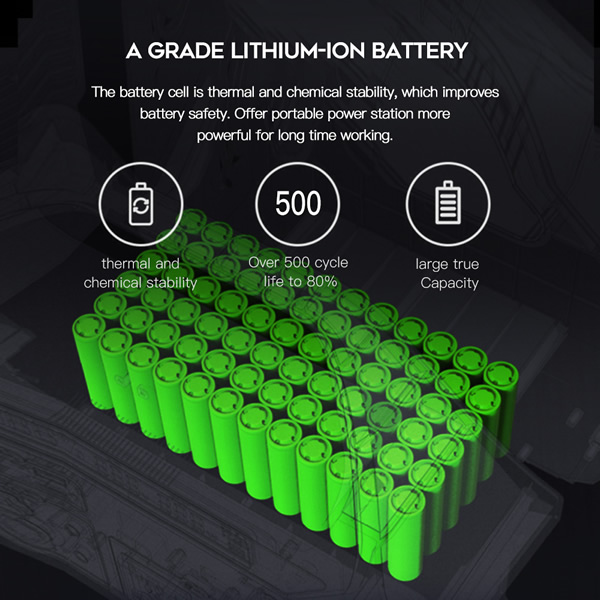

| Cell Type | NCM CELL , A grade lithium-ion battery cell |
| Battery Pack Capacity | 45Ah / 22.2V ( or 3.7V/270000mAh) |
| Battery Pack Energy | 999Wh |
| Rating Output Power | 1000W |
| USB Interface |
Type-C
output:1PCS,PD 60W , (5V3A,9V3A,12V3A,15V3A,20V3A ) USB QC3.0 output:3PCS,total 54W, 18W (5V3A,9V2A,12V1.5A) |
|
DC Interface |
DC24V/6.25A(150W
max,adapter with UL,CCC,CE,PSE,FCC) DC output:12V/5A/DC5521, 2PCS (total 120W ) |

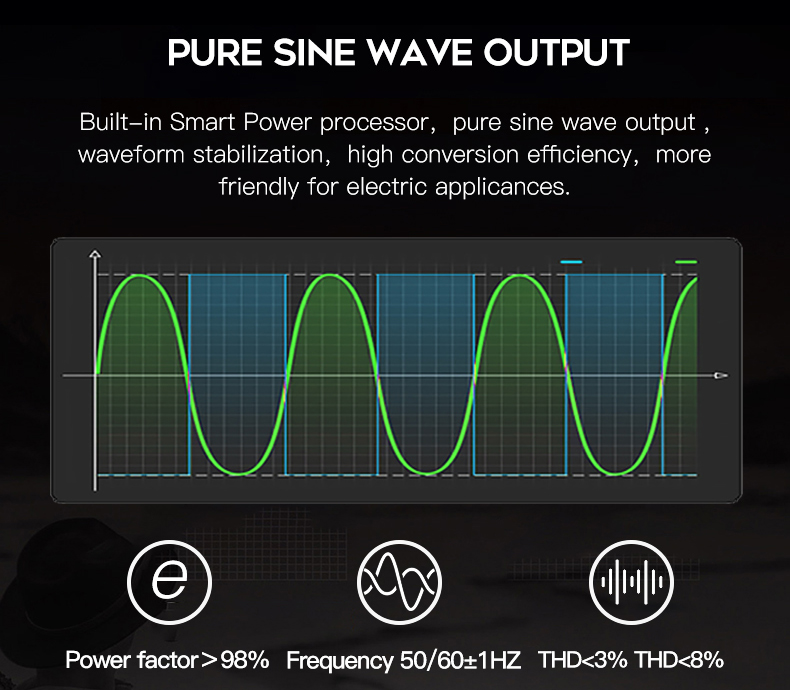

| AC Output Voltage Distortion Waveform (THD) | Output waveform:pure sinewave ,Sine wave < 3% (linear load),Sine wave < 8% (nonlinear load) |
| AC Interface |
2PCS,
Output voltage:110V(US/JP) or 220V(EU/UK/AU/CN) ,220V/240V 50±1Hz ,
110V/120V 60±1Hz Power out :peak power:2000W, continuous output: 1000W |
| Solar charging Interface | MPPT,Support any solar input from 18-23V 8A max (up to 150W) |
| Cigarret Lighter Interface | 12V/10A(120W) |
| Wireless Charge | 10W |
|
Charge Time |
NO
Wall charge DC Input Time , about 6~8H Car Charge Time , about 7~9H Solar Charge Time , about 6~9H |
| BMS Protection system |
Intelligent
battery management system MOS Protection Double protections on both BMS and hardware over-charge protection,over-discharge protection, over-current protection, over-temperature protection,short-circuit protection, over-voltage protection. |
| LED light | 5W 2PCS (total 10W Max),SOS,flshlingt |
| Power Indicate | LCD Display,Battery remaining capacity, Battery fault, total output power,Over temperature,input power |
| Power Source | AC Adaptor, Car, Solar Panel |
| Full Load Output Power Factor | ＞0.98 |
| Life Cycle | 500 cycles to 80% capacity |
| Housing Material | ABS+PC ( fireproofing V0) |
| Operating temperature |
Charge
Temperature 0~40℃ Discharge Temperature -10~40℃ Storage Temperature -10~40℃ |
| Warrantly | 12 months |
| Package detail |
Product
size:32.8*22.1*26.3CM, about 8.9kg Carton Siz:32.5*25*36.5CM/about 11.3Kg/1PCS |
|
Package Include |
1*portable power supply, 1*AC input power supply,1*User Manual, ,color box packaging,1*MC4 charging cable, 1*vehicle charging cable,1*straps |
| OEM service |
color
optional:Oranger+gray,Blue+gray,Red+gray,Green+gray Appearance, size, style, performance, packaging, can be customized |
OEM Service Advantages
FAQ
ACETOP
is in the line of R&D, manufacturing and sales of lithium batteries, Solar
Power Station and Solar panel ,Lithium-ion battery packs, accesories.in this
field, we have provided products and services to many repuated clients.
The
main products: Solar Power Station, Solar Power bank ,Solar panel,portable Solar
panel, on-grid and off grid solar power system, and other products that applies
solar photovoltaic technology ,related accessories,OEM
ODM power station service.
ACETOP
focus on the easy acquiring energy. we
have a range of advanced new energy environmental products. With strong R&
D capability, more and more new products launched and new technology use
widely.
To be
able to face the ever-changing demands of the market, we have obtained vast
experience in dealing with ODM and OEM projects,We continue to develop new products and
upgrade technology. we are committed to
providing excellent quality and continuous innovation.
Our
engineer team have rich experience in designing the battery solution for
different applications, and who are familiar with the different application
industry, we always provide products solution and production plan of the best
value for money.
We always put customer first.We has exported
products to Europe, America, Oceania, Africa, Southeast Asia and so on,
providing professional, convenient products and technical supports for the
customers.
As
professional manufacturer, we are welcome OEM cooperation. You may find the
most professional customize solution here. Looking forward to the cooperation.
Parameters,
appearance, performance, power, battery capacity, voltage , PCB, software
,Color, size, APP, logo, packaging, can be customized.
