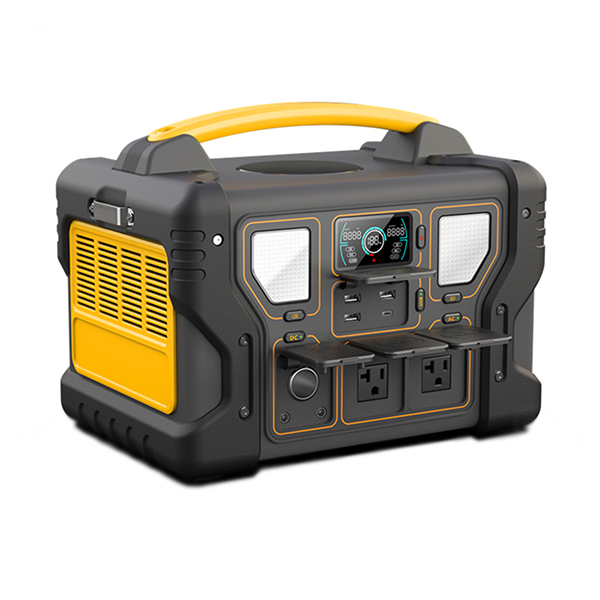

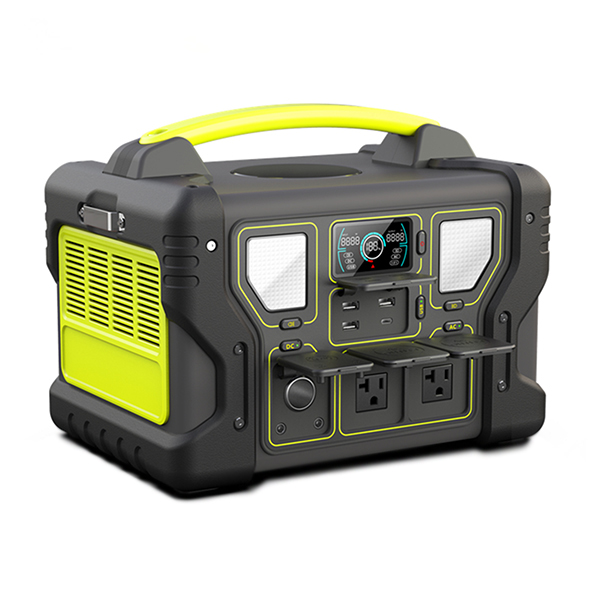

Portable Power Station Large AC Power Bank External ncm Lithium Battery

Portable Power Station Large AC Power Bank External ncm Lithium Battery Portable Laptop Charger Wireless Charging 10W MAX AC Pure Sine Wave for Outdoor Tent Camping RV Emergency

Send Inquiry service@iacetop.com
Power Station Description



Large Capacity -NCM cell 699Wh power supply with up to 85% output conversion efficiency, works good for long time charge needs.
Super Compatibility - AC DC car charge PD 60W output, multiple charging outputs charge up to 6 devices, charge your phone, laptop, fans, Drone, CPAP and other electric devices at the same time.

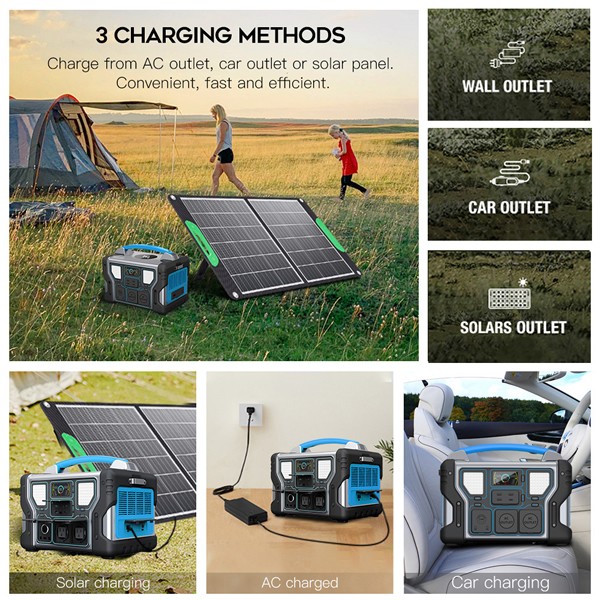

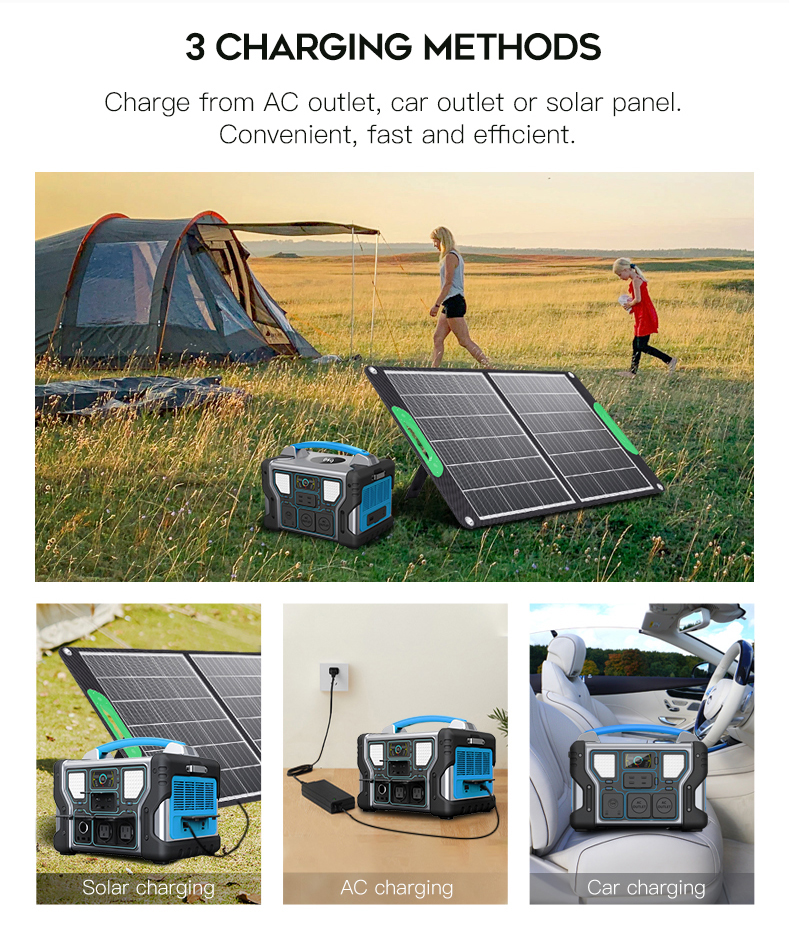

Three Recharge Modes - Solar panels (not included), wall outlet and car outlet. Only needs 4-6 hours to recharge 0-80%.
Reliable and Safe for Home Use - Used with AC output pure sine wave, reduce noise and protect your electric devices from damage. Multiple protections for long-term life, it includes over-voltage, over-current and over-heat protections.
Large LCD Screen - Shows all working status clearly, makes you get the real-time display of power/available time product power easily.

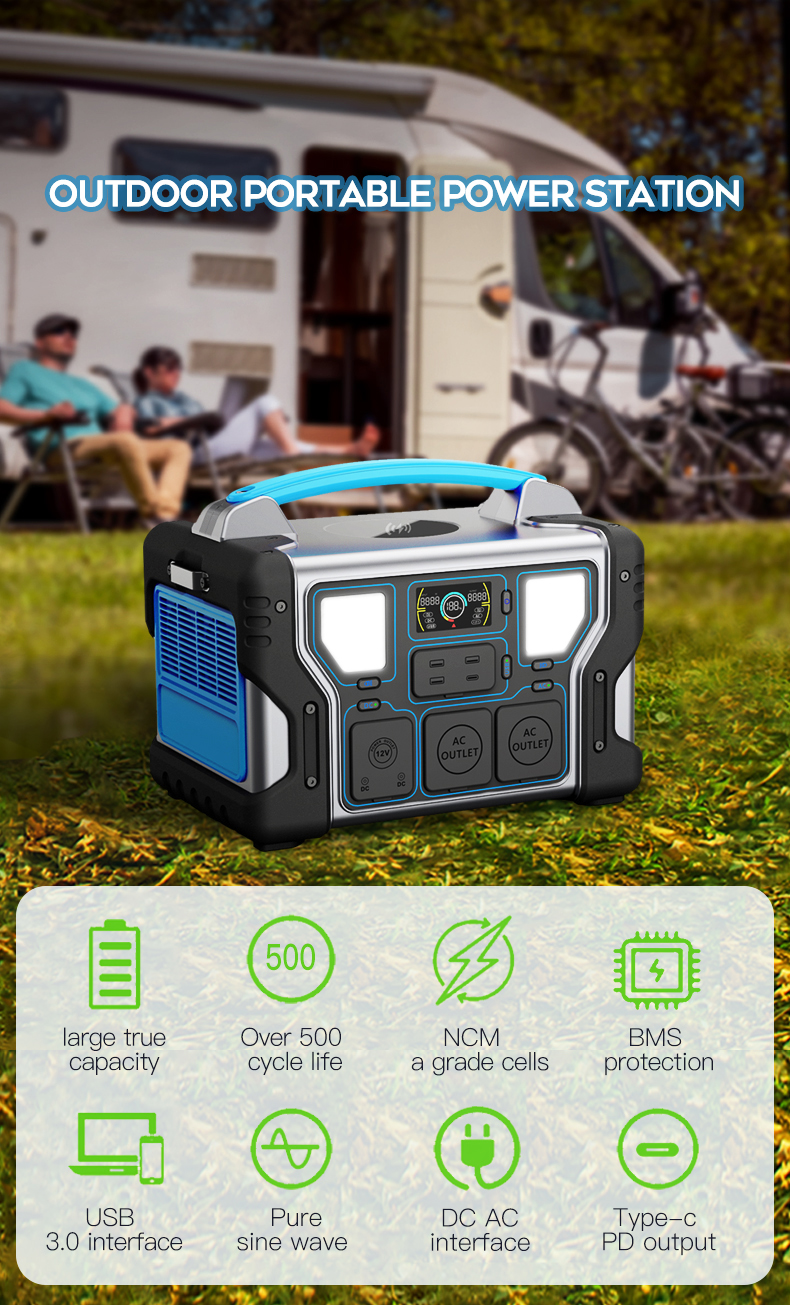

Stand by You When You Need Charging - Portable small size is perfect for outdoor activities, like camping, adventure, rescue, fishing, photography and outdoor festival.

BMS intelligent management system- The portable power station battery management system (BMS) enables voltage control, temperature control, short circuit protection, overcurrent protection, and more advanced safety operations.

The Portable power station has been designed with the job site in mind.
1.The 699Wh lithium-ion battery provides power to corded tools and electronics to keep the job running. Its environmentally friendly, pure sine-wave power is a better alternative to loud, exhaust-emitting gas generators.
2.Portable power station powers electrical tools and devices. AC outlets and USB interface, plus 12V car port for max usability.
3.Jobsite Ready: Power to run hammer drills, miter saws and more. Solar compatible with efficient MPPT; extend runtime by pairing with one or two Solar Panels . Pass through charging to simultaneously charge station and power devices. includes a reusable, washable filter to protect the power station from dust and dirt.
4.Large 699Wh capacity to charge more power tool batteries, make more cuts and drill more holes.

Performance Advantages

Technical Parameter

Cell Type NCM CELL , A grade lithium-ion battery cell
Battery Pack Capacity 31.5Ah / 22.2V ( or 3.7V/189000mAh)
Battery Pack Energy 699.3Wh
Rating Output Power 700W
USB Interface Type-C output:1PCS,PD 60W , (5V3A,9V3A,12V3A,15V3A,20V3A )
USB QC3.0 output:3PCS,total 54W, 18W (5V3A,9V2A,12V1.5A)

DC Interface
DC input:DC25V/4A(100W max,adapter with UL,CCC,CE,PSE,FCC)
DC output:12V/5A/DC5521, 2PCS (total 120W )
DC fully Charging Time:About 5~7H

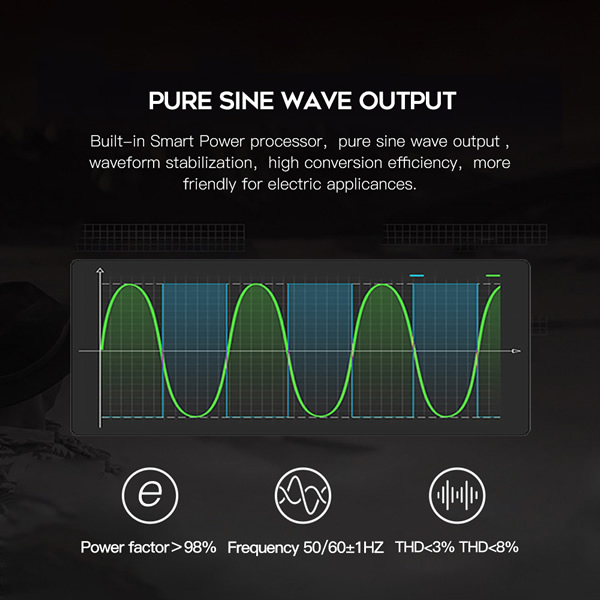

AC Output Voltage Distortion Waveform (THD) Output waveform:pure sinewave ,Sine wave < 3% (linear load),Sine wave < 8% (nonlinear load)
AC Interface 2PCS, Output voltage:110V(US/JP) or 220V(EU/UK/AU/CN) ,220V/240V 50±1Hz , 110V/120V 60±1Hz
Power out :peak power:1400W, continuous output: 700W
Solar charging Interface MPPT,Support any solar input from 18-23V 8A max (up to 150W)
Cigarret Lighter Interface 12V/10A(120W)
Wireless Charge 10W


Charge Time
NO Wall charge
DC Input Time , about 6~8H
Car Charge Time , about 7~9H
Solar Charge Time , about 6~9H
BMS Protection system Intelligent battery management system
MOS Protection
Double protections on both BMS and hardware
over-charge protection,over-discharge protection, over-current protection, over-temperature protection,short-circuit protection, over-voltage protection.
LED light 5W 2PCS (total 10W Max),SOS,flshlingt
Power Indicate LCD Display,Battery remaining capacity, Battery fault, total output power,Over temperature,input power
Full Load Output Power Factor >0.98
Life Cycle 500 cycles to 80% capacity
Housing Material ABS+PC ( fireproofing V0)
Operating temperature Charge Temperature 0~40℃
Discharge Temperature -10~40℃
Storage Temperature -10~40℃
Warrantly 12 months
Package detail Product size:32.8*22.1*26.3CM, about 7.4kg
Carton Siz:32.5*25*36.5CM/about 9.5Kg/1PCS
OEM service color optional:Oranger+gray,Blue+gray,Red+gray,Green+gray
Appearance, size, style, performance, packaging, can be customized

Package Include
1*portable power supply, 1*AC input power supply,1*User Manual, ,color box packaging,1*MC4 charging cable, 1*vehicle charging cable,1*straps

OEM Service Advantages

FAQ

ACETOP is in the line of R&D, manufacturing and sales of lithium batteries, Solar Power Station and Solar panel ,Lithium-ion battery packs, accesories.in this field, we have provided products and services to many repuated clients.

The main products: Solar Power Station, Solar Power bank ,Solar panel,portable Solar panel, on-grid and off grid solar power system, and other products that applies solar photovoltaic technology ,related accessories,OEM ODM power station service.

ACETOP focus on the easy acquiring energy. we have a range of advanced new energy environmental products. With strong R& D capability, more and more new products launched and new technology use widely.

To be able to face the ever-changing demands of the market, we have obtained vast experience in dealing with ODM and OEM projects,We continue to develop new products and upgrade technology. we are committed to providing excellent quality and continuous innovation.

Our engineer team have rich experience in designing the battery solution for different applications, and who are familiar with the different application industry, we always provide products solution and production plan of the best value for money.

We always put customer first.We has exported products to Europe, America, Oceania, Africa, Southeast Asia and so on, providing professional, convenient products and technical supports for the customers.

As professional manufacturer, we are welcome OEM cooperation. You may find the most professional customize solution here. Looking forward to the cooperation.
Parameters, appearance, performance, power, battery capacity, voltage , PCB, software ,Color, size, APP, logo, packaging, can be customized.
