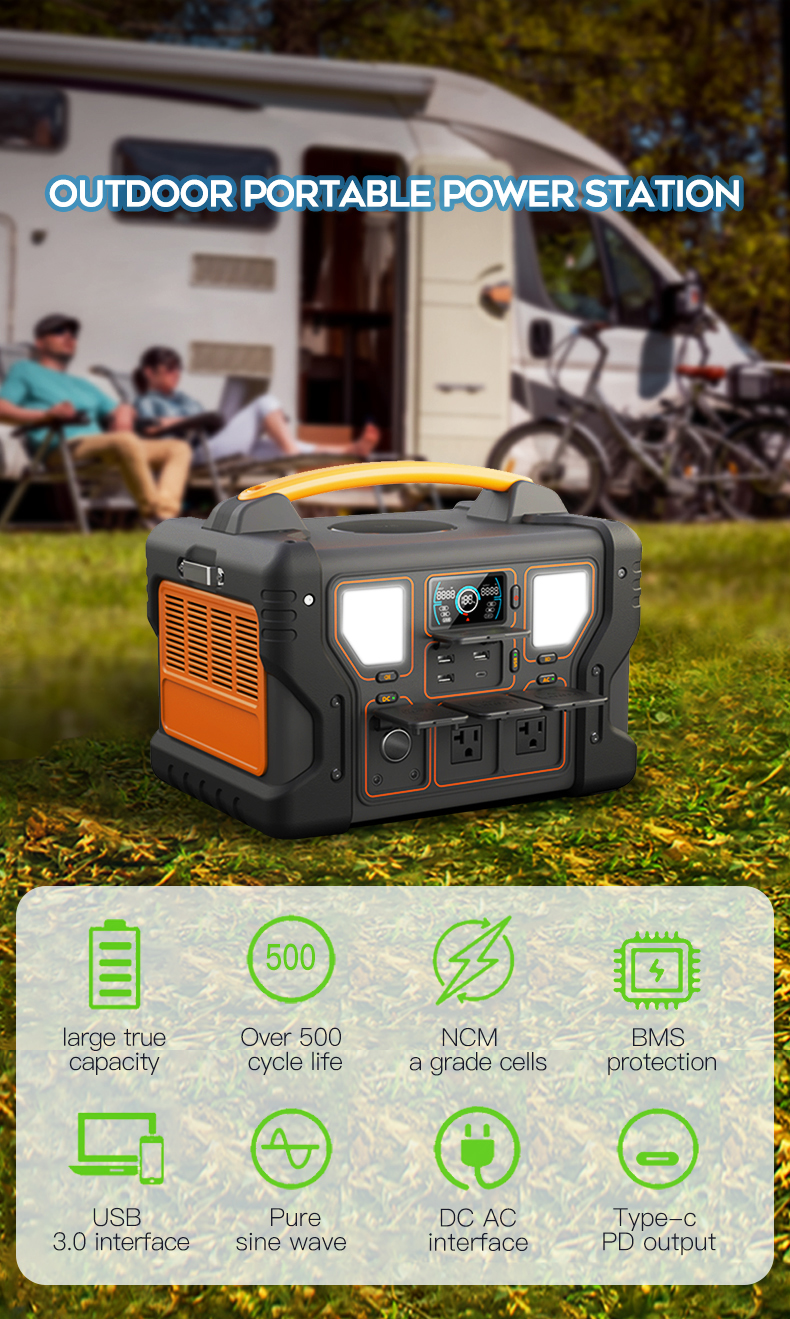

Portable Power Station Backup NCM Lithium Battery
Portable Power Station Backup NCM Lithium Battery Pure Sine Wave USB PD DC AC Outlet Solar Generator for Outdoors Camping Travel Hunting Blackout
Send Inquiry service@iacetop.comPower Station Description
500W/444Wh
Portable Solar Power Station
The Portable
Solar Power Station size:273*181*244mm/about 5.5kg . With these dimensions, you
can easily put the station anywhere you need it, from on the picnic table to a
side-table in your RV, and almost everywhere in between. As for portability,
the station weighs around 21 pounds, and there’s a nice and convenient foldable
handle on the top so you can just grab it and go whenever you’re ready.
• Double
protections on both BMS and charger;
• AC output ,Pure Sine Wave inverter, more friendly for electric applicances;
• Built in MPPT
solar controller, high efficiency;
• Intelligent
temperature cooling fan, working sliently;
• Led Lighting
and SOS Functions;

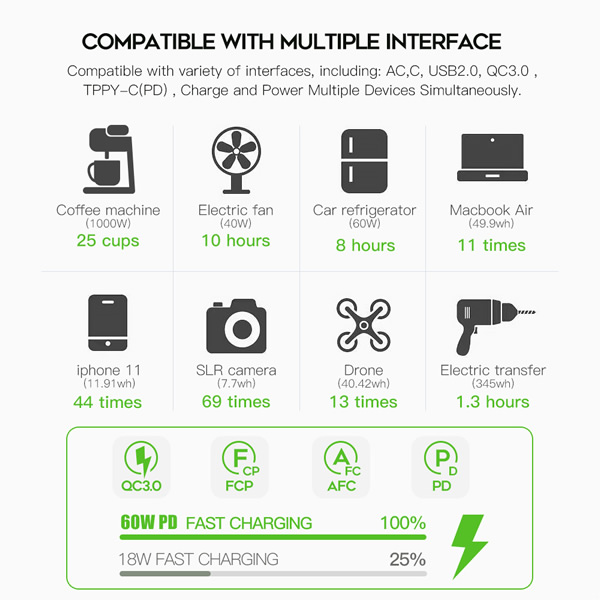

• DC USB TYPEC
PD3.0 Wireless Charger super Rapid charging;

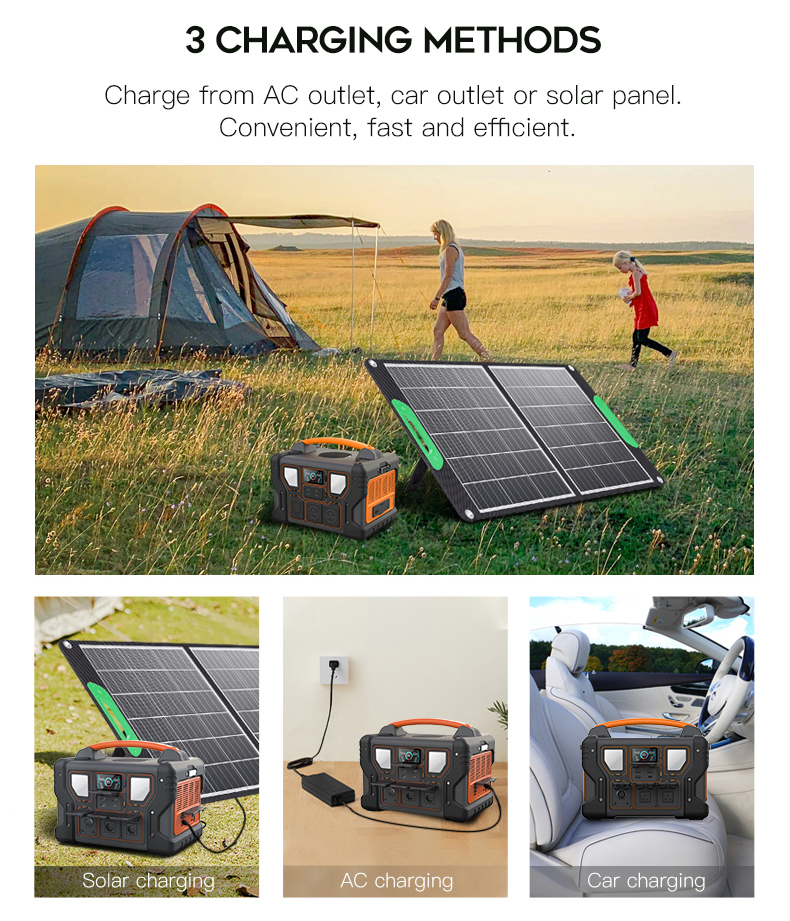

• Three charging
method, charge anywhere.
Performance Advantages
Technical Parameter

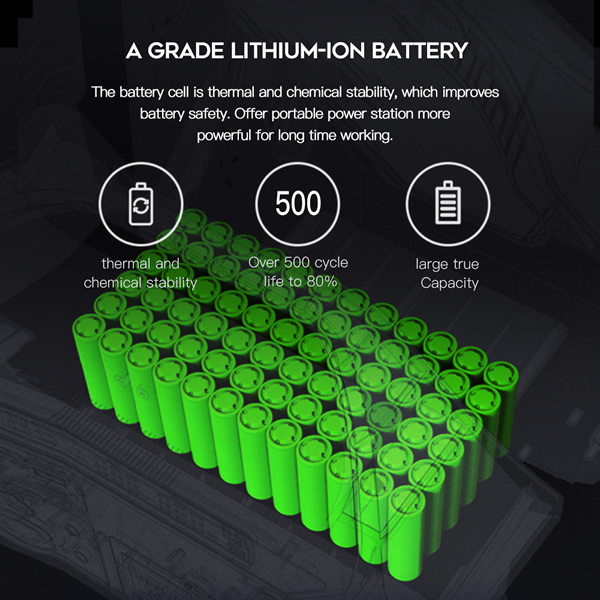

| Cell Type | NCM CELL , A grade lithium-ion battery cell |
| Battery Pack Capacity | 20Ah 22.2V (or 3.7V/120000mAh) |
| Battery Pack Energy | 444Wh |
| Rating Output Power | 500W |
| USB Interface |
Type-C
output:PD 60W 1PCS, (5V3A,9V3A,12V3A,15V3A,20V3A ) USB QC3.0 output:3PCS,total 54W, (18W/5V3A,9V2A,12V1.5A) |
|
DC Interface |
DC
input:DC15V/4A(60W max,adapter with UL,CCC,CE,PSE,FCC) DC output:12V/5A/DC5521 , 2pcs (total 120W ) DC fully Charging Time:About 5~7H |

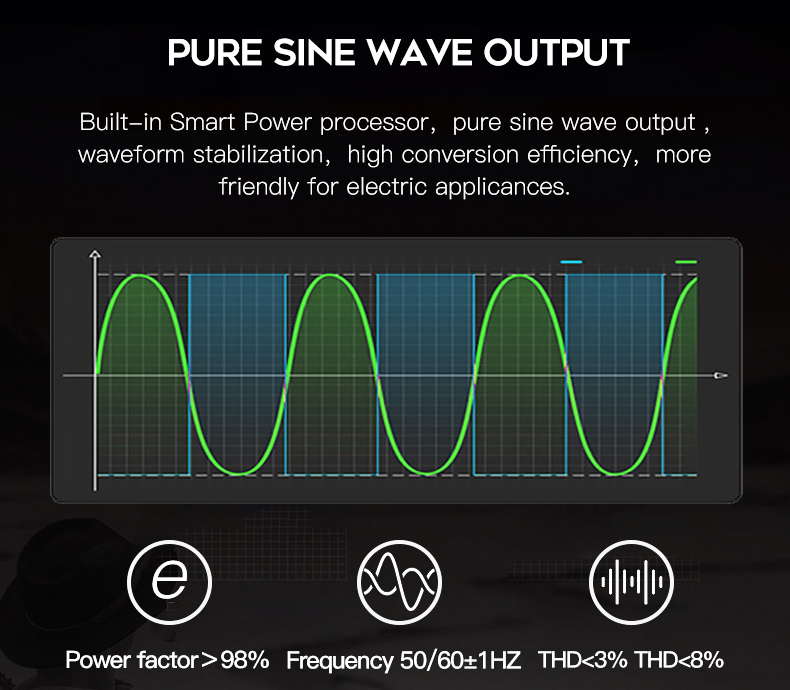

| AC Output Voltage Distortion Waveform (THD) | Output waveform:pure sinewave ,Sine wave < 3% (linear load),Sine wave < 8% (nonlinear load) |
| AC Interface |
2pcs,Output
voltage:110V(US/JP) or 220V(EU/UK/AU/CN) ,220V/240V 50±1Hz ,
110V/120V 60±1Hz Power out :peak power:1000W, continuous output: 500W |
| Solar charging Interface | MPPT,Support any solar input from 18-23V 3A max (up to 60W) |
| Cigarret Lighter Interface | 12V/10A(120W) |
| Wireless Charge | 10W |
| BMS Protection system |
Intelligent
battery management system MOS Protection Double protections on both BMS and hardware over-charge protection,over-discharge protection, over-current protection, over-temperature protection,short-circuit protection, over-voltage protection. |
| LED light | 5W 2PCS (total 10W Max),SOS,flshlingt |
| Power Indicate | LCD Display,Battery remaining capacity, Battery fault, total output power,Over temperature,input power |
| Charge Time |
NO
Wall charge DC Input Time , about 6~8H Car Charge Time , about 7~9H Solar Charge Time , about 6~9H |
| Full Load Output Power Factor | ＞0.98 |
| Life Cycle | 500 cycles to 80% capacity |
| Housing Material | ABS+PC ( fireproofing V0) |
| Operating temperature |
Charge
Temperature 0~40℃ Discharge Temperature -10~40℃ Storage Temperature -10~40℃ |
| Warrantly | 12 months |
| Package detail | Product size:273*181*244mm/about 5.5kg Carton Siz:59*30*32CM/about 17Kg/3PCS |
|
Package Include |
1*portable power supply, 1*AC input power supply,1*User Manual, ,color box packaging,1*MC4 charging cable, 1*vehicle charging cable,1*straps |
| OEM service |
color
optional:Oranger+gray,Blue+gray,Red+gray,Green+gray Appearance, size, style, performance, packaging, can be customized |
FAQ
ACETOP is in the line of R&D, manufacturing and sales of lithium
batteries, Solar Power Station and Solar panel ,Lithium-ion battery packs,
accesories.in this field, we have provided products and services to many
repuated clients.
The main products: Solar Power Station, Solar Power bank ,Solar
panel,portable Solar panel, on-grid and off grid solar power system, and other
products that applies solar photovoltaic technology ,related accessories,OEM ODM power station service.
ACETOP focus on the easy acquiring energy. we have a range of advanced new energy
environmental products. With strong R& D capability, more and more new
products launched and new technology use widely.
To be able to face the ever-changing demands of the market, we have
obtained vast experience in dealing with ODM and OEM projects,We continue
to develop new products and upgrade technology.
we are committed to providing excellent quality and continuous
innovation.
Our engineer team have rich experience in designing the battery
solution for different applications, and who are familiar with the different
application industry, we always provide products solution and production plan of
the best value for money.
We always put customer first.We has exported products to Europe,
America, Oceania, Africa, Southeast Asia and so on, providing professional,
convenient products and technical supports for the customers.
As professional manufacturer, we are welcome OEM cooperation. You
may find the most professional customize solution here. Looking forward to the
cooperation.
Parameters, appearance, performance, power, battery capacity,
voltage , PCB, software ,Color, size, APP, logo, packaging, can be customized.
