Portable Monocrystalline Solar Panel for power station Charging
Portable Monocrystalline Solar Panel with Waterproof Design,USB QC3.0 DC PD Typc C Output, High Efficiency Module for Battery power station Charging Boat RV Camping Use and Any Other Off Grid Appliances
Send Inquiry service@iacetop.comSolar Panel Description

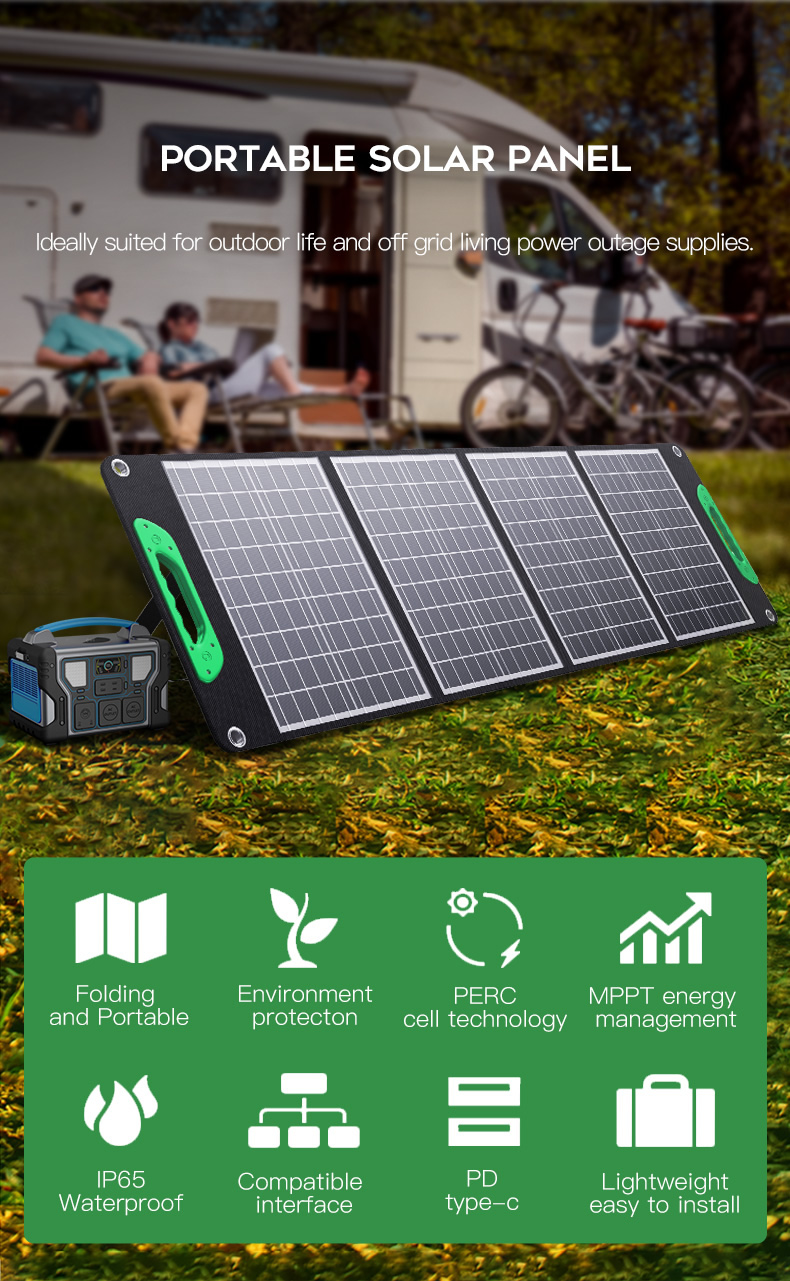

outdoor portable power station is ideally
suited for outdoor life, camping, travel, picnic, home emergency and off grid
living power outage supplies.

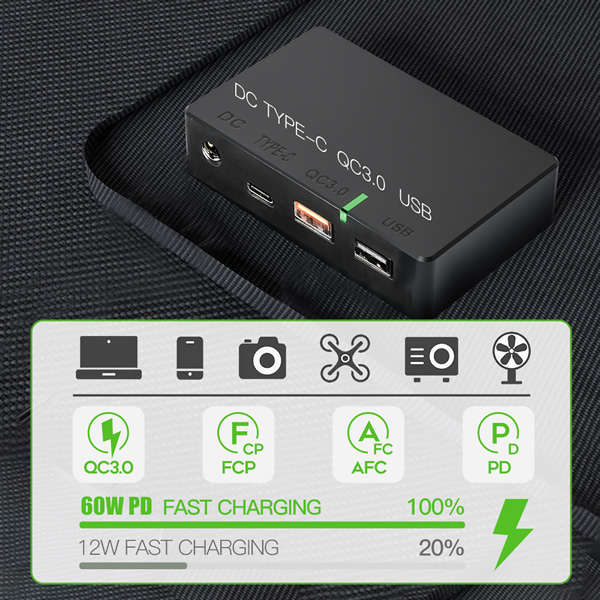

【BUILT-IN USB OUTPUT】: The portable solar panel has 24W USB-A QC3.0 output and 45W USB-C output to quickly charge your phone, tablet, power bank and other USB devices. So it is ideal for camping, travelling, power outages or emergencies.

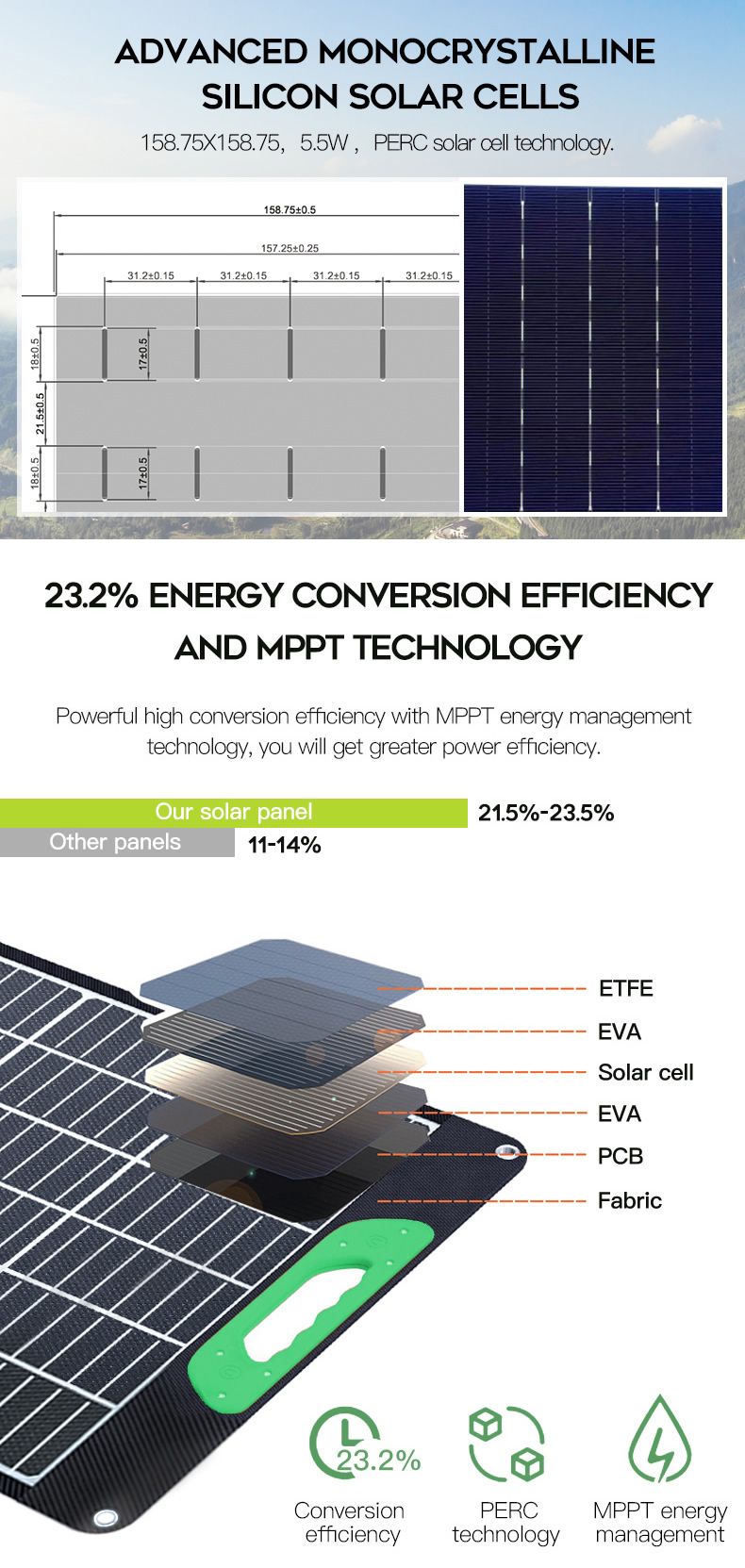

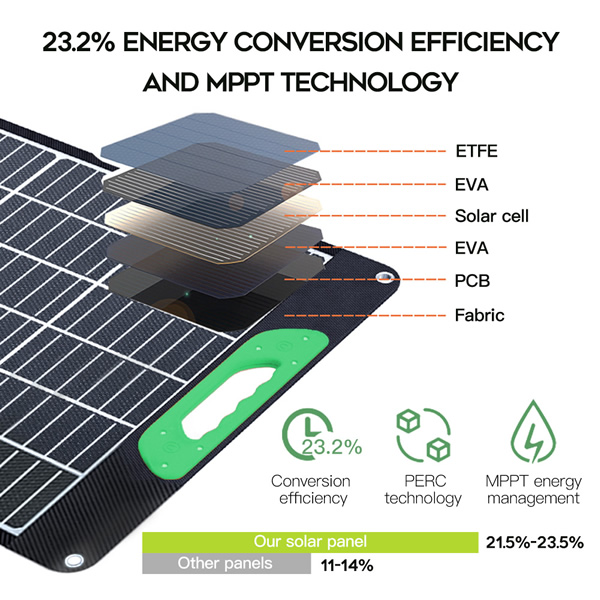

【UP TO 23.2% CONVERSION EFFICIENCY】: The foldable solar panel uses high-efficiency monocrystalline solar cells and its surface is made of durable pet material. it has higher light transmittance and conversion efficiency. (Note: If the maximum input power of your power station is 60W, you may only get 60W maximum from the 120W solar panel.)
【WIDE COMPATIBILITY】: With 5 different connector sizes (DC7909, XT60, Anderson, DC5525, DC5521), 120W solar panel can be compatible with other popular solar generators on the market. You can use it with any standard power station.
【IP65 WATERPROOF】: The outer fabric of the solar panel is made of oxford cloth, which is waterproof and durable. The waterproof zip pocket on the back covers the connectors well to protect the solar panel against sudden rain. (Please note that the connectors themselves are not waterproof, so protect the connectors from water of any kind.)

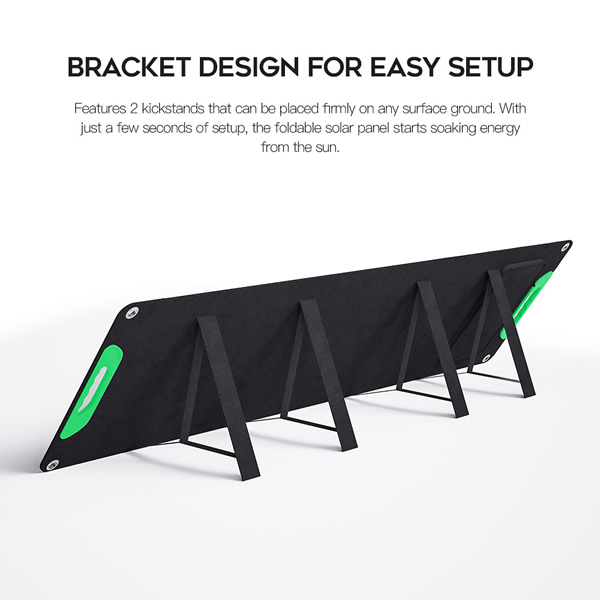

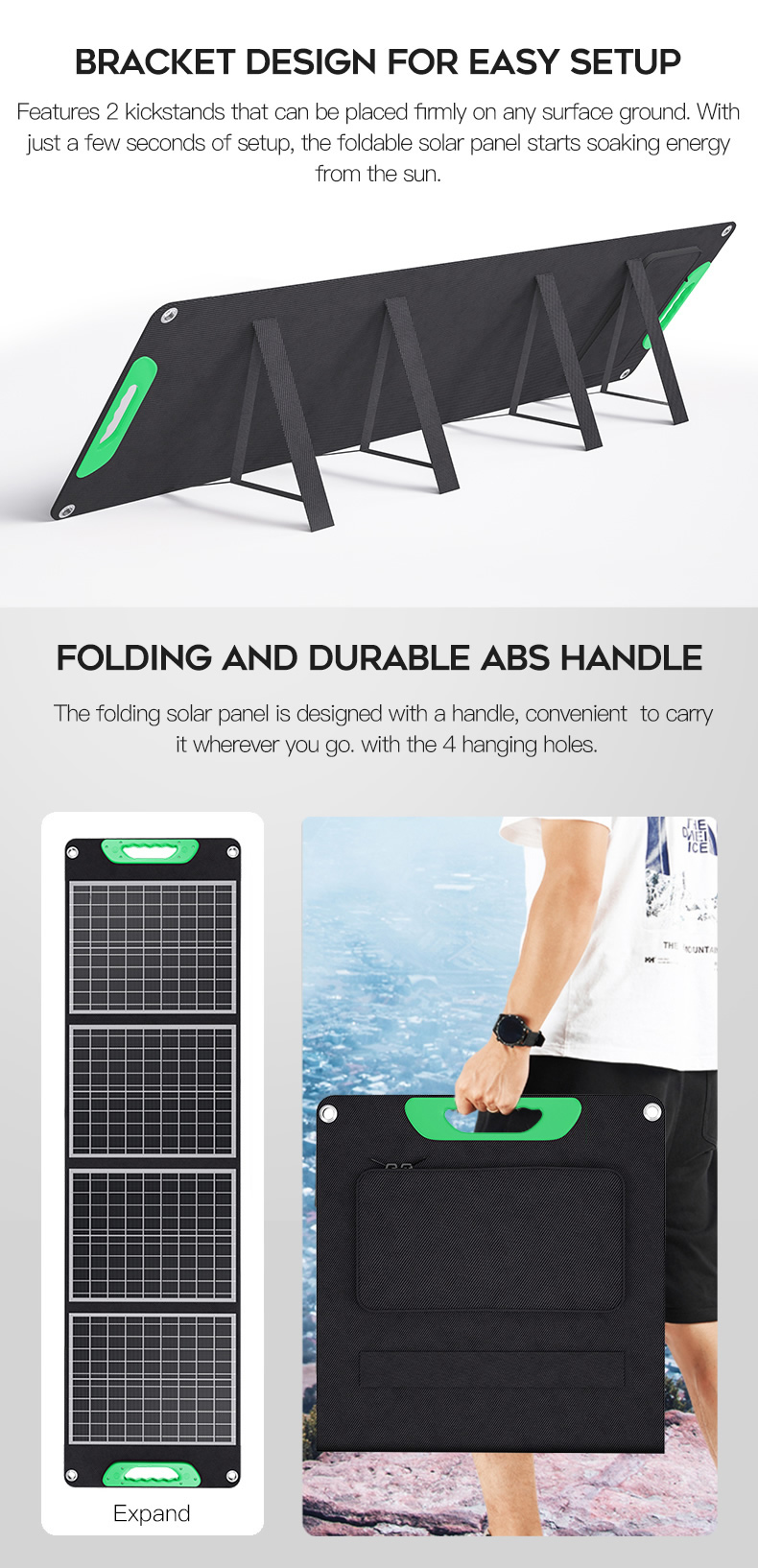

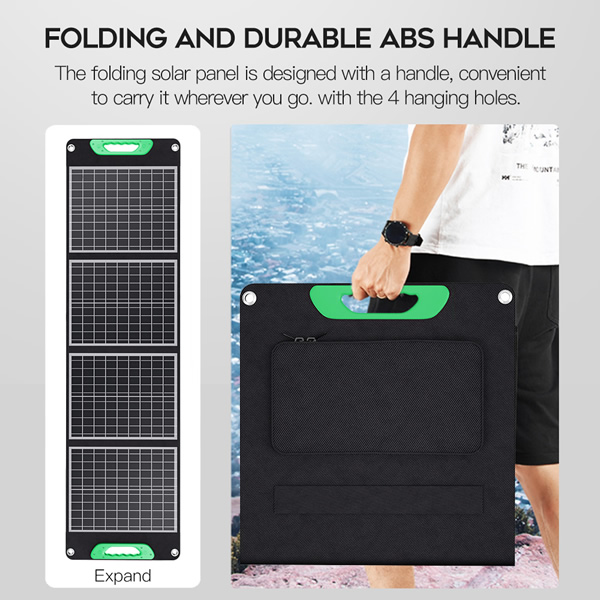

【FOLDABLE AND PORTABLE】: The folded size of the solar panel is 488*525*16mm and it weighs only 6.3 kg, which makes it very easy to carry. With two adjustable stands, it can be placed securely on any surface. The hanging holes on both ends allow you to attach it to your house's balcony or RV's roof for charging.
Performance Advantages
Technical Parameter
| Maximum Power at STC(Pmax) | 60W | 100W | 160W | 200W | 300W |
| Optimum Operating Voltage(Vmp) | 18V | 18V | 18V | 18V | 36V |
| Open-Circuit Voltage(Voc) | 21V | 21.2V | 20V | 20V | 39V |
| Optimum Operating Current(Imp) | 3.3A | 5.55A | 8.8A | 11A | 8.3A |
| Short-Circuit Current(Isc) | 3.6A | 6A | 9A | 12A | 9A |
| Power Tolerance | ±3% | ±3% | ±2.8% | ±2.5% | ±2.5% |
| Cell Efficiency rate | 23.2% | 23.2% | 23.2% | 23.2% | 23.2% |

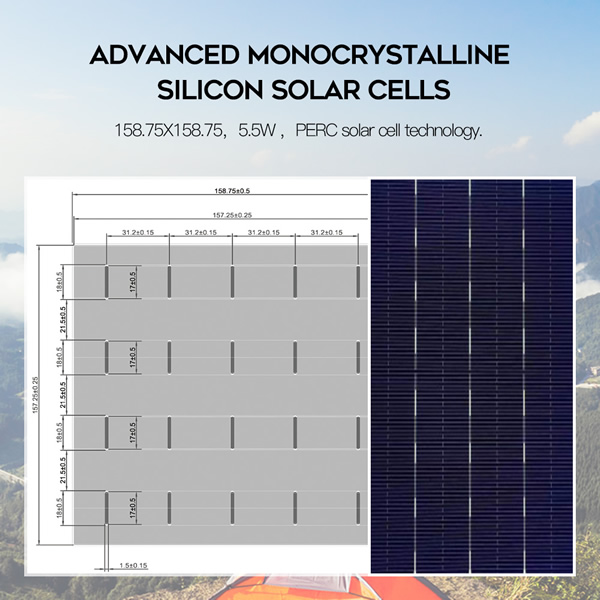

| Solar cell Type | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W |

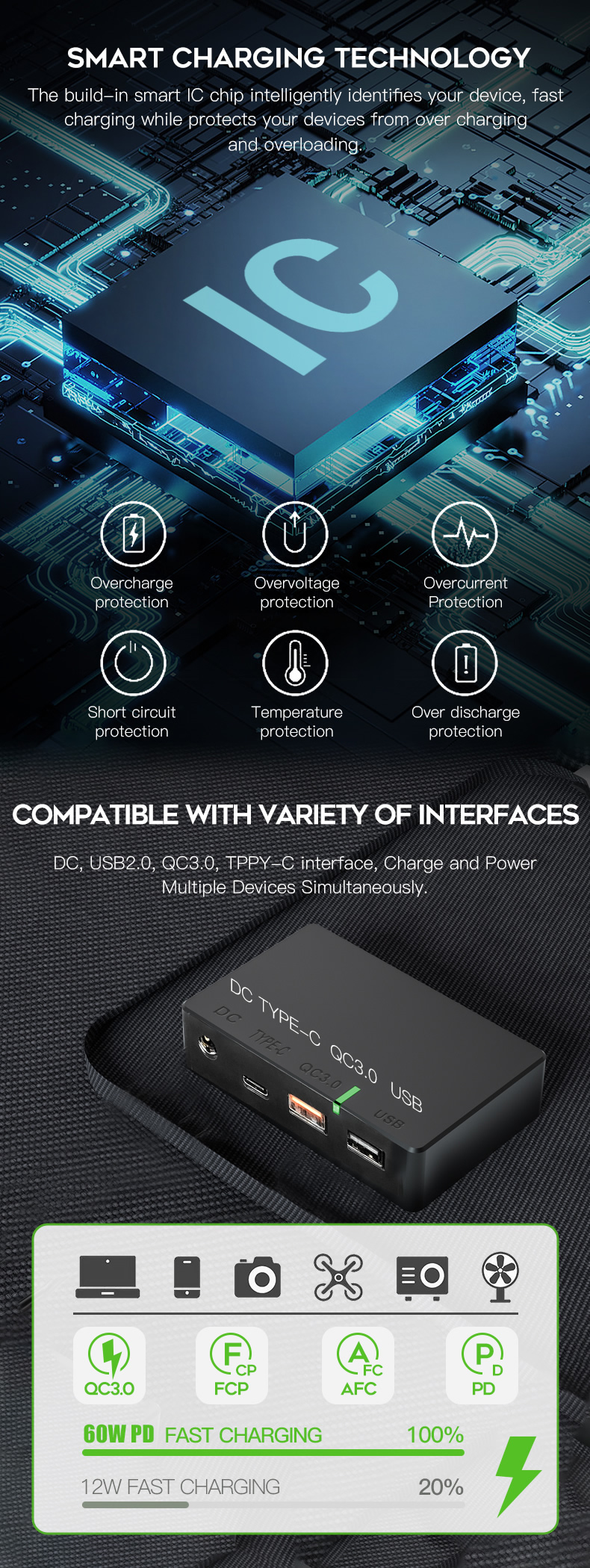

| System Protection |
USB2.0
(5V 3A ) QC3.0 (5V3.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V ,3A ) DC 18V/3A Max |
USB2.0
(5V 3A ) QC3.0 (5V3.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V ,3A ) DC 18V/5A Max |
USB2.0
(5V 3A ) QC3.0 (5V3.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V ,3A ) DC 18V/8A Max |
USB2.0
(5V 3A ) QC3.0 (5V3.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V ,3A ) DC 18V/11A Max |
USB2.0
(5V 3A ) QC3.0 (5V3.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V ,3A ) DC 36V/7.5 A Max |
| 0utput Interface | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity |

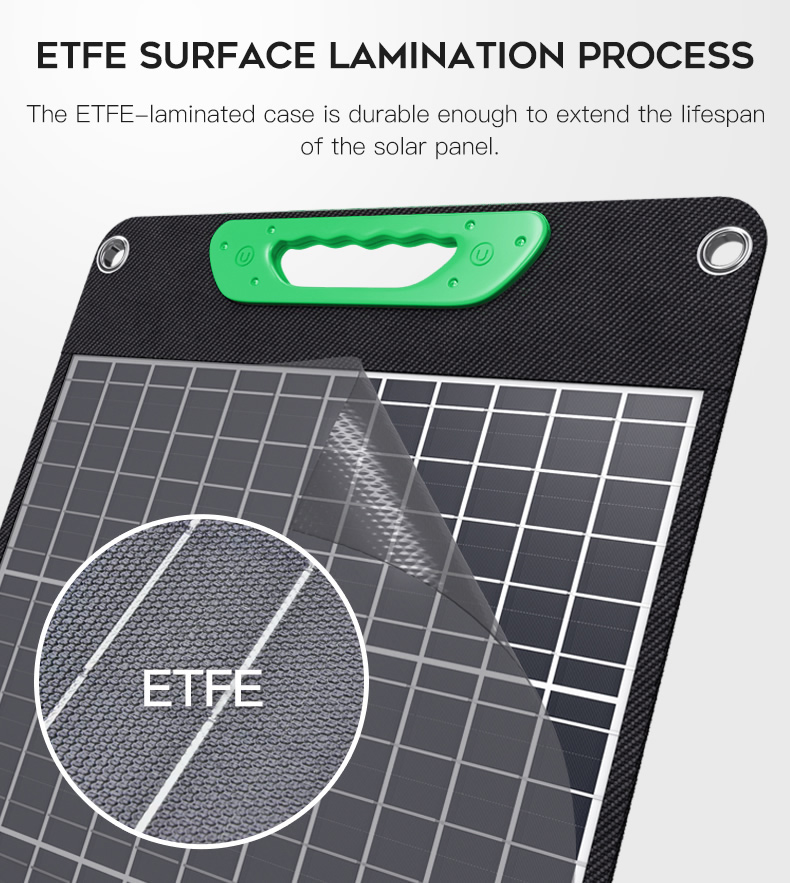

| Sealing Process | ETFE or PET,optional | ETFE or PET,optional | ETFE or PET,optional | ETFE or PET,optional | ETFE or PET,optional |
| Operating Temperature | -40℃ to +85 ℃ | -40℃ to +85 ℃ | -40℃ to +85 ℃ | -40℃ to +85 ℃ | -40℃ to +85 ℃ |
| Bag Material | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS |
| Cell Efficiency rate | 22% | 22% | 22% | 22% | 22% |
| Junction Box | Ip65 Waterproof | Ip65 Waterproof | Ip65 Waterproof | Ip65 Waterproof | Ip65 Waterproof |
| Open Size | 1177*520*16mm | 1177*520*16MM | 1955*508*16MM | 2300*530*16mm | 2300*530*16mm |
| Folding Size | 590*520*30mm | 590*520*30MM | 540*508*50MM | 630*530*50mm | 630*530*50mm |
| Net Weight | 2.7KG | 3.7KG | 6.1KG | 11KG | 11KG |
| OEM Service | Color, size, appearance, performance, power, voltage can be customized | ||||
OEM Service Advantages
FAQ
We are
professional manufacturer of Solar Power Station and Solar
panel,professional in the manufacture of Solar Power Station and Solar panel .
The
main products:
Solar Power Station, Solar Power bank ,Solar
panel,portable Solar panel
,related accessories,OEM power
station solar panelss service.
Our
factory own 78, 00 square meters with state of the art production machines in
manufacture. Moreover, our R&D team have more than 10 years expriences in
energy storage and have been supporting to thousands of domestic and oversea
projects. Based on our rich project experience, stable quality and good
commication, we win trust from customers and have long time cooperation with
them. Not only that, we will develop new products to customers every year and
upgrade our technic all the time.
No
matter when you are and where you from, we are passinately expect to cooperate
with you and your team to the win-win business in long time.
