Solar Panel Description

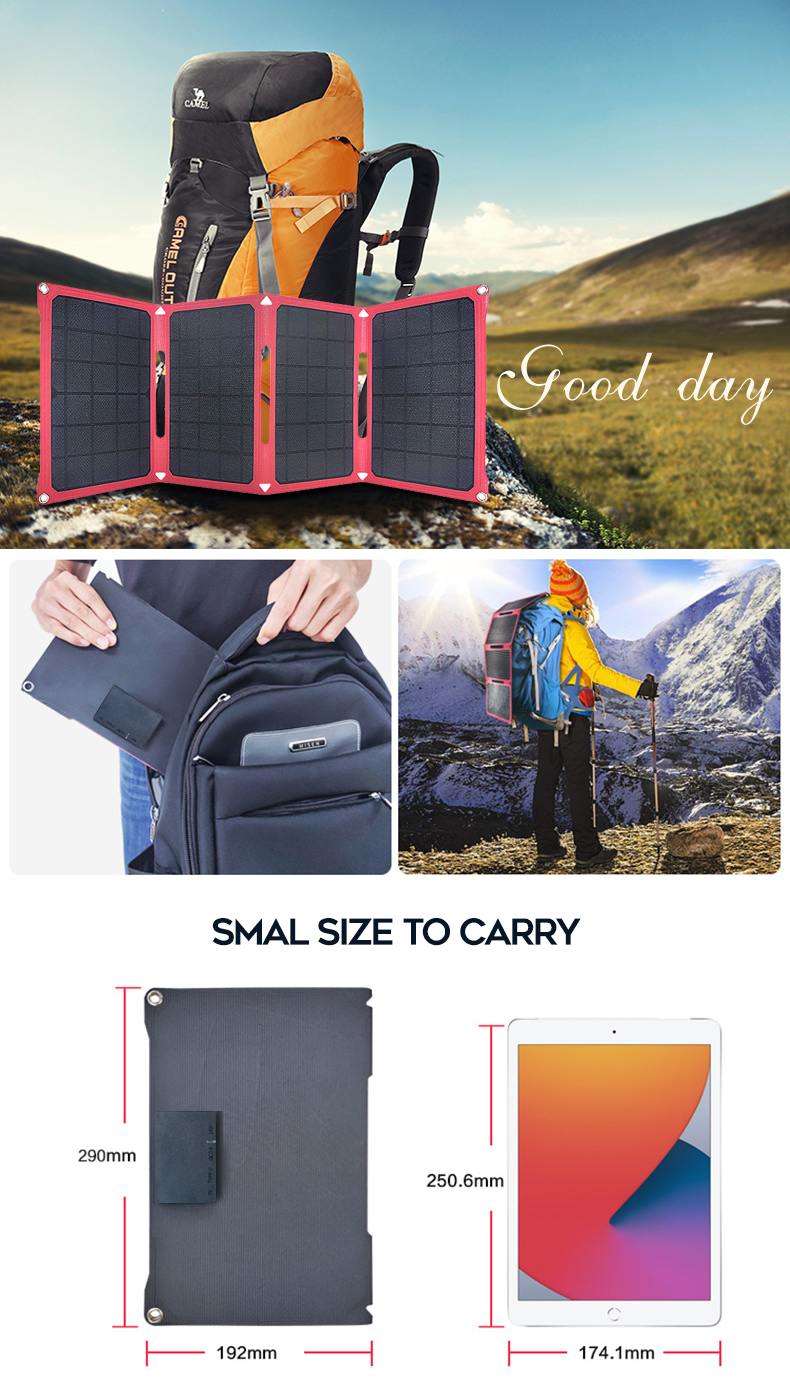

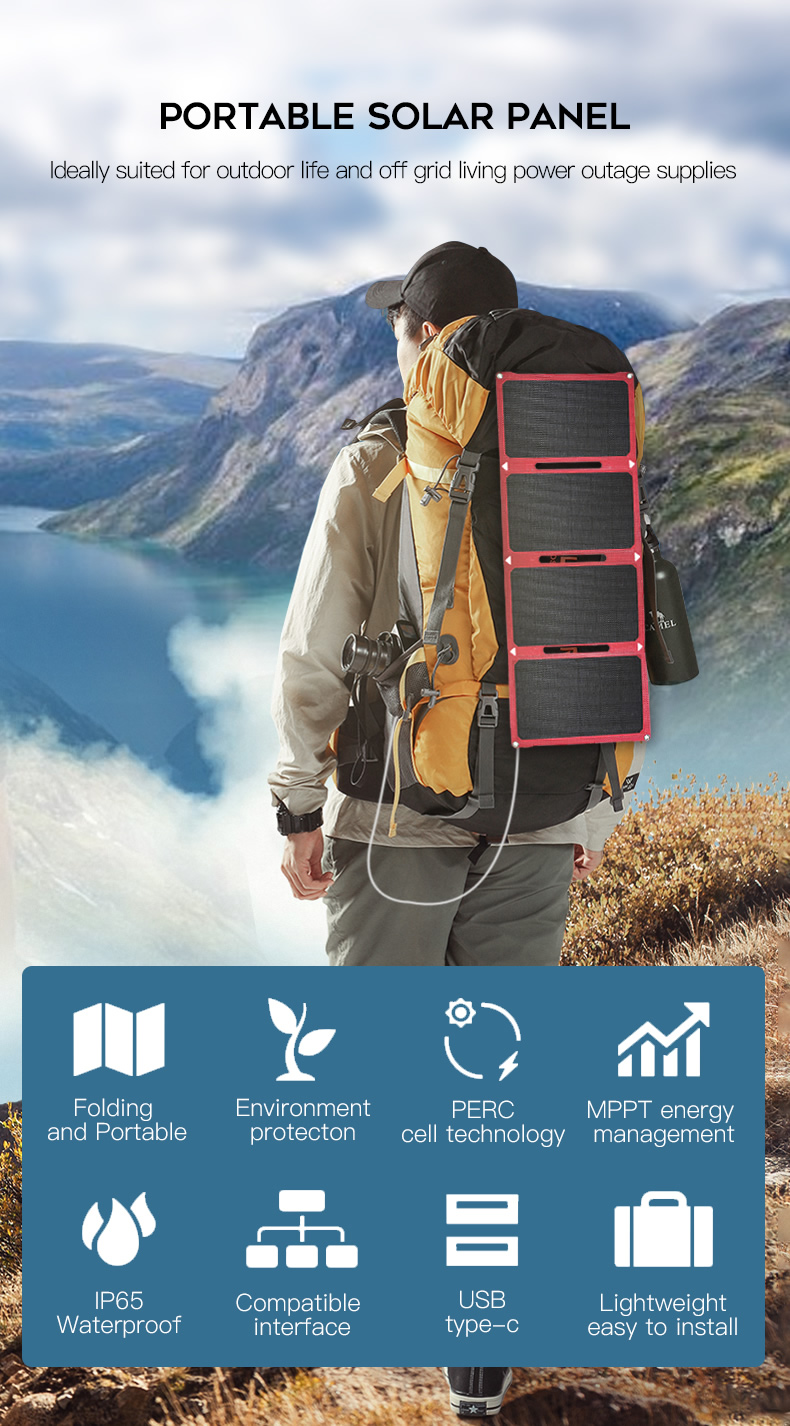

【PORTABLE & FOLDABLE】With a small size and a lightweight design that can be easily squeezed into your backpack, offering portability and simplicity, the hiking buckle makes it ideal for attaching to your backpack while hiking or walking around town. Eco-friendly and self-cleaning material E film provides lasting durability to protect against unpredictable weather conditions, and can easily withstand high temperatures.

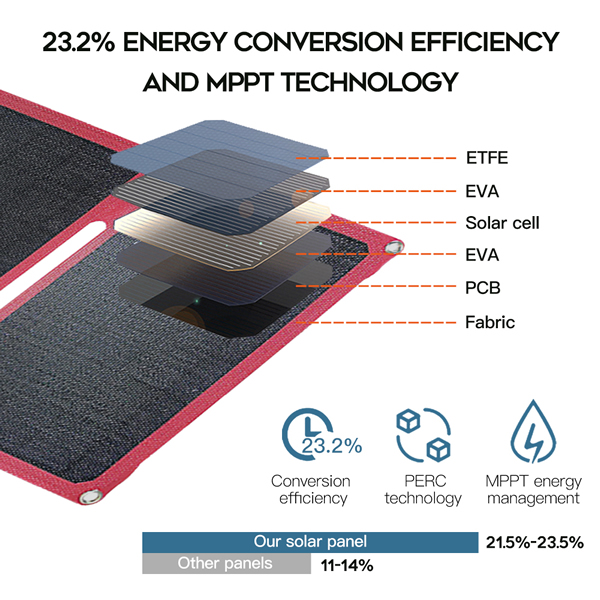

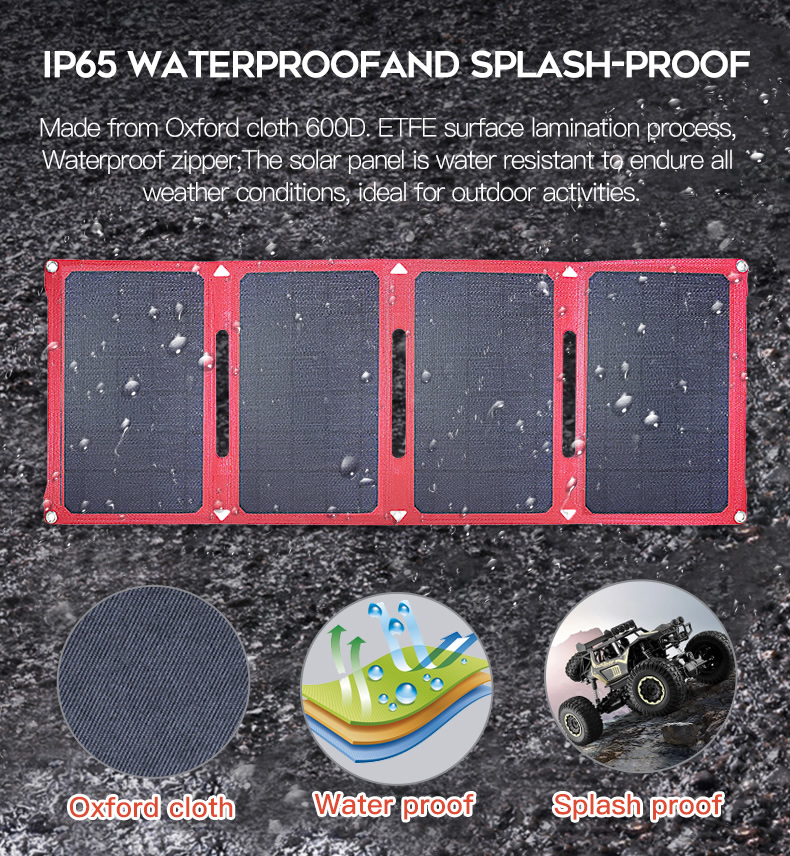

【HIGH SOLAR CONVERSION & IP67 WATERPROOF】 Highly efficient solar panel convert up to 24% of solar power into free energy in enough sunlight, which is the most durable panels at present, standing up to elements and wear and tear better than conventional panels. This special ETFE polymer surface protects solar panel from occasional rain or wet fog and three ports are covered with rubber cover to protect them from dust or water damage.
【SMART IC CHIP TECHNOLOGY & SAFETY FEATURE】Built with voltage stabilization and an innovative chip that detects the best or maximum charging requirement of your device so your devices can be charged safely and fast.
【WIDE COMPATIBILITY】Attached a USB cable for almost all 5V Android devices and Apple devices. Our solar phone charger can't store the electricity, please unfold all solar panel in outdoor direct sunlight, then connect your device to USB output interface.

Performance Advantages

Technical Parameter

Maximum Power at STC(Pmax) 10W 16W 28W 28W
Optimum Operating Voltage(Vmp) 5.5V 6V 6V 6.6V
Open-Circuit Voltage(Voc) 6V 6.6V 6.6V 7.2V
Optimum Operating Current(Imp) 1.8A 2.6A 4.6A 4.24A
Short-Circuit Current(Isc) 2A 3A 4.8A 4.6A
Power Tolerance ±3% ±3% ±2.8% ±2.5%
Cell Efficiency rate 23.2% 23.2% 23.2% 23.2%

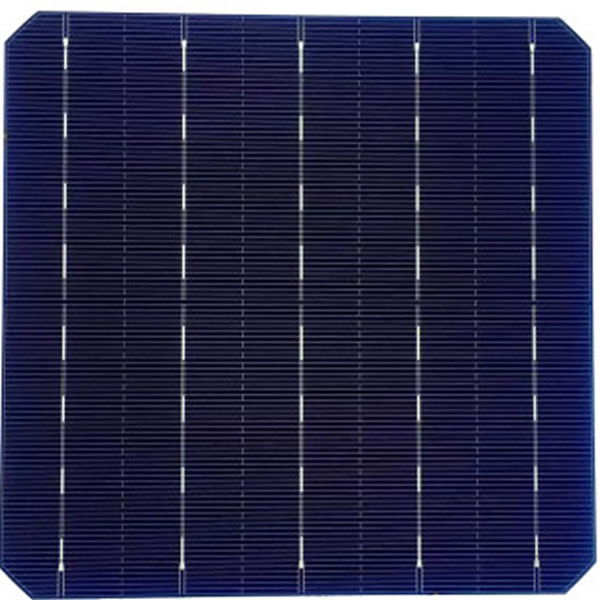

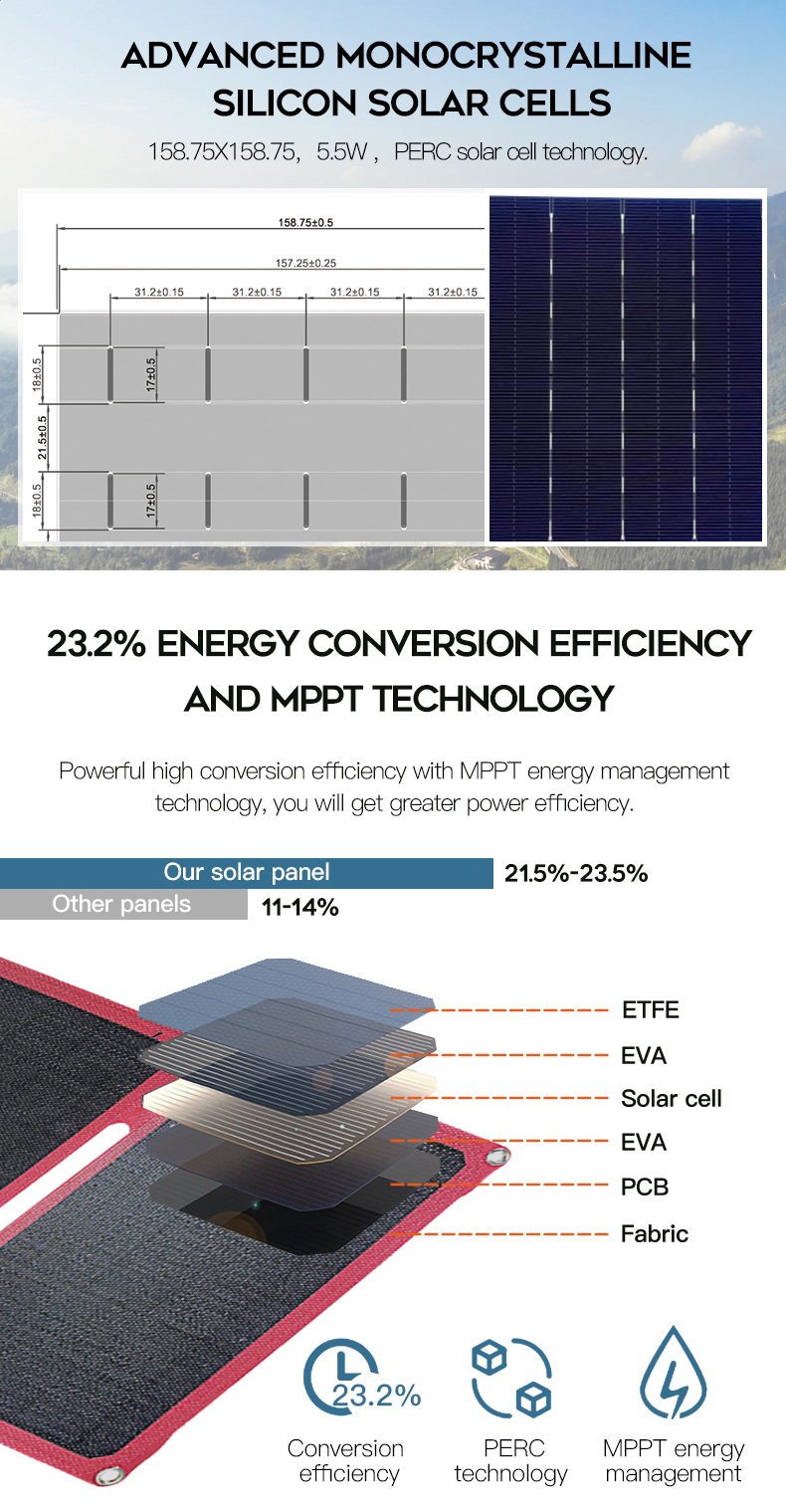

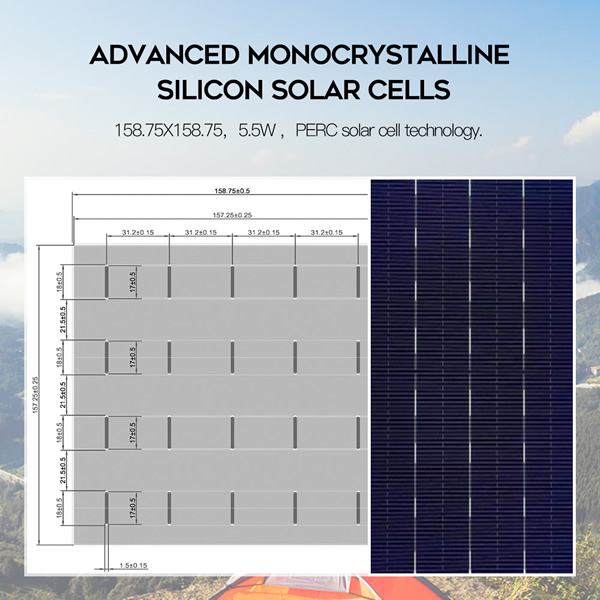

Solar cell Type Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W Sunpower,Mono 158.75*158.75mm , 5.5W
System Protection Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity
0utput Interface USB2.0 QC3.0 PD DC USB2.0 QC3.0 PD DC USB2.0 QC3.0 PD DC USB2.0 QC3.0 PD DC
Sealing Process ETFE ETFE ETFE ETFE
Operating Temperature -40℃ to +85 ℃ -40℃ to +85 ℃ -40℃ to +85 ℃ -40℃ to +85 ℃
Bag Material 600D Oxford cloth , ABS 600D Oxford cloth , ABS 600D Oxford cloth , ABS 600D Oxford cloth , ABS
Junction Box Ip65 Waterproof Ip65 Waterproof Ip65 Waterproof Ip65 Waterproof
Open Size 730*160*27mm 392*290*27mm 591*290*20MM 591*290*20MM
Folding Size 120*160*27mm 200*290*27mm 290*200*15MM 290*200*15MM
Net Weight 0.6KG 0.7KG 0.8KG 0.8KG
OEM Service Color, size, appearance, performance, power, voltage can be customized

OEM Service Advantages


※What make our product difference from other factory?
1.Our clients benefit from lower manufacturing costs and time-to-market volume production through over 120 highly qualified staffs and the 7500 square meters workshop, including a mold development center, a metal and plastic injection center,a hardware processing center,5 product assembling centers , Printing workshop.

2. We have a highly experienced and efficient R&D, Design, Sales and Management team with top educational background. We provide full after sales and technical support. With our passionate and professional support team, ACETOP looks forward to being your supplier.
You can be assured your products receive priority treatment. We strive to have our customers regard us as strategic manufacturing partners, an integral part of their operations. Our headquarter center are located in Shanghai, China. Contact us at once to make us your long term partner!

3.We have a complete process chain in the industry, so we can provide you with better customized services.

4.Normally MOQ 500pcs, but we also accept small sample order for quality clients.

※How do we ensure our quality ?
1. In the field , well-known brands are our cooperative customers. We have provided them with oem services for 10 years. With their help, we have continuously optimized our quality control system.


2. We are confident to provide customers with top quality products as we have solid flow of Production Material Control (PMC),In-Process Quality Control (IPQC), Finished Product Quality Control (QC) and Delivery Quality Assurance (QA). To provide you with an extra level of protection, we check our items piece by piece prior to shipment.


3. Our products have passed ISO 9001,CE,ROSH, CCC and other certification .
