Foldable Portable Solar Panels with USB QC3.0 PD DC For Power Stations

Foldable Portable Solar Panels with USB QC3.0 PD DC for Camping Cell Phone Tablet and Devices Compatible with Solar Generators Power Stations.

Send Inquiry service@iacetop.com
Power Station Description

【High-Efficieny】The high-efficiency of its three solar panels cell is based on Monocrystalline cell technology, that allows the solar charger to reach 21%-24% of conversion efficiency while providing enough power (up to 2.0A max per port or 3.0 A max overall).
【Advanced Smart IC Chip Technology】 The Microchip ofsolar phone charger support to detects the electronic devices plugged into the USB ports for fast charging two phones simultaneously under safe conditions as well as the prevention of overheating,Compatible with variety of interfaces, including: DC, USB2.0, QC3.0, TPPY-C, Charge and Power Multiple Devices Simultaneously.

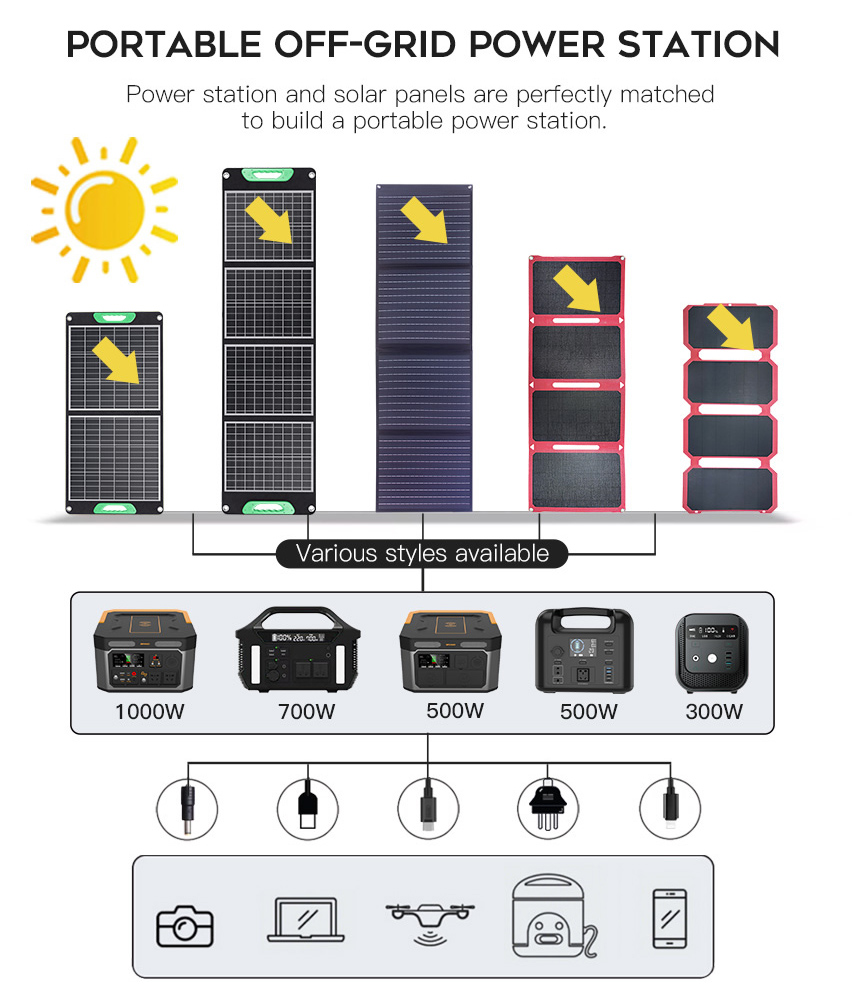

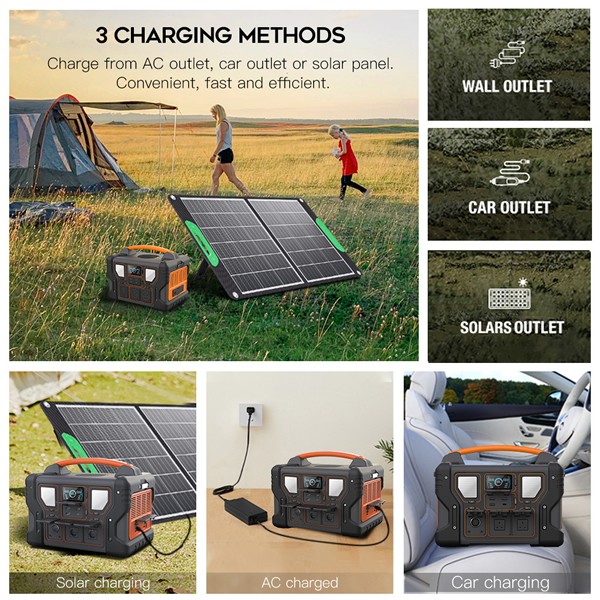

The outdoor power station charges through AC outlet, car socket, or solar panel. Convenient, fast and efficient.

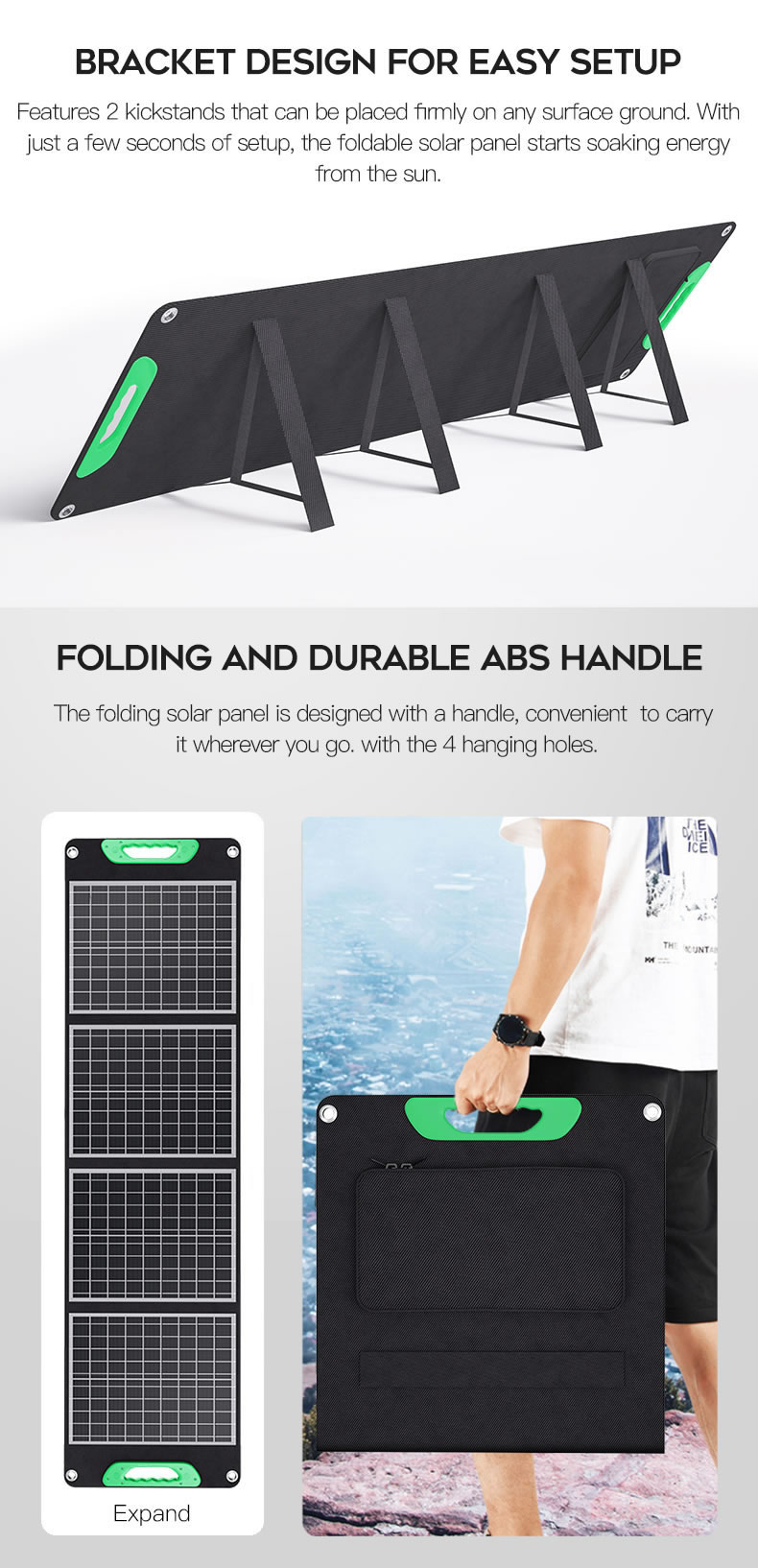

【Portable and Foldable】The Portable and Foldable design that can easily squeeze in your backpack offers portability and simplicity, and the attachment hook makes the portable solar charger ideal for connecting to a backpack while you’re on the hiking or walking around town.

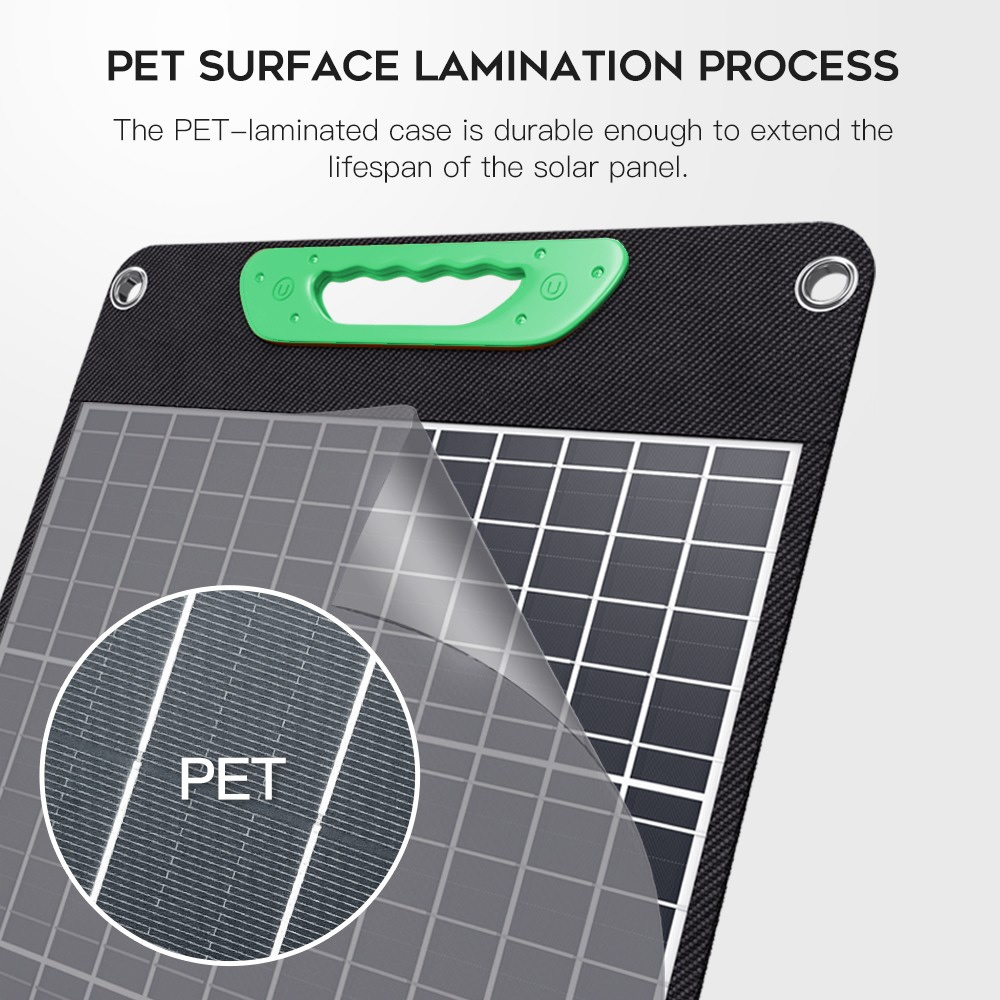

【Dualable Design】The canvas surface and precision stitching withstand rugged for outdoor use and the PET polymer cover that guarantees IP65 waterproof level protection will make the solar panel resistant to water and even dust.


Performance ACE2000 ACE1000 Pro ACE1000 ACE700 ACE500 pro ACE500 ACE300
Rated AC Output 2000W 1000W 700W 500W 500W 300W
Rated Capacity 2016Wh 999Wh 699.3Wh 499.5Wh 444Wh 266.4Wh
Standard Capacity 48V
42Ah
22.2V
45Ah
22.2V
31.5Ah
22.2V
22.5Ah
22.2V
20Ah
22.2V
12Ah

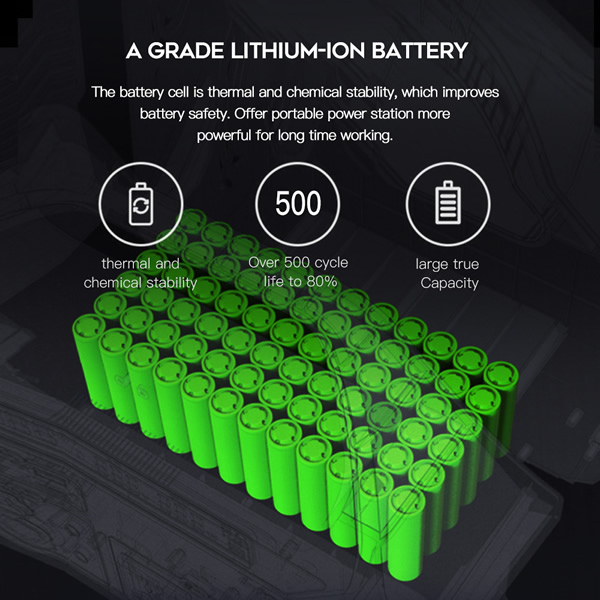

Bettery Type LiFePO4 Li-ion
LCD Display Battery remaining capacity, Battery fault,
total output power,Over temperature,input power
Housing Material ABS+PC ( fireproofing V0)
Charging Temperature Range 0℃~40℃
Charge
Way
AC Input 1200W 700W NO
DC Input NO NO 24V/6.25A 24V/5A 25V/4A 25V/4A 15V/4A
Car Charge 12V
Solar Charge 800W 400W 18-23V/8A 18-23V/8A 18-23V/5A 18-23V/5A 18-23V/3A
Charge
Time
Wall charge 1.5-2.5H 1.5~2.5H NO
DC Input NO NO About 6~8H
Car Charge 10~15H 9~13H About 7~9H
Solar Charge About 3H About 3H About 6~9H
USB Output USB-Type-C PD 100W*2 PD 60W
USB-3.0 QC3.0*4(72W max) QC3.0*3(54W max)
DC port Output 12V/5A*2(120W) 12V/5A*2(120W)
Cigarret Lighter Output 12V/10A(120W) 12V/10A(120W)
Wireless Charge Output 15W 10W
LED Light SOS,Flshlingt(8W) SOS,Flshlingt(5W*2)
AC
Output

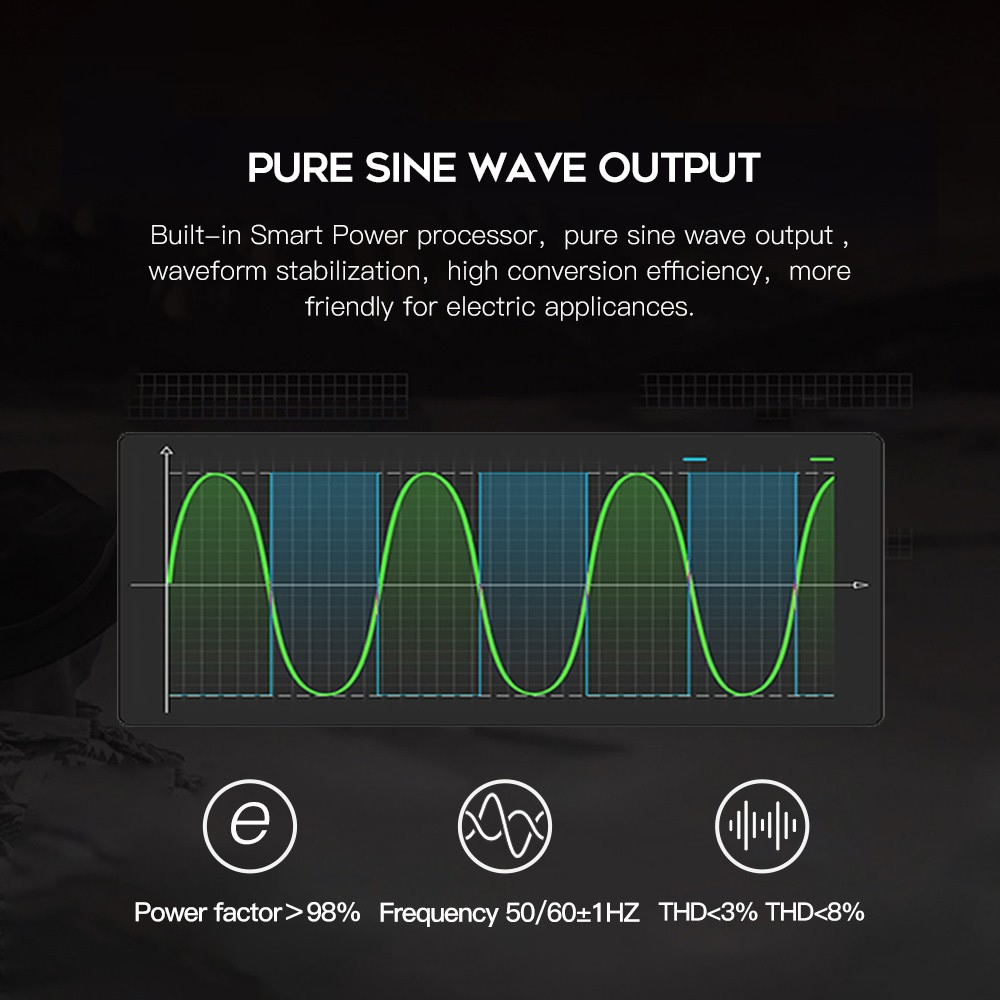

Output waveform Pure Sine Wave
Output voltage 110V*4(US/JP) or 220V*4(EU/UK/AU/CN) 110V*2(US/JP) or 220V*2(EU/UK/AU/CN)
Frequency 50/60Hz
AC continuous output 2000W 1000W 700W 500W 500W 300W
Peak AC output 4000W 2000W 1400W 1000W 1000W 600W
Discharging Temperature Range -15~45℃
Authentication UL,FCC,CE,ROSH,PSE,UN38.3
Product Size 410*290*290mm 328*221*263mm 273*181*244mm
Weight 22kg 9.8Kg 8.9Kg 7.4Kg 6.3Kg 5.5Kg 3.95Kg
Warrantly 18 months

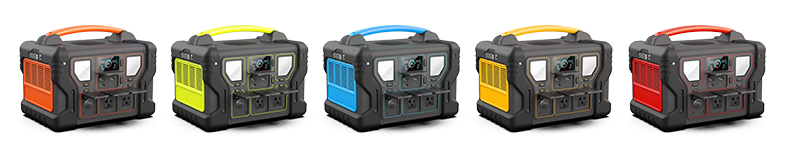

Color Oranger+gray,Blue+gray,Red+gray,Green+gray

Solar Panel Description



Maximum power at STC(Pmax) 60W 100W 150W 200W
Optimum Operating Voltage(Vmp) 18V 18V 18V 18V
Open-Circuit Voltage(Voc) 21V 21.2V 20V 20V
Optimum Operating Current(Imp) 3.3A 5.55A 8.3A 11A
Short-Circuit Current(Isc) 3.6A 6A 9A 12A
Power Tolerance ±3% ±3% ±2.8% ±2.5%
Cell Efficiency rate 23.2% 23.2% 23.2% 23.2%

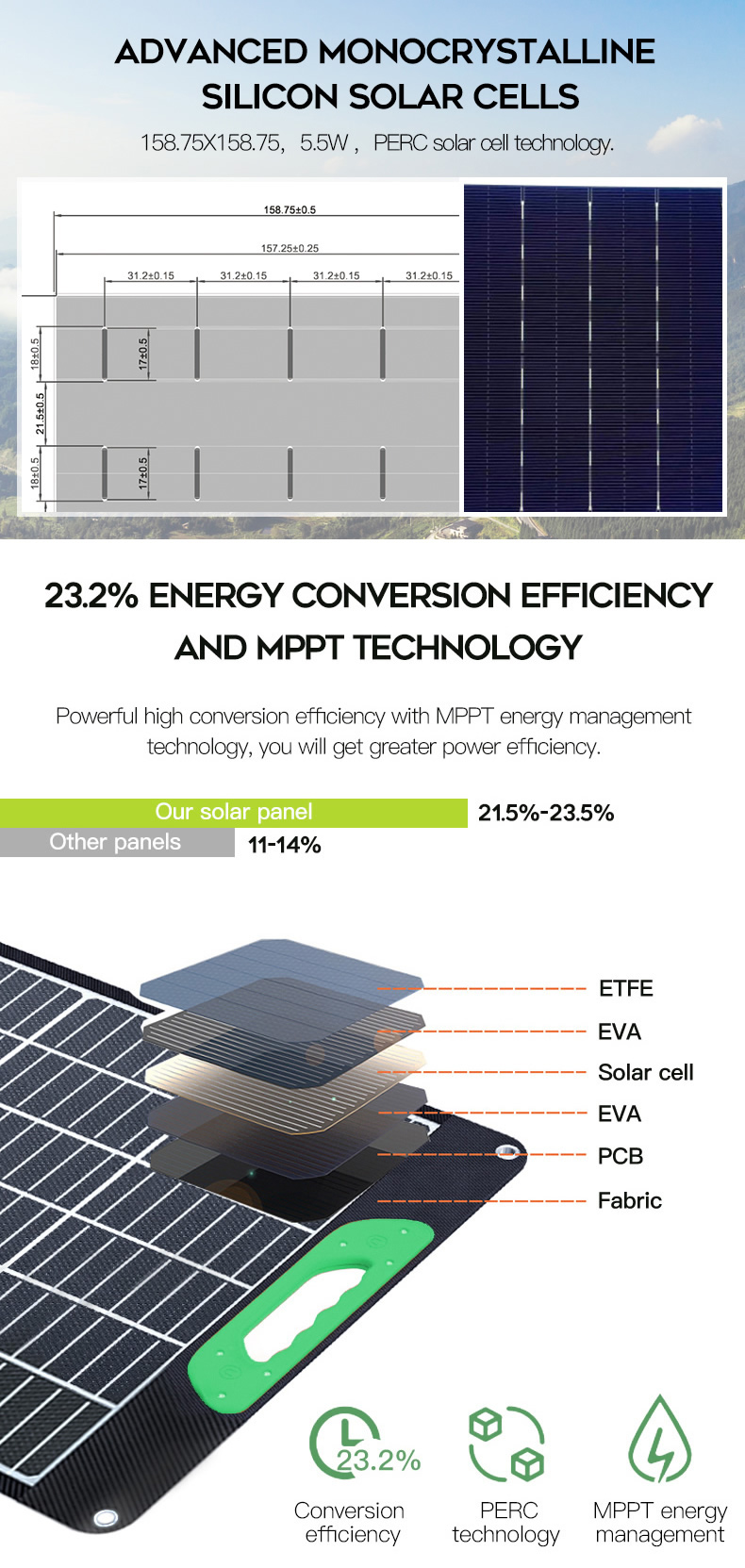

Solar cell Type Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W
0utput Interface USB2.0 (5V 3A )
QC3.0 (5V3.4A / 9V2.5A / 12V2A )
PD( 5V/ 9V/ 12V/ 15V ,3A )
DC 18V/3A Max
USB2.0 (5V 3A )
QC3.0 (5V3.4A / 9V2.5A / 12V2A )
PD( 5V/ 9V/ 12V/ 15V ,3A )
DC 18V/5A Max
USB2.0 (5V 3A )
QC3.0 (5V3.4A / 9V2.5A / 12V2A )
PD( 5V/ 9V/ 12V/ 15V ,3A )
DC 18V/8A Max
USB2.0 (5V 3A )
QC3.0 (5V3.4A / 9V2.5A / 12V2A )
PD( 5V/ 9V/ 12V/ 15V ,3A )
DC 18V/11A Max

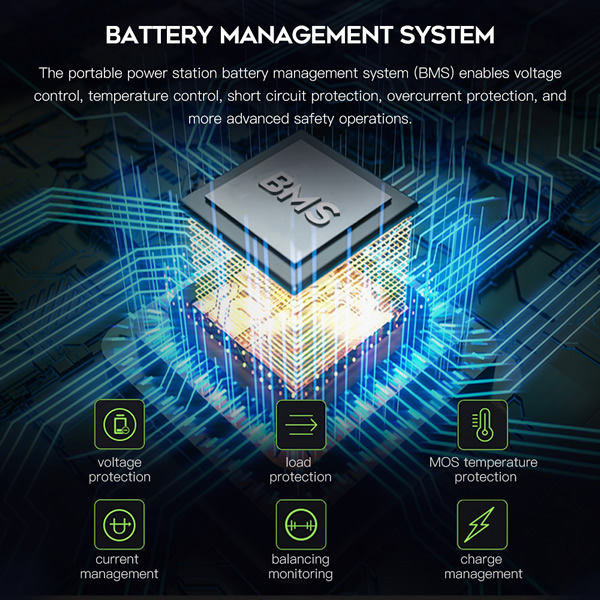

Protection System Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity

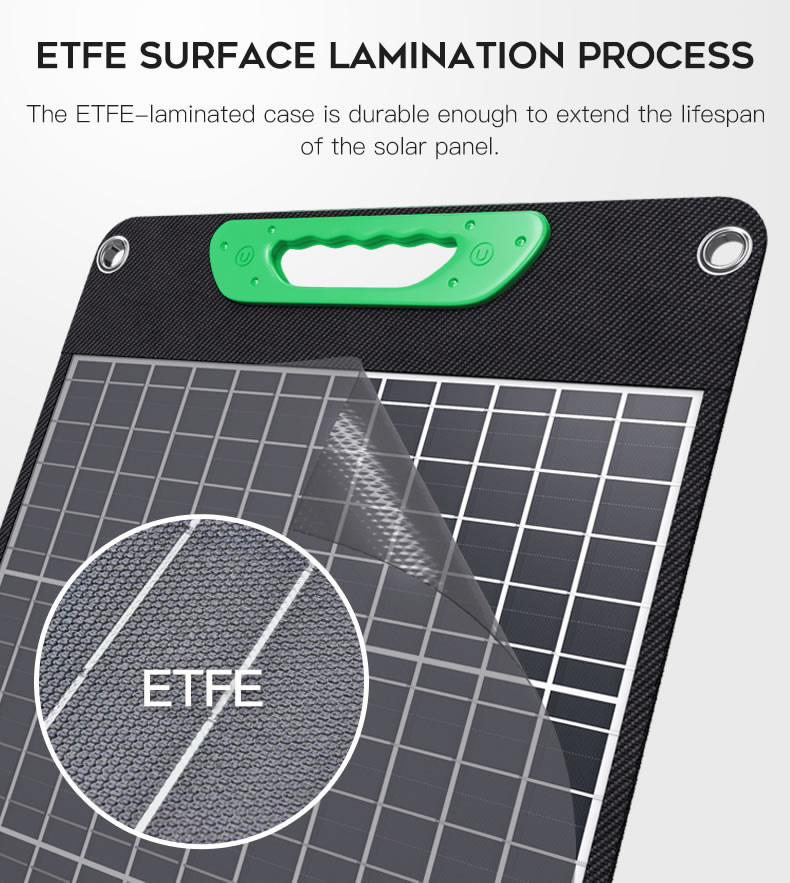

Sealing process ETFE ETFE ETFE ETFE
Operating Temperature -40℃ to +85 ℃ -40℃ to +85 ℃ -40℃ to +85 ℃ -40℃ to +85 ℃
Bag material 600D Oxford cloth , ABS 600D Oxford cloth , ABS 600D Oxford cloth , ABS 600D Oxford cloth , ABS
Junction Box Ip65 Waterproof Ip65 Waterproof Ip65 Waterproof Ip65 Waterproof
Open size 830x520x16mm 1177*520*16MM 1955*508*16MM 2300*530*16mm
Folding size 520x415x30mm 590*520*30MM 540*508*50MM 630*530*50mm
Net weight 2.7KG 3.7KG 6.1KG 6.5KG
OEM service Can be customized Fabric color, Handle color, Power, Voltage, Size, Junction box, Connector, Packing box

OEM Service Advantages

ACETOP is in the line of R&D, manufacturing and sales of lithium batteries, Solar Power Station and Solar panel ,Lithium-ion battery packs, accesories.in this field, we have provided products and services to many repuated clients. The main products: Solar Power Station, Solar Power bank ,Solar panel,portable Solar panel, on-grid and off grid solar power system, and other products that applies solar photovoltaic technology ,related accessories,OEM ODM power station service. ACETOP has rich OEM ODM service experience and do well in serving reputated client in the PV field. and set up its own quality management system. Different kinds of products are available in our company. We′re pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
