500W 518Wh Portable Power Station Backup Lithium Battery1000W Pure Sine Wave AC Outlet Solar Generator
Portable Power Station 500W 518Wh Backup Lithium Battery Pure Sine Wave AC Outlet Solar Generator for Outdoors Camping Travel Hunting Blackout
Send Inquiry service@iacetop.comDescription

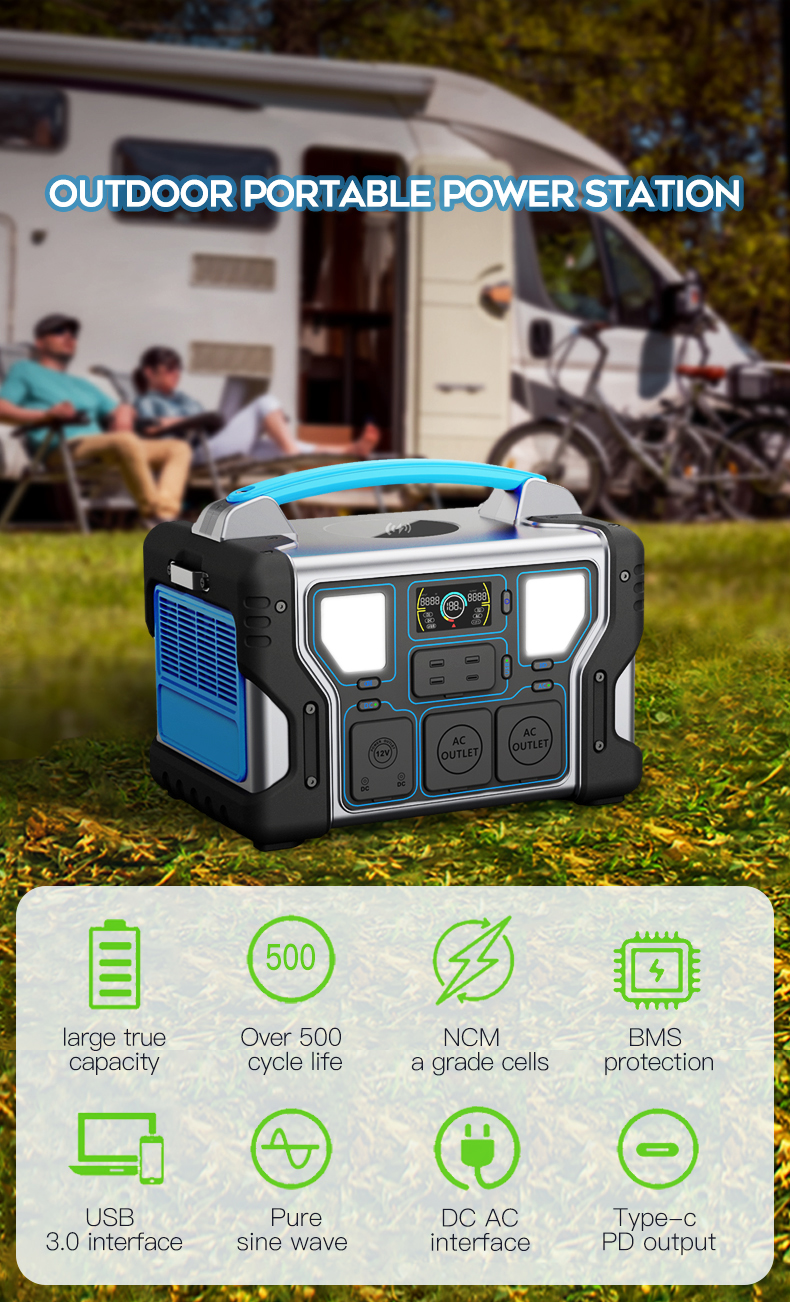

• This portable power station is equipped with multiple output ports to power mainstream essential gadgets and small appliances 。
• The portable power station battery management system (BMS) enables voltage control, temperature control, short circuit protection, overcurrent protection, and more advanced safety operations.
• This solar powered generator be prepared for blackouts or other emergencies with the multi-mode LED flashlights on both sides of the carrying handle.

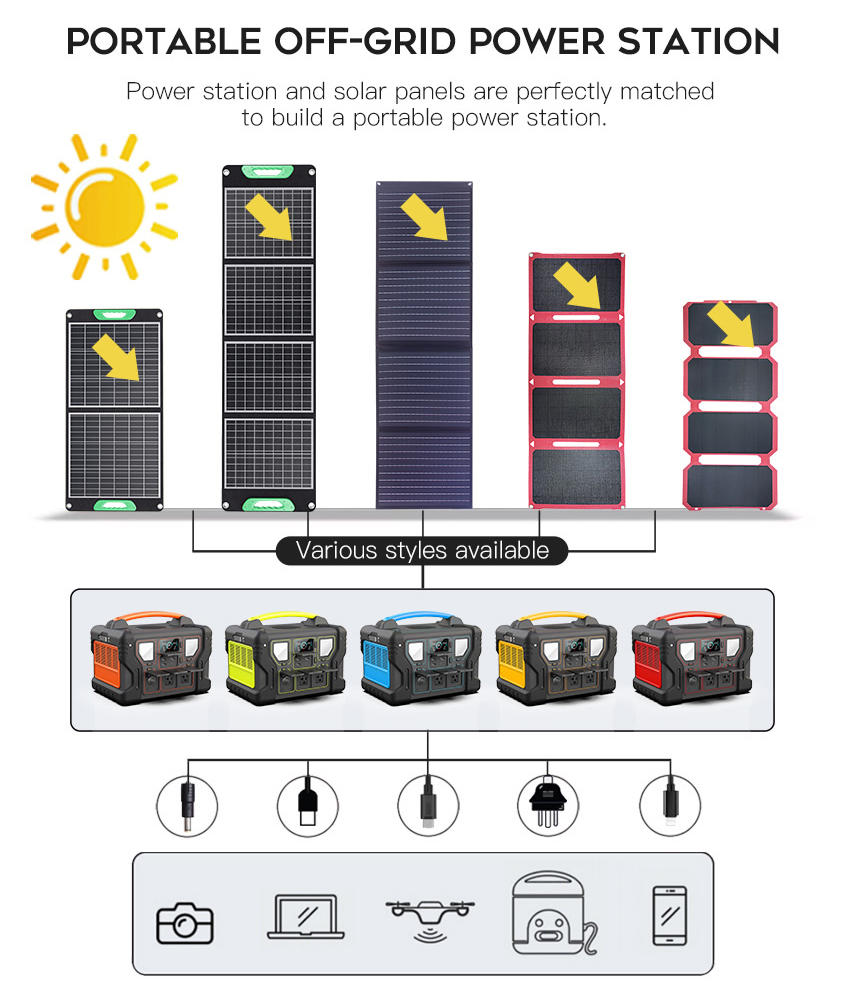

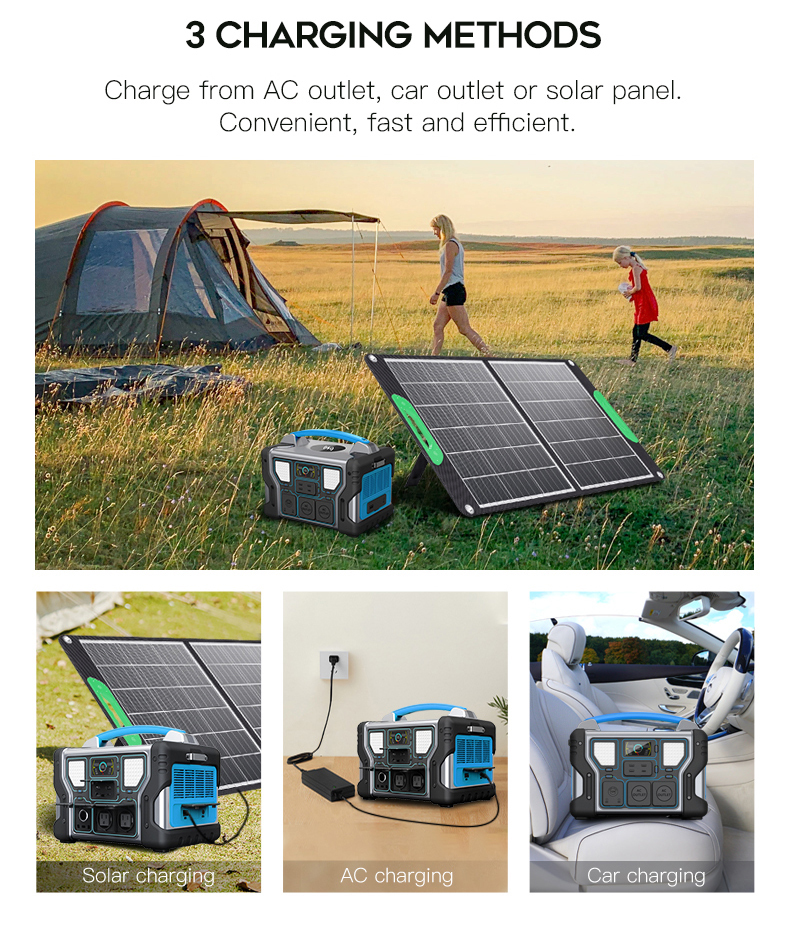

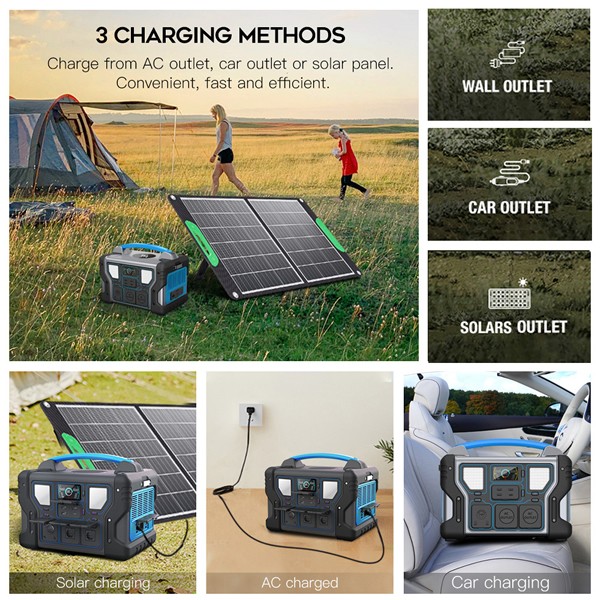

• The outdoor power station conveniently charges through AC outlet, car socket, or solar panel.
Performance Advantages
Technical Parameter
| Cell Type | NCM CELL , A grade lithium-ion battery cell |
| Battery Pack Capacity | 20Ah 22.2V (or 3.7V/120000mAh) |
| Battery Pack Energy | 444Wh |
| Rating Output Power | 500W |
| USB Interface |
Type-C
output:PD 60W 1PCS, (5V3A,9V3A,12V3A,15V3A,20V3A ) USB QC3.0 output:3PCS,total 54W, (18W/5V3A,9V2A,12V1.5A) |
|
DC Interface |
DC
input:DC15V/4A(60W max,adapter with UL,CCC,CE,PSE,FCC) DC output:12V/5A/DC5521 , 2pcs (total 120W ) DC fully Charging Time:About 5~7H |

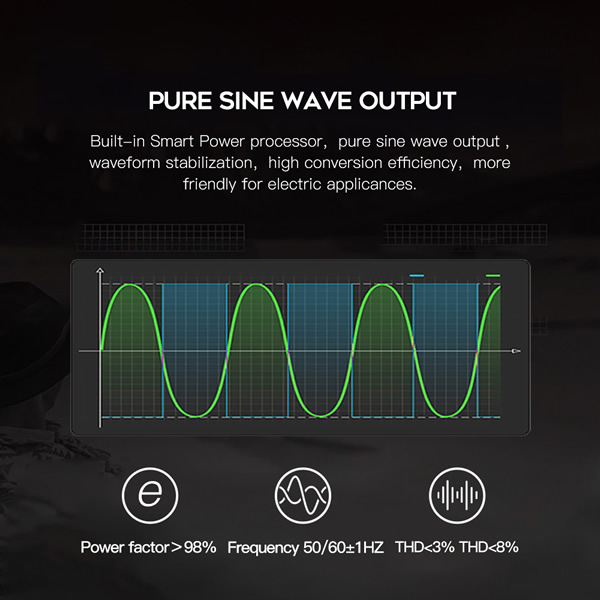

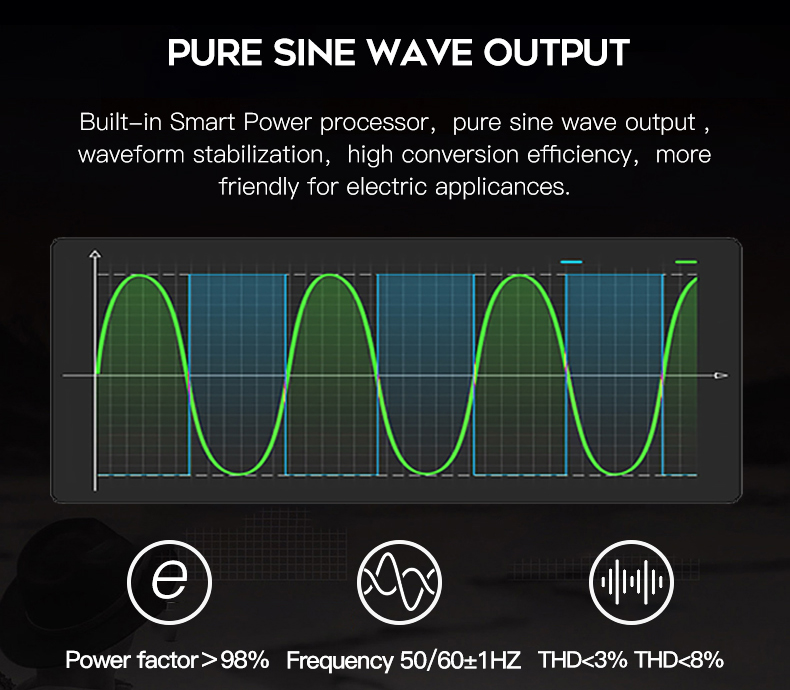

| AC Output Voltage Distortion Waveform (THD) | Output waveform:pure sinewave ,Sine wave < 3% (linear load),Sine wave < 8% (nonlinear load) |
| AC Interface |
2pcs,Output
voltage:110V(US/JP) or 220V(EU/UK/AU/CN) ,220V/240V 50±1Hz ,
110V/120V 60±1Hz Power out :peak power:1000W, continuous output: 500W |
| Solar charging Interface | MPPT,Support any solar input from 18-23V 3A max (up to 60W) |
| Cigarret Lighter Interface | 12V/10A(120W) |
| Wireless Charge | 10W |
| BMS Protection system |
Intelligent
battery management system MOS Protection Double protections on both BMS and hardware over-charge protection,over-discharge protection, over-current protection, over-temperature protection,short-circuit protection, over-voltage protection. |
| LED light | 5W 2PCS (total 10W Max),SOS,flshlingt |
| Power Indicate | LCD Display,Battery remaining capacity, Battery fault, total output power,Over temperature,input power |
| Charge Time |
NO
Wall charge DC Input Time , about 6~8H Car Charge Time , about 7~9H Solar Charge Time , about 6~9H |
| Full Load Output Power Factor | ＞0.98 |
| Life Cycle | 500 cycles to 80% capacity |
| Housing Material | ABS+PC ( fireproofing V0) |
| Operating temperature |
Charge
Temperature 0~40℃ Discharge Temperature -10~40℃ Storage Temperature -10~40℃ |
| Warrantly | 12 months |
| Package detail | Product size:273*181*244mm/about 5.5kg Carton Siz:59*30*32CM/about 17Kg/3PCS |
|
Package Include |
1*portable power supply, 1*AC input power supply,1*User Manual, ,color box packaging,1*MC4 charging cable, 1*vehicle charging cable,1*straps |
| OEM service |
color
optional:Oranger+gray,Blue+gray,Red+gray,Green+gray Appearance, size, style, performance, packaging, can be customized |
OEM Service Advantages
FAQ
We are professional manufacturer of power station
battery solar panel .
※How do we ensure our quality ?
1.
In the field, well-known brands are our cooperative customers. We have
provided them with oem services for 15 years. With their help, we have
continuously optimized our quality control system.
2. ACETOP
is confident to provide customers with top quality products as we have solid
flow of Production Material Control (PMC),In-Process Quality Control (IPQC),
Finished Product Quality Control (QC) and Delivery Quality Assurance (QA). To
provide you with an extra level of protection, we check our items piece by
piece prior to shipment.
3.
Our products have passed ISO 9001,CE,ROSH, CCC, ROSH and other
certification .
※What make our product difference from
other factory?
1.ACETOP clients benefit from lower
manufacturing costs and time-to-market volume production through over 180
highly qualified staffs and the 7500 square meters workshop, including a mold
development center, a metal and plastic injection center,a hardware processing
center, 5 product assembling centers , Printing workshop.
2.
Thanks to more than 15 dedicated engineers with strong engineering
capability and extensive experience in system R & D, we keep developing new
products every year to keep up to date with the market. we pride ourselves on
our ability to meet our customers'
needs. If one of our standard products doesn't meet your requirements, we can
custom-design a product for you.
3.We have a complete process chain in the
industry, so we can provide you with better customized services.
