250 Watt Portable Solar Panel for Power Station Foldable
250 Watt Portable Solar Panel for Power Station Foldable 250W Solar Panel for Camping Hiking Off Grid Living Monocrystalline Folding Panel Solar with 5V USB 18V DC Output
Send Inquiry service@iacetop.comSolar Panel Description

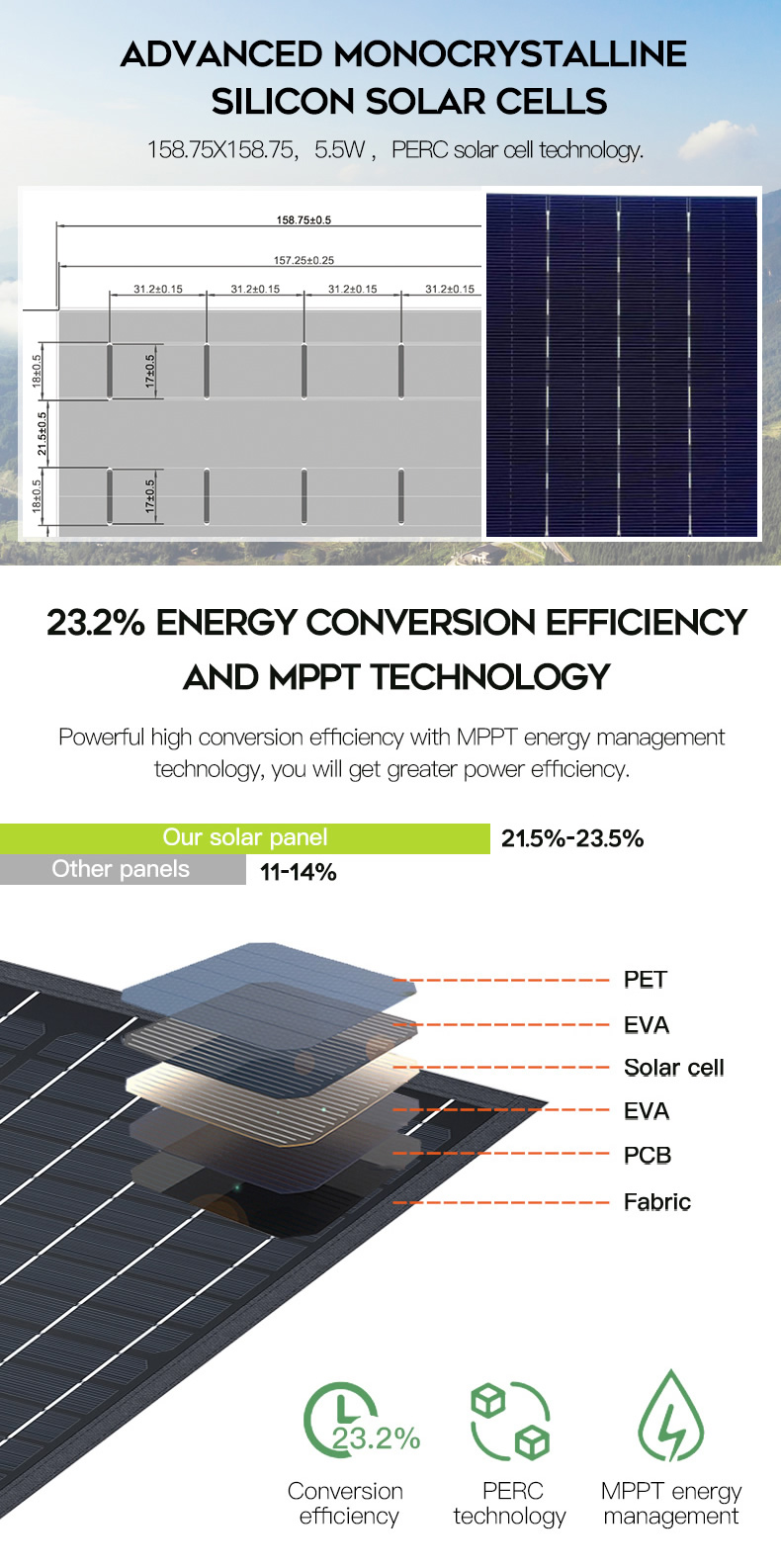

【High Solar Conversion】: It is monocrystalline portable solar panel with high conversion rate of 23% and scratch-resistant ETFE coating. It has high visible light transmittance, charge your power station even in less than ideal weather conditions.
[Compatible with Most Solar Generators]: foldable solar panel uses standard connector & is designed to be used with most solar generators on the market,including any of the solar generators

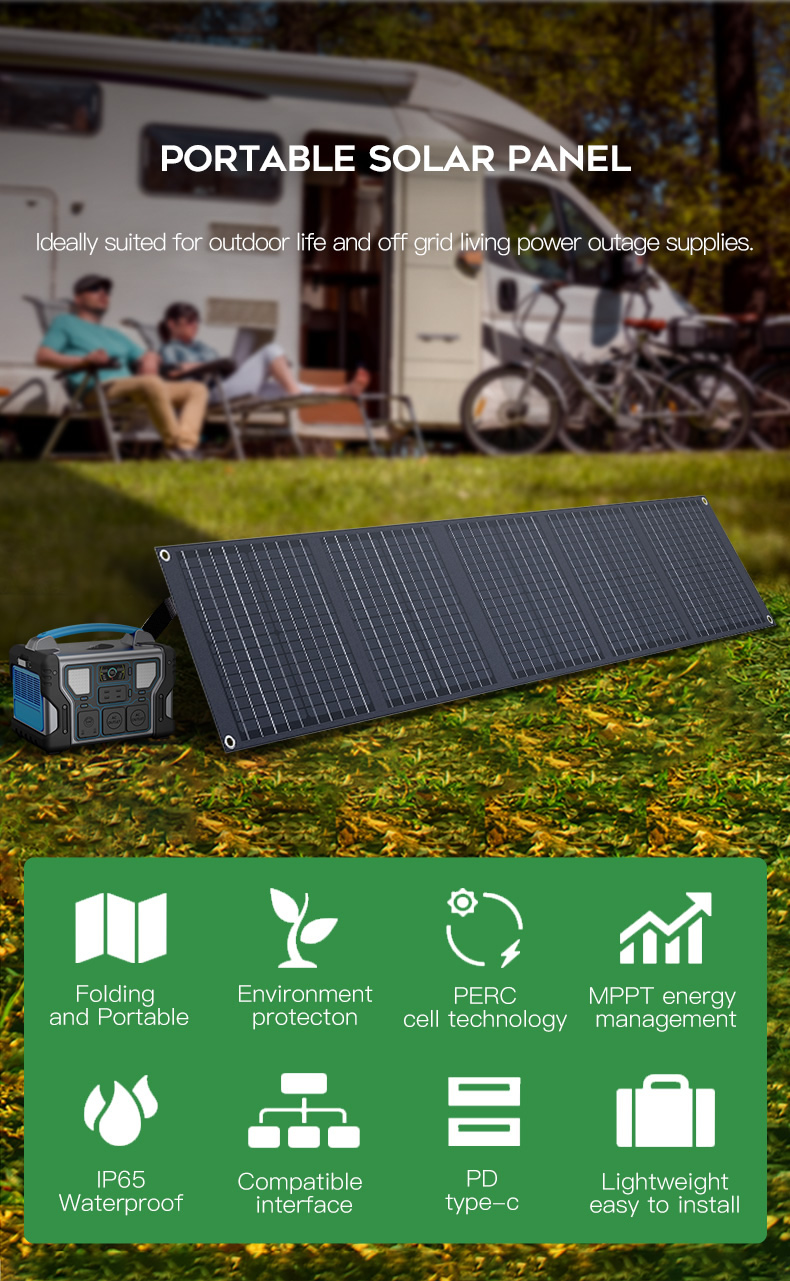

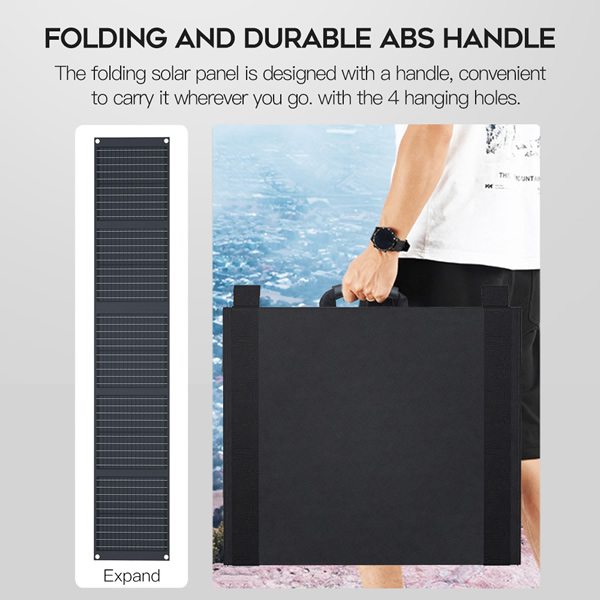

[FOLDABLE & PORTABLE]: The solar panel is easy to transport and install for anyone.
【WIDE COMPATIBILITY】: With 5 different connector sizes (DC7909, XT60, Anderson, DC5525, DC5521), 120W solar panel can be compatible with other popular solar generators on the market. You can use it with any standard power station.
【BUILT-IN USB OUTPUT】: The portable solar panel has 24W USB-A QC3.0 output and 45W USB-C output to quickly charge your phone, tablet, power bank and other USB devices. So it is ideal for camping, travelling, power outages or emergencies.
Performance Advantages
Technical Parameter
| Maximum Power at STC(Pmax) | Your choice | Other choice | |||
| 250W | 60W | 100W | 120W | 150W | |
| Optimum Operating Voltage(Vmp) | 18V | 18V | 18V | 18V | 18V |
| Open-Circuit Voltage(Voc) | 20V | 21V | 21.2V | 20V | 20V |
| Optimum Operating Current(Imp) | 14A | 3.3A | 5.55A | 8.8A | 8.3A |
| Short-Circuit Current(Isc) | 15.2A | 3.6A | 6A | 9A | 9A |
| Power Tolerance | ±2.5% | ±3% | ±3% | ±2.8% | ±2.5% |
| Cell Efficiency rate | 23.2% | 23.2% | 23.2% | 23.2% | 23.2% |

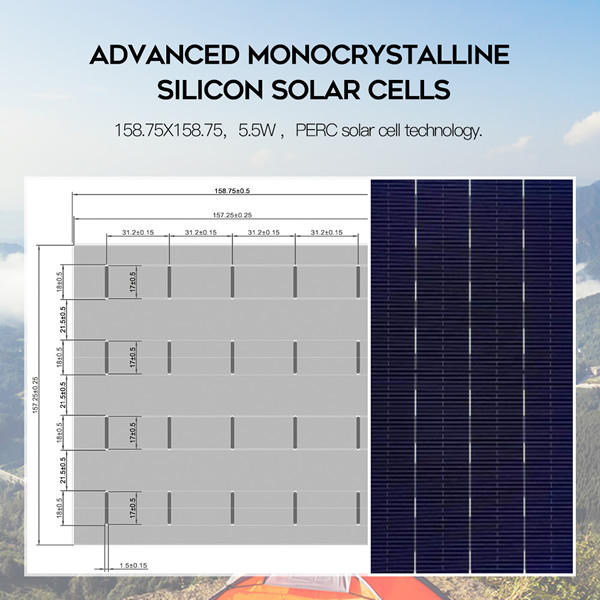

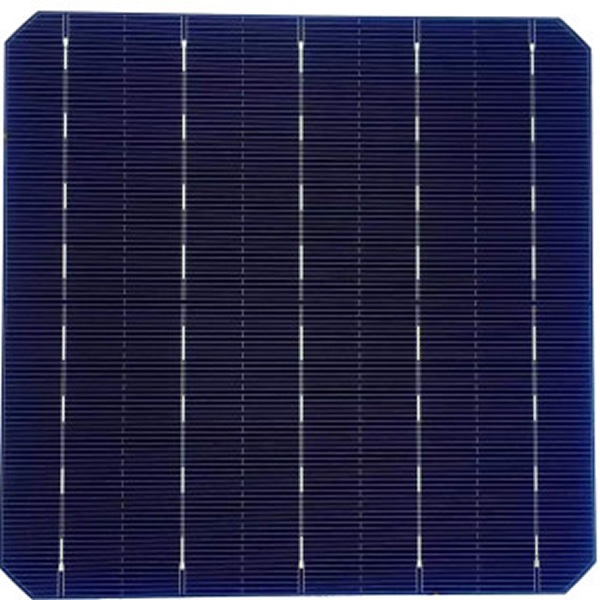

| Solar cell Type | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W |
| System Protection |
USB2.0
(5V 3A ) QC3.0 (5V2.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V,3A ) DC 18V/11A Max |
USB2.0
(5V 3A ) QC3.0 (5V2.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V,3A ) DC 18V/3A Max |
USB2.0
(5V 3A ) QC3.0 (5V2.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V,3A ) DC 18V/5A Max |
USB2.0
(5V 3A ) QC3.0 (5V2.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V,3A ) DC 18V/8A Max |
USB2.0
(5V 3A ) QC3.0 (5V2.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V,3A ) DC 36V/7.5 A Max |
| 0utput Interface | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity |
| Sealing Process | PET | PET | PET | PET | PET |
| Operating Temperature | -40℃ to +85 ℃ | -40℃ to +85 ℃ | -40℃ to +85 ℃ | -40℃ to +85 ℃ | -40℃ to +85 ℃ |

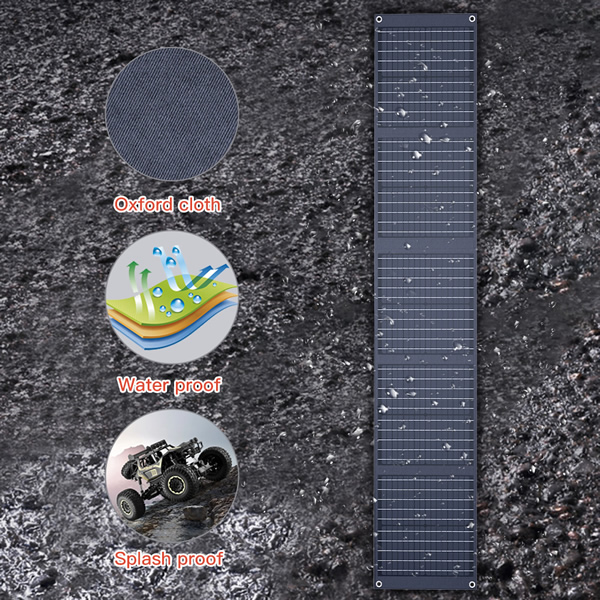

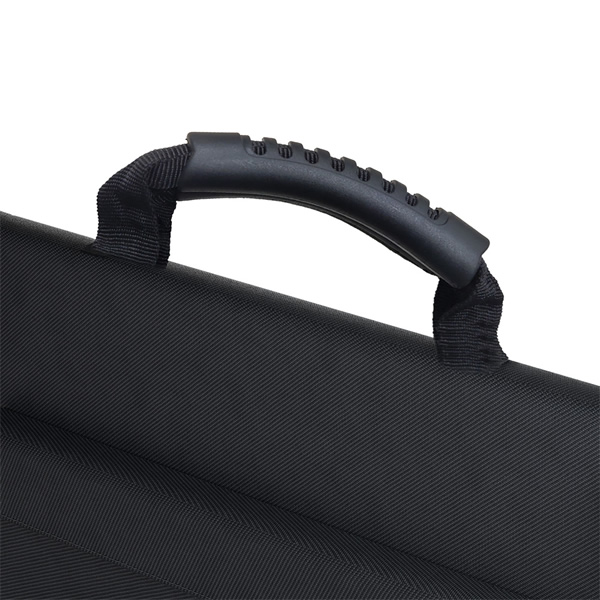

| Bag Material | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS |
| Cell Efficiency rate | 23.2% | 23.2% | 23.2% | 23.2% | 23.2% |

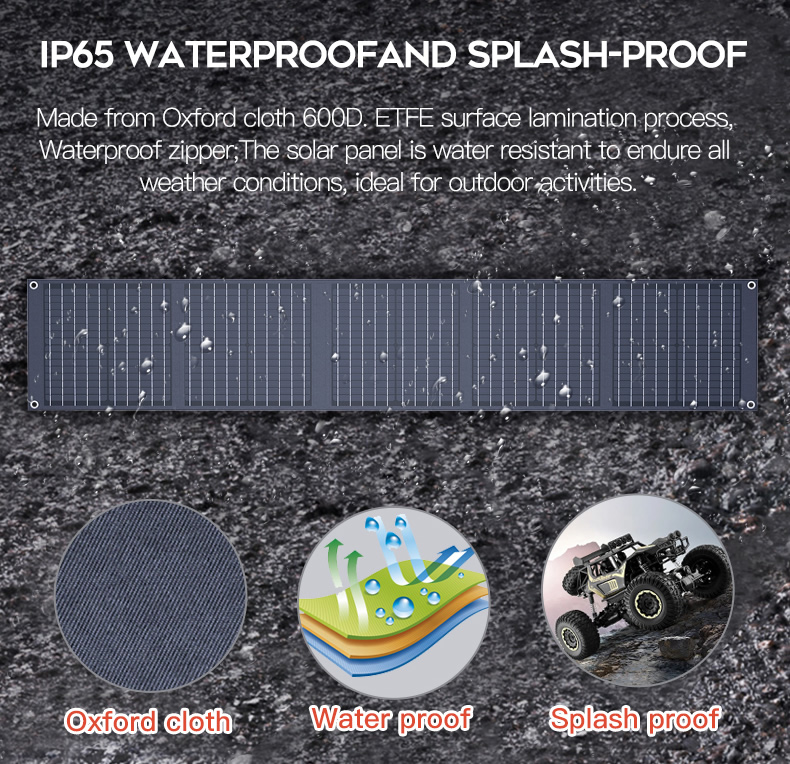

| Junction Box | Ip65 Waterproof | Ip65 Waterproof | Ip65 Waterproof | Ip65 Waterproof | Ip65 Waterproof |
| Open Size | 568*2710*4mm | 730*365*4mm | 1110*360*4mm | 1955*508*16MM | 480*2140*4mm |
| Folding Size | 568*525*16mm | 365*355*8mm | 365*355*12mm | 488*525*16mm | 480*520*16mm |
| Net Weight | 7.8KG | 1.9KG | 3KG | 6.1KG | 5.7KG |
| OEM Service | Color, size, appearance, performance, power, voltage can be customized | ||||
| Open Size:568*2710*4mm;Folding Size:568*525*16mm ;Net Weight:7.8KG. | |||||
FAQ
Q: Are you a factory?
A: Yes. We are a manufacturer of Solar panels.
Q: What is the warranty of products?
A: If quality problems, the warranty is 5-25 years.
Q: How about the shipping time?
A: It is about 30 days by sea, it is suitable for mass goods.
Q: Can I customized the watt?
A:Sure. Please tell us the output power you need.
Q:Can I put my logo on the product?
A:Yes. We accept embroidery LOGO or silkscreen printing LOGO on the products, please just send us the design.
Q: Where can I get the price?
A: We will offer the quotation to you in 24 hours when we get the specifications, such as voltage, capacity, application etc.
Q: How do you assure good quality products?
A: Quality is priority 100% 24 hours aging quality test before packing to assure reliable quality.
