200W Solar Panel for Solar Generator Portable Power Station

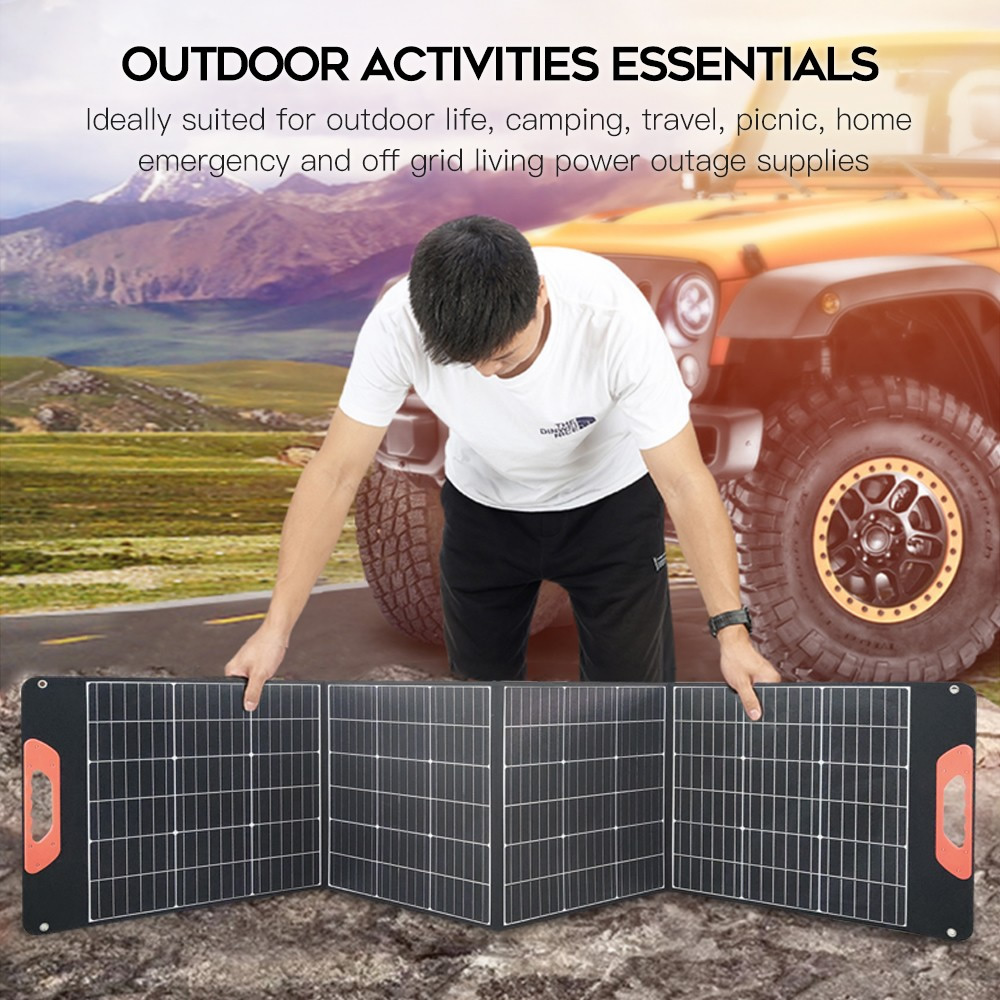

200W Solar Panel for Solar Generator Portable Power Station Foldable Solar Power Backup Off Grid Supplies for Outdoor Camping Power Failure Road Trip

Send Inquiry service@iacetop.com
Solar Panel Description

Whether you're camping with friends, travelling in your campervan, or powering your home or garden, ACE has weatherproof, portable solar panels to fit your needs.

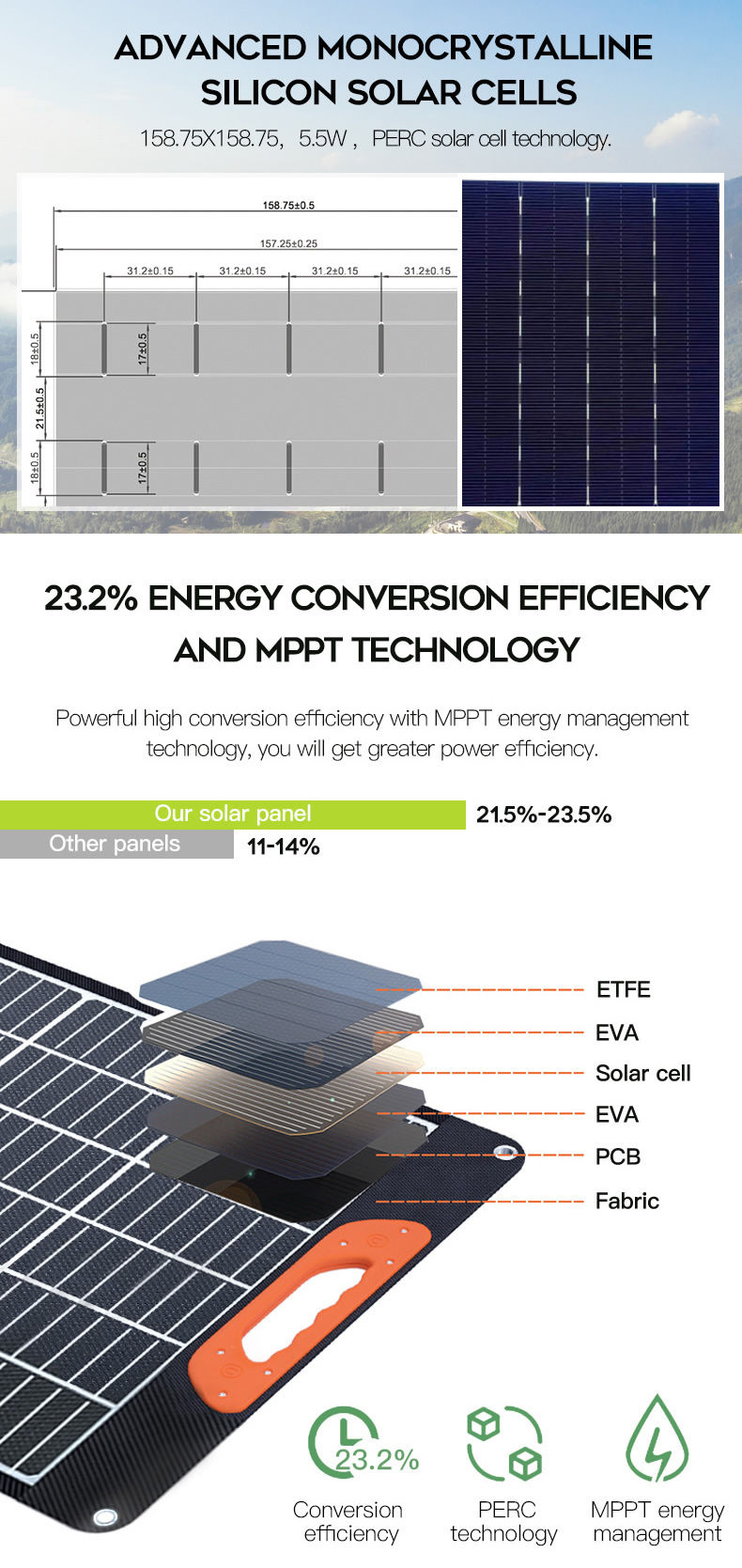

1. Higher Energy Conversion Rate: Covered by monocrystalline silicon solar cells, the portable solar panel adopts PERC solar cell technology to generate energy from the sunlight and perform better with higher conversion efficiency that up to 23% than other conventional panels.

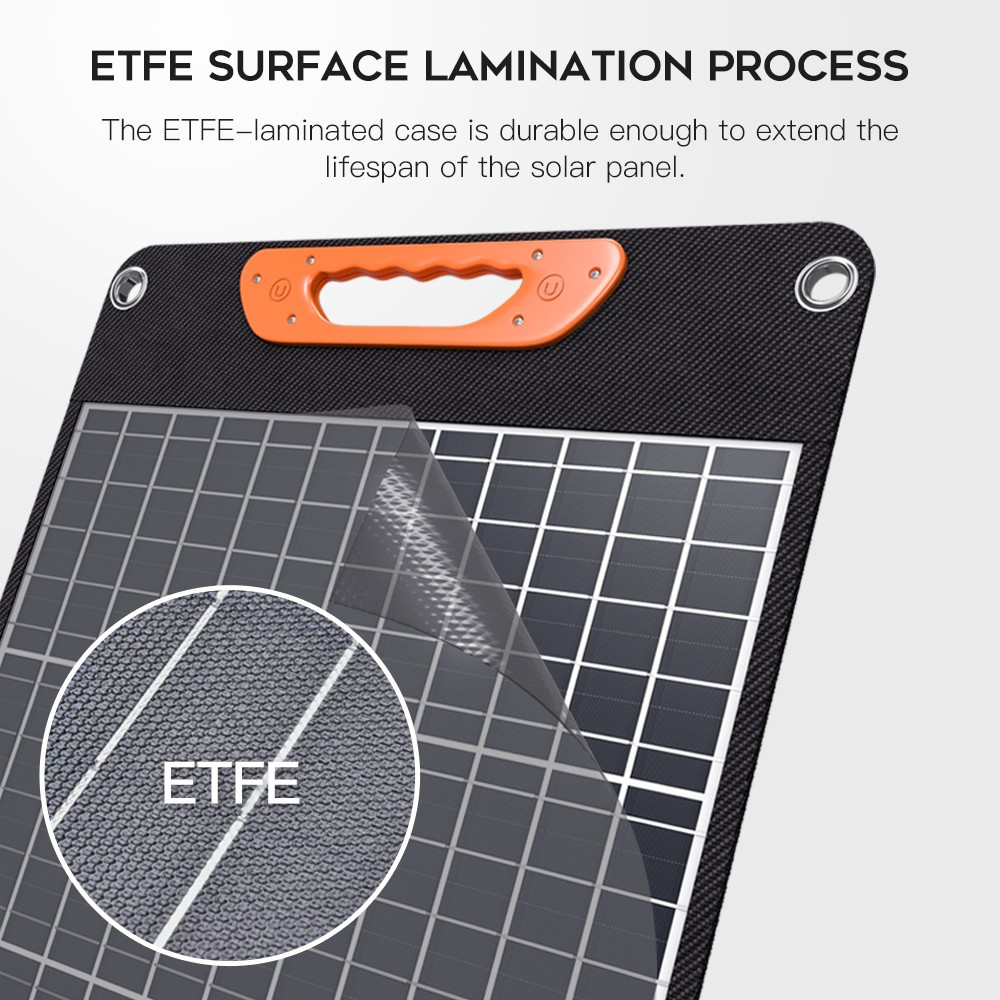

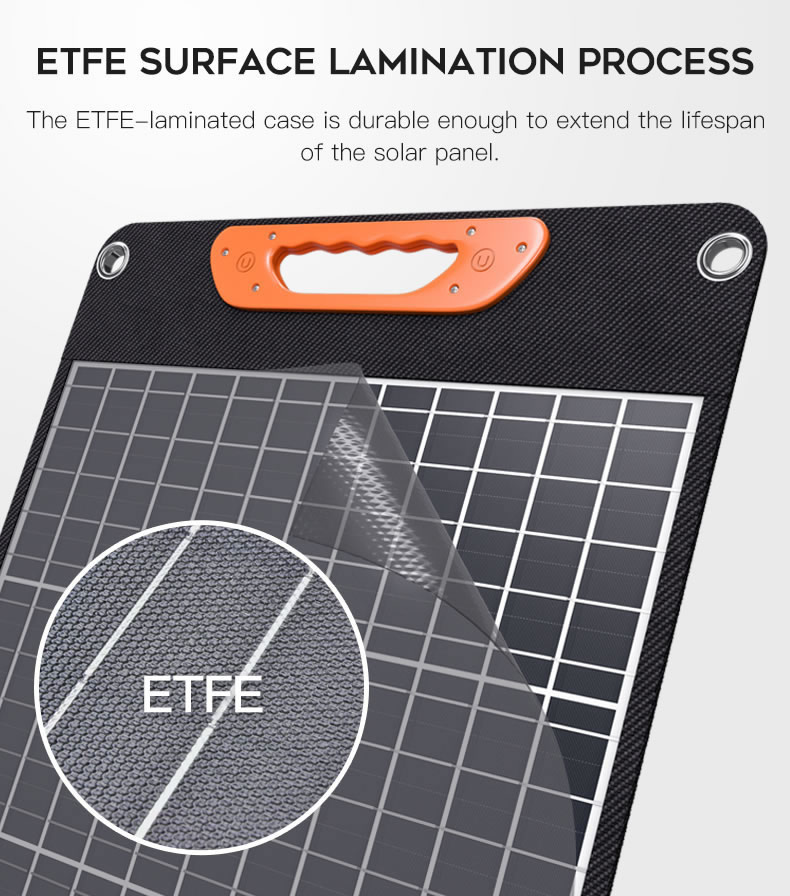

2. Durable & Splash-proof: The ETFE-laminated case is durable enough to extend the lifespan of the solar panel. The IP65 water-resistant rating protects it from water splashing (Do not place it under the rain, or to soak in water). The zippers on the pocket can hold the power cords, and cover the power port.

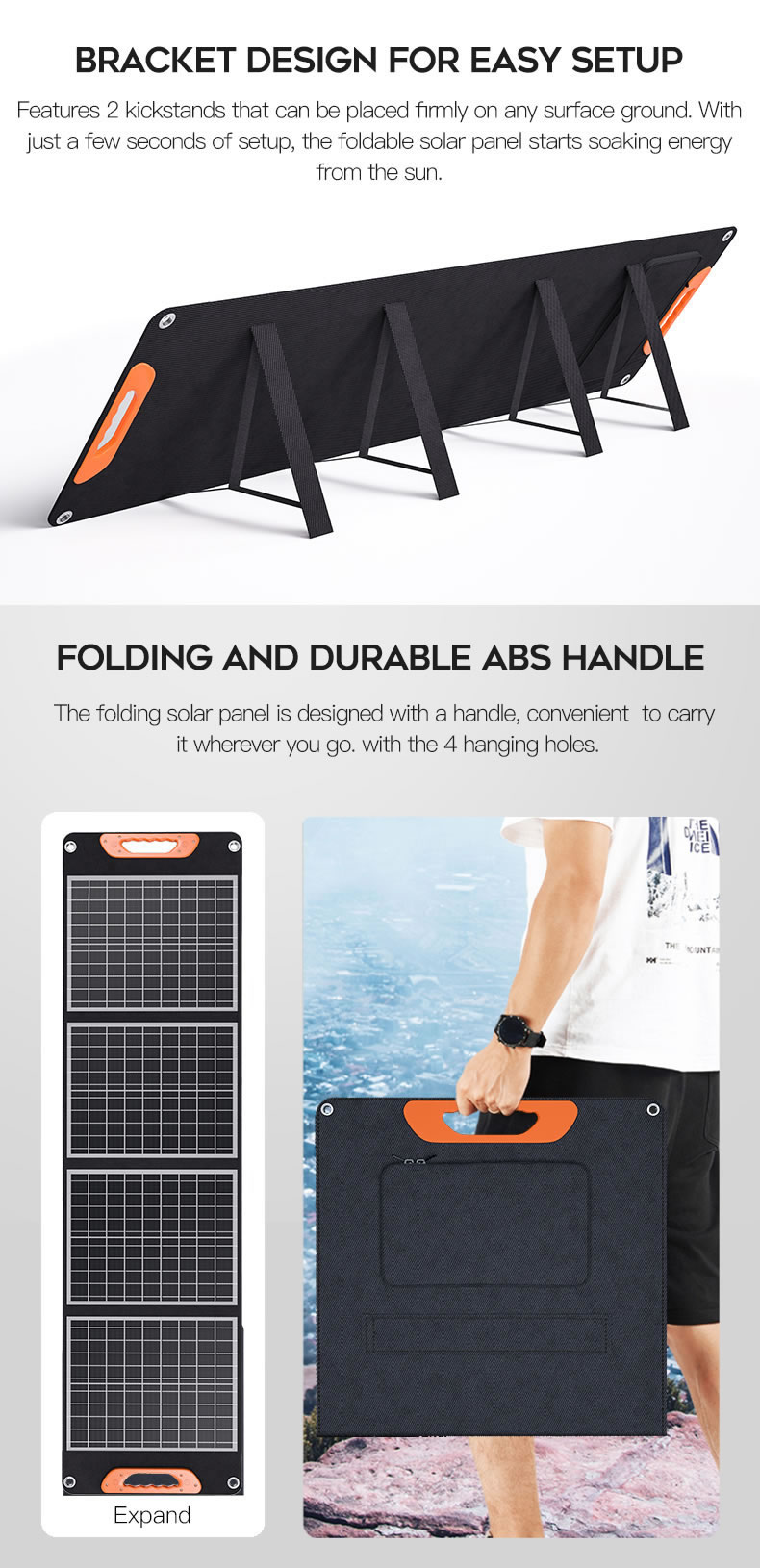

3. Easy Setup & Kickstand Included: features 2 kickstands that can be placed firmly on any surface ground. With just a few seconds of setup, the foldable solar panel starts soaking energy from the sun. The TPE rubber handle allows you to carry around easily when taking off-grid adventures.

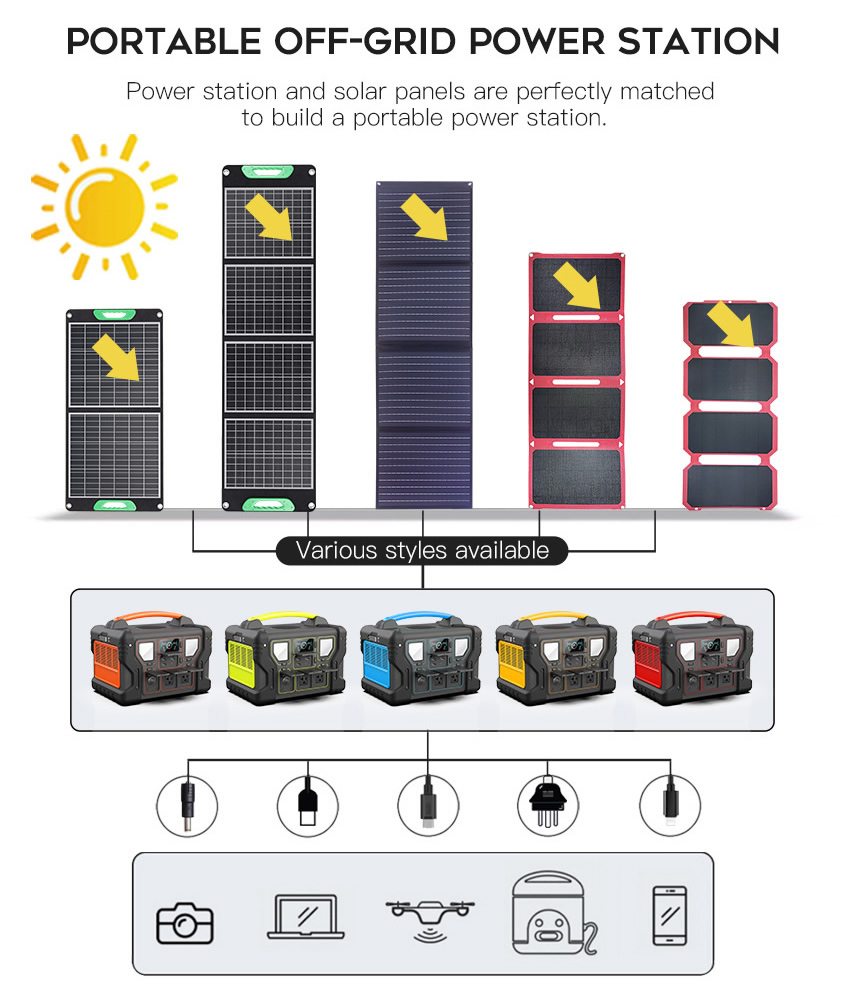

4. Compatible & Versatile: solar panel is compatible with power station 240/300/500/1000/1500 power station (sold separately), ideal for road trip, camping trip, RV, and over-landing. The lightweight solar panel features 1* USB-C(5V,3A) output port and 1* USB-A(5V, 2.4A) output port to charge 2 small devices directly.


5. What you get: 1* Solar Panel. Note: We are now providing a new solar panel with no change in performance or functionality, but differentiates only in appearance.

Performance Advantages



Technical Parameter

Maximum power at STC(Pmax) 60W 100W 150W 200W
Optimum Operating Voltage(Vmp) 18V 18V 18V 18V
Open-Circuit Voltage(Voc) 21V 21.2V 20V 20V
Optimum Operating Current(Imp) 3.3A 5.55A 8.3A 11A
Short-Circuit Current(Isc) 3.6A 6A 9A 12A
Power Tolerance ±3% ±3% ±2.8% ±2.5%
Cell Efficiency rate 22% 22% 22% 22%

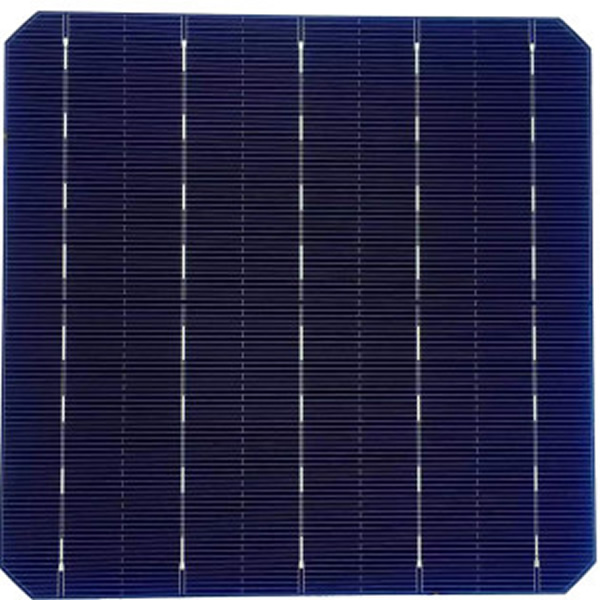

Solar cell Type Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W

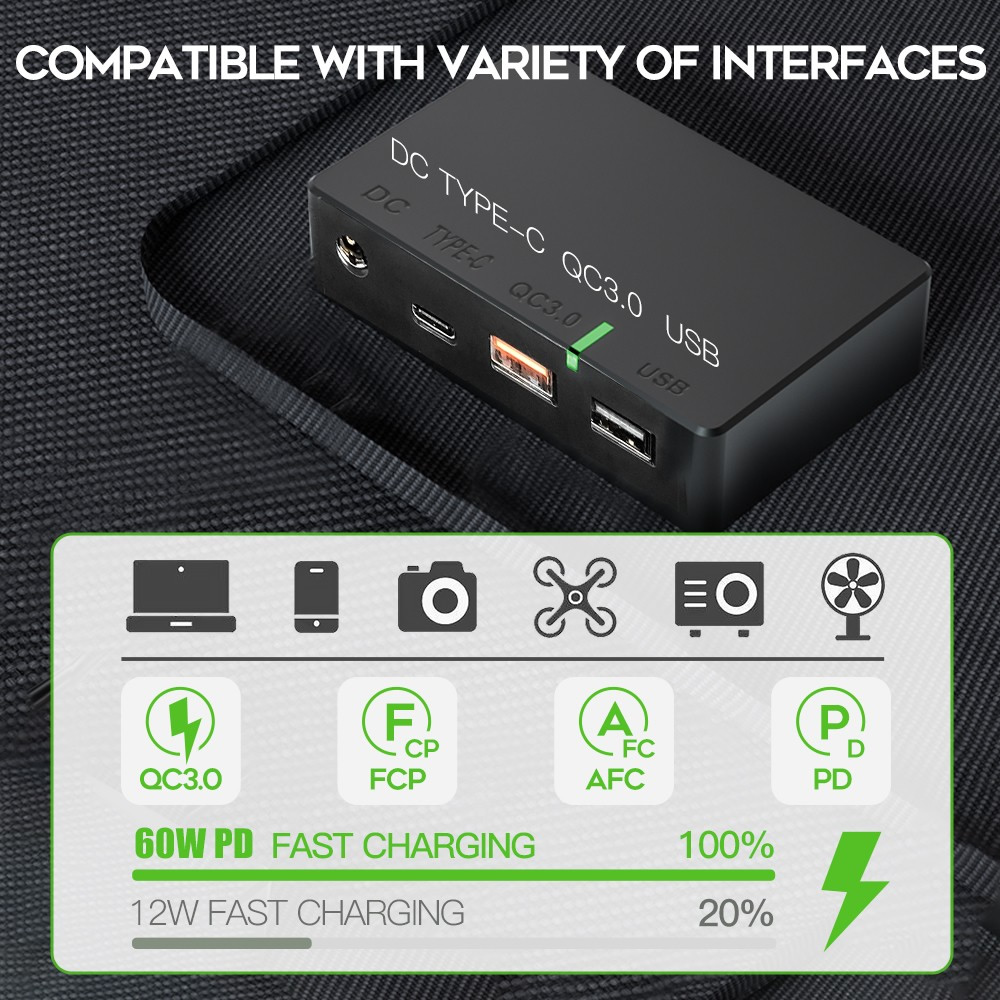

0utput Interface USB2.0 (5V 3A )
QC3.0 (5V3.4A / 9V2.5A / 12V2A )
PD( 5V/ 9V/ 12V/ 15V ,3A )
DC 18V/3A Max
USB2.0 (5V 3A )
QC3.0 (5V3.4A / 9V2.5A / 12V2A )
PD( 5V/ 9V/ 12V/ 15V ,3A )
DC 18V/5A Max
USB2.0 (5V 3A )
QC3.0 (5V3.4A / 9V2.5A / 12V2A )
PD( 5V/ 9V/ 12V/ 15V ,3A )
DC 18V/8A Max
USB2.0 (5V 3A )
QC3.0 (5V3.4A / 9V2.5A / 12V2A )
PD( 5V/ 9V/ 12V/ 15V ,3A )
DC 18V/11A Max
Protection System Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity
Sealing process ETFE ETFE ETFE ETFE
Operating Temperature -40℃ to +85 ℃ -40℃ to +85 ℃ -40℃ to +85 ℃ -40℃ to +85 ℃
Bag material 600D Oxford cloth , ABS 600D Oxford cloth , ABS 600D Oxford cloth , ABS 600D Oxford cloth , ABS
Junction Box Ip65 Waterproof Ip65 Waterproof Ip65 Waterproof Ip65 Waterproof
Open size 830x520x16mm 1177*520*16MM 1955*508*16MM 2300*530*16mm
Folding size 520x415x30mm 590*520*30MM 540*508*50MM 630*530*50mm
Net weight 2.7KG 3.7KG 6.1KG 6.5KG
OEM service Can be customized Fabric color, Handle color, Power, Voltage, Size, Junction box, Connector, Packing box

OEM Service Advantages

※ Professional manufacturer of energy field of solar panel and power station.

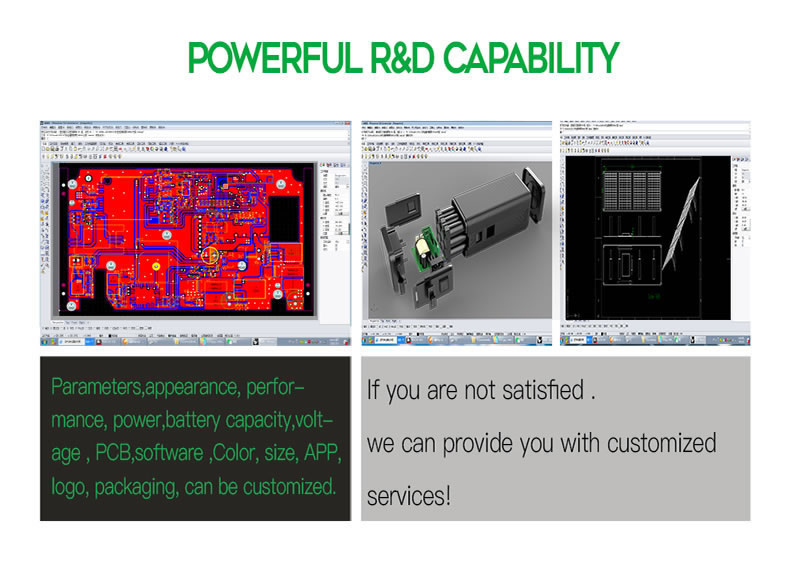

※ Parameters,appearance, performance, power,battery capacity,voltage , PCB,software ,Color, size, APP, logo, packaging, can be customized.
1.Our clients benefit from lower manufacturing costs and time-to-market volume production through over 120 highly qualified staffs and the 7500 square meters workshop, including a mold development center, a metal and plastic injection center,a hardware processing center,5 product assembling centers , Printing workshop.

2. Thanks to more than 15 dedicated engineers with strong engineering capability and extensive experience in system R & D, we keep developing new products every year to keep up to date with the market. we pride ourselves on our ability to meet our customers' needs. If one of our standard products doesn't meet your requirements, we can custom-design a product for you.

3.We have a complete process chain in the industry, so we can provide you with better customized services.

4.Normally MOQ 100pcs, but we also accept small sample order for quality clients.

FAQ

※What make our product difference from other factory?
1.Our clients benefit from lower manufacturing costs and time-to-market volume production through over 180 highly qualified staffs and the 7500 square meters workshop, including a mold development center, a metal and plastic injection center,a hardware processing center,5 product assembling centers , Printing workshop.

2. We have a highly experienced and efficient R&D, Design, Sales and Management team with top educational background. We provide full after sales and technical support. With our passionate and professional support team, ACETOP looks forward to being your supplier.
You can be assured your products receive priority treatment. We strive to have our customers regard us as strategic manufacturing partners, an integral part of their operations. Our headquarter center are located in Shanghai, China. Contact us at once to make us your long term partner!

3.We have a complete process chain in the industry, so we can provide you with better customized services.

4.Normally MOQ 500pcs, but we also accept small sample order for quality clients.

※How do we ensure our quality ?
1. In the field , well-known brands are our cooperative customers. We have provided them with oem services for 10 years. With their help, we have continuously optimized our quality control system.
2. We are confident to provide customers with top quality products as we have solid flow of Production Material Control (PMC),In-Process Quality Control (IPQC), Finished Product Quality Control (QC) and Delivery Quality Assurance (QA). To provide you with an extra level of protection, we check our items piece by piece prior to shipment.
3. Our products have passed ISO 9001,CE,ROSH, CCC and other certification .
