100w 18v Portable Foldable Solar Panel Kit Solar Charger

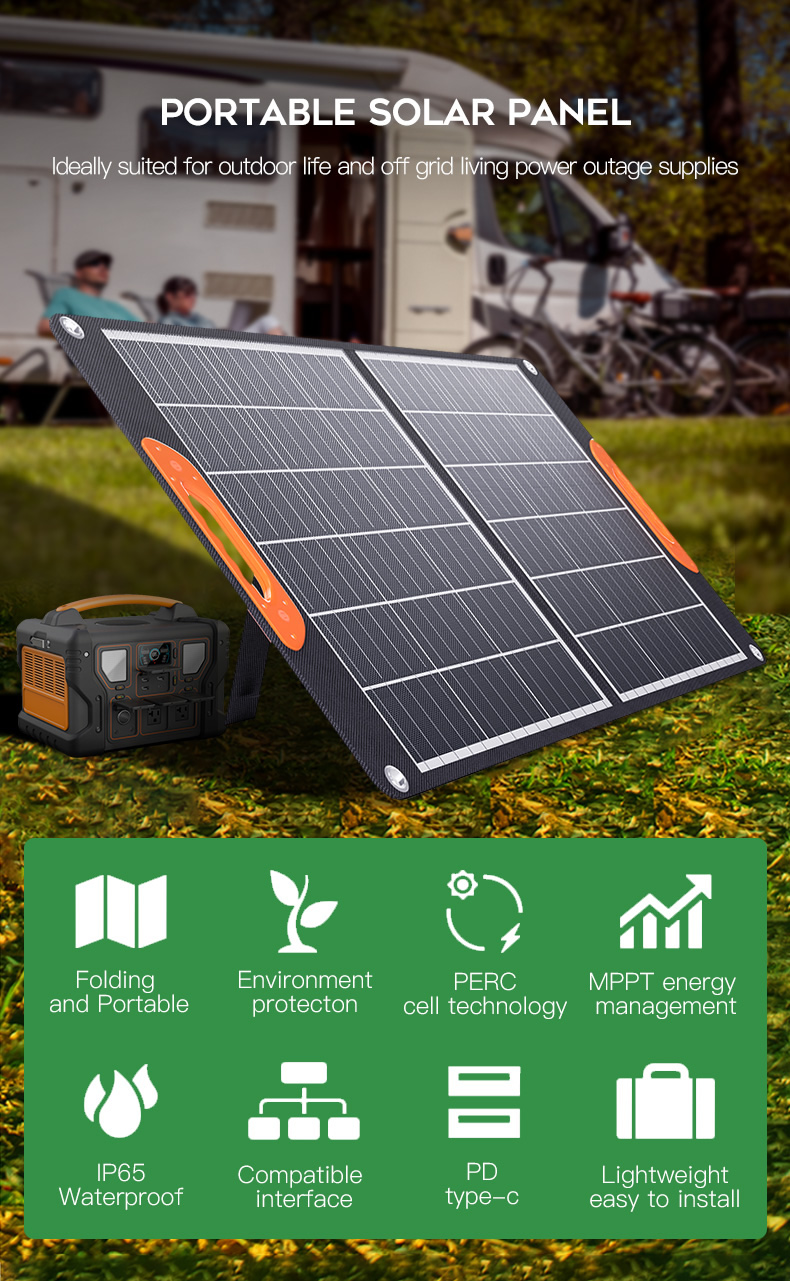

100w 18v Portable Foldable Solar Panel Kit Solar Charger With Controller Usb Output To Charge Batteries Power Station Rv Camping Trailer Emergency Power

Send Inquiry service@iacetop.com
Solar Panel Description

【PERFECT CHOICE FOR OUTDOOR AND EMERGENCY LIFE】-- 9.85ft (3m) cable length from panel to controller, For most power stations and 12-volt batteries(NCM,AGM,LiFePo4,Deep cycle batteries),RV,car,boat,trailer,truck,camping,van,emergency power.

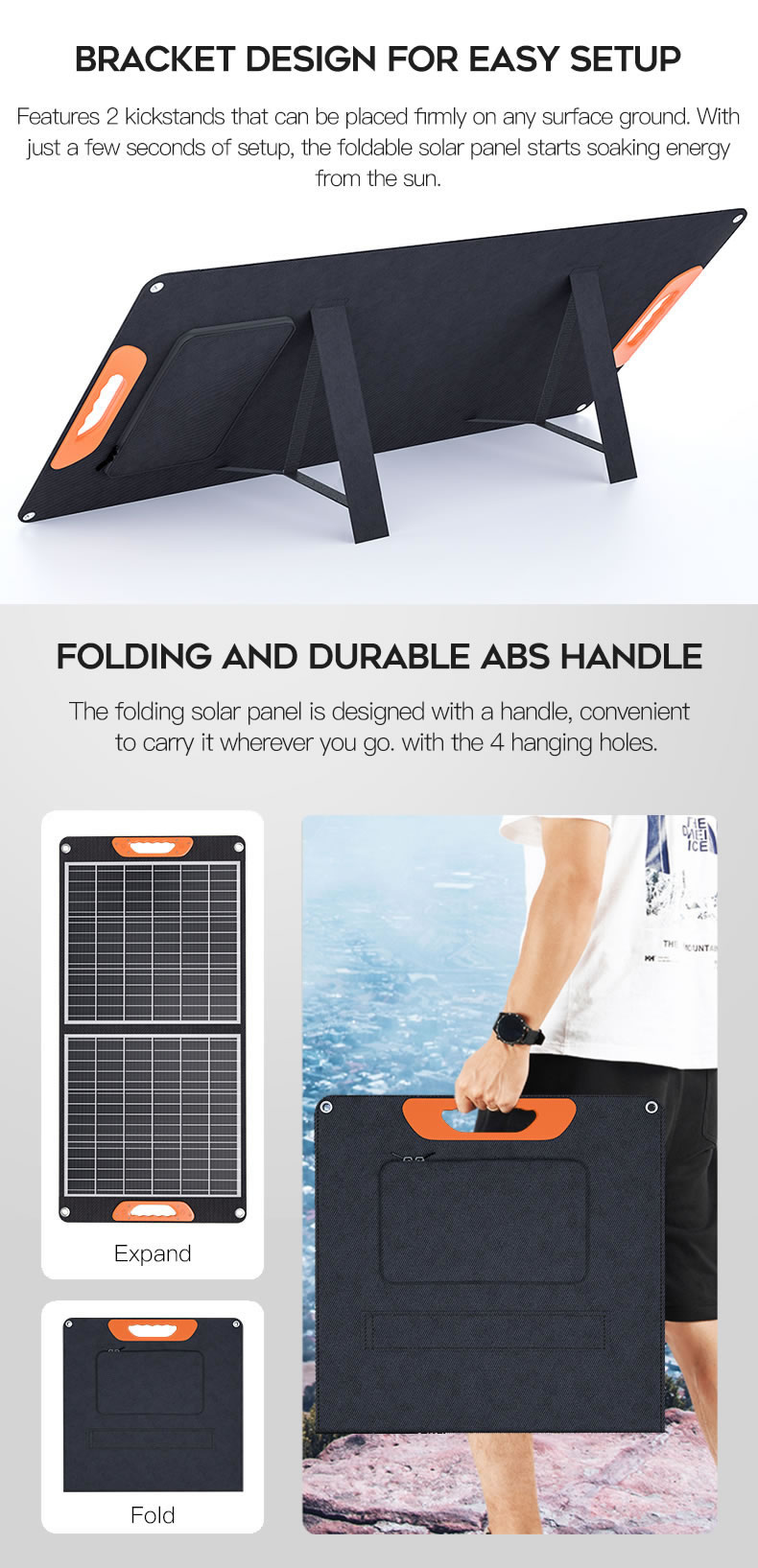

【FOLDABLE AND LIGHTWEIGHT EASY TO CARRY】-- This solar panel photovoltaic packs 100W of power yet is only 0.9inch (2.4cm) thick and weighs only 9lb (4.1kg), making it easier to mount, transport, hang, and remove.
【AFFORDABLE AND HIGH CONVERSION EFFICIENCY】-- With high efficiency monocrystalline solar cell, you will get greater power efficiency even though the panel is smaller than a traditional model.
【A Full and Ready to Go Kit】--Smart 4-Stage PWM charging (Bulk, Boost, Float, and Equalization) increases battery life and improves system performance. Intelligent protection against reverse polarity, overcharging, short-circuit, and reverse current. Integrated 5V 2A USB ports to charge USB devices.

Performance Advantages

Technical Parameter

Maximum power at STC(Pmax) 60W 100W 150W 200W
Optimum Operating Voltage(Vmp) 18V 18V 18V 18V
Open-Circuit Voltage(Voc) 21V 21.2V 20V 20V
Optimum Operating Current(Imp) 3.3A 5.55A 8.3A 11A
Short-Circuit Current(Isc) 3.6A 6A 9A 12A
Power Tolerance ±3% ±3% ±2.8% ±2.5%
Cell Efficiency rate 22% 22% 22% 22%

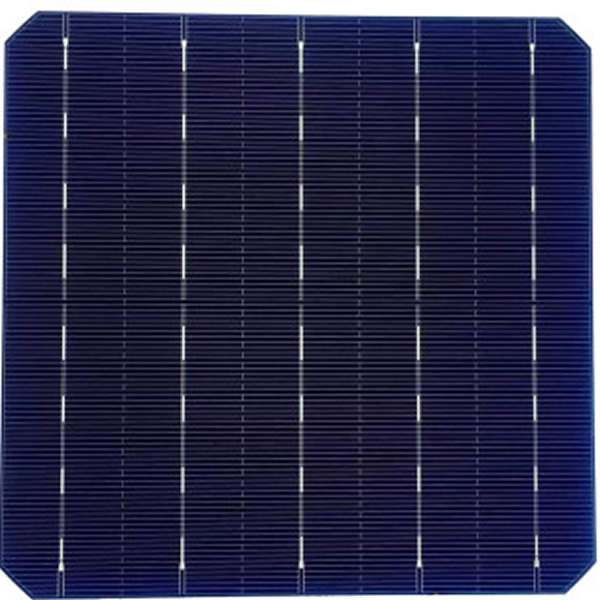

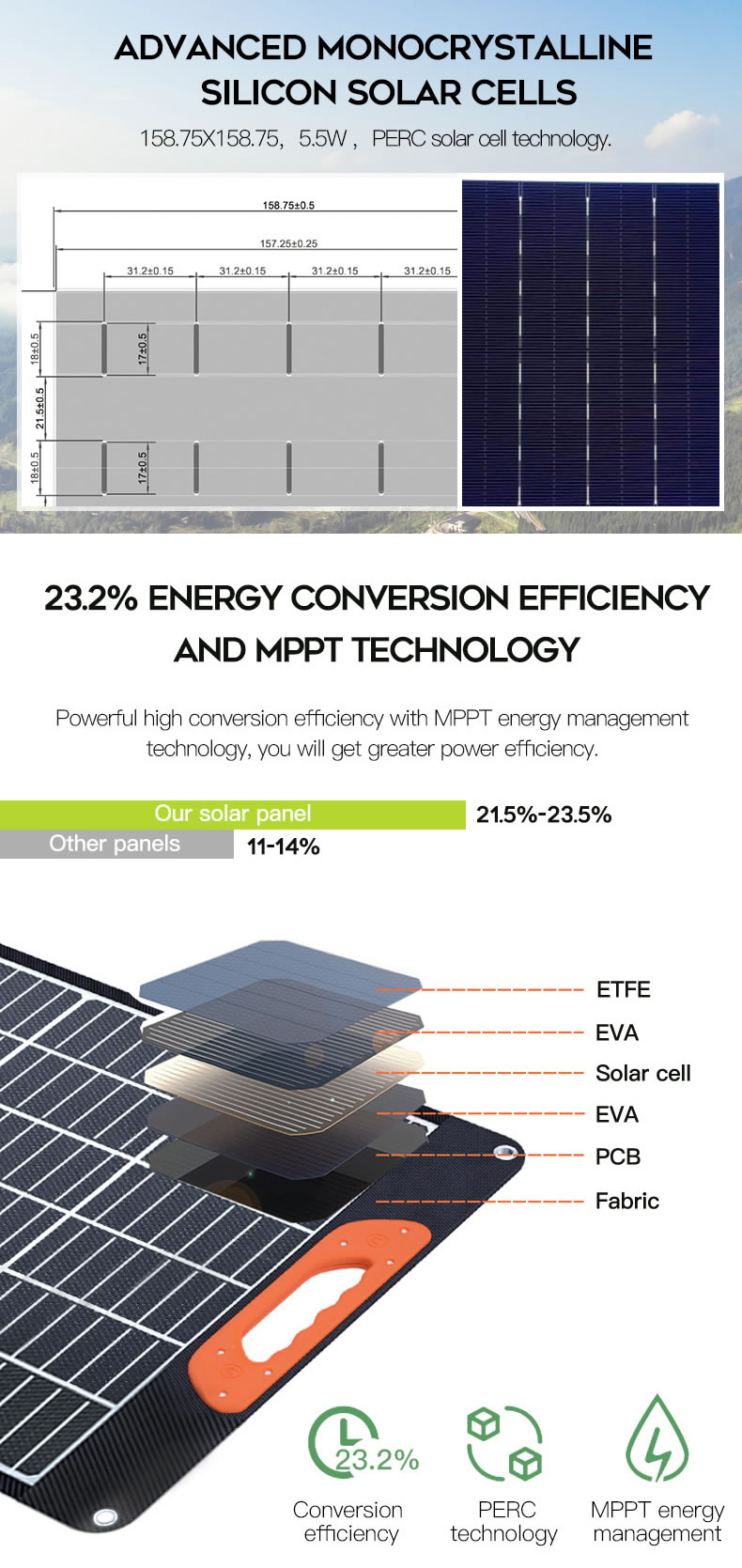

Solar cell Type Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W

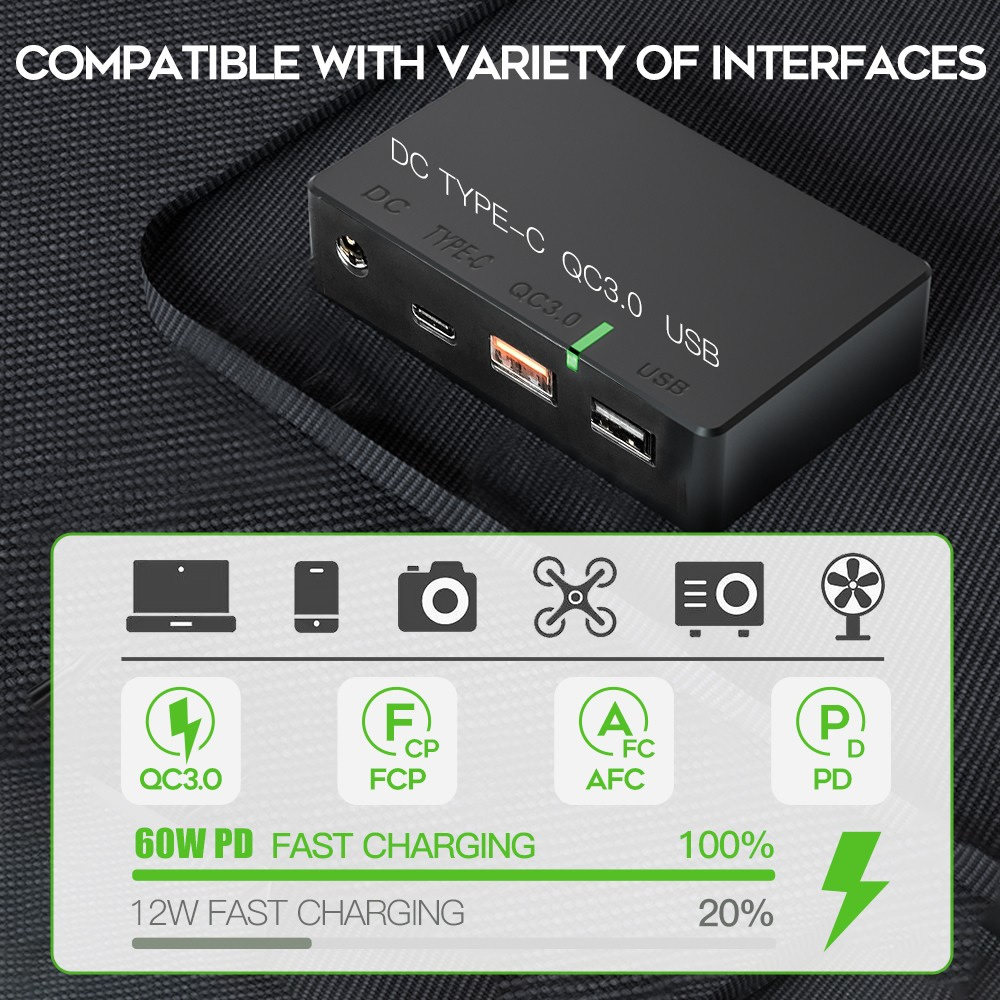

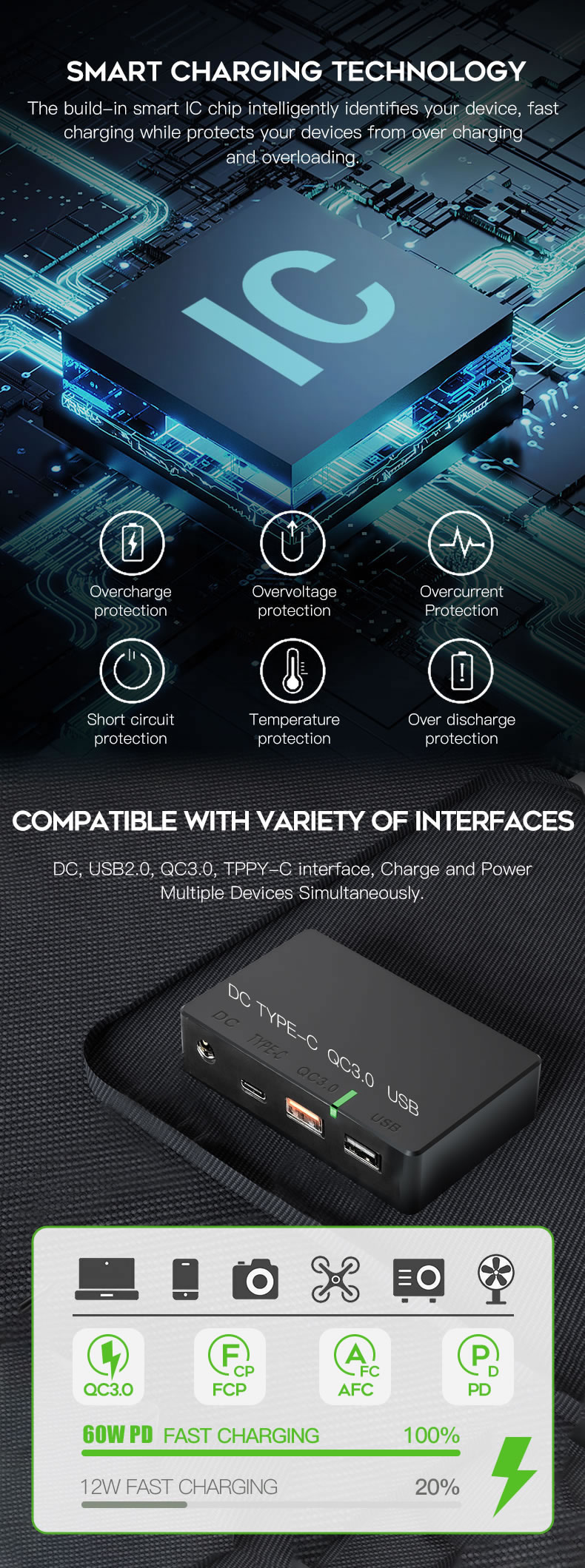

0utput Interface USB2.0 (5V 3A )
QC3.0 (5V3.4A / 9V2.5A / 12V2A )
PD( 5V/ 9V/ 12V/ 15V ,3A )
DC 18V/3A Max
USB2.0 (5V 3A )
QC3.0 (5V3.4A / 9V2.5A / 12V2A )
PD( 5V/ 9V/ 12V/ 15V ,3A )
DC 18V/5A Max
USB2.0 (5V 3A )
QC3.0 (5V3.4A / 9V2.5A / 12V2A )
PD( 5V/ 9V/ 12V/ 15V ,3A )
DC 18V/8A Max
USB2.0 (5V 3A )
QC3.0 (5V3.4A / 9V2.5A / 12V2A )
PD( 5V/ 9V/ 12V/ 15V ,3A )
DC 18V/11A Max
Protection System Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity

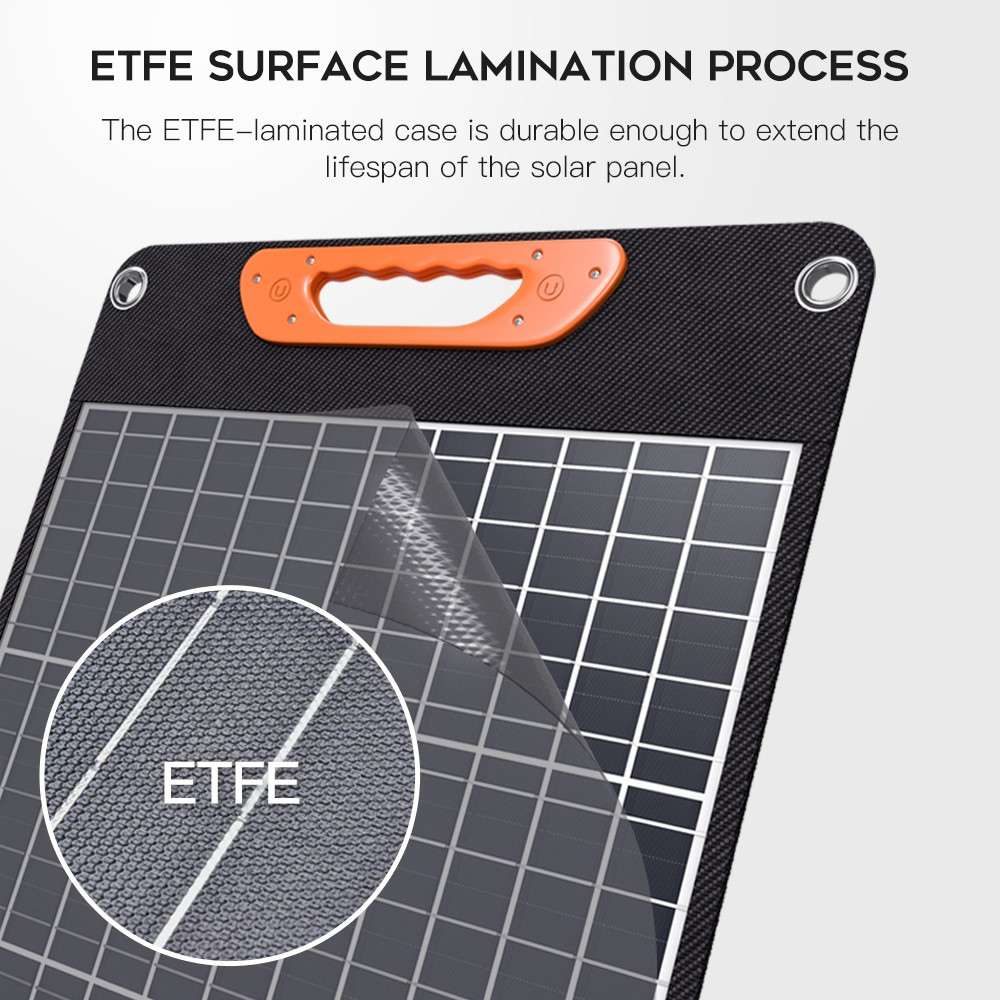

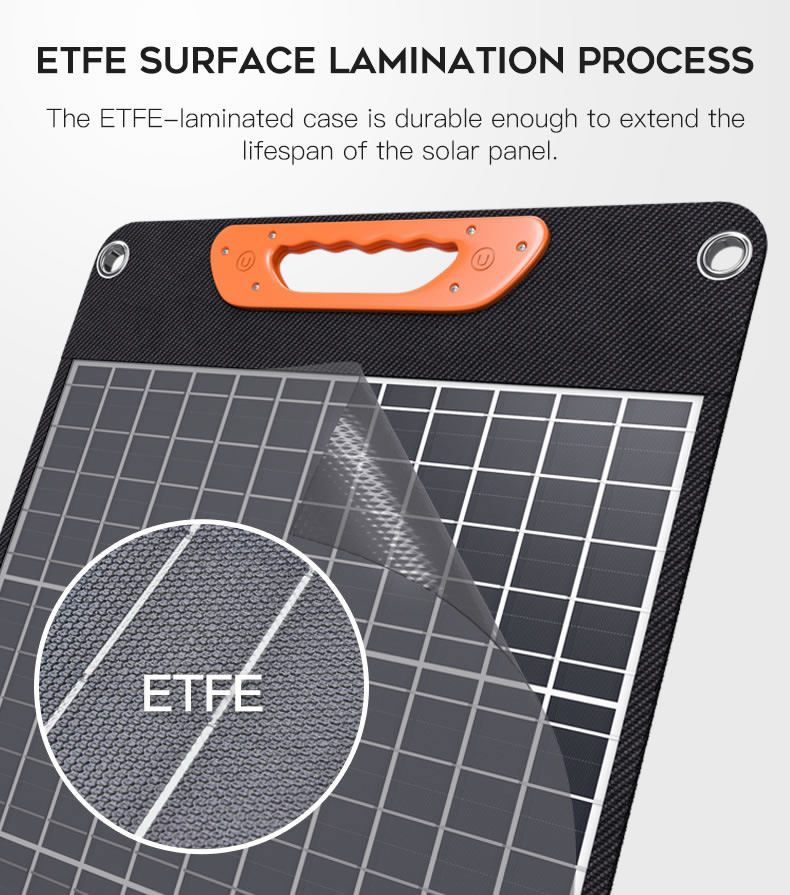

Sealing process ETFE ETFE ETFE ETFE
Operating Temperature -40℃ to +85 ℃ -40℃ to +85 ℃ -40℃ to +85 ℃ -40℃ to +85 ℃
Bag material 600D Oxford cloth , ABS 600D Oxford cloth , ABS 600D Oxford cloth , ABS 600D Oxford cloth , ABS

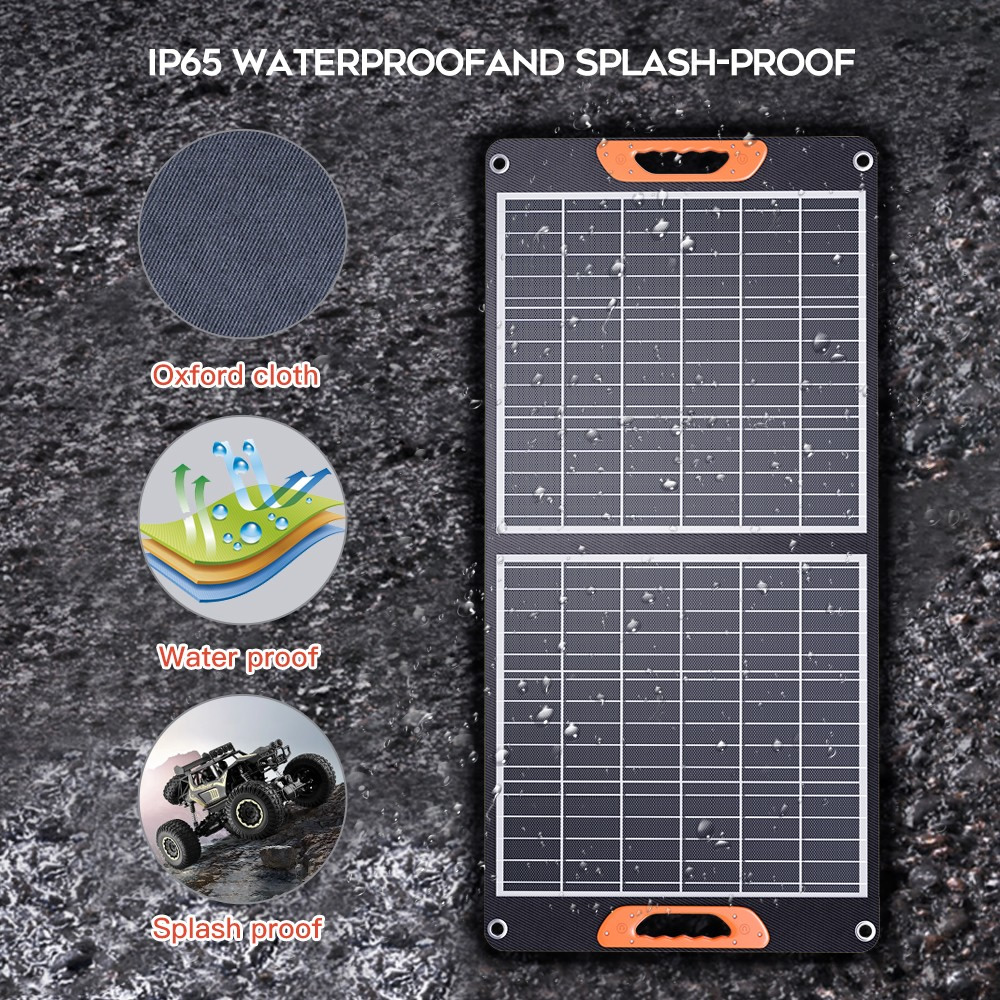

Junction Box Ip65 Waterproof Ip65 Waterproof Ip65 Waterproof Ip65 Waterproof
Open size 830x520x16mm 1177*520*16MM 1955*508*16MM 2300*530*16mm
Folding size 520x415x30mm 590*520*30MM 540*508*50MM 630*530*50mm
Net weight 2.7KG 3.7KG 6.1KG 6.5KG
OEM service Can be customized Fabric color, Handle color, Power, Voltage, Size, Junction box, Connector, Packing box

OEM Service Advantages


※ Professional manufacturer of energy field of solar panel and power station.
※ Parameters,appearance, performance, power,battery capacity,voltage , PCB,software ,Color, size, APP, logo, packaging, can be customized.
Thanks to more than 15 dedicated engineers with strong engineering capability and extensive experience in system R & D, we keep developing new products every year to keep up to date with the market. we pride ourselves on our ability to meet our customers' needs. If one of our standard products doesn't meet your requirements, we can custom-design a product for you.

FAQ

※What make our product difference from other factory?
1.Our clients benefit from lower manufacturing costs and time-to-market volume production through over 180 highly qualified staffs and the 7500 square meters workshop, including a mold development center, a metal and plastic injection center,a hardware processing center,5 product assembling centers , Printing workshop.

2. We have a highly experienced and efficient R&D, Design, Sales and Management team with top educational background. We provide full after sales and technical support. With our passionate and professional support team, ACETOP looks forward to being your supplier.
You can be assured your products receive priority treatment. We strive to have our customers regard us as strategic manufacturing partners, an integral part of their operations. Our headquarter center are located in Shanghai, China. Contact us at once to make us your long term partner!

3.We have a complete process chain in the industry, so we can provide you with better customized services.

4.Normally MOQ 500pcs, but we also accept small sample order for quality clients.

※How do we ensure our quality ?
1. In the field , well-known brands are our cooperative customers. We have provided them with oem services for 10 years. With their help, we have continuously optimized our quality control system.


2. We are confident to provide customers with top quality products as we have solid flow of Production Material Control (PMC),In-Process Quality Control (IPQC), Finished Product Quality Control (QC) and Delivery Quality Assurance (QA). To provide you with an extra level of protection, we check our items piece by piece prior to shipment.

3. Our products have passed ISO 9001,CE,ROSH, CCC and other certification .
